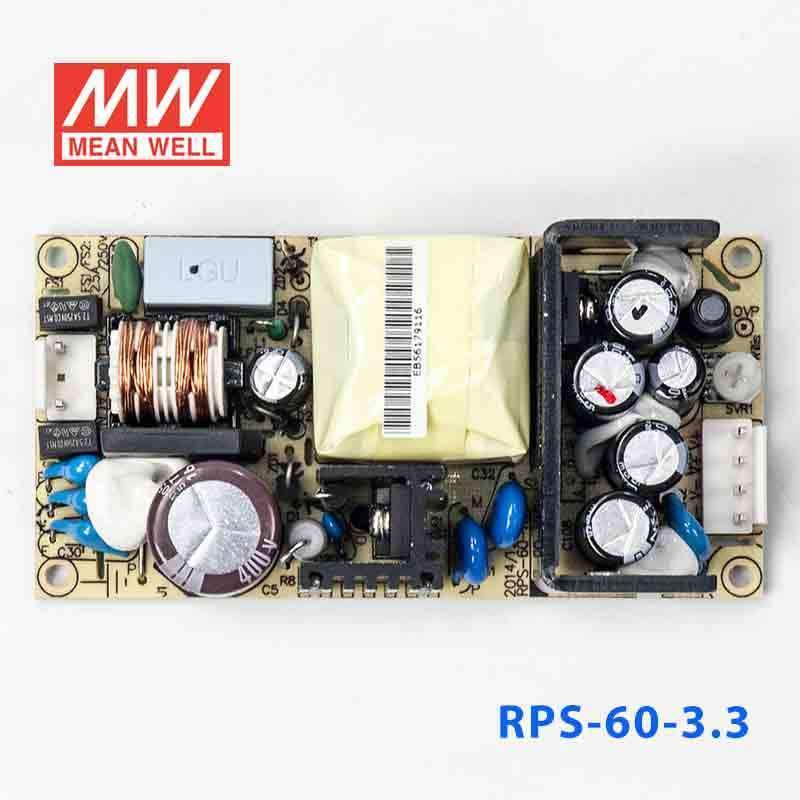

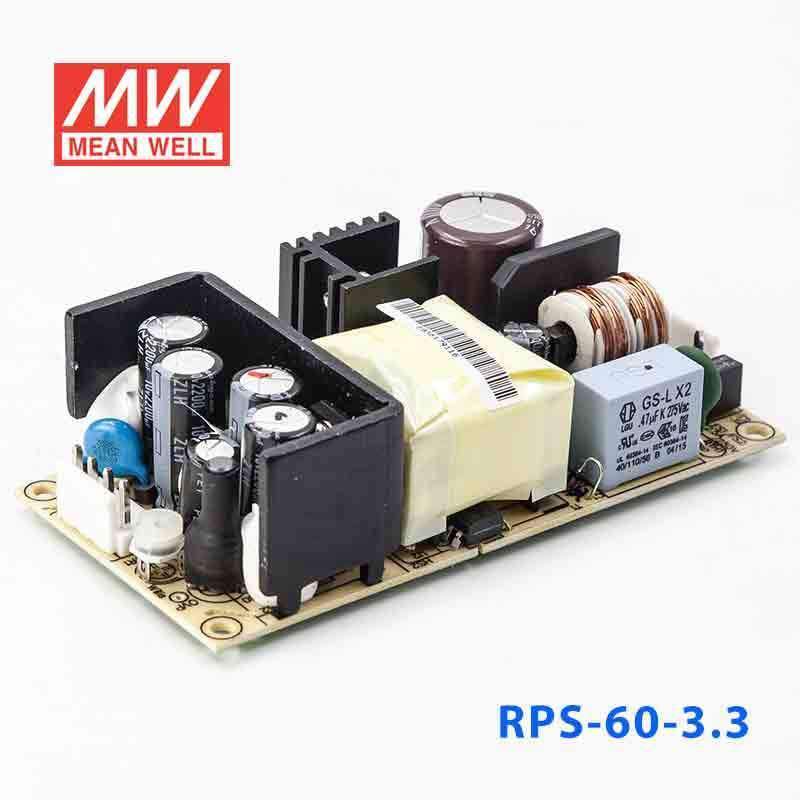

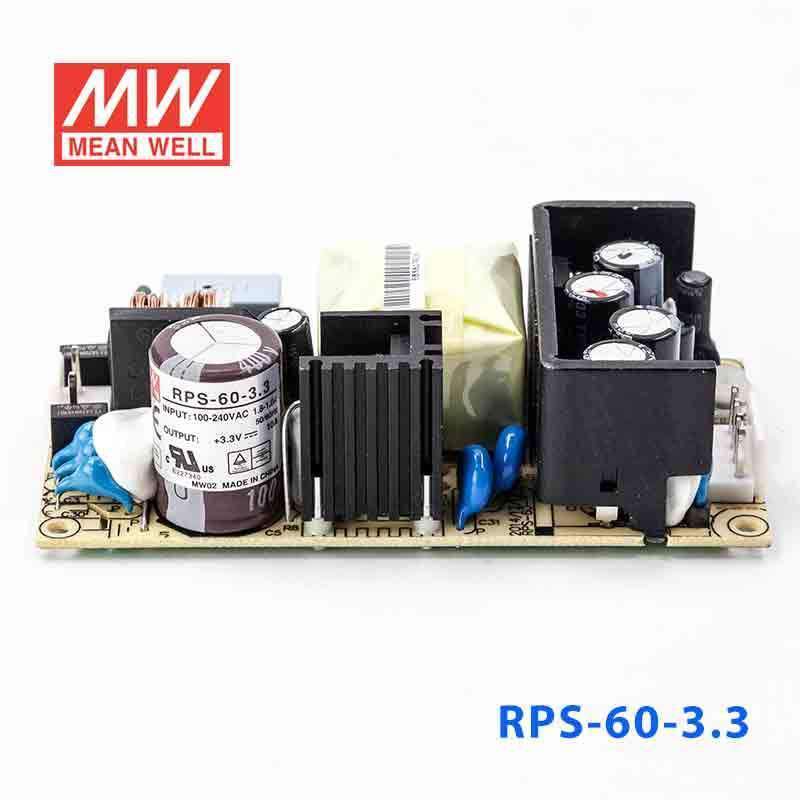

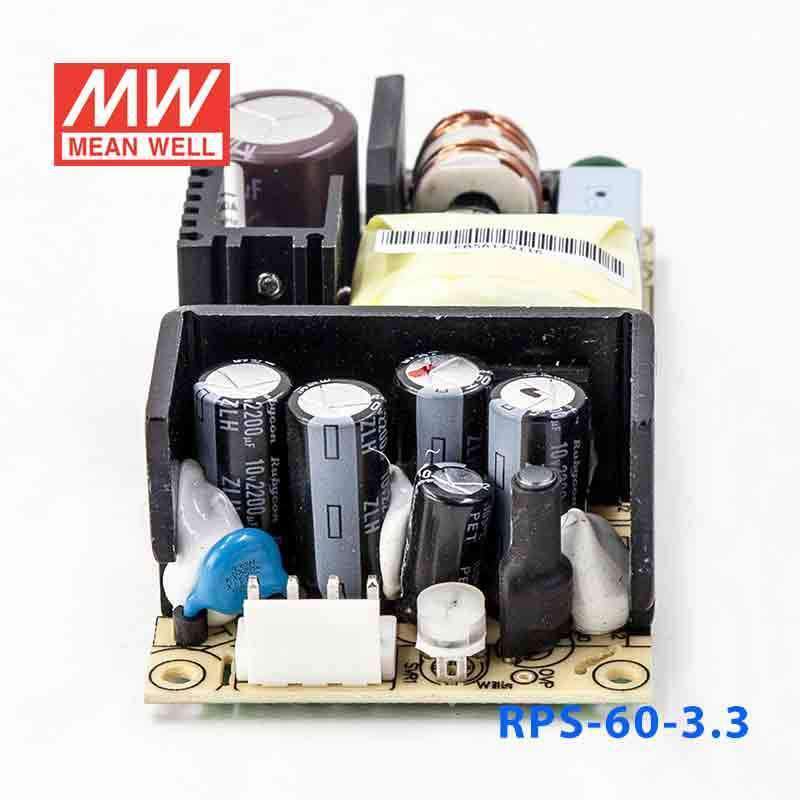

Mean Well RPS-60-3.3 Green Power Supply W 3.3V 10A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-60-3.3 Green Power Supply W 3.3V 10A - Medical Power ...
The RPS-60 is a 60W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating33 Watt
-
Output Voltage3.3 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the RPS-60-3.3 for 3.3V embedded control boards or SBC-based equipment?
It is designed as a constant-voltage 3.3V supply and can deliver up to 10A, with 33W total output power. That makes it a fit for embedded electronics that require a regulated 3.3V rail and have a load within those limits.
Is the RPS-60-3.3 suitable for industrial automation electronics that run on a 3.3V logic rail?
It can be used for automation electronics when the system requires a constant 3.3V output and the total load stays within 10A and 33W. The wide 90-264VAC input also helps when the equipment needs to accept common global AC mains ranges.
Can this power supply be used in medical or diagnostic electronics?
This model is medical safety approved and is specified with extremely low leakage current. For medical or diagnostic electronics that need 3.3V constant-voltage output up to 10A, those approvals make it more suitable than a general-purpose open-frame supply.
Would the RPS-60-3.3 work for a 3.3V test fixture or lab control assembly?
Yes, it can fit bench, fixture, or lab control equipment that needs a steady 3.3V output within 33W. Its compact 101.6 x 50.8 x 29.0 mm size also helps where board space is limited.
Can the RPS-60-3.3 be used outdoors or in harsh environments?
The operating temperature range is -20°C to +70°C, but no IP rating is listed in the provided specs. That means temperature capability is defined, while dust and water protection are not, so outdoor use depends on the enclosure around the power supply.
