Mean Well

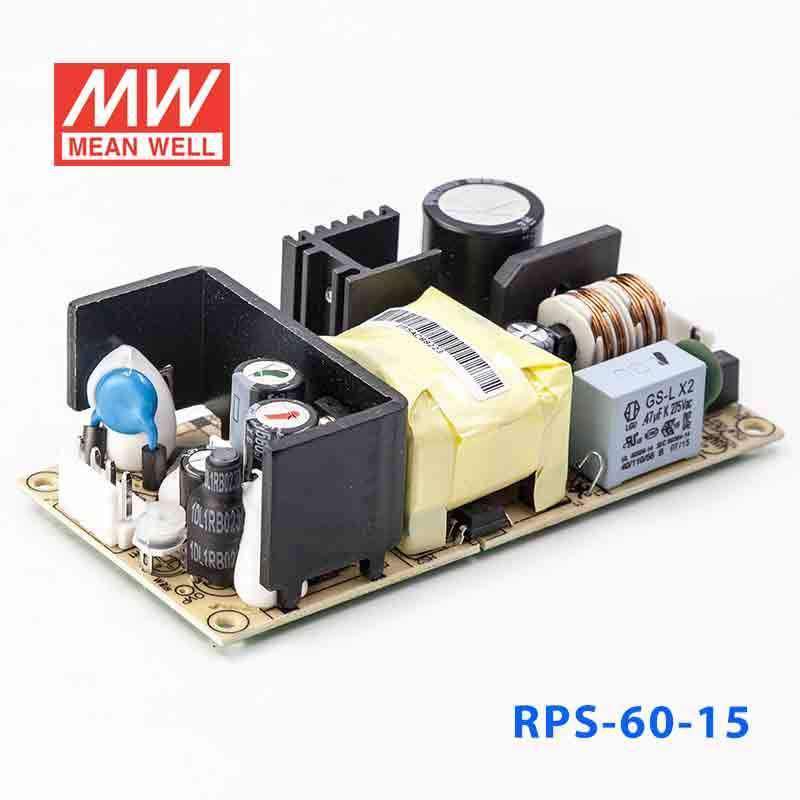

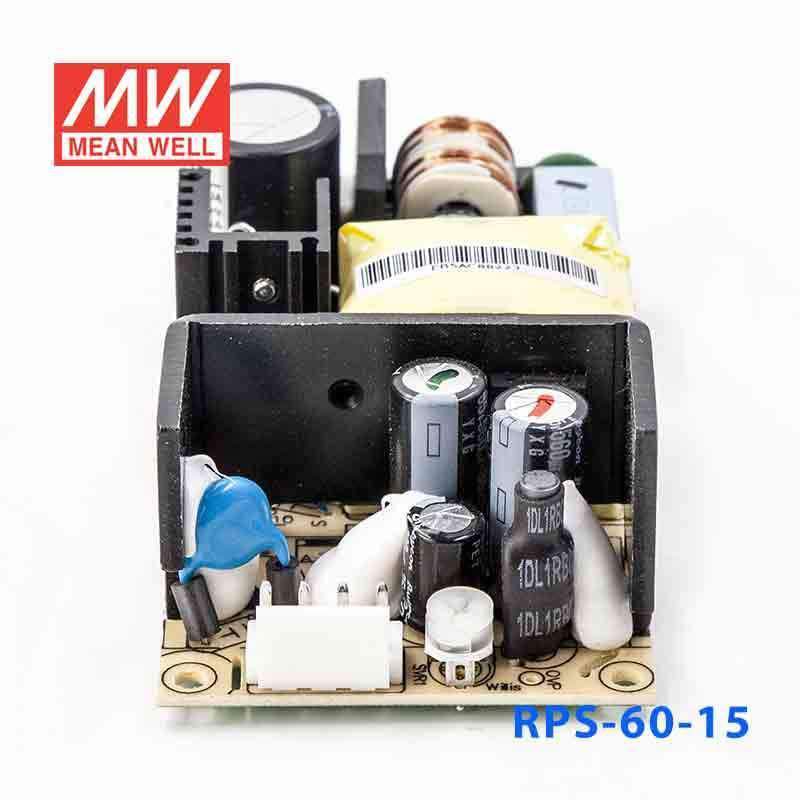

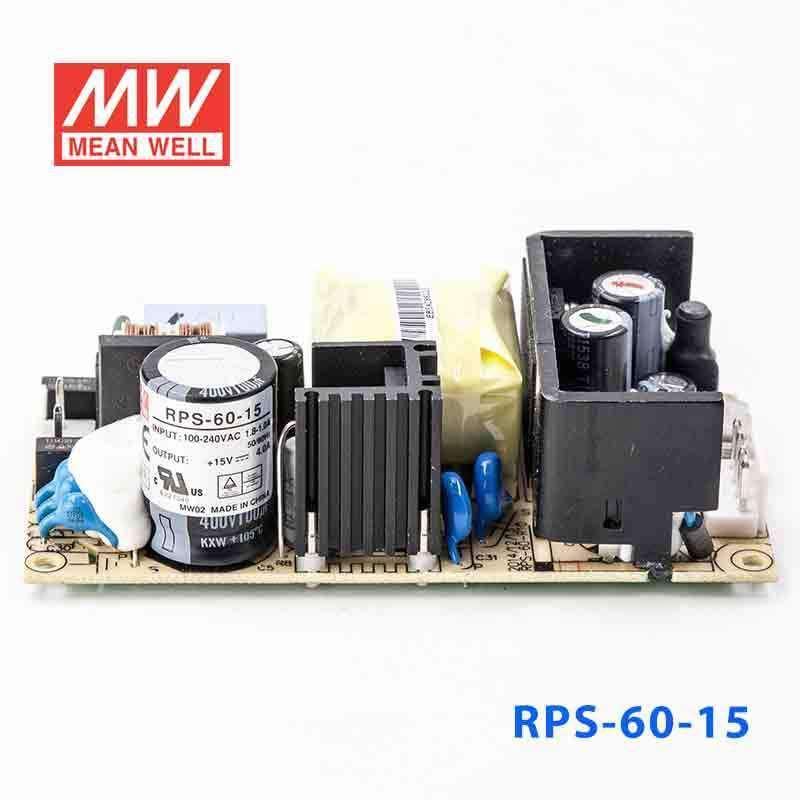

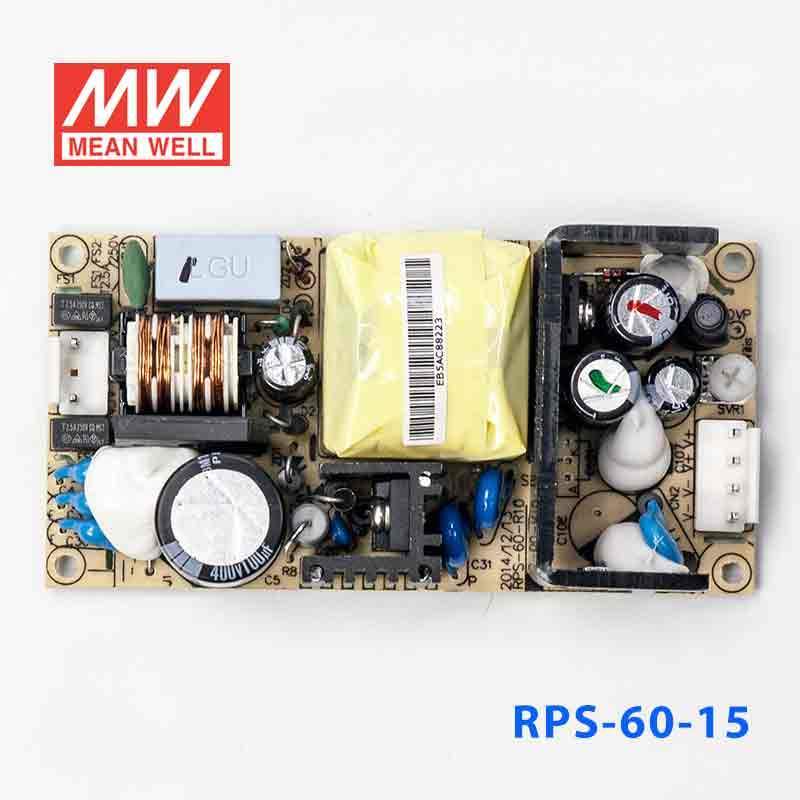

Mean Well RPS-60-15 Green Power Supply 60W 15V 4A - Medical Power Supply

4" x 2" compact sizemedical safety approvedno load power consumption < 0.75Wextremely low leakage current
SKU RPS-60-15
$15.98 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

RPS-60-15 is the 15V output model of this series: rated current 4A, rated power 60W, typical efficiency 85%.

RPS-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4” by 2” footprint. It accepts 90~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 86% and the extremely low no load power consumption is down below 0.75W. RPS-60 is able to be used for ClassⅠ (with FG) system design. The extremely low leakage current is less than 150μA. In addition, it conforms to international IT and medical regulations (2*MOPP) and EMC BS EN/EN55022/BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.

Features

  • 4"×2" compact size
  • IT & Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 , IEC/BS EN/EN60601-1 and IEC/BS EN/EN/UL 62368-1
  • Suitable for BF application with appropriate system consideration
  • Cooling by free air convection
  • EMI class B for class Ⅰ configuration
  • No load power consumption<0.75W
  • Protections: Short circuit / Overload / Over voltage
  • Operating altitude up to 3000 meters
  • 3 years warranty

Specifications

RPS-60-15Specifications from the official datasheet (2026-02-28 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
4A
CURRENT RANGE
0 ~ 4.4A
RATED POWER
60W
PEAK LOAD(10sec.)Note.2
66W
RIPPLE & NOISE (max.)Note.3
100mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 16.5V
VOLTAGE TOLERANCENote.4
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
60ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
85%
AC CURRENT (Typ.)
1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.)
COLD START 60A/230VAC 30A/115VAC
LEAKAGE CURRENT(max.)Note.5
Earth leakage current < 150μA/264VAC , Touch current < 100μA/264VAC

PROTECTION

OVER LOAD
115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.2 ~ 20.3V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.6
3000 meters

SAFETY & EMC (Note 8)

SAFETY STANDARDS
IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, IEC 62368-1:2014, UL 62368-1, 2nd Ed, CSA C22.2 No. 62368-1-14, 2nd Ed, TUV BS EN/ EN 62368-1:2014+A11, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55011 (CISPR11)Class B
Radiated emissionBS EN/EN55011 (CISPR11)Class B
Harmonic currentBS EN/EN61000-3-2Class A
Voltage flickerBS EN/EN61000-3-3-----; BS EN/EN55035 ， BS EN/EN60601-1-2
EMC IMMUNITY
ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
5153.0K hrs min. Telcordia SR-332 (Bellcore) ; 353.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H)
101.6*50.8*29mm or 4" * 2" *1.141" inch
PACKING
0.15Kg; 96pcs/15.4Kg/0.89CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. Touch current was measured from primary input to DC output.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  7. 7. Heat Sink HS1,HS2 can not be shorted.
  8. 8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPS-60-15 Block Diagram
Block Diagram
RPS-60-15 Mechanical Specification
Mechanical Specification
RPS-60-15 3max.
3max.
RPS-60-15 AC Input Connector (CN1) : JST B3P-VH or equivalent
AC Input Connector (CN1) : JST B3P-VH or equivalent
RPS-60-15 DC Output Connector (CN2) : JST B4P-VH or equivalent
DC Output Connector (CN2) : JST B4P-VH or equivalent

Typical applications

  • Oral irrigator
  • Hemodialysis machine
  • Medical computer monitors
  • Sleep apnea devices

Downloads

FAQ

Can I use the RPS-60-15 for a 15V automation controller or industrial interface board?

Yes, it fits 15V equipment when the total demand stays within 4A and 60W. Since it is a constant voltage supply, it should be matched to loads designed for a 15V DC input.

Is the RPS-60-15 a good fit for embedded electronics that require 15V DC?

It can be used for compact embedded systems built around a 15V rail, provided the load does not exceed 4A. The input range is 90-264VAC, so it can support equipment intended for broad AC input conditions.

Can this power supply support medical or diagnostic equipment that runs on 15V?

Yes, this model is medical safety approved and is specified with extremely low leakage current. It is suitable for 15V medical or diagnostic electronics up to 4A and 60W.

Is the RPS-60-15 suitable for harsh outdoor environments?

The provided specs do not include an IP rating, so it is better treated as an indoor or enclosed-use power supply rather than an exposed outdoor unit. Its operating temperature range is -20°C to +70°C (output derates at higher ambient temperatures, per the derating curve), which addresses temperature but not water or dust ingress.

What makes the RPS-60-15 practical for space-limited equipment?

It uses a 101.6 × 50.8 × 29.0 mm open-frame format and weighs 0.15 kg, which helps when internal space is limited. The model also specifies no load power consumption below 0.75W and cools by free air convection.
