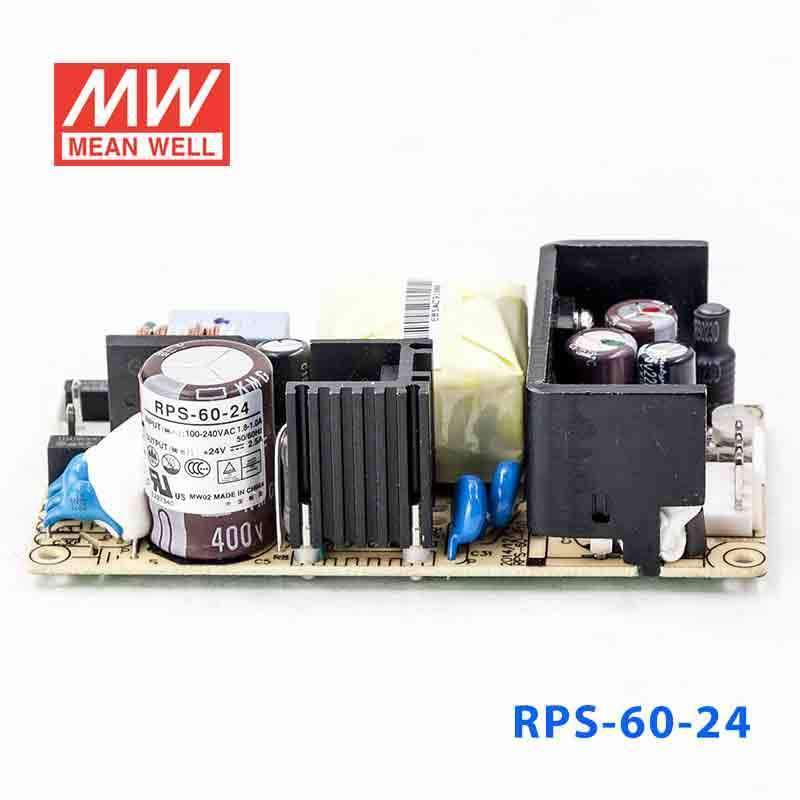

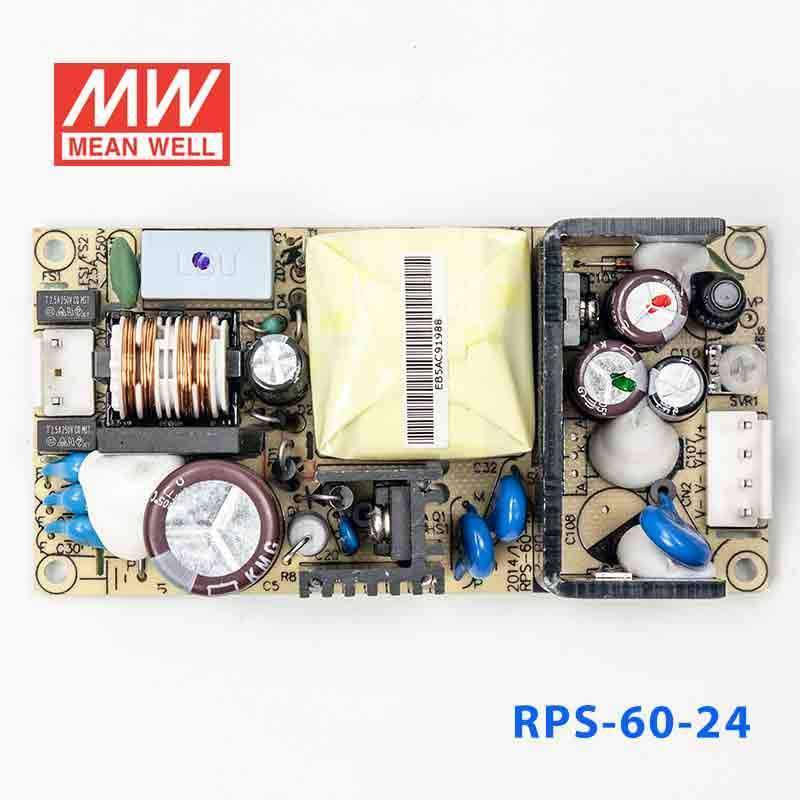

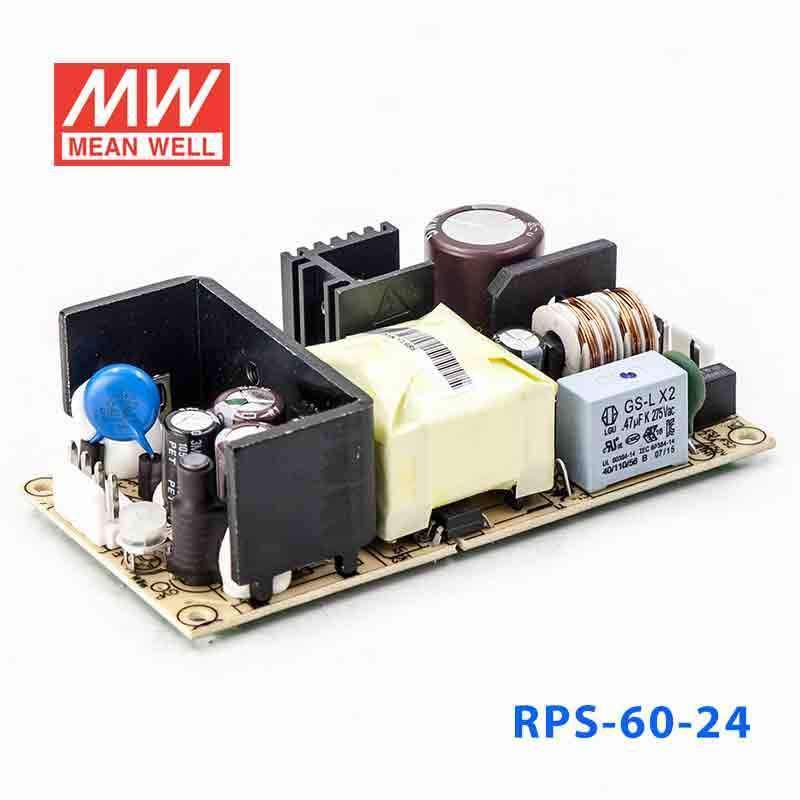

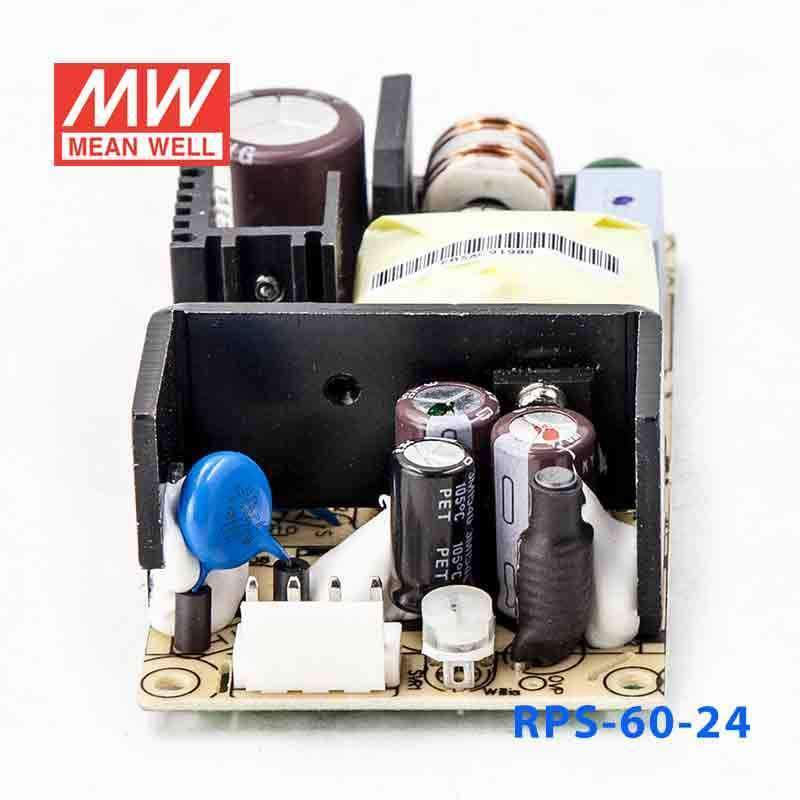

Mean Well RPS-60-24 Green Power Supply 60W 24V 2.5A - Medical Power Supply

Name: Mean Well RPS-60-24 Green Power Supply 60W 24V 2.5A - Medical Power Supply
Brand: Mean Well
SKU: RPS-60-24
Price: 15.98 USD
Availability: InStock

4" x 2" compact sizemedical safety approvedno load power consumption < 0.75Wextremely low leakage current

SKU RPS-60-24

$15.98 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

RPS-60-24 is the 24V output model of this series: rated current 2.5A, rated power 60W, typical efficiency 87%.

RPS-60 is a 60W highly reliable green PCB type medical power supply with a high power density on the 4” by 2” footprint. It accepts 90~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 86% and the extremely low no load power consumption is down below 0.75W. RPS-60 is able to be used for ClassⅠ (with FG) system design. The extremely low leakage current is less than 150μA. In addition, it conforms to international IT and medical regulations (2*MOPP) and EMC BS EN/EN55022/BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.

Features

4"×2" compact size
IT & Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 , IEC/BS EN/EN60601-1 and IEC/BS EN/EN/UL 62368-1
Suitable for BF application with appropriate system consideration
Cooling by free air convection
EMI class B for class Ⅰ configuration
No load power consumption<0.75W
Protections: Short circuit / Overload / Over voltage
Operating altitude up to 3000 meters
3 years warranty

Specifications

RPS-60-24Specifications from the official datasheet (2026-02-28 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 2.5A
CURRENT RANGE: 0 ~ 2.75A
RATED POWER: 60W
PEAK LOAD(10sec.)^Note.2: 66W
RIPPLE & NOISE (max.)^Note.3: 100mVp-p
VOLTAGE ADJ. RANGE: 22.8 ~ 27.6V
VOLTAGE TOLERANCE^Note.4: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 60ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 1.8A/115VAC 1 A/230VAC
INRUSH CURRENT (Typ.): COLD START 60A/230VAC 30A/115VAC
LEAKAGE CURRENT(max.)^Note.5: Earth leakage current < 150μA/264VAC , Touch current < 100μA/264VAC

PROTECTION

OVER LOAD: 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 28.4 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.6: 3000 meters

SAFETY & EMC (Note 8)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, IEC 62368-1:2014, UL 62368-1, 2nd Ed, CSA C22.2 No. 62368-1-14, 2nd Ed, TUV BS EN/ EN 62368-1:2014+A11, EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP, Secondary-Earth:1xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3 -----; BS EN/EN55035 ， BS EN/EN60601-1-2
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3	-----; BS EN/EN55035 ， BS EN/EN60601-1-2

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 4, 4KV/Line-FG; 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 5153.0K hrs min. Telcordia SR-332 (Bellcore) ; 353.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H): 101.6*50.8*29mm or 4" * 2" *1.141" inch
PACKING: 0.15Kg; 96pcs/15.4Kg/0.89CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Touch current was measured from primary input to DC output.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. Heat Sink HS1,HS2 can not be shorted.
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPS-60-24 Mechanical Specification — Mechanical Specification

RPS-60-24 AC Input Connector (CN1) : JST B3P-VH or equivalent — AC Input Connector (CN1) : JST B3P-VH or equivalent

RPS-60-24 DC Output Connector (CN2) : JST B4P-VH or equivalent — DC Output Connector (CN2) : JST B4P-VH or equivalent

Typical applications

Oral irrigator
Hemodialysis machine
Medical computer monitors
Sleep apnea devices

Downloads

Certificates5

EMC Certificate (RPS-60)(EN) PDF Download

UL(e183223)Certificate(RPS-60)(EN) PDF Download

CB Certificate (RPS-60)(EN) PDF Download

TUV Certificate (RPS-60)(EN) PDF Download

UL(e227340)Certificate(RPS-60)(EN) PDF Download

Test reports1

Test Report(RPS-60-24)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RPS-60-24 for a 24V sensor, I/O, or small automation controller load?

Yes, it is appropriate for 24V industrial and automation loads that stay within 2.5A and 60W. Because it is a constant voltage supply, it is intended for equipment designed for a 24V DC input.

Is the RPS-60-24 suitable for compact 24V embedded or communications equipment?

It can fit 24V embedded or communications hardware when the power requirement does not exceed 60W. The rated output is 24V at up to 2.5A, and the AC input range is 90-264VAC.

Can this model be used in medical devices that need a 24V DC power stage?

Yes, the RPS-60-24 is medical safety approved and is described as having extremely low leakage current. It is suitable for 24V medical electronics as long as the load stays within 2.5A and 60W.

Is the RPS-60-24 designed for outdoor or wet locations?

No IP rating is listed in the provided specs, so it is better suited to indoor applications or protected enclosures than exposed wet or dusty environments. The operating temperature range is -20°C to +70°C (output derates at higher ambient temperatures, per the derating curve), but the environmental sealing level is not specified.

Why is the RPS-60-24 often chosen for low-power 24V equipment?

It combines a 24V, 2.5A, 60W output with a compact 101.6 × 50.8 × 29.0 mm size and 0.15 kg weight. It also lists no load power consumption below 0.75W, which can be relevant in equipment that remains powered for long periods.
