Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well RPS-60-5 Green Power Supply W 5V 10A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours

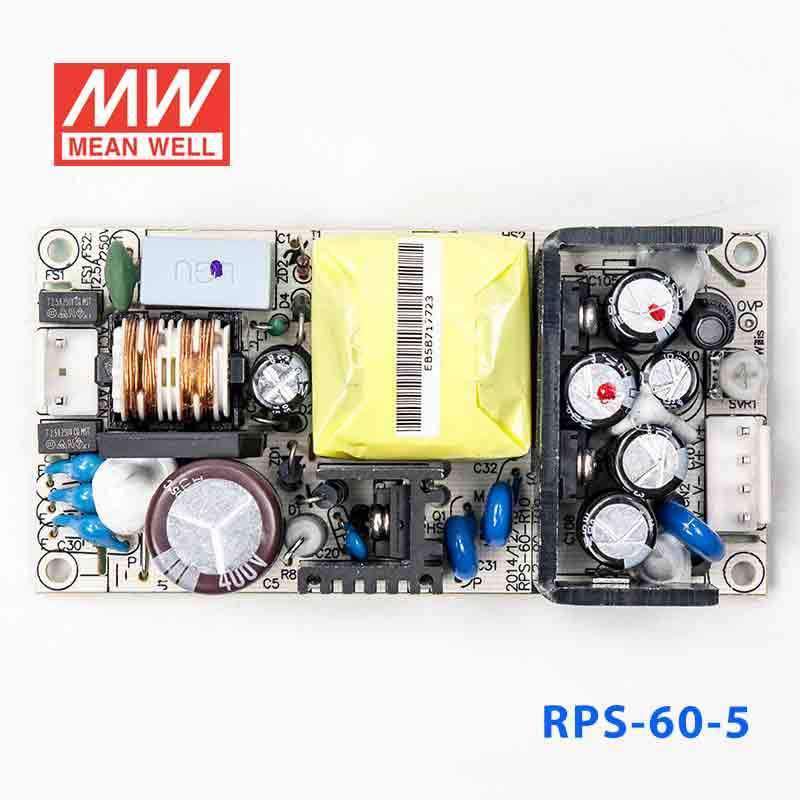

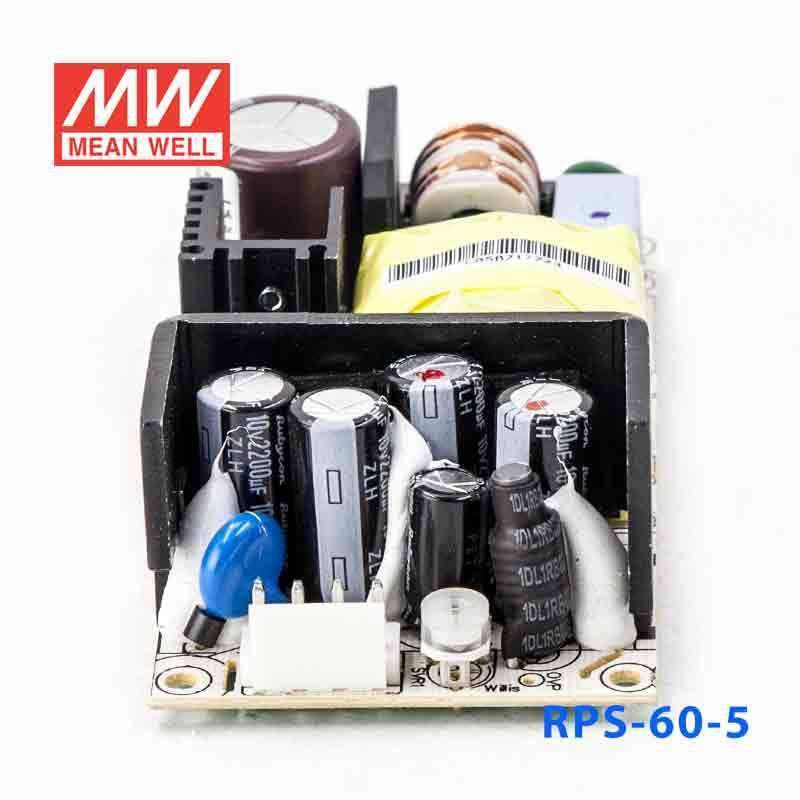

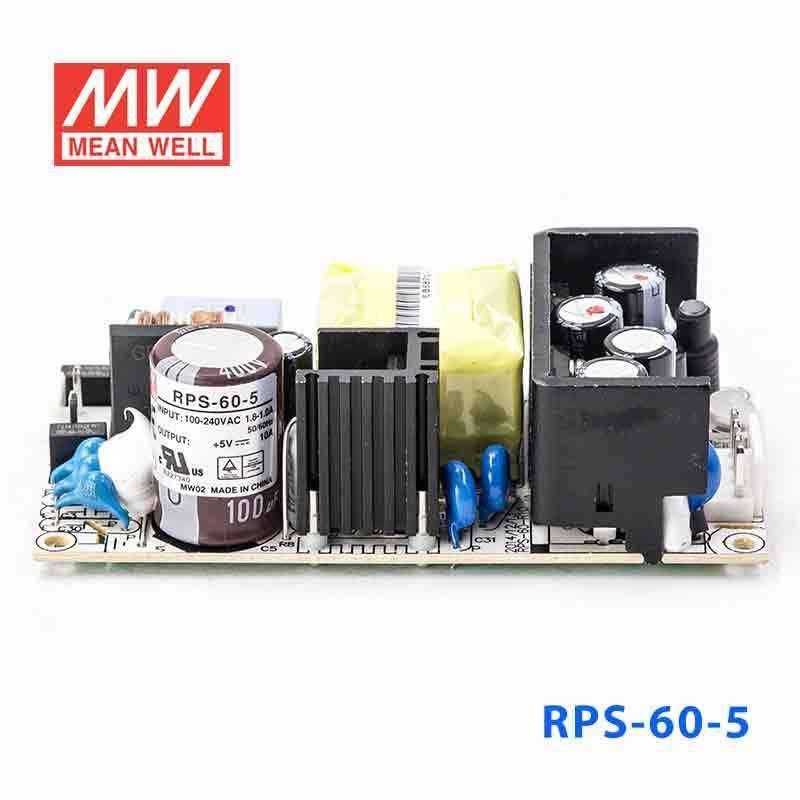

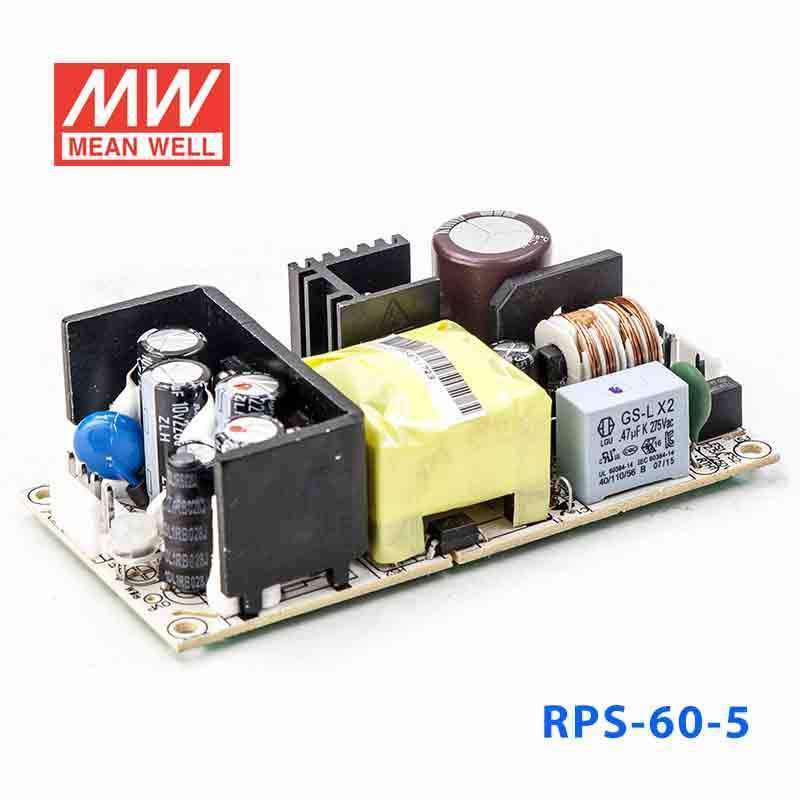

Mean Well RPS-60-5 Green Power Supply W 5V 10A - Medical Power Supply
The RPS-60 is a 60W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the RPS-60-5 for 5V embedded computers, controllers, or USB-powered electronics?
It provides a constant 5V output up to 10A, with 50W total power available. That makes it suitable for 5V embedded electronics as long as the combined load stays within those limits.
Is the RPS-60-5 appropriate for industrial 5V logic and control hardware?
Yes, for industrial logic or control hardware that needs a regulated 5V rail and no more than 10A output current. The wide 90-264VAC input range is also useful for equipment that may be installed in different mains regions.
Can this power supply be used for 5V medical or diagnostic devices?
This model is medical safety approved and includes extremely low leakage current, which matters when selecting a supply for medical or diagnostic electronics. It is a fit for 5V systems whose load remains within 50W and 10A.
Would the RPS-60-5 work for a 5V test bench, automation fixture, or OEM assembly?
It can work well in compact OEM or fixture builds because the unit measures 101.6 x 50.8 x 29.0 mm and weighs 0.15 kg. The electrical fit still depends on the application requiring constant 5V output within the 50W rating.
Can the RPS-60-5 be used in outdoor or dusty locations?
The specified operating temperature is -20°C to +70°C, but no IP rating is listed. That means the temperature range is defined, while environmental sealing is not, so outdoor or dusty use depends on the final enclosure.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPS-60 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPS-60-48 Green Power Supply W 48V 1.25A - Medical Power Supply | 60W | 48V | 1.25A | Indoor | $15.98 | View |
| Mean Well RPS-60-3.3 Green Power Supply W 3.3V 10A - Medical Power Supply | 33W | 3.3V | 10A | Indoor | $16.36 | View |
| Mean Well RPS-60-24 Green Power Supply W 24V 2.5A - Medical Power Supply | 60W | 24V | 2.5A | Indoor | $15.98 | View |
| Mean Well RPS-60-15 Green Power Supply W 15V 4A - Medical Power Supply | 60W | 15V | 4A | Indoor | $15.98 | View |
| Mean Well RPS-60-12 Green Power Supply W 12V 5A - Medical Power Supply | 60W | 12V | 5A | Indoor | $15.98 | View |
