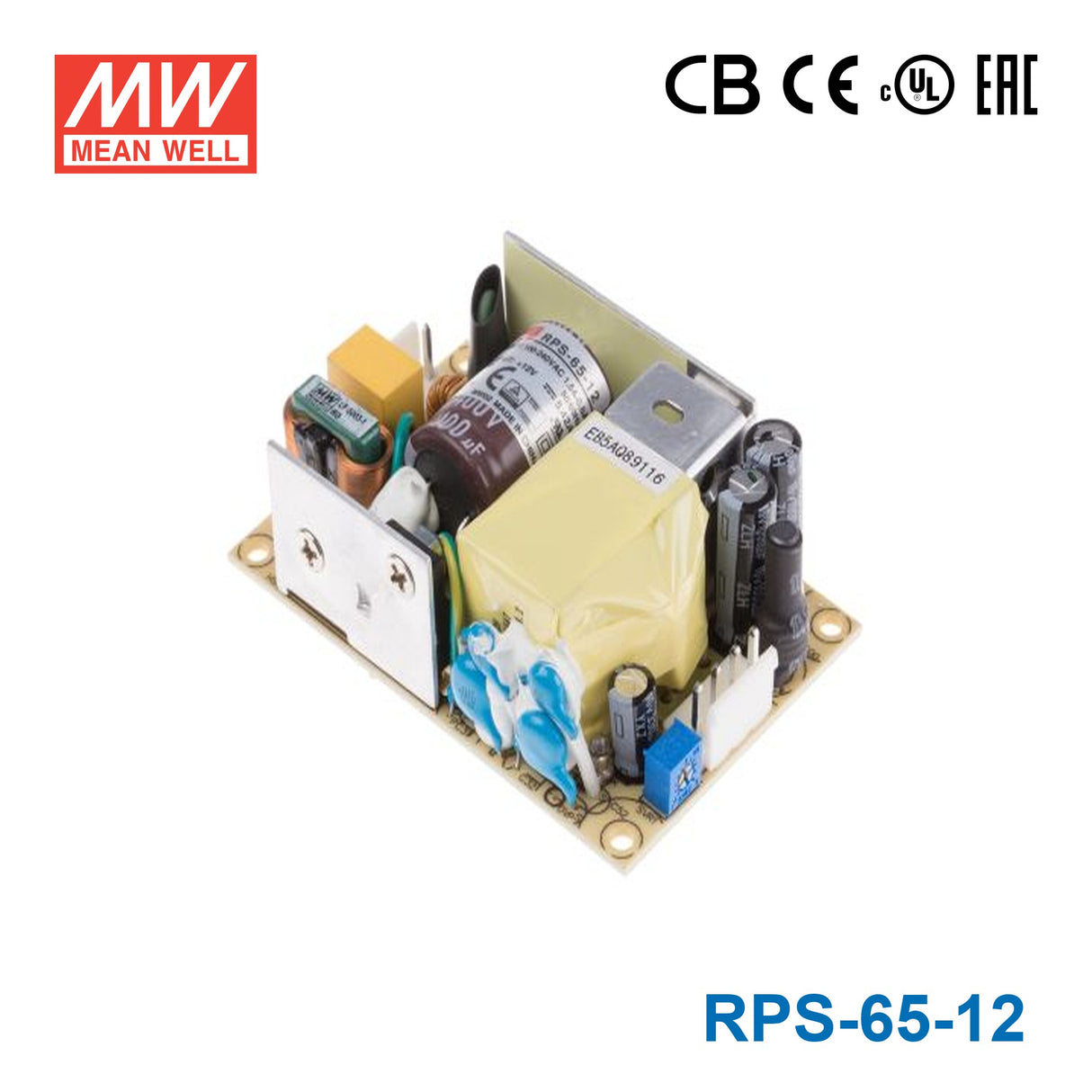

Mean Well RPS-65-12 Green Power Supply W 12V 5.42A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-65-12 Green Power Supply W 12V 5.42A - Medical Power ...
The RPS-65 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -40~+85°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14-Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating65 Watt
-
Output Voltage12 Volt
-
Rated Current5.42 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the RPS-65-12 for 12V industrial controls, relays, or automation electronics?
It is a constant-voltage 12V supply with up to 5.42A output and 65W total power. That makes it suitable for 12V automation electronics when the full load stays within those electrical limits.
Is the RPS-65-12 suitable for 12V embedded systems or OEM equipment?
Yes, if the embedded or OEM system is designed for a regulated 12V rail and requires no more than 5.42A. Its compact 76.2 x 50.8 x 24.0 mm size and 0.11 kg weight also help in smaller assemblies.
Can this model be used in medical or laboratory devices that need 12V DC?
This power supply is medical safety approved and specified with extremely low leakage current. For medical or lab equipment that needs constant 12V output within 65W, those characteristics make it suitable for OEM integration.
Would the RPS-65-12 work for always-on control electronics where standby draw matters?
This model lists no-load power consumption below 0.1W, which is useful in designs where idle power matters. It still provides up to 12V and 5.42A when the equipment is operating under load.
Can the RPS-65-12 be used outdoors or in non-climate-controlled enclosures?
The operating temperature range is -20°C to +70°C, so the thermal range is broad. No IP rating is listed, so the unit itself does not define water or dust protection and would need that protection from the equipment enclosure.
