Mean Well

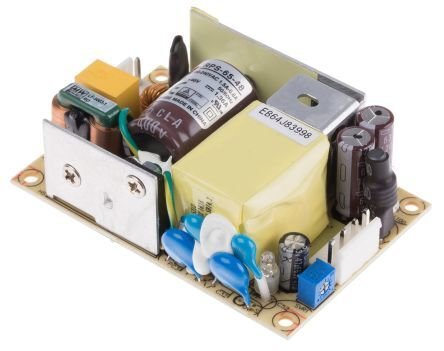

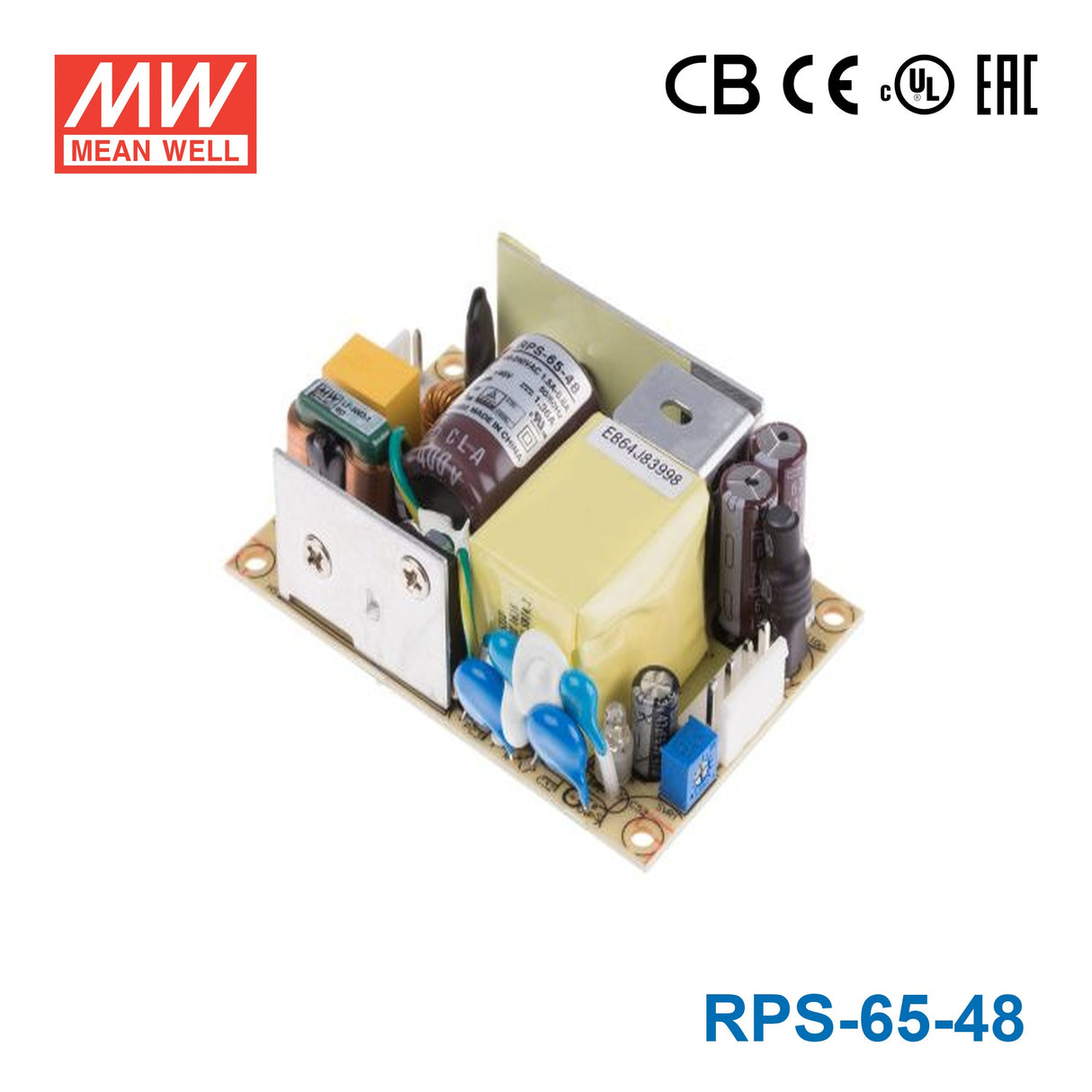

Mean Well RPS-65-48 Green Power Supply 65.3W 48V 1.36A - Medical Power Supply

3" x 2" compact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current
SKU RPS-65-48
$17.67 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

RPS-65-48 is the 48V output model of this series: rated current 1.36A, rated power 65.3W, typical efficiency 91%.

RPS-65 is a 65W highly reliable green PCB type medical power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. RPS-65 is able to be used for ClassⅡ (no FG) system design. The extremely low leakage current is less than 100μA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.

Features

  • 3"×2" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • Cooling by free air convection
  • EMI class B for class Ⅱ configuration
  • No load power consumption<0.1W
  • Extremely low leakage current
  • Protections: Short circuit / Overload / Over voltage
  • Operating altitude up to 4000 meters
  • 3 years warranty

Specifications

RPS-65-48Specifications from the official datasheet (2026-10-09 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
1.36A
CURRENT RANGE
0 ~ 1.49A
RATED POWER
65.3W
PEAK LOAD(10sec.)
71.5W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ.RANGE
45.6~52.8V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.)
30ms / 230VAC 12ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.4
80 ~ 264VAC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
91%
AC CURRENT (Typ.)
1.5A / 115VAC 1A / 230VAC
INRUSH CURRENT (Typ.)
COLD STAR 30A/115VAC 50A/230VAC
LEAKAGE CURRENT(max.)Note.5
Touch current< 100μA/264VAC

PROTECTION

OVERLOAD
115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
55.2~64.8V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.6
4000 meters

SAFETY & EMC

SAFETY STANDARDS
IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P: 4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55011 (CISPR11)Class B
Radiated emissionBS EN/EN55011 (CISPR11)Class B
Harmonic currentBS EN/EN61000-3-2Class A
Voltage flickerBS EN/EN61000-3-3
EMC IMMUNITYNote. 7

BS EN/EN55035,BS EN/EN60601-1-2

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 4, 2KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 959.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H)
76.2*50.8*24mm or 3" * 2" *0.945" inch
PACKING
0.11Kg; 120pcs/14.2Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the derating curve for more details.
  5. 5. Touch current was measured from primary input to DC output.
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  7. 7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPS-65-48 Block Diagram
Block Diagram
RPS-65-48 Mechanical Specification
Mechanical Specification

Typical applications

  • Oral irrigator
  • Hemodialysis machine
  • Medical computer monitors
  • Sleep apnea devices

Downloads

FAQ

Can I use the RPS-65-48 for 48V industrial control or telecom equipment?

Yes, if the equipment requires a constant 48V output and draws no more than 1.36A or 65.3W. That makes it suitable for compact 48V control, communications, or embedded systems within those electrical limits.

Is the RPS-65-48 suitable for medical or embedded devices that operate on 48V DC?

It can be used for 48V medical or embedded electronics that remain within the 1.36A and 65.3W output rating. This model is medical safety approved and is specified with extremely low leakage current.

Can this model power a 48V network, monitoring, or automation device from AC mains?

Yes, provided the load is designed for 48V constant-voltage input and stays at or below 1.36A. The unit accepts 80-264VAC input and converts it to regulated 48V DC output.

Is the RPS-65-48 useful where a small 48V AC-DC supply is needed inside equipment?

Yes, its 76.2 x 50.8 x 24.0 mm size and 0.11 kg weight make it suitable for compact equipment layouts. It is intended for applications needing 48V output without moving up to a larger higher-power model.

Can the RPS-65-48 be used outside or in unsealed industrial environments?

This product does not include a stated IP rating, so it is better used indoors or inside a protected enclosure. Its specified operating temperature range is -30°C to +70°C.

How does the RPS-65-48 compare with other 48V models in the RPS family?

The listed 48V models are RPS-30-48 at 30W and 0.62A, RPS-45-48 at 45.1W and 0.94A, RPS-60-48 at 60W and 1.25A, RPS-65-48 at 65.3W and 1.36A, RPS-75-48 at 76.8W and 1.6A, RPS-120-48 and RPS-120-48-C at 84W and 2.5A, RPS-120S-48 at 120W and 2.5A, RPS-160-48 at 113.4W and 2.3A, RPS-200-48 and RPS-200-48-C at 144W and 3A, RPS-300-48 and RPS-300-48-C at 200.2W and 4.17A, RPS-400-48 and its -C, -SF, and -TF versions at 254.4W and 5.3A, and RPS-500-48 and its -C, -SF, and -TF versions at 321.6W 6.7A, 312W 6.5A, and 499.2W 10.4A. The RPS-65-48 is one of the lower-power 48V choices in that lineup.
