Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

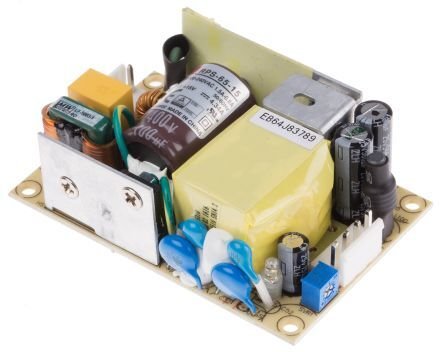

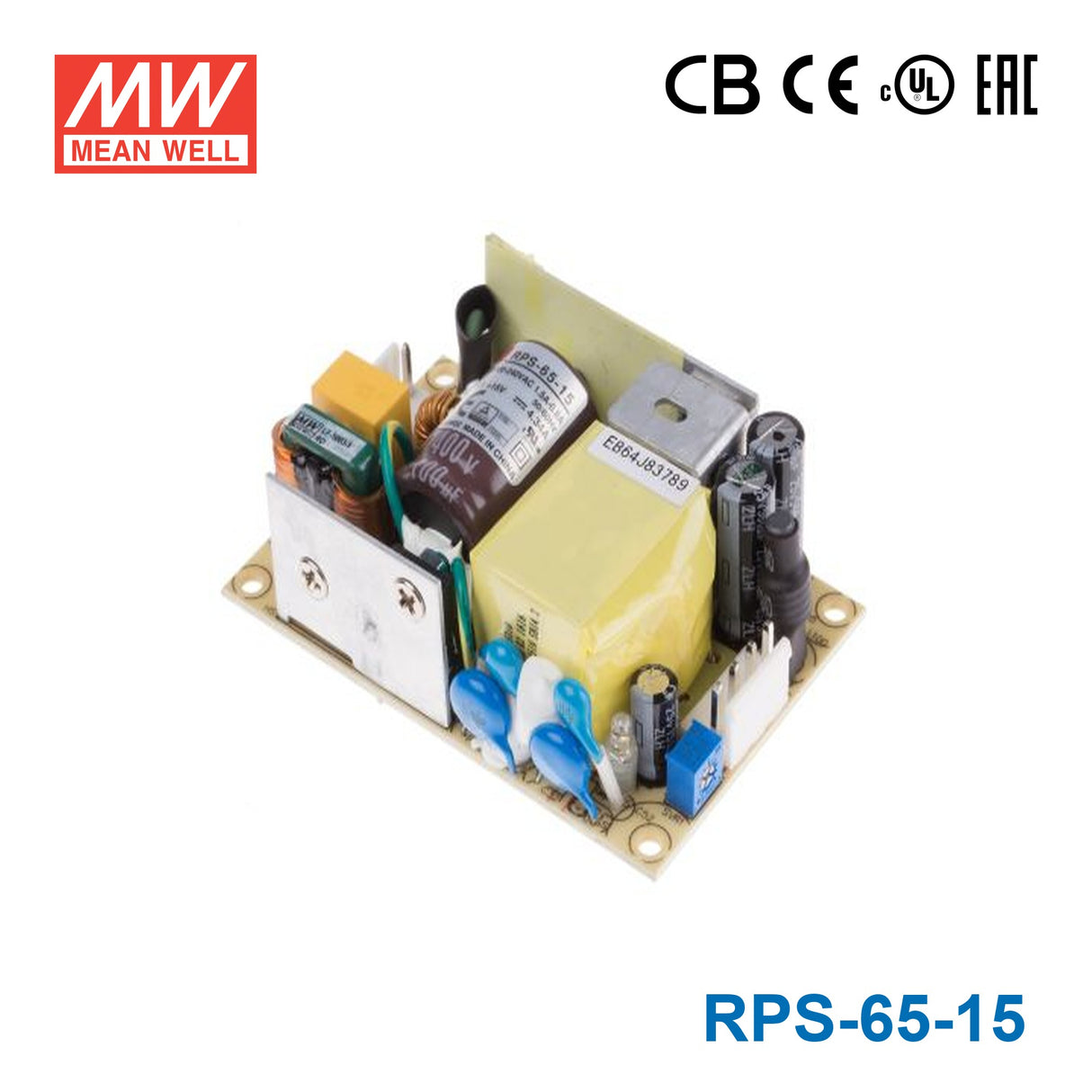

Mean Well RPS-65-15 Green Power Supply 65.1W 15V 4.34A - Medical Power Supply

Name: Mean Well RPS-65-15 Green Power Supply 65.1W 15V 4.34A - Medical Power Supply
Brand: Mean Well
SKU: RPS-65-15
Price: 17.67 USD
Availability: InStock

3" x 2" compact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current

SKU RPS-65-15

$17.67 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

RPS-65-15 is the 15V output model of this series: rated current 4.34A, rated power 65.1W, typical efficiency 89%.

RPS-65 is a 65W highly reliable green PCB type medical power supply with a high power density on the 3” by 2” footprint. It accepts 80~264VAC input and offers various output voltages between 3.3V and 48V. The working efficiency is up to 91% and the extremely low no load power consumption is down below 0.1W. RPS-65 is able to be used for ClassⅡ (no FG) system design. The extremely low leakage current is less than 100μA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF rated “patient contact” medical system equipment.

Features

3"×2" compact size
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Suitable for BF application with appropriate system consideration
Cooling by free air convection
EMI class B for class Ⅱ configuration
No load power consumption<0.1W
Extremely low leakage current
Protections: Short circuit / Overload / Over voltage
Operating altitude up to 4000 meters
3 years warranty

Specifications

RPS-65-15Specifications from the official datasheet (2026-10-09 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 4.34A
CURRENT RANGE: 0 ~ 4.77A
RATED POWER: 65.1W
PEAK LOAD(10sec.): 71.6W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ.RANGE: 13.5~16.5V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.): 30ms / 230VAC 12ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 80 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.5A / 115VAC 1A / 230VAC
INRUSH CURRENT (Typ.): COLD STAR 30A/115VAC 50A/230VAC
LEAKAGE CURRENT(max.)^Note.5: Touch current< 100μA/264VAC

PROTECTION

OVERLOAD: 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.2~20.3V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.6: 4000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P: 4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY^{Note. 7}: BS EN/EN55035,BS EN/EN60601-1-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 4, 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 3334.3K hrs min. Telcordia SR-332 (Bellcore) ; 959.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION (L*W*H): 76.2*50.8*24mm or 3" * 2" *0.945" inch
PACKING: 0.11Kg; 120pcs/14.2Kg/0.94CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Touch current was measured from primary input to DC output.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RPS-65-15 Mechanical Specification — Mechanical Specification

Typical applications

Oral irrigator
Hemodialysis machine
Medical computer monitors
Sleep apnea devices

Downloads

Certificates5

Mean Well E227340 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well RPS-65-EMC Certificate PDF Download

Mean Well RPS-65-CE-dec Certificate PDF Download

Mean Well RPS-65-UK-dec Certificate PDF Download

Test reports1

Mean Well RPS-65-15 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RPS-65-15 for 15V industrial instrumentation or control electronics?

Yes, if the equipment needs a constant 15V output and draws no more than 4.34A, with 65.1W total power available. It is intended for fixed-voltage DC applications rather than constant-current loads.

Is the RPS-65-15 a good fit for 15V embedded or OEM systems?

It can be a good fit for embedded or OEM assemblies that require a regulated 15V rail within 4.34A. The compact 76.2 x 50.8 x 24.0 mm footprint and 0.11 kg weight make it easier to place in space-constrained equipment.

Can this model be used in medical or diagnostic equipment that operates at 15V?

This supply is medical safety approved and specified with extremely low leakage current, which is relevant for medical and diagnostic equipment selection. It is appropriate where the system needs 15V constant voltage and stays within 65.1W and 4.34A.

Would the RPS-65-15 suit low-standby-power devices or instruments?

The listed no-load power consumption is below 0.1W, so it suits designs where idle consumption is a consideration. During operation, it can supply 15V at up to 4.34A.

Can the RPS-65-15 be used in outdoor control cabinets?

It is rated for operation from -30°C to +70°C, so the temperature range is specified. However, no IP rating is provided, so outdoor suitability depends on the cabinet or enclosure rather than the power supply alone.
