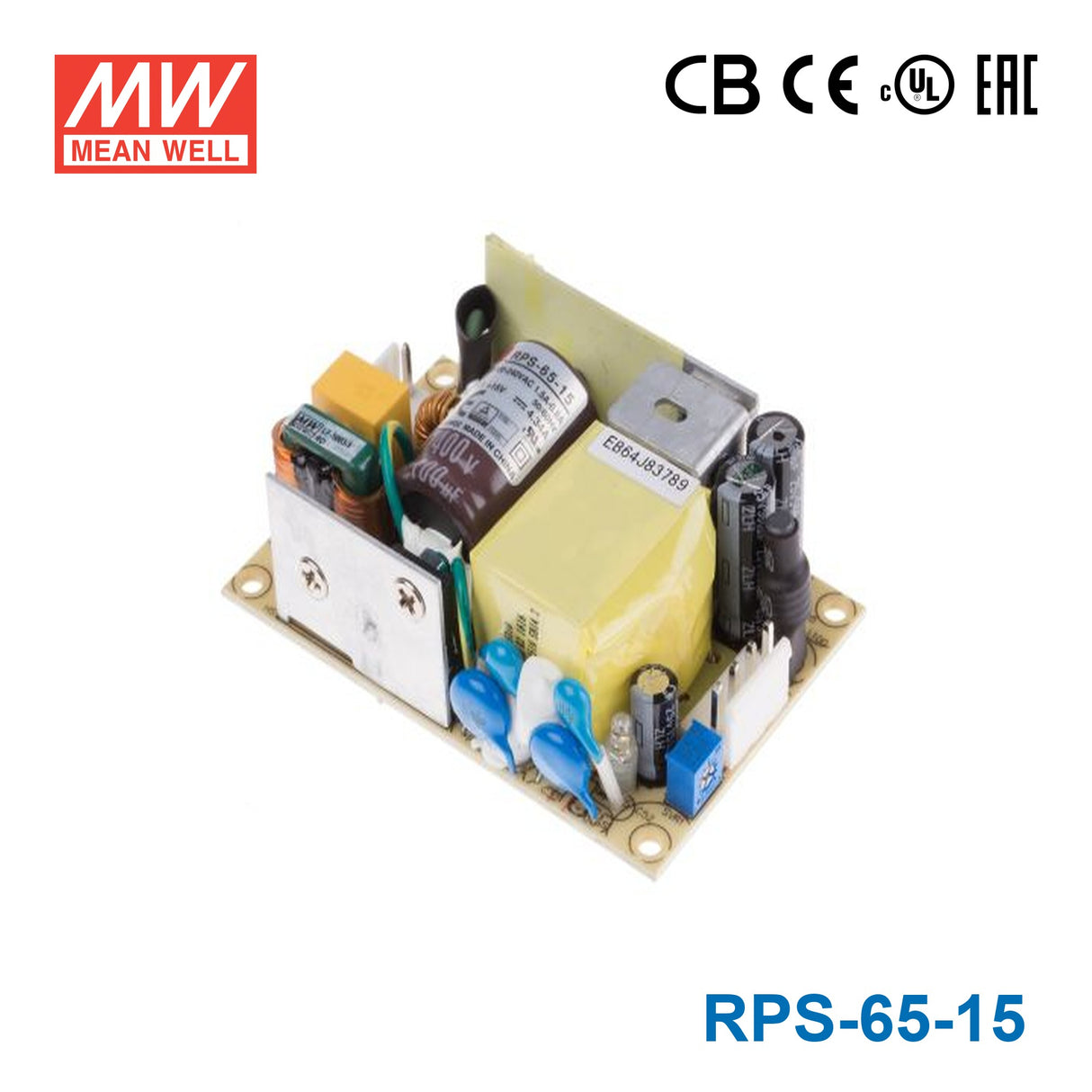

Mean Well RPS-65-15 Green Power Supply W 15V 4.34A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-65-15 Green Power Supply W 15V 4.34A - Medical Power ...
The RPS-65 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -40~+85°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14-Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating65.1 Watt
-
Output Voltage15 Volt
-
Rated Current4.34 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the RPS-65-15 for 15V industrial instrumentation or control electronics?
Yes, if the equipment needs a constant 15V output and draws no more than 4.34A, with 65.1W total power available. It is intended for fixed-voltage DC applications rather than constant-current loads.
Is the RPS-65-15 a good fit for 15V embedded or OEM systems?
It can be a good fit for embedded or OEM assemblies that require a regulated 15V rail within 4.34A. The compact 76.2 x 50.8 x 24.0 mm footprint and 0.11 kg weight make it easier to place in space-constrained equipment.
Can this model be used in medical or diagnostic equipment that operates at 15V?
This supply is medical safety approved and specified with extremely low leakage current, which is relevant for medical and diagnostic equipment selection. It is appropriate where the system needs 15V constant voltage and stays within 65.1W and 4.34A.
Would the RPS-65-15 suit low-standby-power devices or instruments?
The listed no-load power consumption is below 0.1W, so it suits designs where idle consumption is a consideration. During operation, it can supply 15V at up to 4.34A.
Can the RPS-65-15 be used in outdoor control cabinets?
It is rated for operation from -20°C to +70°C, so the temperature range is specified. However, no IP rating is provided, so outdoor suitability depends on the cabinet or enclosure rather than the power supply alone.
