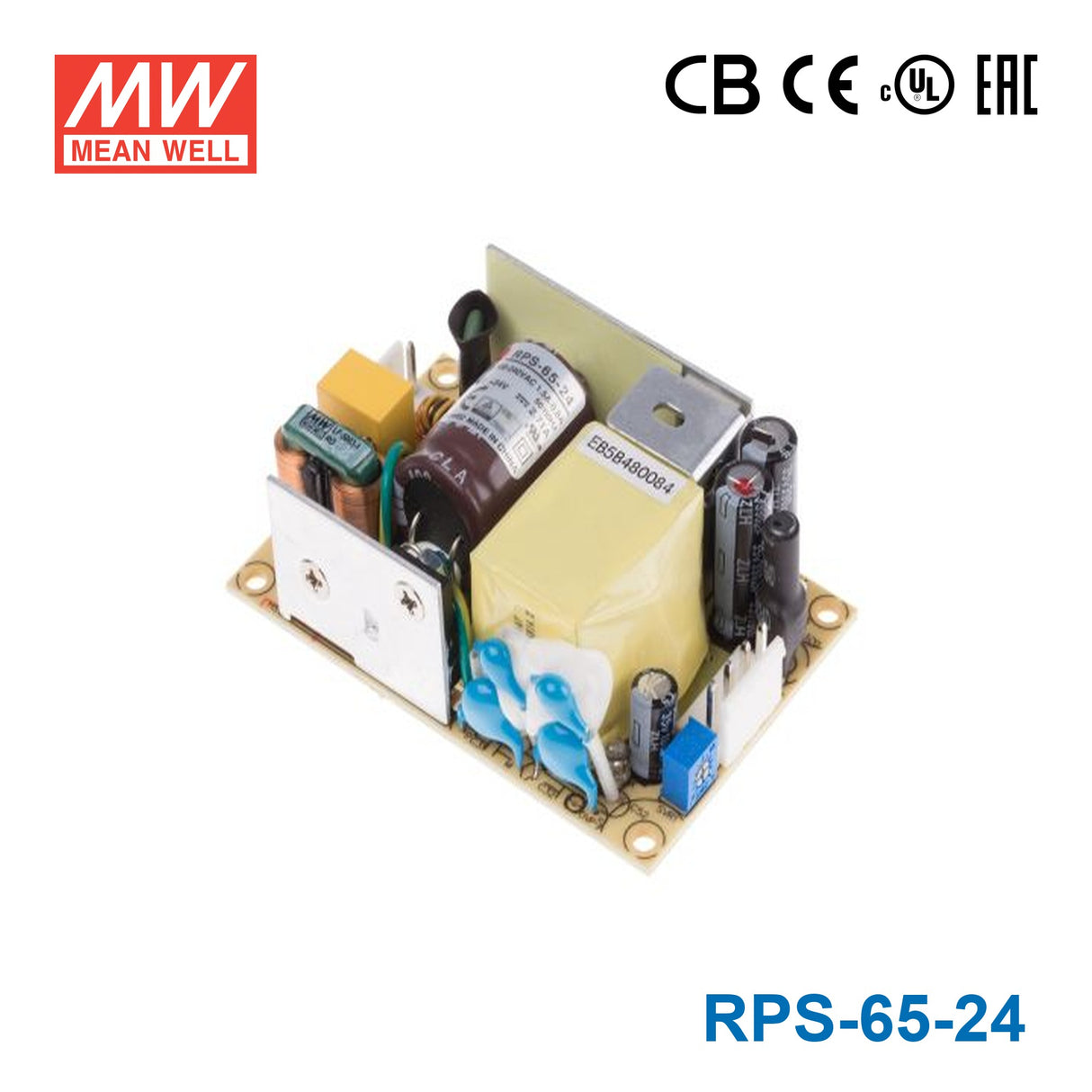

Mean Well RPS-65-24 Green Power Supply W 24V 2.71A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-65-24 Green Power Supply W 24V 2.71A - Medical Power ...
The RPS-65 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -40~+85°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14-Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating65 Watt
-
Output Voltage24 Volt
-
Rated Current2.71 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the RPS-65-24 for a 24V PLC, HMI, or industrial control panel?
Yes, this model is a constant-voltage 24V power supply rated for up to 2.71A and 65W. That makes it suitable for 24V control electronics, HMIs, and similar industrial devices that stay within those output limits.
Is the RPS-65-24 suitable for embedded or medical electronics that require 24V DC?
It can be a fit for embedded or medical equipment that needs a regulated 24V output and draws no more than 2.71A. This model is medical safety approved and also features extremely low leakage current.
Can this 24V power supply run automation sensors, relays, or control modules from AC mains?
Yes, if the connected 24V automation load stays within 65W and 2.71A total output. Its 80-264VAC input range supports operation from a wide AC input range while providing constant-voltage 24V DC output.
Is the RPS-65-24 a good choice for compact 24V equipment where board space is limited?
Yes, the unit is built in a 76.2 x 50.8 x 24.0 mm form factor and weighs 0.11 kg. That compact size can suit space-constrained industrial, embedded, and medical equipment designed around a 24V rail.
Can the RPS-65-24 be used outdoors or in harsh exposed environments?
This product does not list an IP rating, so it is better suited to indoor equipment or protected enclosures rather than exposed outdoor locations. Its specified operating temperature range is -20°C to +70°C.
How does the RPS-65-24 compare with other RPS open-frame models?
Within the listed series, 24V options include RPS-30-24 at 30W and 1.25A, RPS-45-24 at 45.6W and 1.9A, RPS-60-24 at 60W and 2.5A, RPS-65-24 at 65W and 2.71A, RPS-75-24 at 76.8W and 3.2A, RPS-120-24 and RPS-120-24-C at 84W and 5A, RPS-120S-24 at 120W and 5A, RPS-160-24 at 113.4W and 4.6A, RPS-200-24 and RPS-200-24-C at 141.6W and 5.9A, RPS-300-24 and RPS-300-24-C at 200W and 8.33A, RPS-400-24 and its -C, -SF, and -TF versions at 252W and 10.5A, and RPS-500-24 and its -C, -SF, and -TF versions at 321.6W 13.4A, 309.6W 12.9A, and 499.2W 20.8A. The RPS-65-24 sits between the 60W and 76.8W 24V models in this range.
