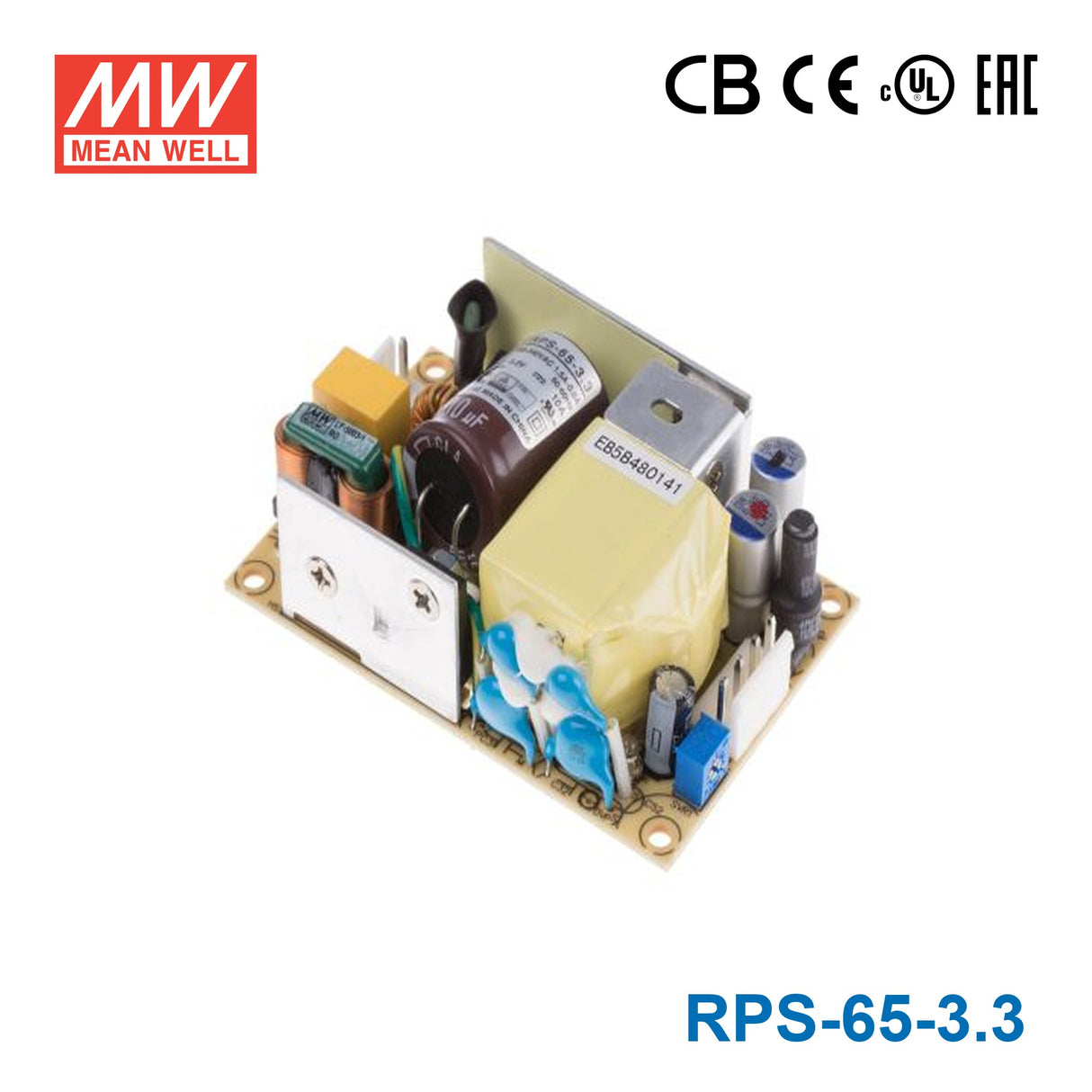

Mean Well RPS-65-3.3 Green Power Supply W 3.3V 10A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-65-3.3 Green Power Supply W 3.3V 10A - Medical Power ...
The RPS-65 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -40~+85°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14-Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating33 Watt
-
Output Voltage3.3 Volt
-
Rated Current10 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the RPS-65-3.3 to power 3.3V logic boards or embedded controllers?
Yes, this model provides a constant 3.3V output at up to 10A with a total power rating of 33W. It can fit embedded control boards, processor platforms, and other 3.3V electronics that stay within those limits.
Is the RPS-65-3.3 suitable for industrial or medical electronics that need a high-current 3.3V rail?
It can be suitable where a regulated 3.3V supply is required and the load does not exceed 10A or 33W. This unit is medical safety approved and features extremely low leakage current.
Can this power supply run 3.3V FPGA, MCU, or digital interface hardware from AC input?
Yes, for 3.3V digital hardware that fits within the 10A and 33W output rating. The supply accepts 80-264VAC input and converts it to a constant-voltage 3.3V output.
Is the RPS-65-3.3 a good fit for compact instrumentation or control equipment?
It can be a good fit where a compact AC-DC source is needed for a 3.3V rail. The package measures 76.2 x 50.8 x 24.0 mm and weighs 0.11 kg, which helps in space-limited equipment designs.
Can the RPS-65-3.3 be used in outdoor control boxes or washdown areas?
No IP rating is listed for this model, so it is better matched to indoor or protected enclosure use rather than exposed outdoor or washdown environments. Its operating temperature range is -20°C to +70°C.
How does the RPS-65-3.3 compare with other 3.3V RPS models?
In the listed series, the 3.3V options are RPS-30-3.3 at 19.8W and 6A, RPS-45-3.3 at 26.4W and 8A, RPS-60-3.3 at 33W and 10A, RPS-65-3.3 at 33W and 10A, and RPS-75-3.3 at 49.5W and 15A. The RPS-65-3.3 matches the RPS-60-3.3 in 3.3V, 10A, and 33W output, while the RPS-75-3.3 provides higher current and power.
