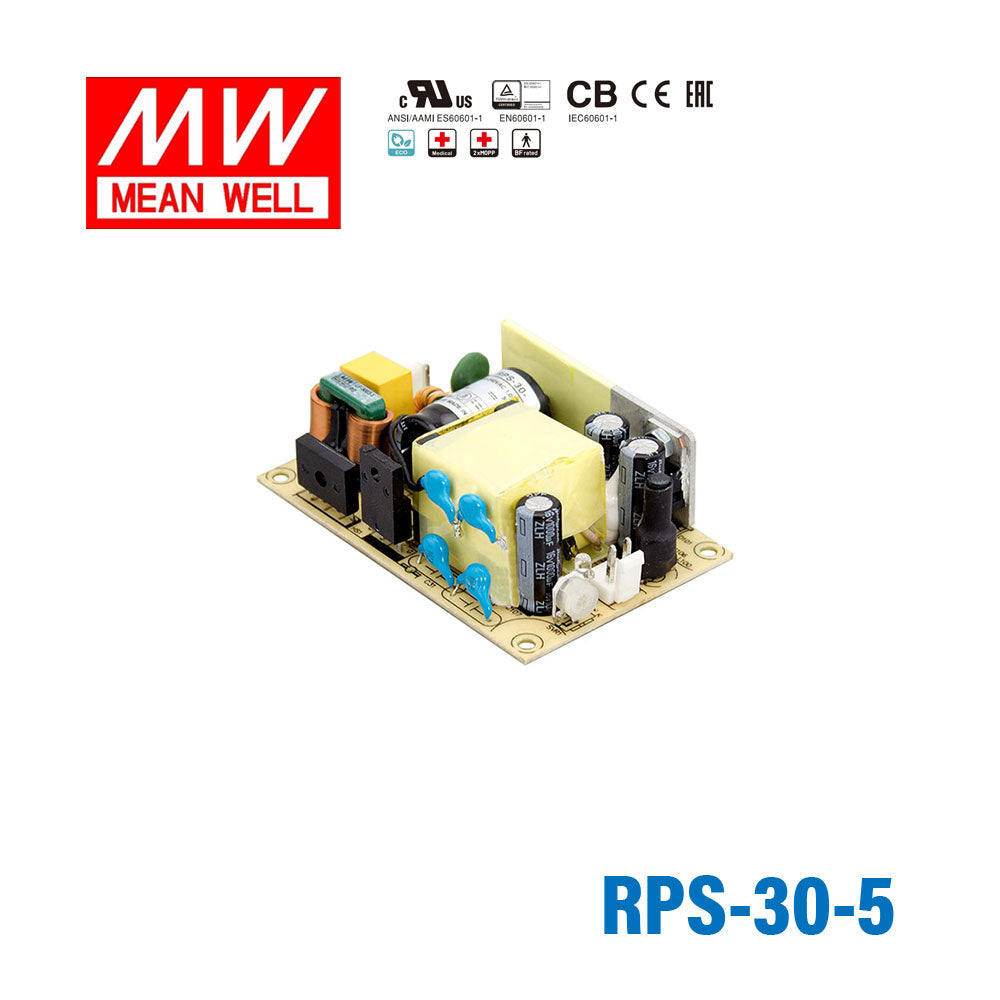

Mean Well RPS-30-5 Green Power Supply W 5V 6A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-30-5 Green Power Supply W 5V 6A - Medical Power Supply
The RPS-30 is a 30W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -40~+85°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.2 lb
::specification::
Frequently Asked Questions
Can I use the RPS-30-5 to power a 5V single-board computer or embedded processor?
Yes, this supply provides constant 5V output up to 6A with a 30W rating. It is suitable for 5V embedded computing hardware as long as the total load remains within those limits.
Is the RPS-30-5 suitable for 5V USB-powered style electronics inside industrial equipment?
It can be used for 5V electronics in industrial or IT equipment when the system requires a regulated 5V rail and draws no more than 6A or 30W. Its compact 76.2 × 50.8 × 24.0 mm size also helps in space-constrained internal builds.
Can this model run 5V sensors, logic boards, or HMI support electronics?
Yes, it fits low-voltage control electronics that operate from constant 5V DC. With up to 6A available, it is appropriate for grouped 5V logic, sensor, or interface loads that stay inside the 30W output rating.
Is the RPS-30-5 intended for outdoor use?
The temperature specification is -30°C to +70°C, but the provided specs do not include an IP rating. That means temperature tolerance is defined, while dust and water protection are not, so outdoor suitability is not established by these specs alone.
How does the RPS-30-5 compare with the rest of the RPS-30 series?
The other RPS-30 outputs are RPS-30-3.3 at 19.8W, 3.3V, 6A; RPS-30-7.5 at 30W, 7.5V, 4A; RPS-30-12 at 30W, 12V, 2.5A; RPS-30-15 at 30W, 15V, 2A; RPS-30-24 at 30W, 24V, 1.25A; and RPS-30-48 at 30W, 48V, 0.62A. The RPS-30-5 sits on the low-voltage side of the range and keeps the full 30W rating with a 6A output.
