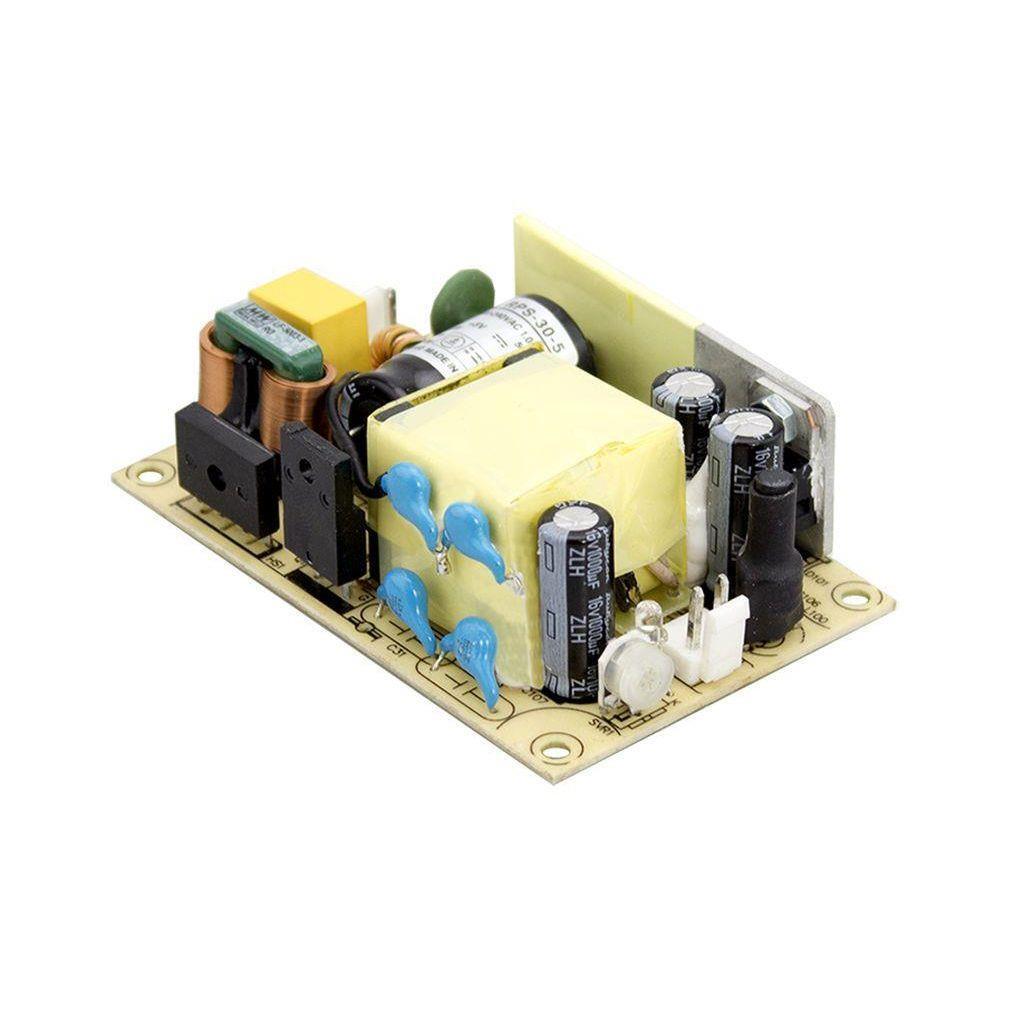

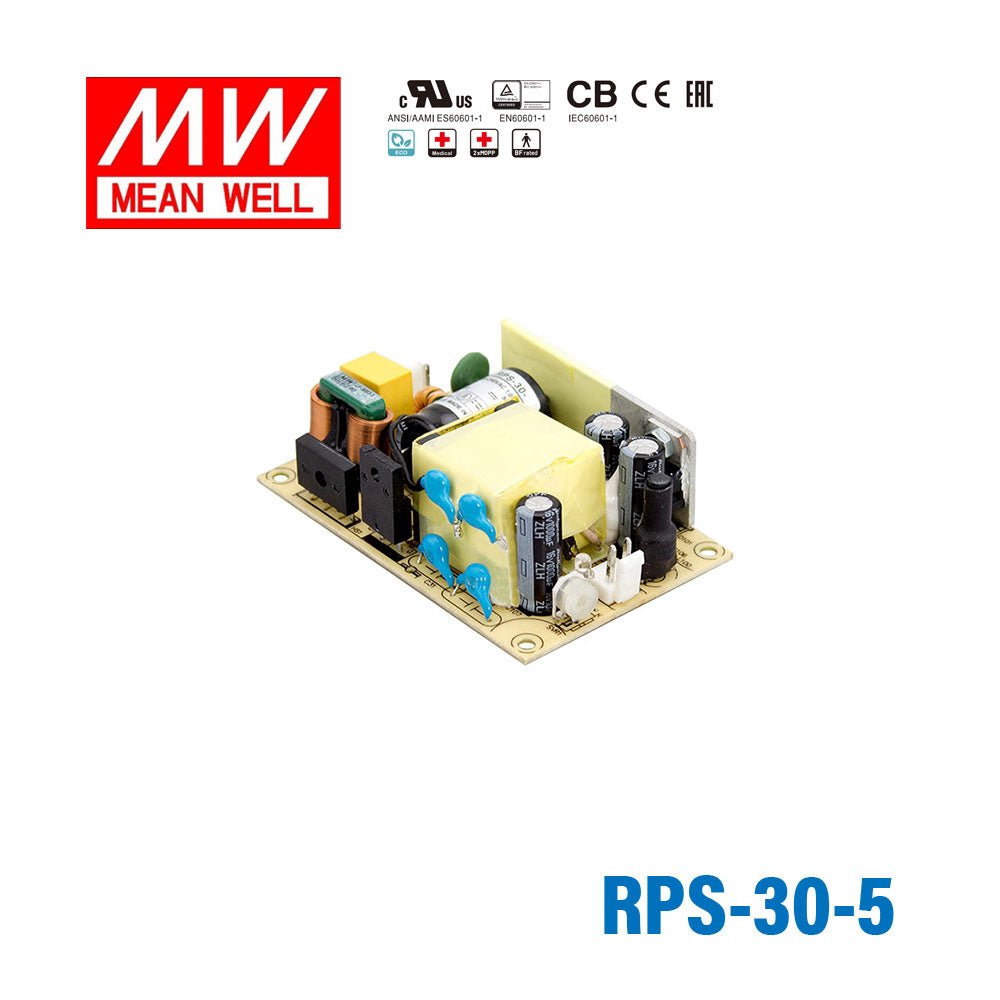

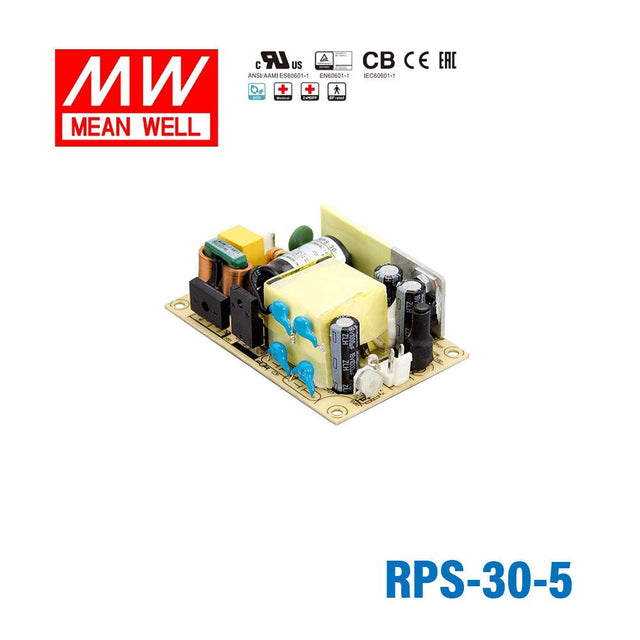

Mean Well RPS-30-5 Green Power Supply W 5V 6A - Medical Power Supply

3" x 2" compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current
$14.69 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

5"x3" compact size
320W convection, 500W force air
550W peak power (3 sec.)/td>
Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
MEMI for both Class I & Class II configuration
-30~+70°C wide range operating temperature
No load power consumption under 0.5W by PS-ON control
High efficiency up to 94%
Protections: Short circuit / Overload / Over voltage / Over Temp.
5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail, and remote sense
Operating altitude up to 4000 meters (Note.5)
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 80 ~ 264VAC | 113 ~ 370VDC
AC inrush current COLD START 40A/115VAC 80A/230VAC
DC adjustment range ±10% rated output voltage
Overload protection 105%~135% hiccup mode, auto-recovery
Over-voltage protection CH1: 115%~135% shut off, re-power on to recovery
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature -30~+70°C (refer to output derating curve)
Leakage current Earth leakage current <220 A/264VAC 50Hz, Touch current < 100 A/264VAC
Safety standards ANSI/AAMI ES60601-1, TUV EN60601-1 approved
EMC standards EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160)
Connection 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH
Setup, rise, hold up time 1000ms, 30ms, 10ms at full load and 230VAC
Dimension (LxWxH) 127 x 76.2 x 41mm | 5 x 3 x 1.61 inch

Specifications

  • Brand
    Mean Well
  • Series
    RPS Series
  • Power Rating
    30 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    6 Ampere
  • Input Voltage
    80V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,cUL,EAC,SHIDE
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    3 in
  • Width
    2 in
  • Height
    0.94 in
  • Weight
    0.2 lb

File Downloads

::specification::
