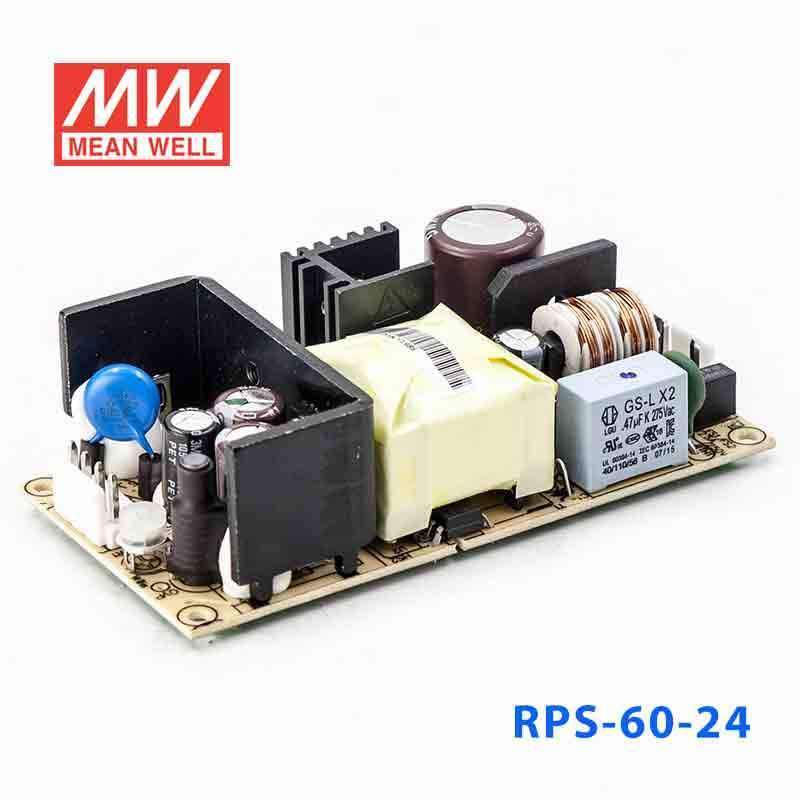

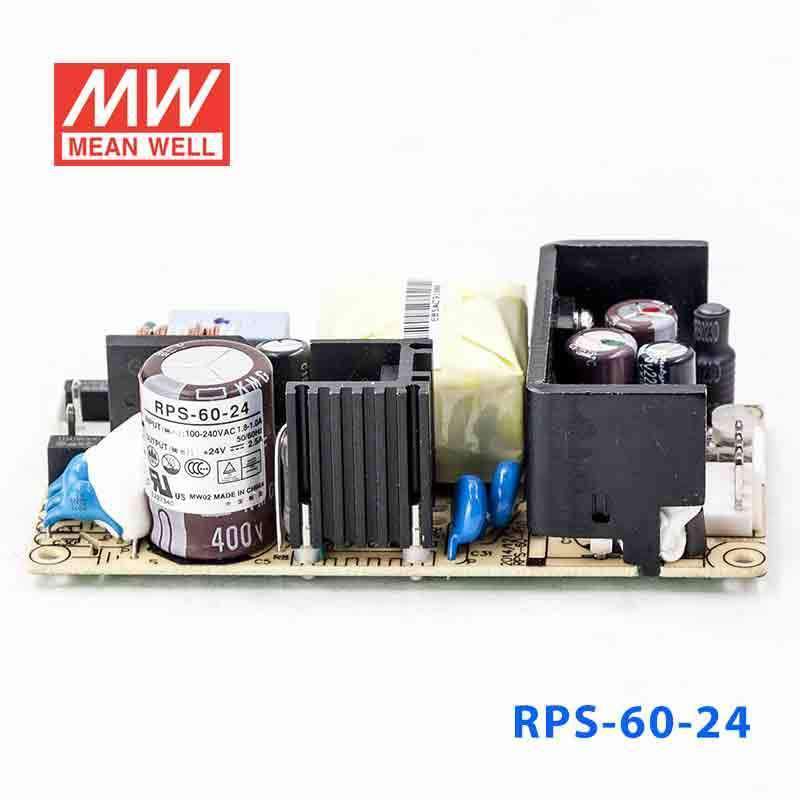

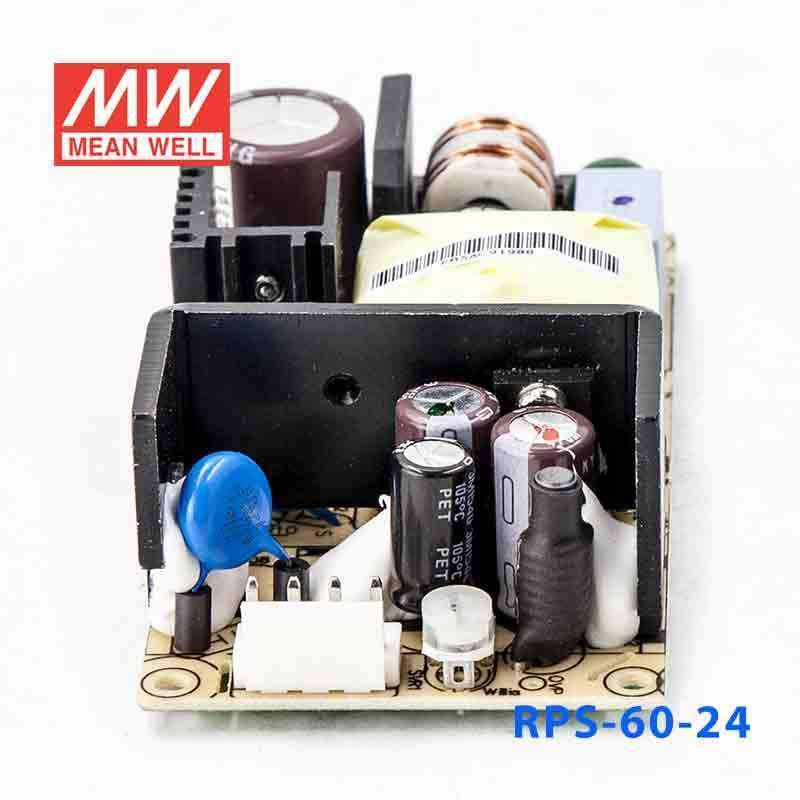

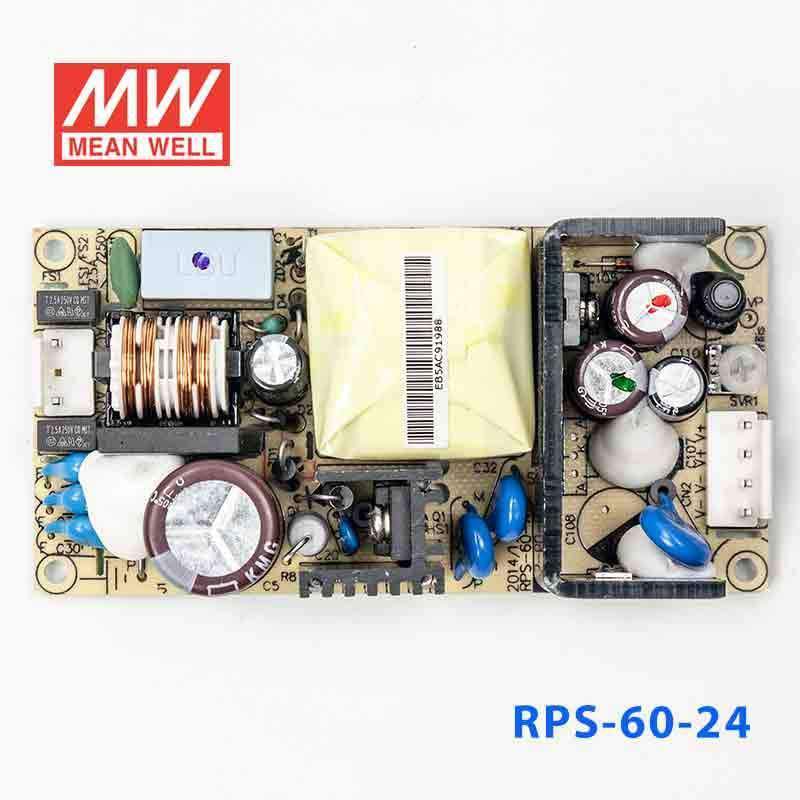

Mean Well RPS-60-24 Green Power Supply W 24V 2.5A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-60-24 Green Power Supply W 24V 2.5A - Medical Power S...
The RPS-60 is a 60W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the RPS-60-24 for a 24V sensor, I/O, or small automation controller load?
Yes, it is appropriate for 24V industrial and automation loads that stay within 2.5A and 60W. Because it is a constant voltage supply, it is intended for equipment designed for a 24V DC input.
Is the RPS-60-24 suitable for compact 24V embedded or communications equipment?
It can fit 24V embedded or communications hardware when the power requirement does not exceed 60W. The rated output is 24V at up to 2.5A, and the AC input range is 90-264VAC.
Can this model be used in medical devices that need a 24V DC power stage?
Yes, the RPS-60-24 is medical safety approved and is described as having extremely low leakage current. It is suitable for 24V medical electronics as long as the load stays within 2.5A and 60W.
Is the RPS-60-24 designed for outdoor or wet locations?
No IP rating is listed in the provided specs, so it is better suited to indoor applications or protected enclosures than exposed wet or dusty environments. The operating temperature range is -20°C to +70°C, but the environmental sealing level is not specified.
Why is the RPS-60-24 often chosen for low-power 24V equipment?
It combines a 24V, 2.5A, 60W output with a compact 101.6 × 50.8 × 29.0 mm size and 0.15 kg weight. It also lists no load power consumption below 0.75W, which can be relevant in equipment that remains powered for long periods.
