Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

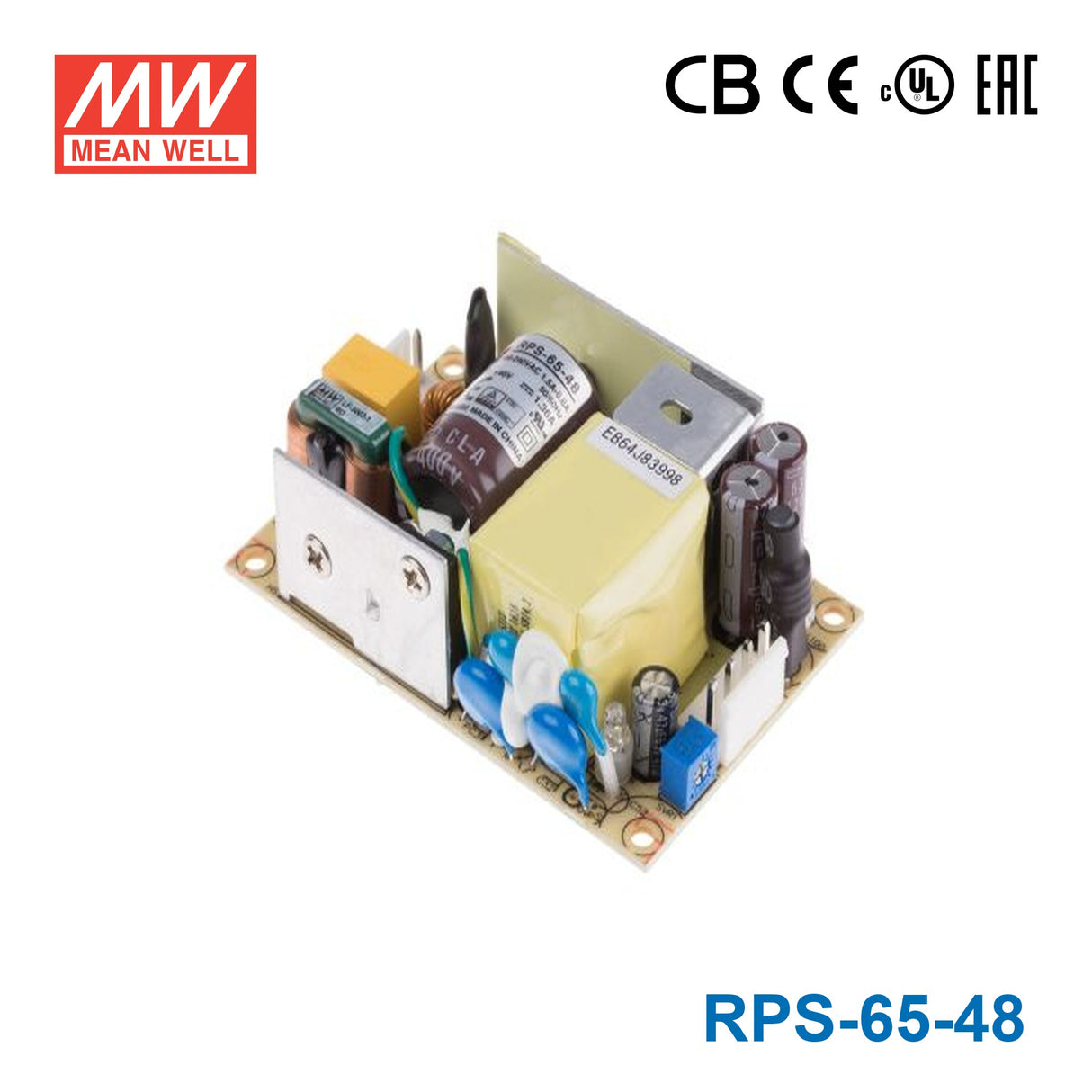

Mean Well RPS-65-48 Green Power Supply W 48V 1.36A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-65-48 Green Power Supply W 48V 1.36A - Medical Power ...
The RPS-65 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -40~+85°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14-Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating65.3 Watt
-
Output Voltage48 Volt
-
Rated Current1.36 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the RPS-65-48 for 48V industrial control or telecom equipment?
Yes, if the equipment requires a constant 48V output and draws no more than 1.36A or 65.3W. That makes it suitable for compact 48V control, communications, or embedded systems within those electrical limits.
Is the RPS-65-48 suitable for medical or embedded devices that operate on 48V DC?
It can be used for 48V medical or embedded electronics that remain within the 1.36A and 65.3W output rating. This model is medical safety approved and is specified with extremely low leakage current.
Can this model power a 48V network, monitoring, or automation device from AC mains?
Yes, provided the load is designed for 48V constant-voltage input and stays at or below 1.36A. The unit accepts 80-264VAC input and converts it to regulated 48V DC output.
Is the RPS-65-48 useful where a small 48V AC-DC supply is needed inside equipment?
Yes, its 76.2 x 50.8 x 24.0 mm size and 0.11 kg weight make it suitable for compact equipment layouts. It is intended for applications needing 48V output without moving up to a larger higher-power model.
Can the RPS-65-48 be used outside or in unsealed industrial environments?
This product does not include a stated IP rating, so it is better used indoors or inside a protected enclosure. Its specified operating temperature range is -20°C to +70°C.
How does the RPS-65-48 compare with other 48V models in the RPS family?
The listed 48V models are RPS-30-48 at 30W and 0.62A, RPS-45-48 at 45.1W and 0.94A, RPS-60-48 at 60W and 1.25A, RPS-65-48 at 65.3W and 1.36A, RPS-75-48 at 76.8W and 1.6A, RPS-120-48 and RPS-120-48-C at 84W and 2.5A, RPS-120S-48 at 120W and 2.5A, RPS-160-48 at 113.4W and 2.3A, RPS-200-48 and RPS-200-48-C at 144W and 3A, RPS-300-48 and RPS-300-48-C at 200.2W and 4.17A, RPS-400-48 and its -C, -SF, and -TF versions at 254.4W and 5.3A, and RPS-500-48 and its -C, -SF, and -TF versions at 321.6W 6.7A, 312W 6.5A, and 499.2W 10.4A. The RPS-65-48 is one of the lower-power 48V choices in that lineup.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPS-65 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPS-65-7.5 Green Power Supply W 7.5V 8A - Medical Power Supply | 60W | 7.5V | 8A | Indoor | $17.67 | View |
| Mean Well RPS-65-5 Green Power Supply W 5V 10A - Medical Power Supply | 50W | 5V | 10A | Indoor | $17.67 | View |
| Mean Well RPS-65-3.3 Green Power Supply W 3.3V 10A - Medical Power Supply | 33W | 3.3V | 10A | Indoor | $17.67 | View |
| Mean Well RPS-65-24 Green Power Supply W 24V 2.71A - Medical Power Supply | 65W | 24V | 2.71A | Indoor | $17.67 | View |
| Mean Well RPS-65-15 Green Power Supply W 15V 4.34A - Medical Power Supply | 65.1W | 15V | 4.34A | Indoor | $17.67 | View |
| Mean Well RPS-65-12 Green Power Supply W 12V 5.42A - Medical Power Supply | 65W | 12V | 5.42A | Indoor | $17.67 | View |
