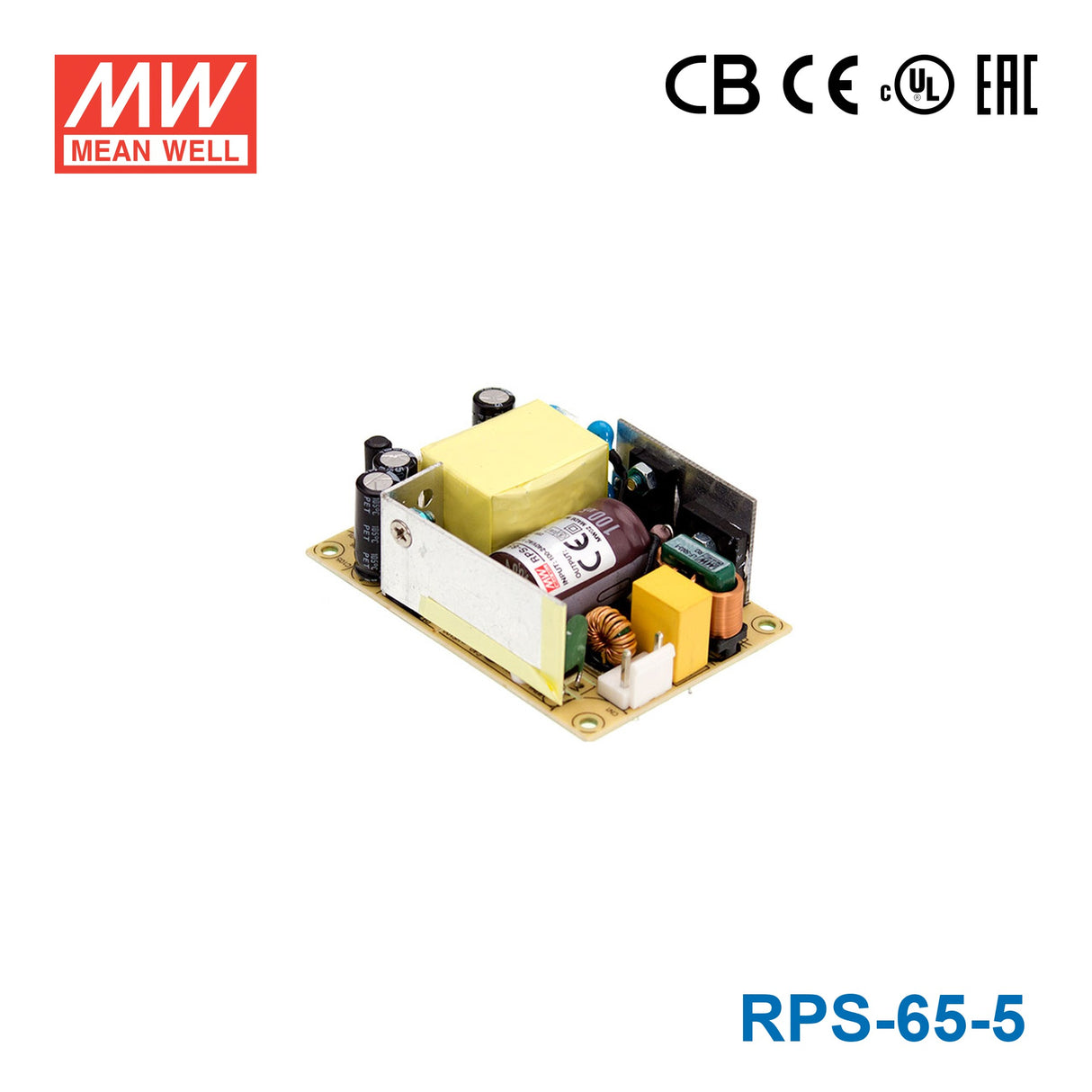

Mean Well RPS-65-5 Green Power Supply W 5V 10A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-65-5 Green Power Supply W 5V 10A - Medical Power Supply
The RPS-65 is a 65W Mean Well power converter (input range: 80~264VAC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Wide operating temperature: -40~+85°C
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: CANICSA-C22.2 No. 60601-1:14-Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.24 lb
::specification::
Frequently Asked Questions
Can I use the RPS-65-5 to power 5V SBCs, controllers, or embedded systems?
Yes, this model provides constant-voltage 5V output at up to 10A with a total power rating of 50W. It is suitable for 5V embedded electronics and controller hardware that stay within those limits.
Is the RPS-65-5 appropriate for industrial USB-class electronics or 5V logic equipment inside a machine?
It can be a fit for industrial and embedded 5V electronics when the total load does not exceed 10A or 50W. The supply accepts 80-264VAC input and delivers regulated 5V DC output.
Can the RPS-65-5 be used for medical or laboratory devices that require a 5V rail?
Yes, if the device is designed for a 5V constant-voltage source and draws within the 10A output limit. This model is medical safety approved and features extremely low leakage current.
Is this power supply suitable for compact 5V equipment with limited space?
Yes, the compact 76.2 x 50.8 x 24.0 mm footprint and 0.11 kg weight make it suitable for space-constrained equipment. It is intended for internal use in devices that need a 5V DC supply from AC input.
Can the RPS-65-5 be used in outdoor cabinets or exposed environments?
No IP rating is specified for this model, so it is better suited to indoor equipment or protected enclosures. The operating temperature range is -20°C to +70°C.
How does the RPS-65-5 compare with other 5V RPS models?
In the listed series, the 5V options are RPS-30-5 at 30W and 6A, RPS-45-5 at 40W and 8A, RPS-60-5 at 50W and 10A, RPS-65-5 at 50W and 10A, RPS-75-5 at 70W and 14A, and RPS-160-5 at 103W and 20A. The RPS-65-5 matches the RPS-60-5 in 5V, 10A, and 50W output, while the RPS-75-5 and RPS-160-5 provide higher output capacity.
