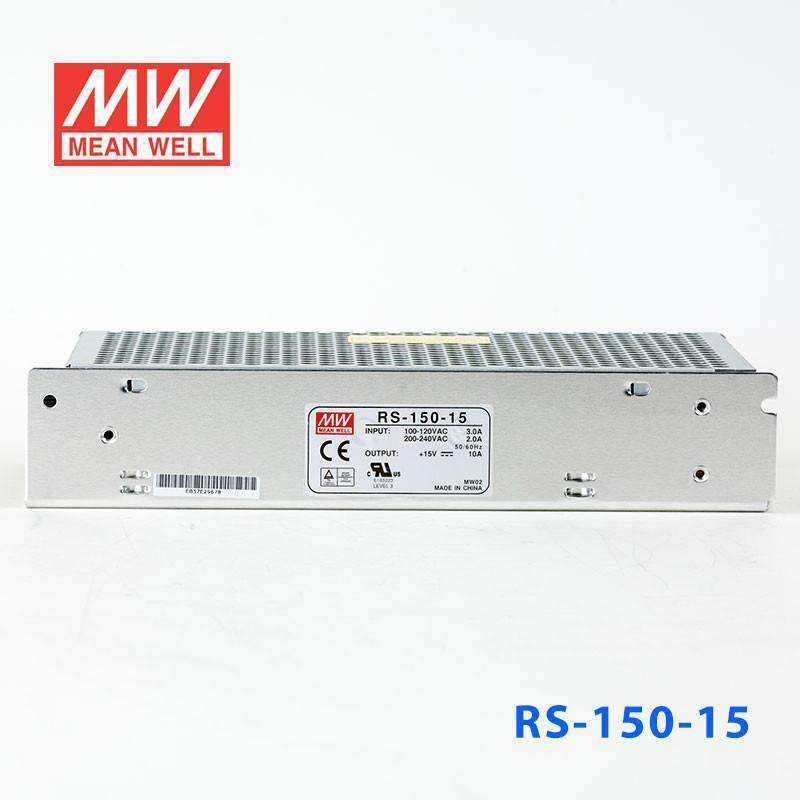

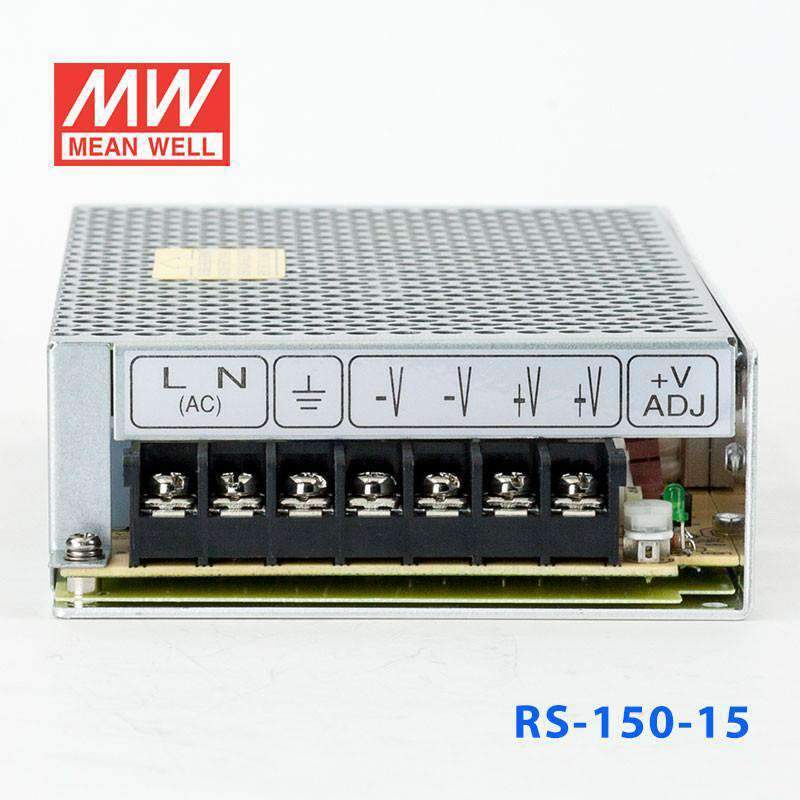

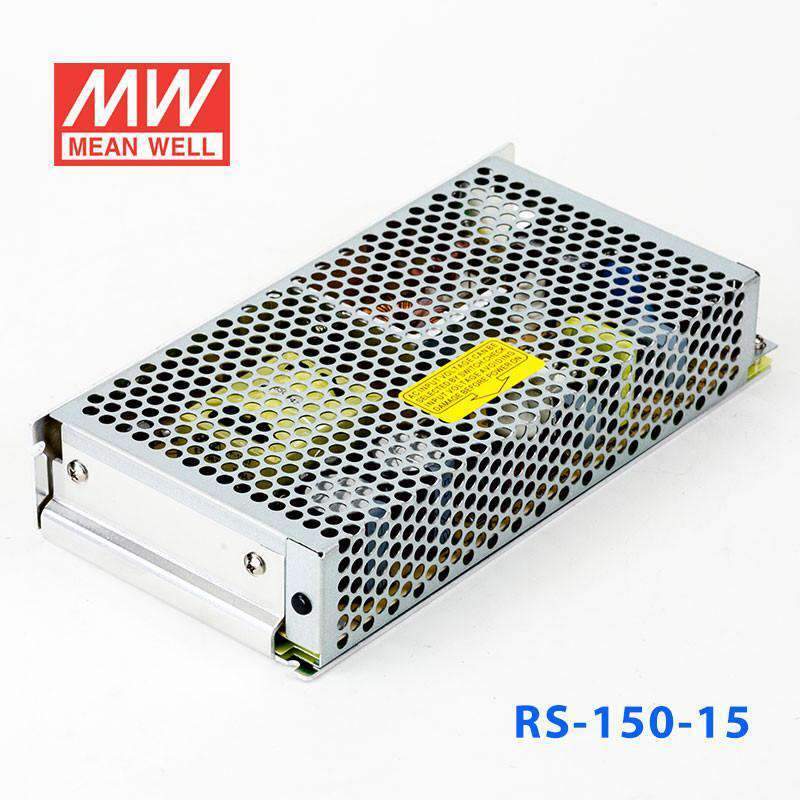

Mean Well RS-150-15 Power Supply 150W 15V
The RS-150 is a 150W Mean Well DIN rail power converter with a 199mm profile (input range: 88~132VAC).
Key Features
- ✓ 199mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 88~132VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368 TUV EN62368-~ EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRS Series
-
Power Rating150 Watt
-
Output Voltage15 Volt
-
Rated Current10 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the RS-150-15 for a 15V industrial control or instrumentation system?
Yes, it delivers constant-voltage 15V output at up to 10A. That makes it suitable for larger 15V control, instrumentation, or automation systems that need more capacity than the smaller 15W, 25.5W, 35W, 51W, 75W, or 105W 15V models.
Is the RS-150-15 appropriate for 15V motors, relays, or actuator circuits in automation equipment?
It can serve 15V automation loads when the total draw remains within 10A and 150W. Because it is a constant-voltage supply, it is best matched to equipment designed for a regulated 15V DC source.
Can this model power several 15V devices from one supply in a machine cabinet?
Yes, the 150W output gives more room for multiple 15V devices on a shared DC bus than the lower-power 15V RS units. Total combined demand still needs to stay at or below 10A.
Is the RS-150-15 suitable for industrial environments with vibration and heat?
The feature list includes 5G vibration resistance and operation up to +70°C. Combined with its -25°C to +70°C operating range, it is intended for demanding indoor equipment environments where a 15V, 150W supply is required.
Can the RS-150-15 be used outdoors or in unprotected areas?
Its temperature rating is -25°C to +70°C, so it supports wide operating temperatures inside equipment. The provided specs do not include an IP rating, so it should be used in protected indoor enclosures rather than exposed outdoor conditions.
How does the RS-150-15 compare with other 15V RS series models?
The listed 15V models are RS-15-15 at 15W and 1A, RS-25-15 at 25.5W and 1.7A, RS-35-15 at 35W and 2.4A, RS-50-15 at 51W and 3.4A, RS-75-15 at 75W and 5A, RS-100-15 at 105W and 7A, and RS-150-15 at 150W and 10A. RS-150-15 is the highest-output 15V version among those siblings.
