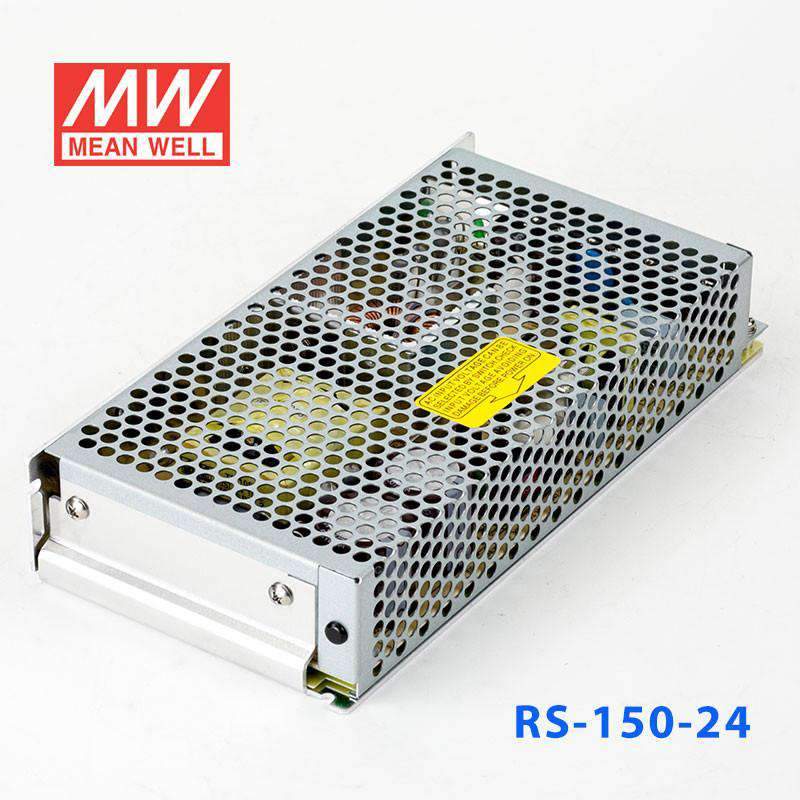

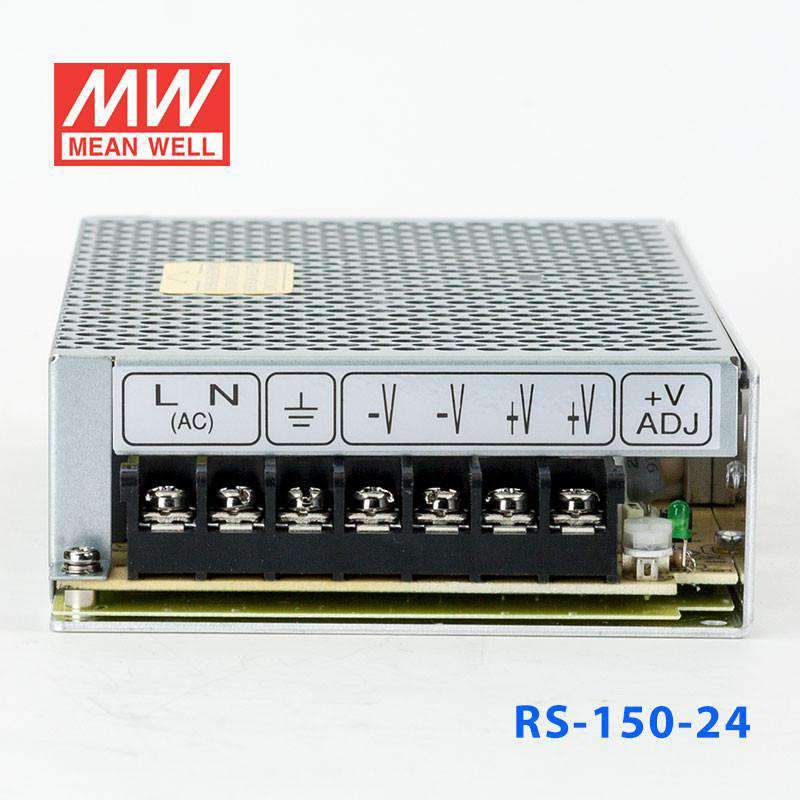

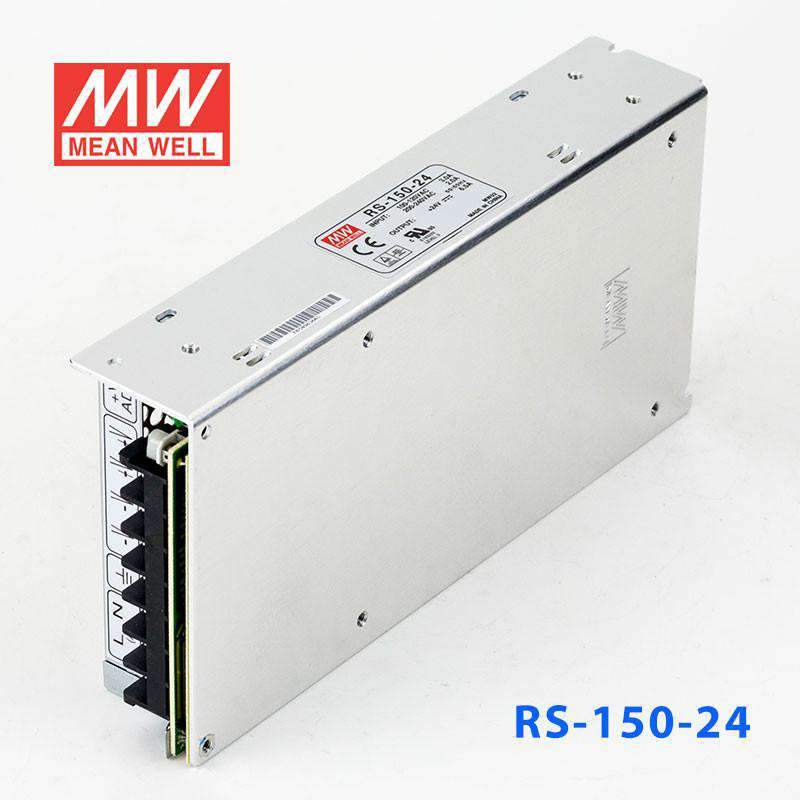

Mean Well RS-150-24 Power Supply 150W 24V
The RS-150 is a 150W Mean Well DIN rail power converter with a 199mm profile (input range: 88~132VAC).
Key Features
- ✓ 199mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 88~132VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368 TUV EN62368-~ EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRS Series
-
Power Rating156 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the RS-150-24 for a 24V industrial control cabinet?
It is intended for constant-voltage 24V loads and can deliver up to 6.5A with 156W available. That makes it suitable for 24V industrial control equipment whose total load stays within those limits.
Is the RS-150-24 a fit for 24V automation devices with moderate current demand?
This model provides a constant 24V output at up to 6.5A. It fits 24V automation loads that need more capacity than a 4.5A supply but do not exceed 156W.
Can I use this 24V power supply for embedded systems that need a stable DC bus?
Yes, if the embedded system is designed for a constant 24V input and draws no more than 6.5A. The wide 88-264VAC input also suits installations that may be powered from different AC mains ranges.
Is the RS-150-24 suitable for indoor or outdoor equipment?
The operating temperature range is -25°C to +70°C, so the temperature envelope is broad. The provided specs do not list an IP rating, so indoor or outdoor exposure cannot be confirmed from the specs alone.
How does the RS-150-24 compare with the other RS-150 models?
Within the RS-150 group, the listed models are RS-150-12 at 150W, 12V, 12.5A; RS-150-15 at 150W, 15V, 10A; RS-150-24 at 156W, 24V, 6.5A; RS-150-3.3 at 99W, 3.3V, 30A; RS-150-48 at 158.4W, 48V, 3.3A; and RS-150-5 at 130W, 5V, 26A. The main difference is the output voltage and corresponding current rating for each model.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RS-150 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RS-150-15 Power Supply 150W 15V | 150W | 15V | 10A | Indoor | $29.34 | View |
| Mean Well RS-150-12 Power Supply 150W 12V | 150W | 12V | 12.5A | Indoor | $29.34 | View |
| Mean Well RS-150-5 Power Supply 150W 5V | 130W | 5V | 26A | Indoor | $29.34 | View |
| Mean Well RS-150-48 Power Supply 150W 48V | 158.4W | 48V | 3.3A | Indoor | $29.42 | View |
| Mean Well RS-150-3.3 Power Supply 150W 3.3V | 99W | 3.3V | 30A | Indoor | $29.33 | View |
