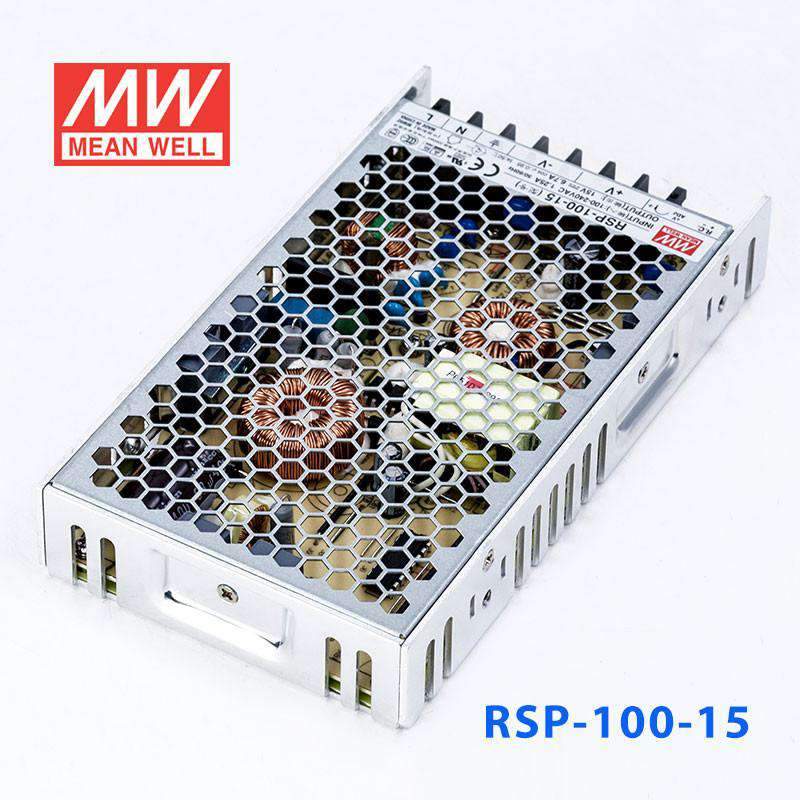

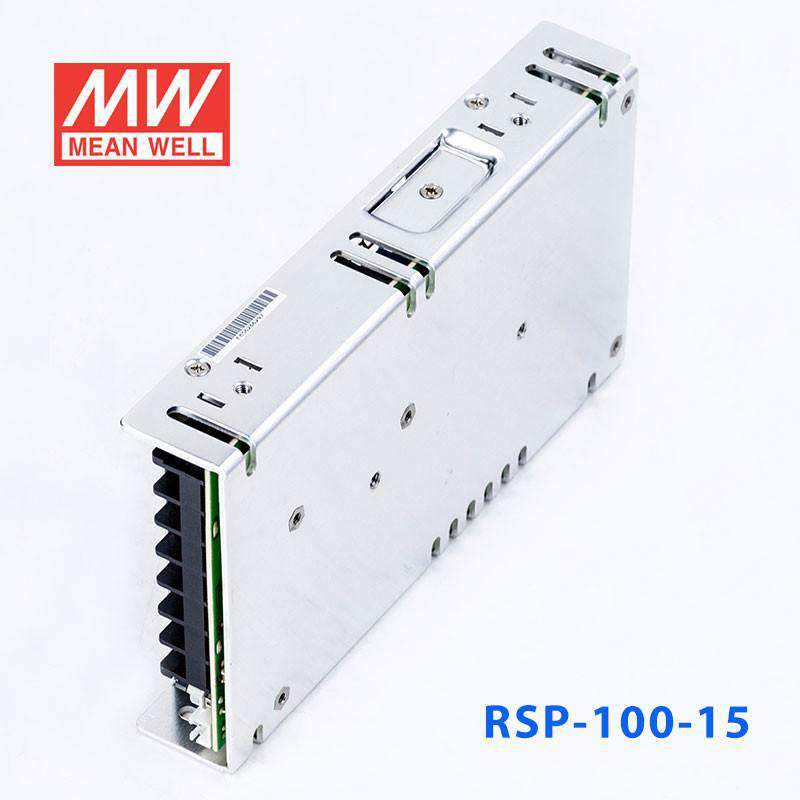

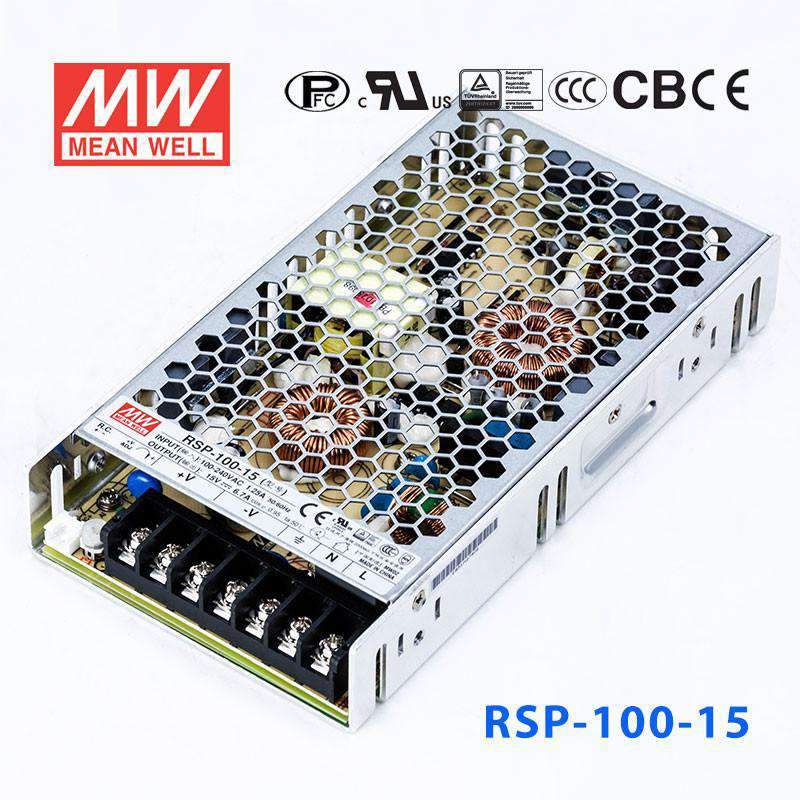

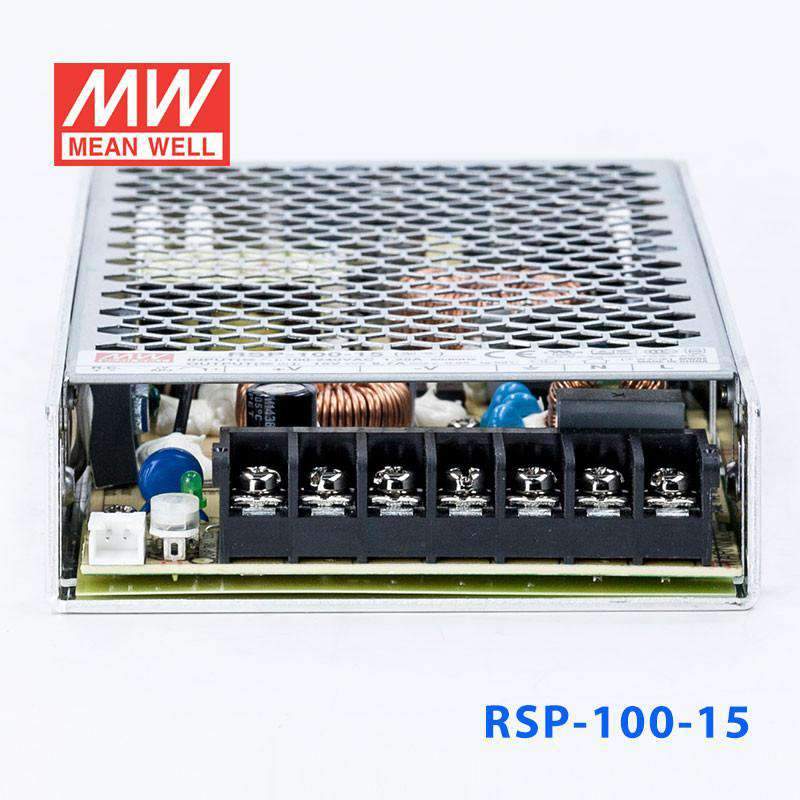

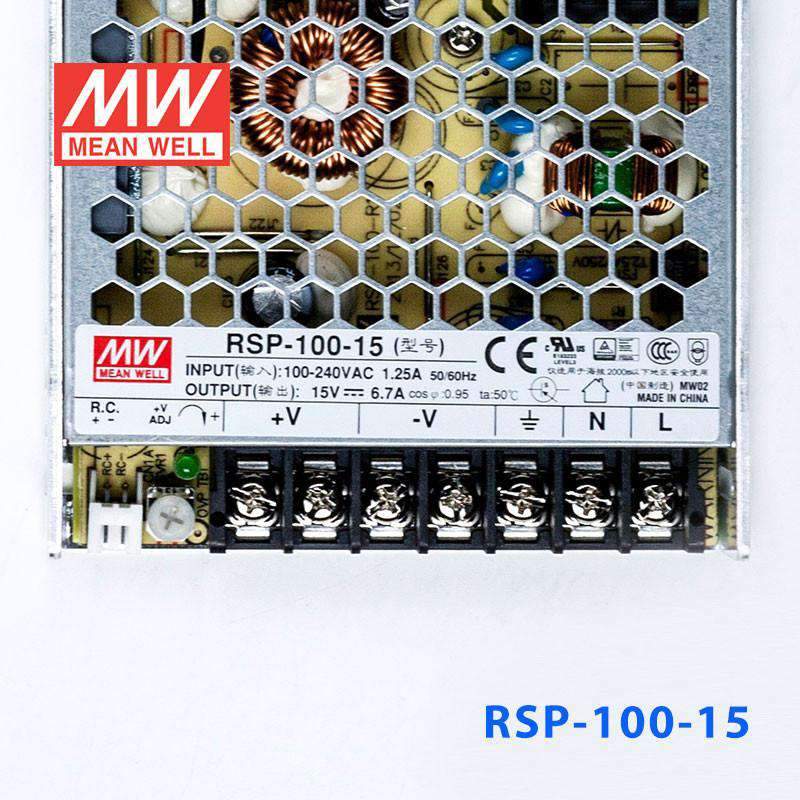

Mean Well RSP-100-15 Power Supply 100W 15V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating100.5 Watt
-
Output Voltage15 Volt
-
Rated Current6.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
Is the RSP-100-15 suitable for powering 15V DC loads in industrial automation?
Yes. The RSP-100-15 delivers 15V at 6.7A (100.5W) and is appropriate for 15V industrial instruments, sensor arrays, and certain servo drive auxiliary rails. The universal 85–264VAC input and active PFC make it compatible with diverse industrial power environments.
How does the RSP-100-15 differ from the RSP-150-15 at the same voltage?
The RSP-100-15 outputs 15V at 6.7A (100.5W) in a 179.0 × 99.0 × 30.0 mm chassis. The RSP-150-15 outputs 15V at 10A (150W) in a slightly larger 199.0 × 99.0 × 30.0 mm chassis. If your load requires more than 6.7A at 15V, the RSP-150-15 is the appropriate step up.
What are the voltage options within the RSP-100 series?
The RSP-100 series covers a wide selection of output voltages. Available models are: RSP-100-3.3 (66W/3.3V/20A), RSP-100-5 (100W/5V/20A), RSP-100-7.5 (101.25W/7.5V/13.5A), RSP-100-12 (102W/12V/8.5A), RSP-100-13.5 (101.25W/13.5V/7.5A), RSP-100-15 (100.5W/15V/6.7A), RSP-100-24 (100.8W/24V/4.2A), RSP-100-27 (102.6W/27V/3.8A), RSP-100-48 (100.8W/48V/2.1A). All share the same 1U form factor and 85–264VAC input.
Can the RSP-100-15 operate in a high-temperature factory environment?
The RSP-100-15 is rated for continuous operation from -30°C to +70°C. In practice, this means it can function in warm factory environments without derating at ambient temperatures up to +70°C. The unit should be mounted to allow free convection or forced-air cooling as required by the enclosure design.
What certifications does the RSP-100-15 carry?
The RSP-100-15 holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications, covering Taiwan, China, Europe, North America, and the Eurasian Economic Union.
