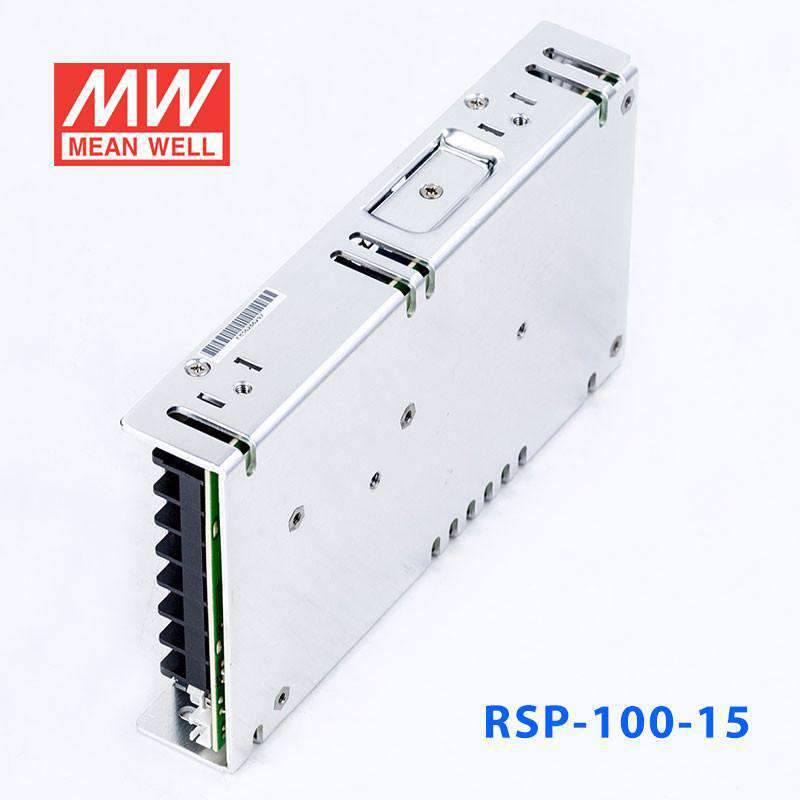

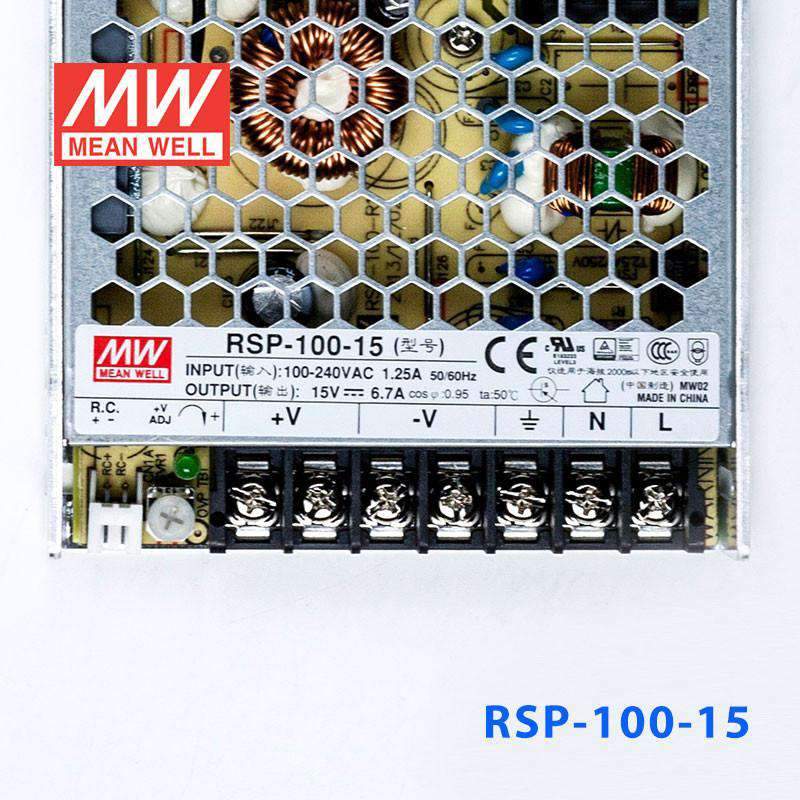

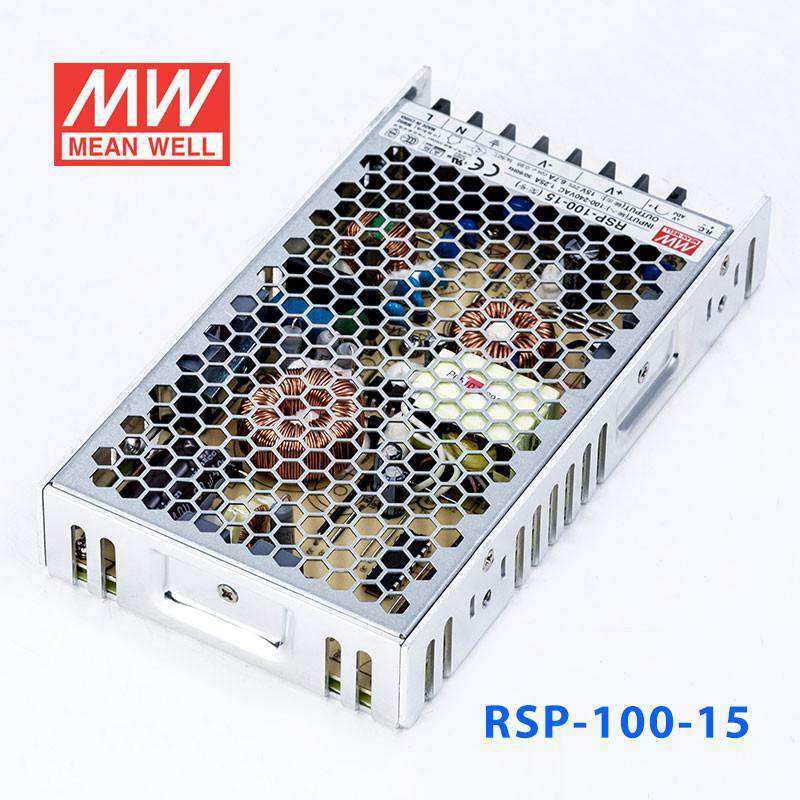

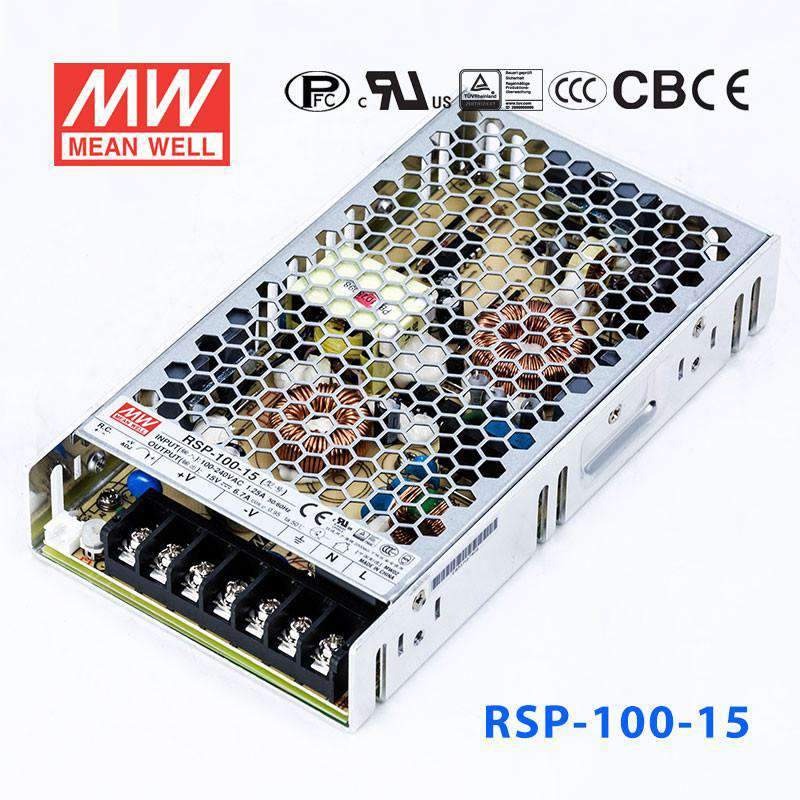

Mean Well RSP-100-15 Power Supply 100W 15V

$44.76 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Built-in active PFC function
Built-in constant current limiting circuit
Protections:Short circuit/ Overload / Over voltage / Over temperature
Cooling by free air convection
1U low profile 30mm
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 30A at 230VAC
Overload protection 105%~135% Constant current limiting, auto-recovery
Over temperature protection Shut down o/p voltage, re-power on to recover
Setup, rise, hold up time 600ms,30ms,16ms at full load
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70ºC(refer to output derating curve)
Safety standards UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved
EMC standards

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024

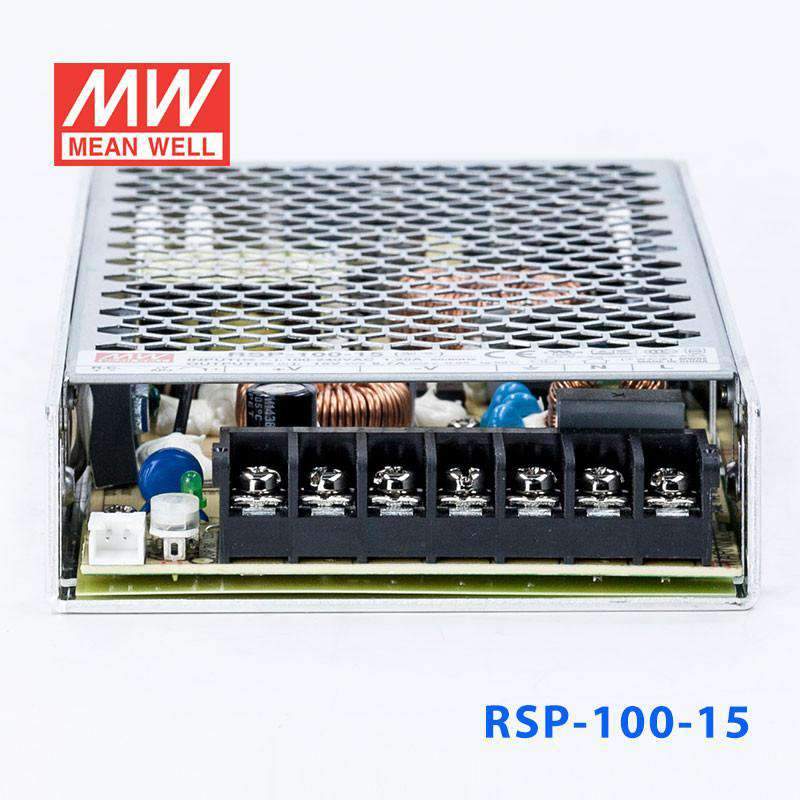

Connection 7P/9.5mm pitch terminal block
Dimension (LxWxH) (mm) 179x99x 30mm
Packing 24pcs / 14.5kg

Specifications

  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    100.5 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    6.7 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Standards Met
    BSMI,CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    7.05 in
  • Width
    3.9 in
  • Height
    1.18 in
  • Weight
    1.15 lb

File Downloads
