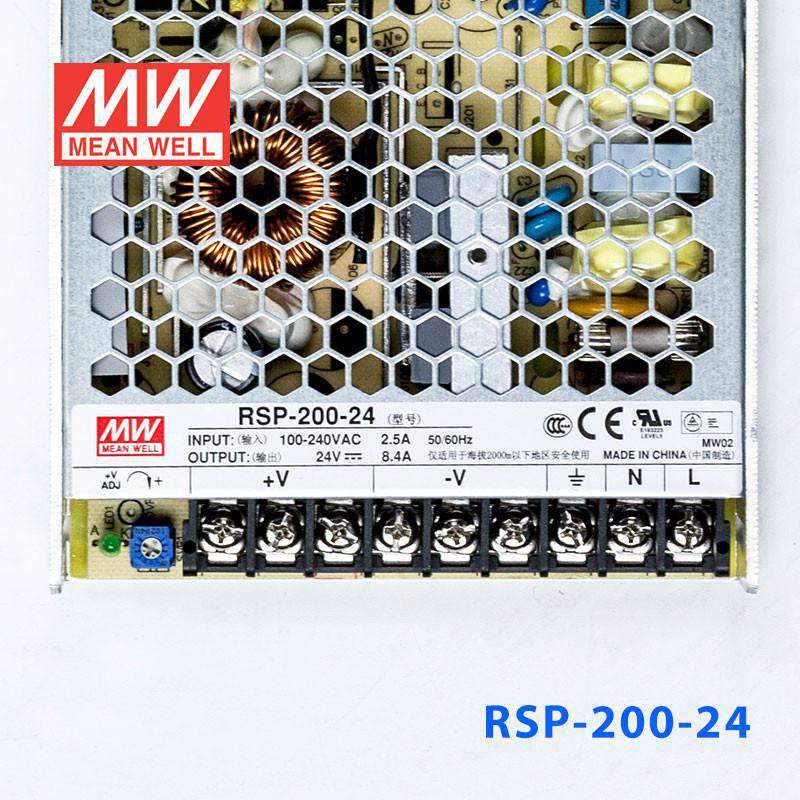

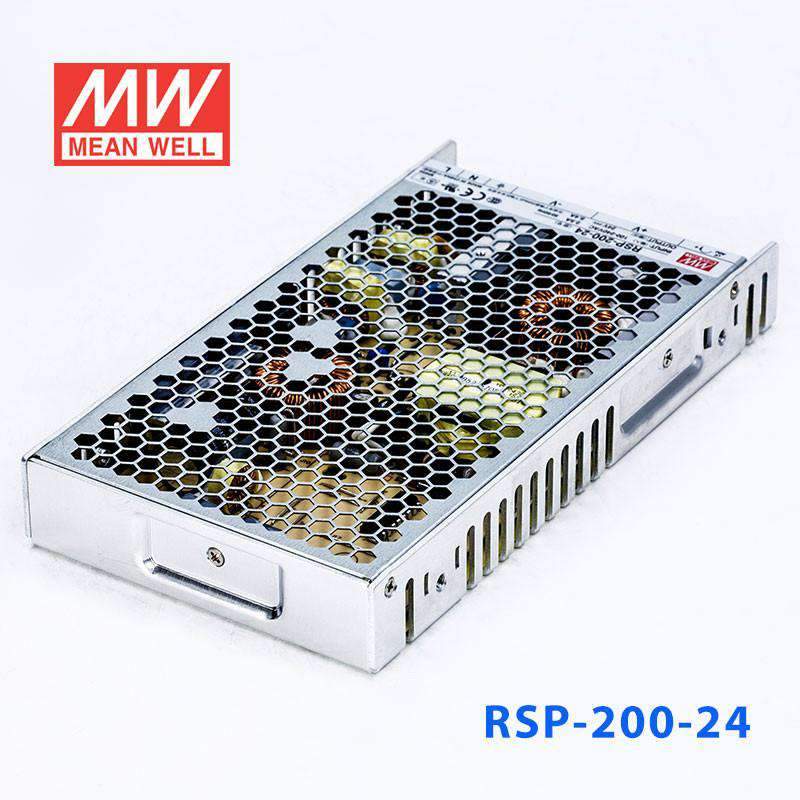

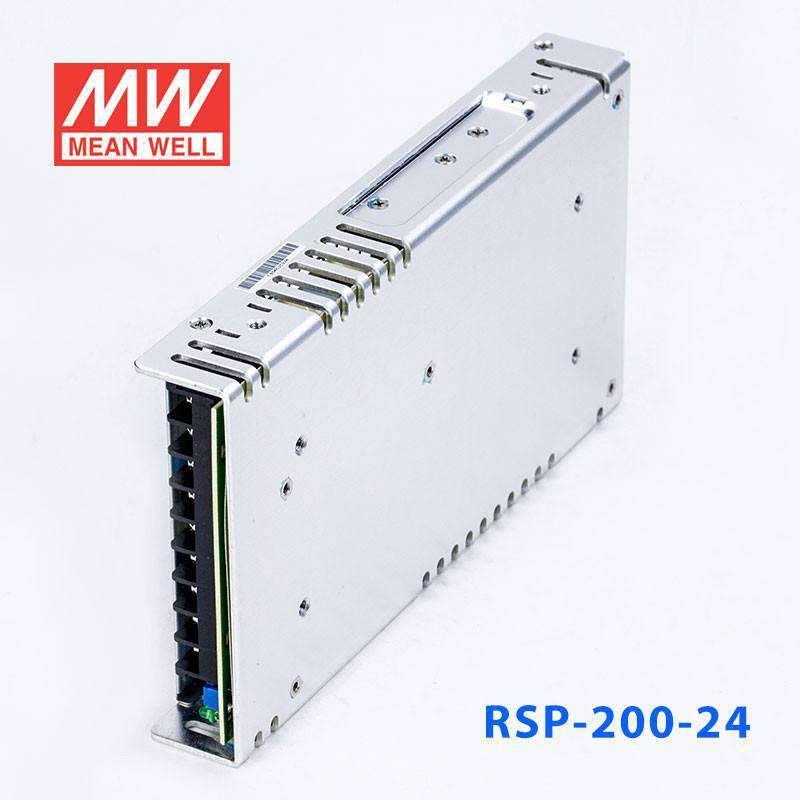

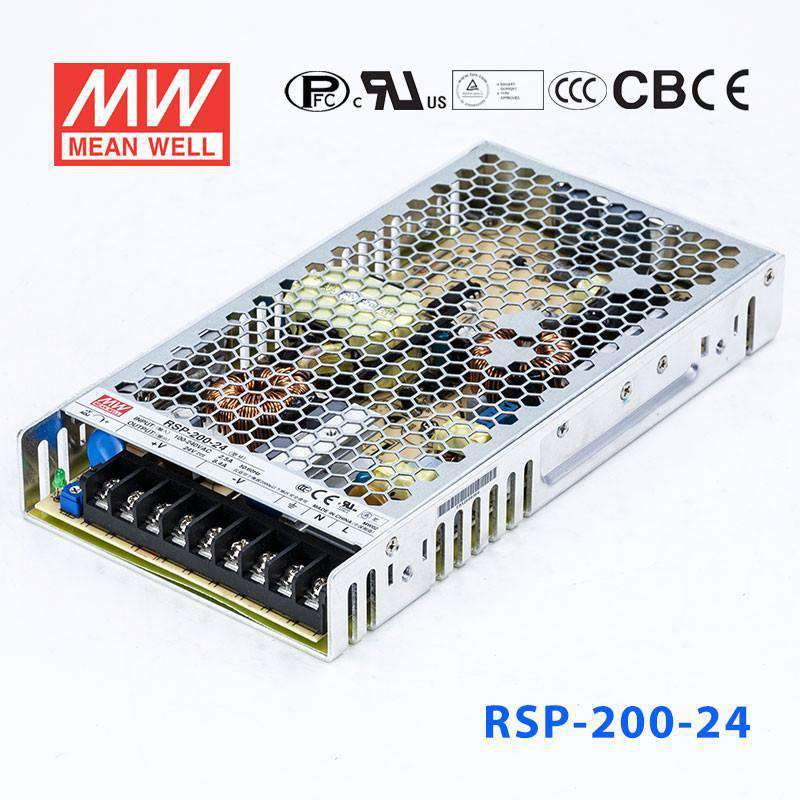

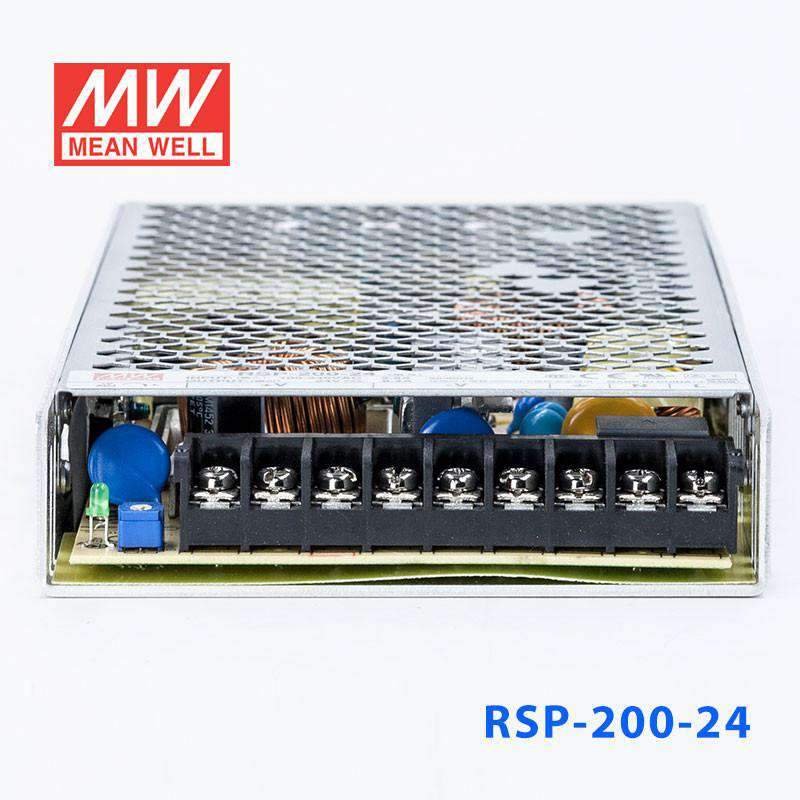

Mean Well RSP-200-24 Power Supply 200W 24V
The RSP-200 is a 200W Mean Well DIN rail power converter with a 215mm profile (input range: 88~264VAC).
Key Features
- ✓ 215mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.59 lb
::specification::
Frequently Asked Questions
What 24V systems can the RSP-200-24 serve at 200W?
The RSP-200-24 delivers 24V at 8.4A (200W) and is suited for 24V DC control panels, industrial Ethernet devices, PLC racks, and field instrumentation requiring a regulated 24V supply up to 200W. The 88–264VAC input handles both 110V and 230V mains.
How does the RSP-200-24 compare to the RSP-150-24 and RSP-100-24?
The RSP-100-24 outputs 24V at 4.2A (100.8W, 179mm chassis). The RSP-150-24 outputs 24V at 6.3A (151.2W, 199mm chassis). The RSP-200-24 outputs 24V at 8.4A (200W, 215mm chassis). All are 1U low-profile. Select based on your 24V load's peak current demand.
Is the RSP-200-24 suitable for deployment in a cold-storage facility control cabinet?
Yes. The RSP-200-24 is rated from -30°C to +70°C, covering typical cold-storage temperatures. It requires an enclosed cabinet for protection from condensation since no IP rating is provided. Once enclosed, its temperature range fully covers cold-storage environments.
What certifications does the RSP-200-24 hold?
The RSP-200-24 carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications, covering China, Australia/NZ, North America, Europe, and Eurasian markets.
What is the footprint of the RSP-200-24 and how does it compare to RSP-200 siblings?
All RSP-200 series models share the 215.0 × 115.0 × 30.0 mm 1U chassis at 0.72 kg. The RSP-200-24 is dimensionally identical to all other RSP-200 variants: RSP-200-2.5 (100W/2.5V/40A), RSP-200-3.3 (132W/3.3V/40A), RSP-200-4 (160W/4V/40A), RSP-200-5 (200W/5V/40A), RSP-200-7.5 (200.25W/7.5V/26.7A), RSP-200-12 (200.4W/12V/16.7A), RSP-200-13.5 (201.15W/13.5V/14.9A), RSP-200-15 (201W/15V/13.4A), RSP-200-24 (200W/24V/8.4A), RSP-200-27 (200W/27V/7.5A), RSP-200-36 (200.16W/36V/5.56A), RSP-200-48 (200W/48V/4.2A).
