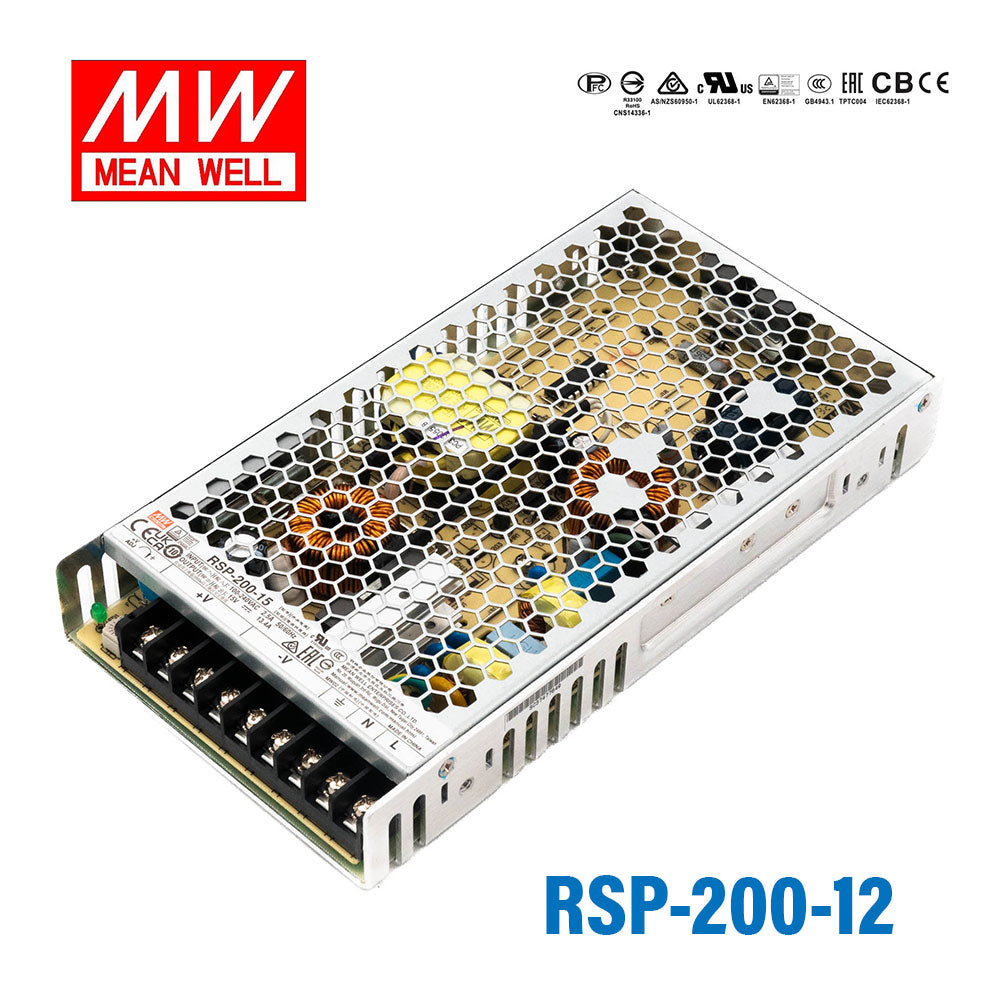

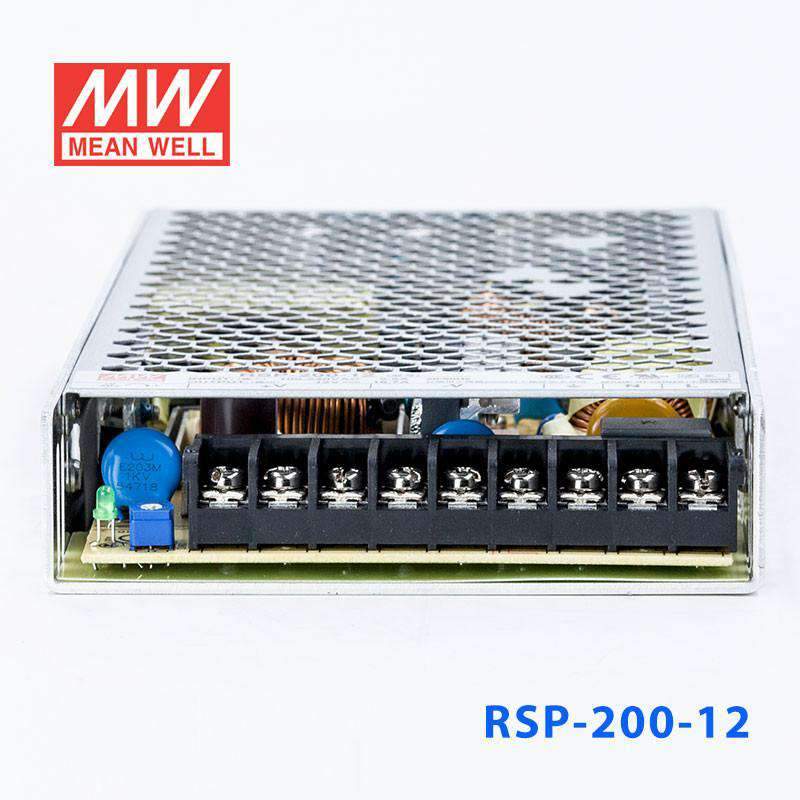

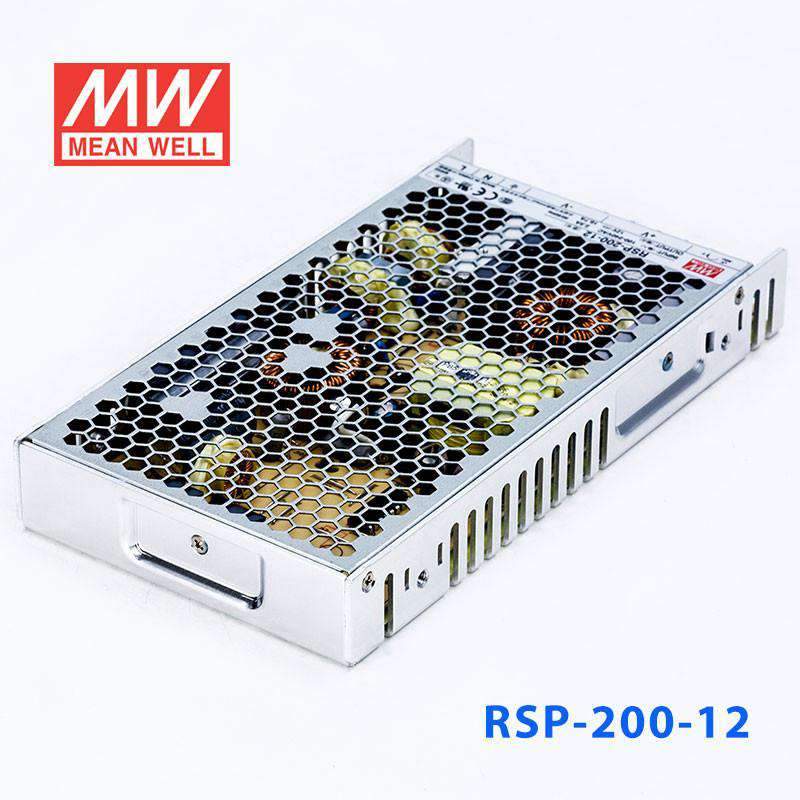

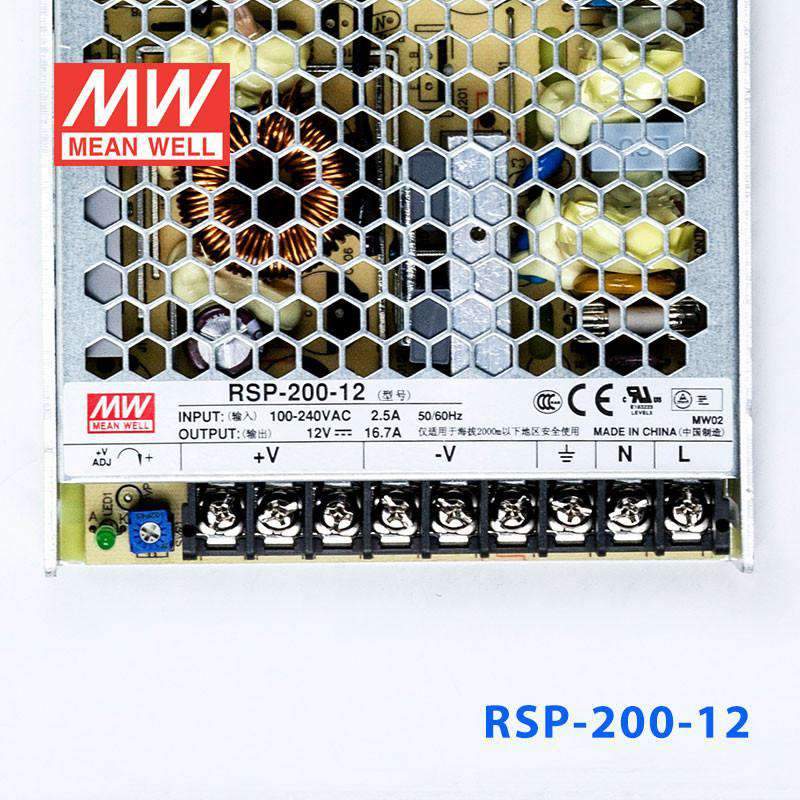

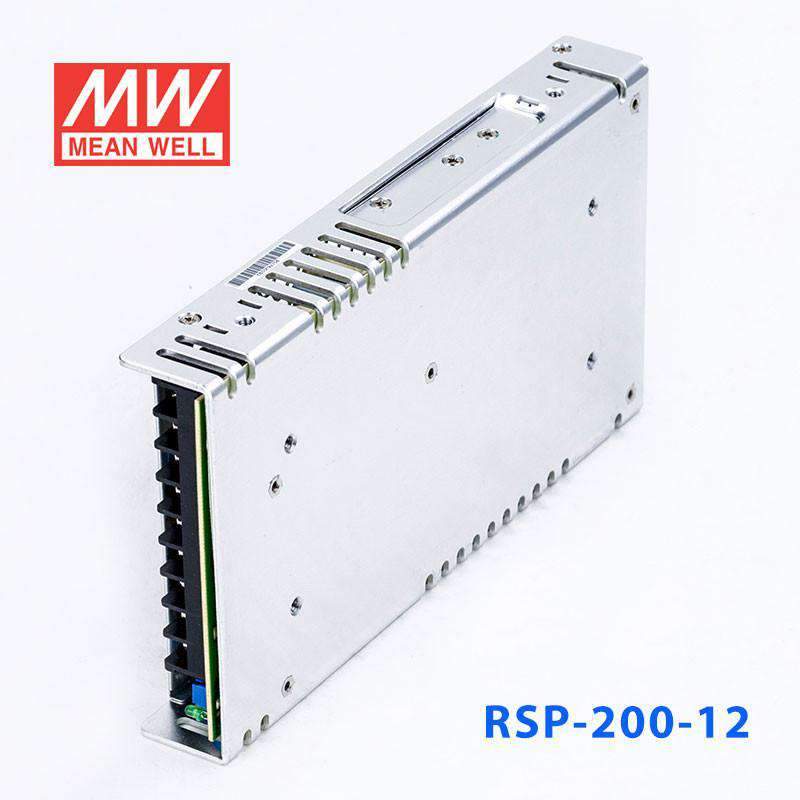

Mean Well RSP-200-12 Power Supply 200W 12V
Description
Description
The RSP-200 is a 200W Mean Well DIN rail power converter with a 215mm profile (input range: 88~264VAC).
Key Features
- ✓ 215mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating200.4 Watt
-
Output Voltage12 Volt
-
Rated Current16.7 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.59 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 12V industrial applications can the RSP-200-12 power?
The RSP-200-12 delivers 12V at 16.7A (200.4W) and is suited for 12V DC bus applications requiring more current than the RSP-100 or RSP-150 series, such as multi-actuator control panels, 12V industrial communication hubs, distributed 12V sensor networks, and embedded computing racks. The 88–264VAC input accommodates all standard mains voltages.
How does the RSP-200-12 compare to the RSP-150-12 and RSP-100-12?
The RSP-100-12 delivers 12V at 8.5A (102W, 179mm chassis). The RSP-150-12 delivers 12V at 12.5A (150W, 199mm chassis). The RSP-200-12 delivers 12V at 16.7A (200.4W, 215mm chassis). All are 1U low-profile, 30mm height. Choose based on your 12V load current requirement.
What are all the voltage variants in the RSP-200 series?
The RSP-200 series voltage options are: RSP-200-2.5 (100W/2.5V/40A), RSP-200-3.3 (132W/3.3V/40A), RSP-200-4 (160W/4V/40A), RSP-200-5 (200W/5V/40A), RSP-200-7.5 (200.25W/7.5V/26.7A), RSP-200-12 (200.4W/12V/16.7A), RSP-200-13.5 (201.15W/13.5V/14.9A), RSP-200-15 (201W/15V/13.4A), RSP-200-24 (200W/24V/8.4A), RSP-200-27 (200W/27V/7.5A), RSP-200-36 (200.16W/36V/5.56A), RSP-200-48 (200W/48V/4.2A). All share the 215.0 × 115.0 × 30.0 mm chassis and 88–264VAC input.
Is the RSP-200-12 appropriate for cold-start industrial environments?
Yes. The RSP-200-12 is rated from -30°C to +70°C ambient, supporting cold-start in sub-zero environments. No IP rating is specified; an appropriate sealed enclosure is needed for outdoor or wet/dusty locations.
What certifications does the RSP-200-12 carry?
The RSP-200-12 holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications, including CCC (China) and c_rcm (Australia/NZ), making it one of the broader certification sets in the RSP-200 family.
