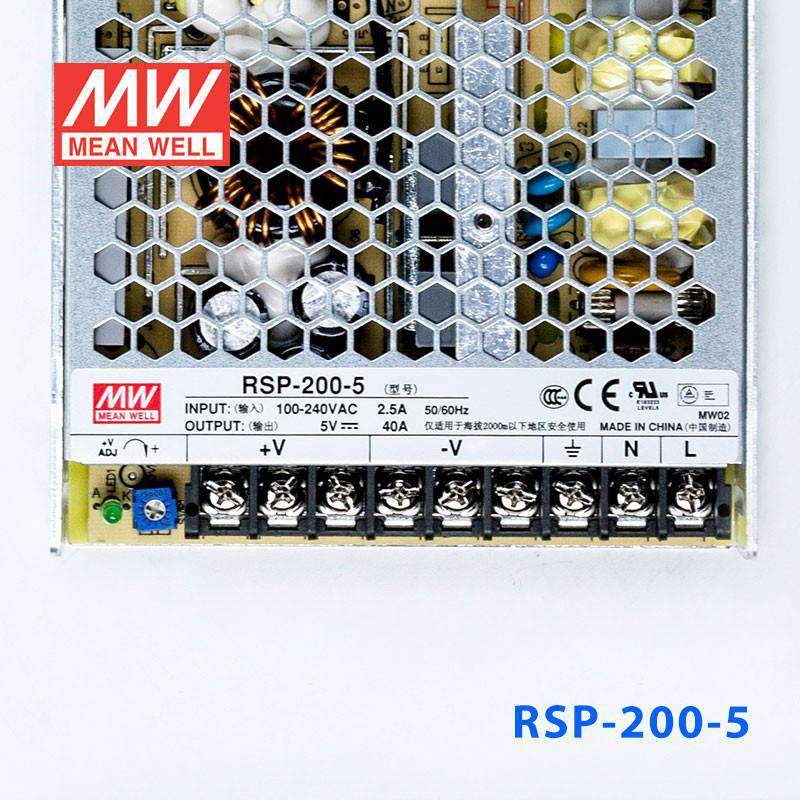

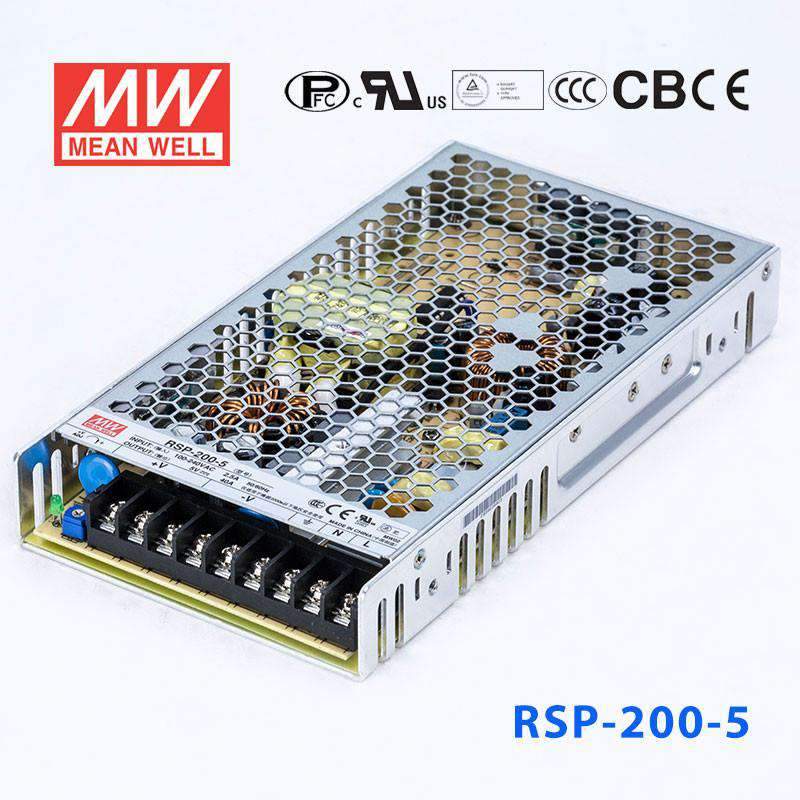

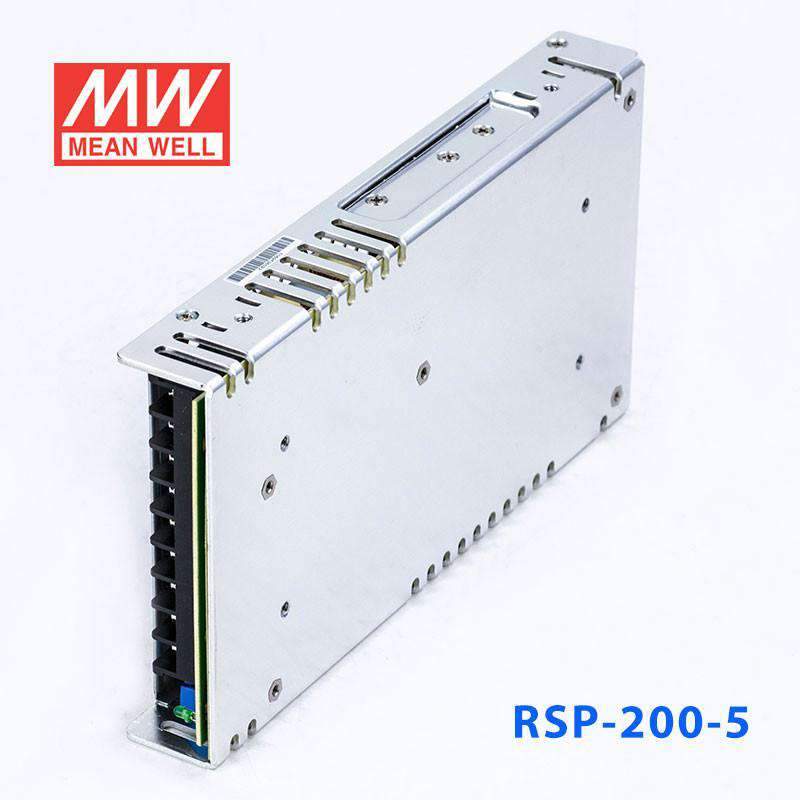

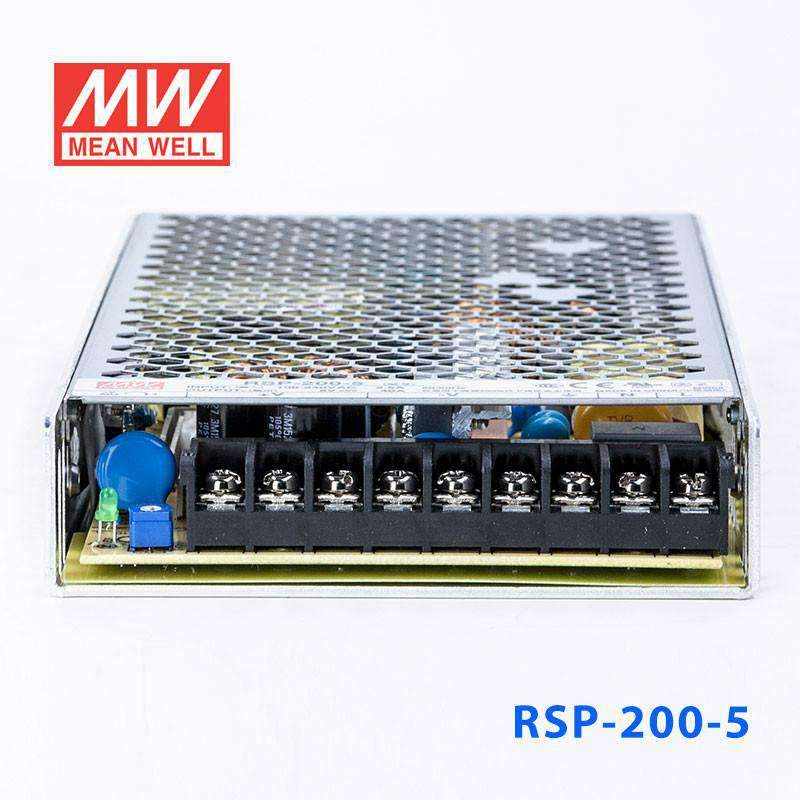

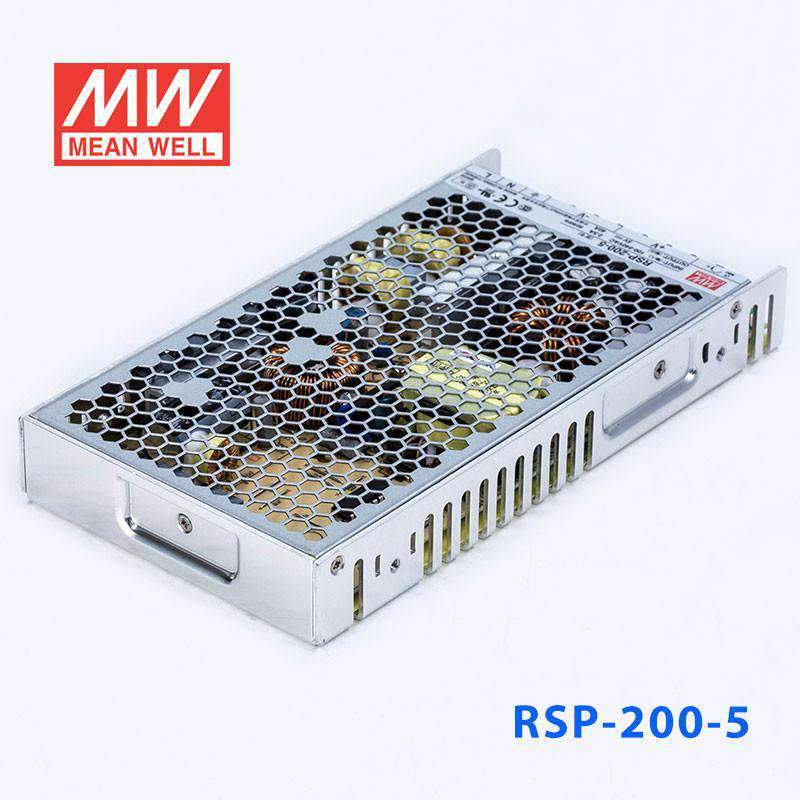

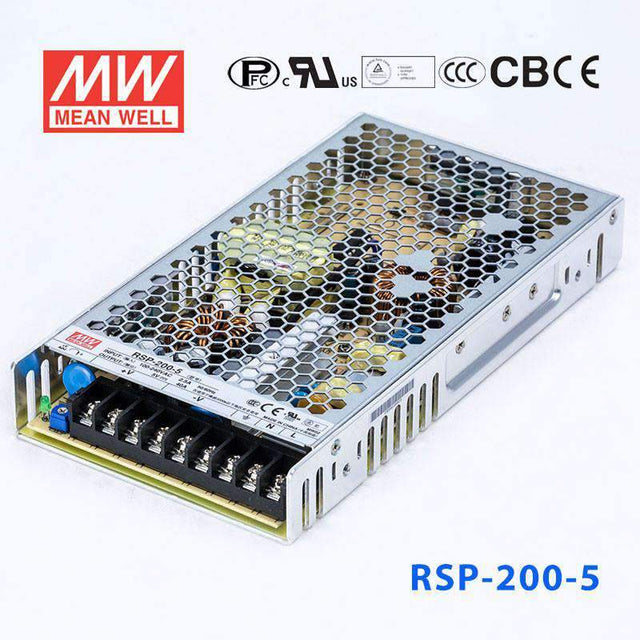

Mean Well RSP-200-5 Power Supply 200W 5V
Description
Description
Features
| Ultra low profile: 30mm |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in active PFC function |
| Cooling by free air convection |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~150% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |
| Connection | 9P / 9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x115x30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current40 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.59 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 5V industrial or embedded applications can the RSP-200-5 power?
The RSP-200-5 delivers 5V at 40A (200W) and is suited for 5V logic bus systems requiring up to 40A, such as large embedded computing racks, multi-board SBC installations, industrial 5V relay control panels, and data acquisition front-ends. The 88–264VAC input operates on any standard mains supply.
How does the RSP-200-5 compare to the RSP-150-5 and RSP-100-5?
The RSP-100-5 delivers 5V at 20A (100W, 179mm chassis). The RSP-150-5 delivers 5V at 30A (150W, 199mm chassis). The RSP-200-5 delivers 5V at 40A (200W, 215mm chassis). All are 1U low-profile. The RSP-200-5 is the highest-current 5V option in this platform family.
Can the RSP-200-5 power a high-density 5V computing cluster?
Yes. At 40A the RSP-200-5 can support a cluster of 5V boards each drawing up to 2A, powering up to 20 boards simultaneously at full rated output. For loads exceeding 200W at 5V, multiple units may be required.
What are the environmental limits of the RSP-200-5?
The RSP-200-5 is rated from -30°C to +70°C ambient with no IP ingress protection. It must be housed in an appropriate enclosure for harsh environments. The temperature range covers the full industrial spectrum for most indoor applications.
What certifications does the RSP-200-5 carry?
The RSP-200-5 holds BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications, one of the most complete certification sets in the RSP-200 series.
