Mean Well RSP-3000-12 Power Supply 2400W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours

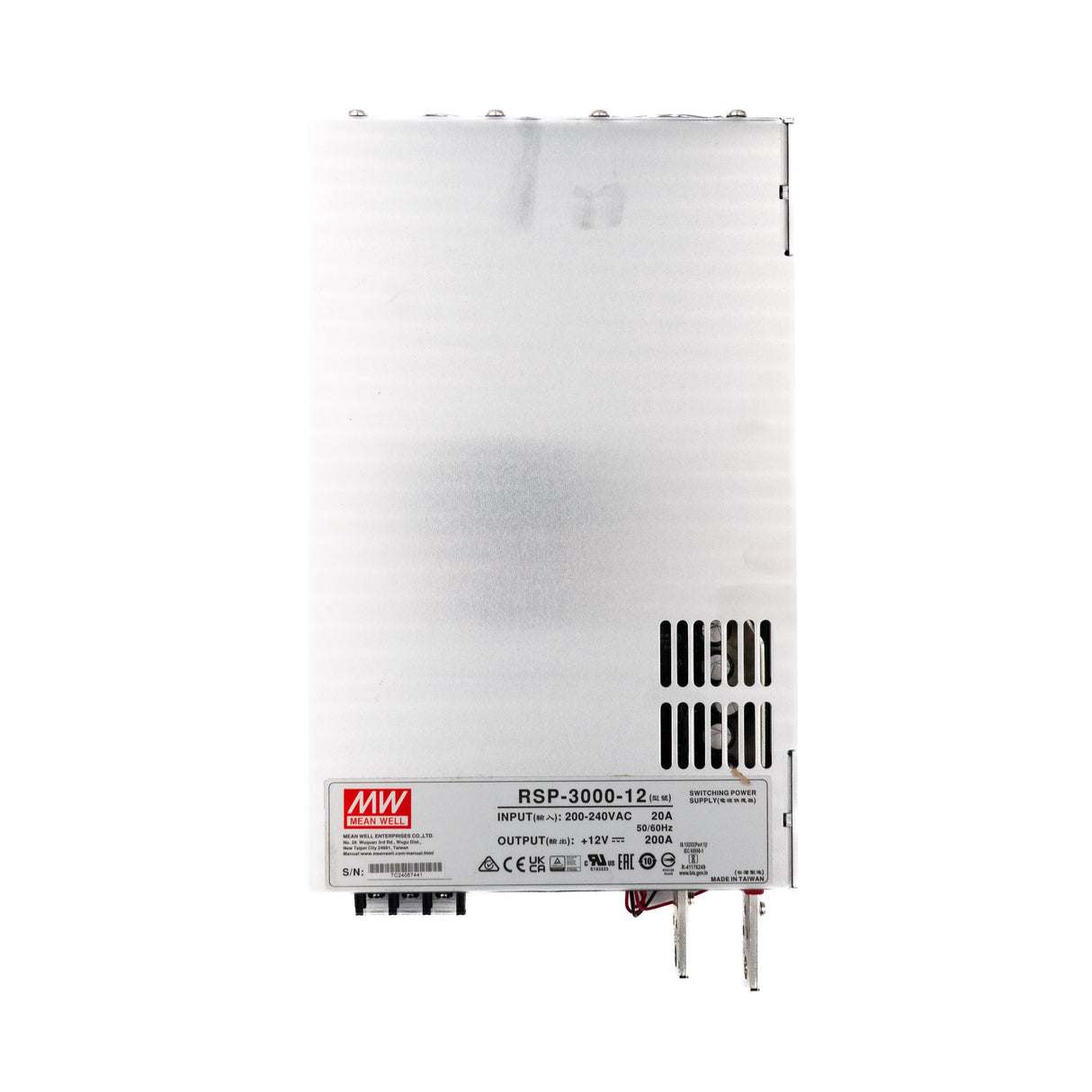

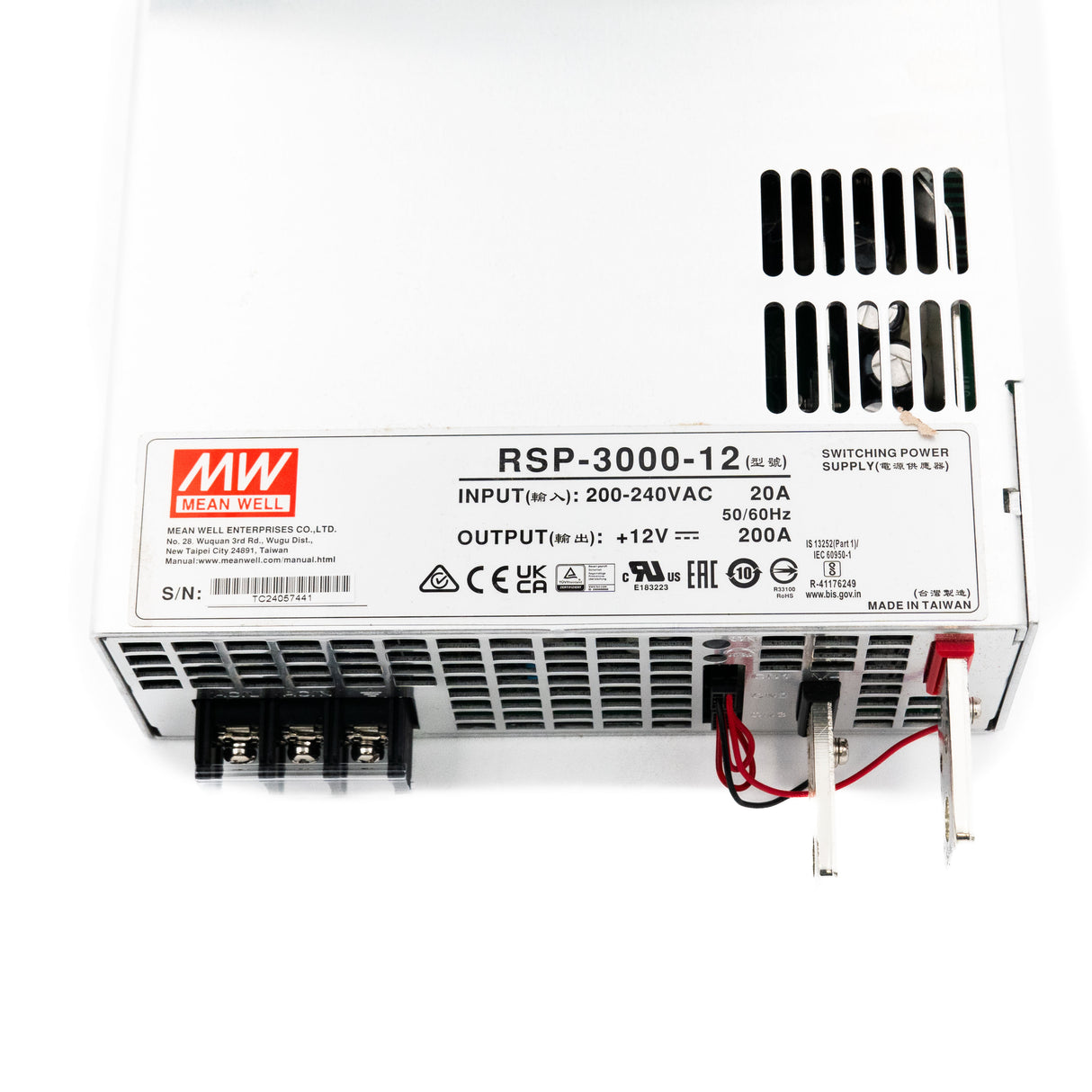

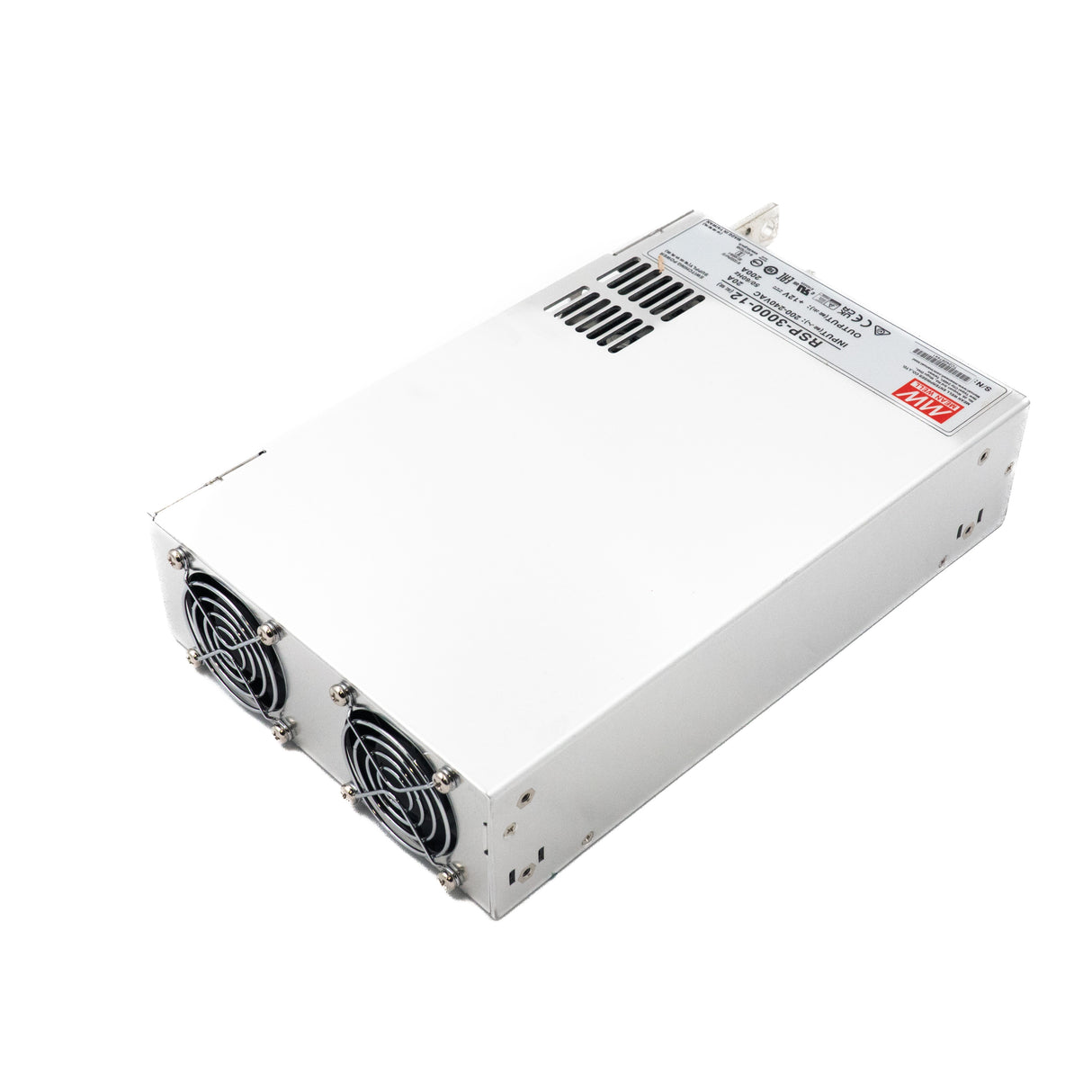

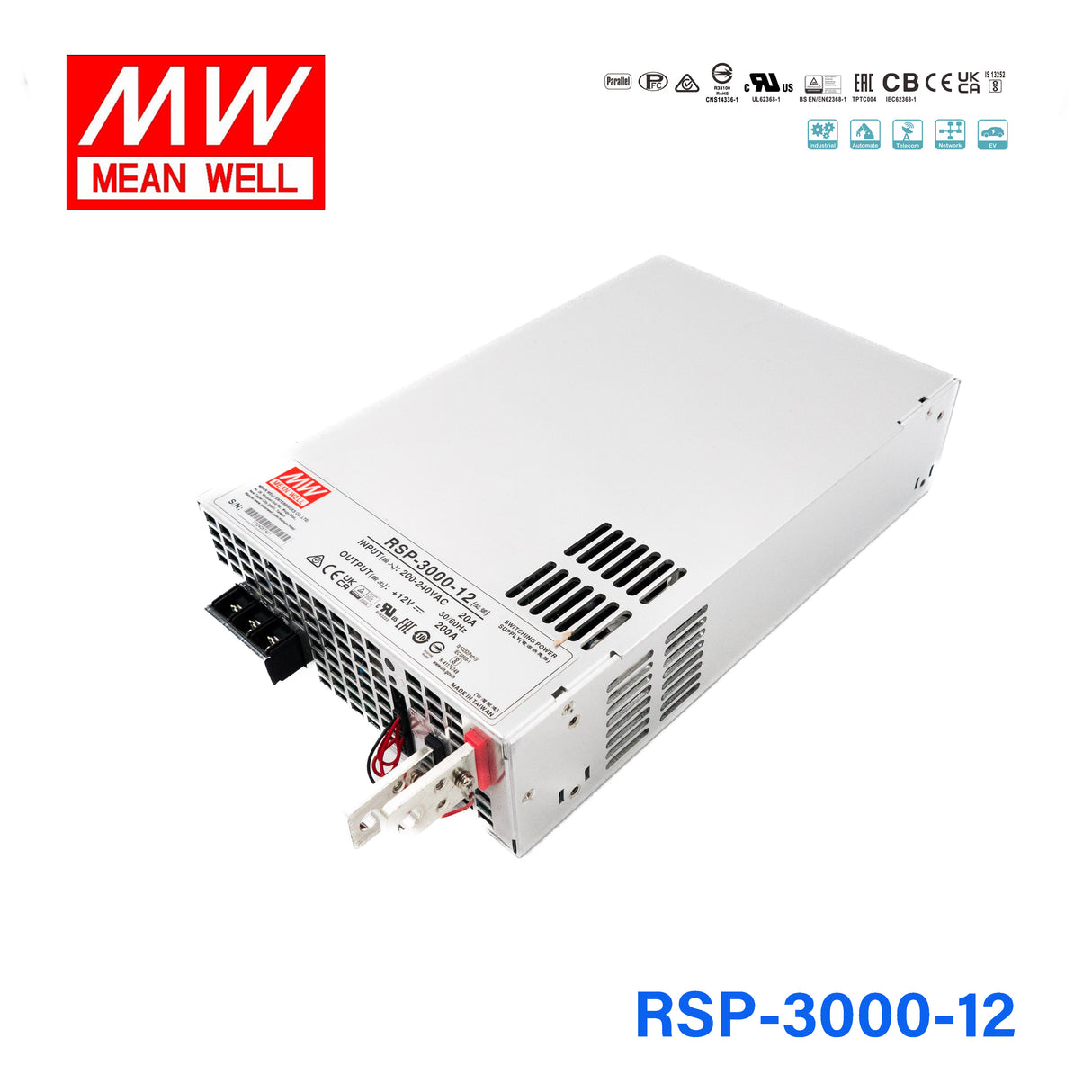

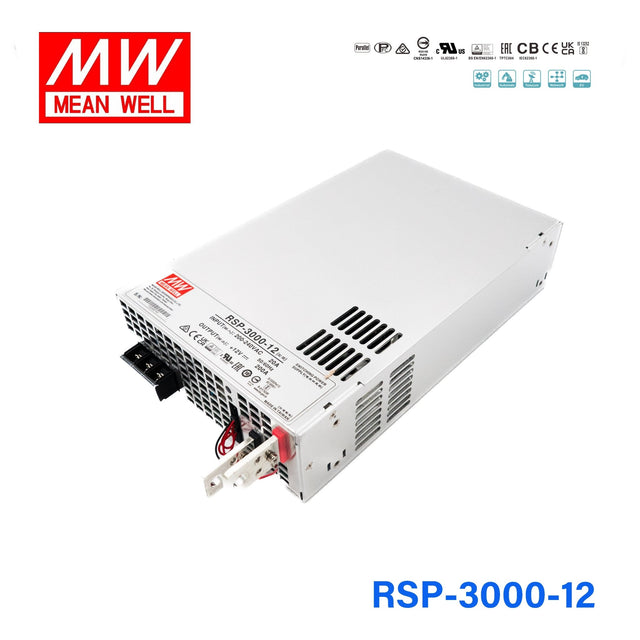

Mean Well RSP-3000-12 Power Supply 2400W 12V
The RSP-3000 is a 3000W Mean Well power converter (input range: 180~264VAC).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating2400 Watt
-
Output Voltage12 Volt
-
Rated Current200 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width7 in
-
Height2.5 in
-
Weight8.82 lb
::specification::
Frequently Asked Questions
What applications require the RSP-3000-12's 200A output at 12V?
The RSP-3000-12 delivers 2400W at 12V with up to 200A, making it one of the highest-current 12V enclosed supplies in the RSP series. Typical applications include large DC bus systems, high-power embedded computing clusters, and industrial electroplating or process heating equipment.
What is the minimum ambient temperature for the RSP-3000-12?
The RSP-3000-12 operates from -20°C to +70°C. It is rated for indoor enclosed use and does not carry an outdoor IP rating. Certifications include UL, CE, TÜV, CB, BSMI, and EAC.
How does the RSP-3000-12 compare to the RSP-2400-12?
Both units use the same 278.0 × 177.8 × 63.5 mm chassis and require 180-264VAC input. The RSP-2400-12 delivers 2000.4W at 166.7A, while the RSP-3000-12 increases output to 2400W at 200A. The RSP-3000-12 weighs 4.0 kg versus 3.3 kg for the RSP-2400-12.
Does the RSP-3000-12 include active current sharing?
Yes. The RSP-3000-12 supports 2+1 active current sharing, enabling two units to be paralleled for up to 400A total output with a third unit providing N+1 redundancy. Efficiency reaches up to 91.5%.
