Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

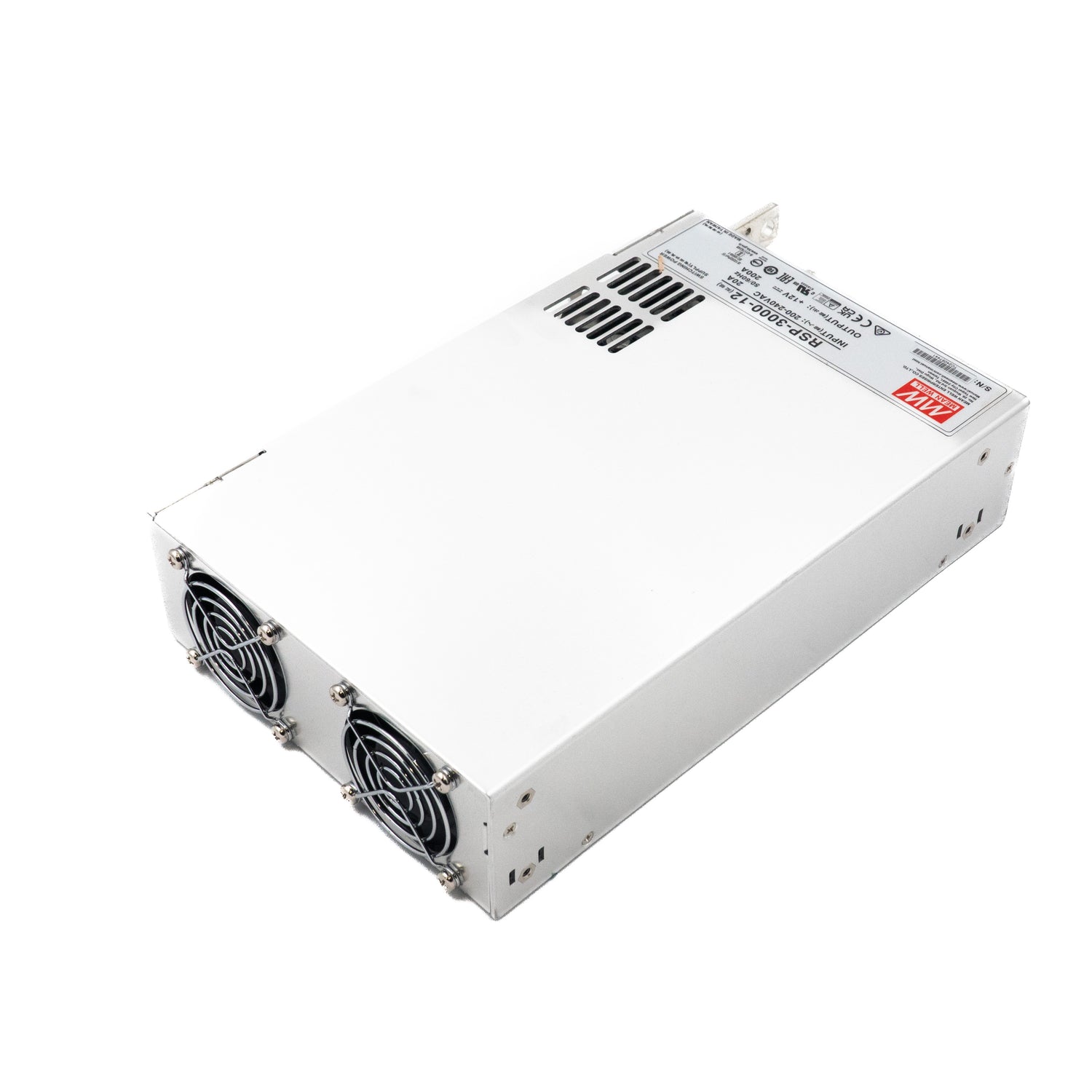

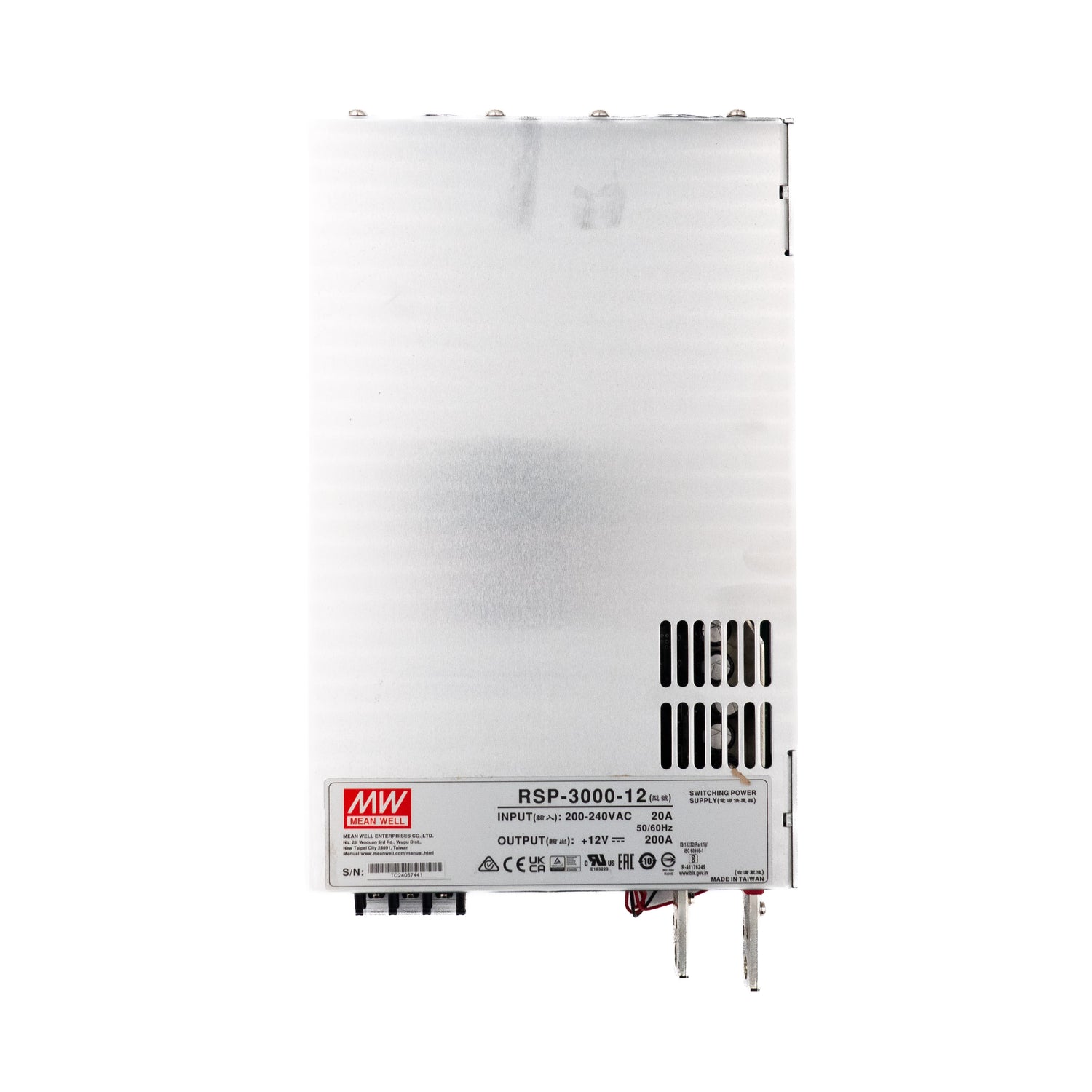

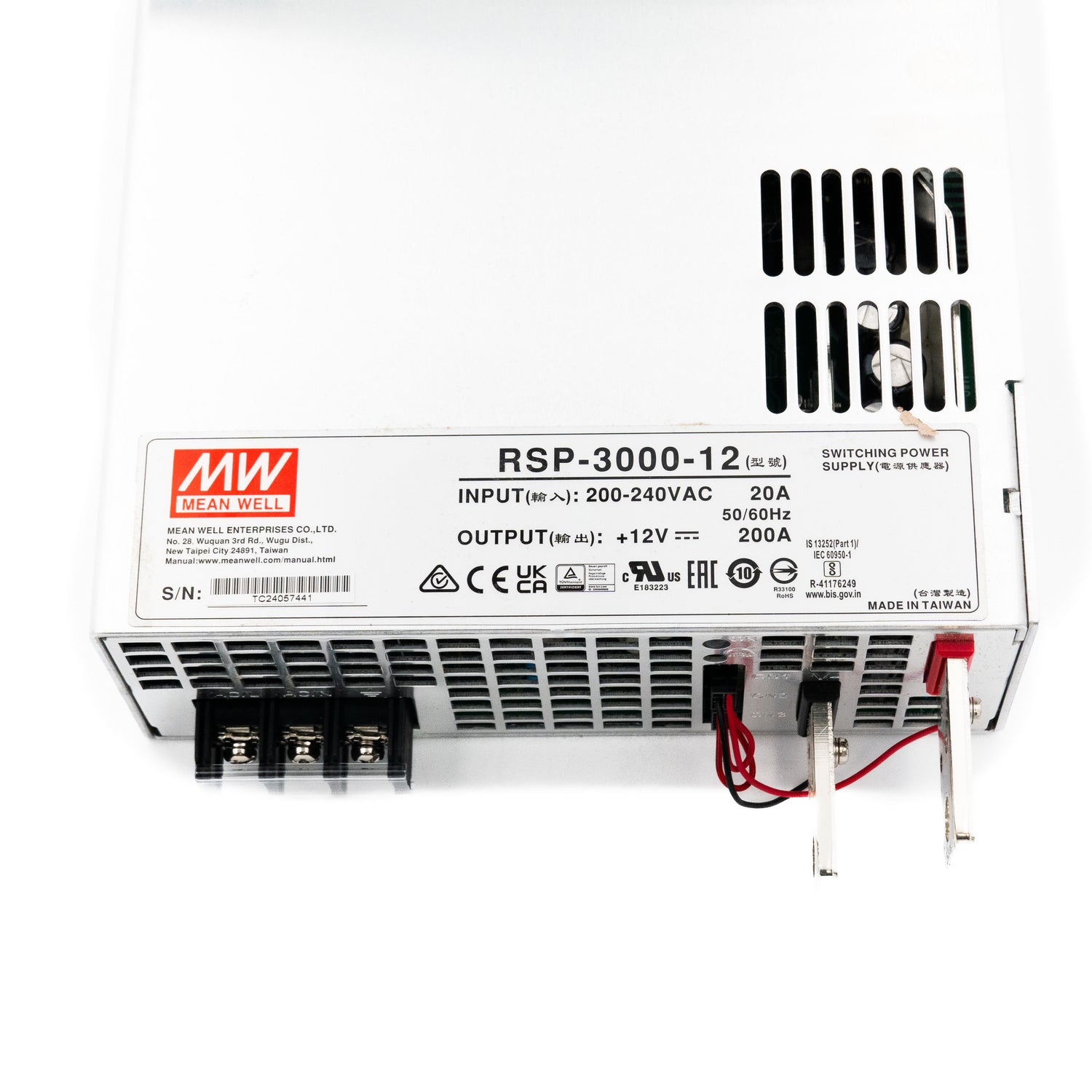

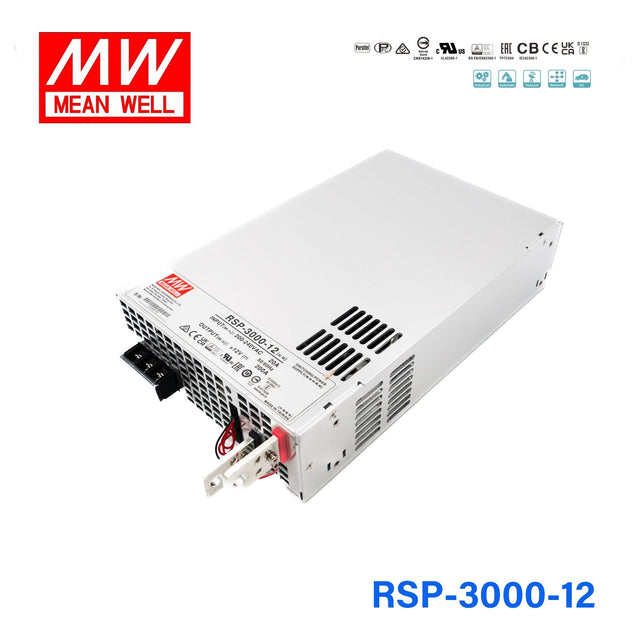

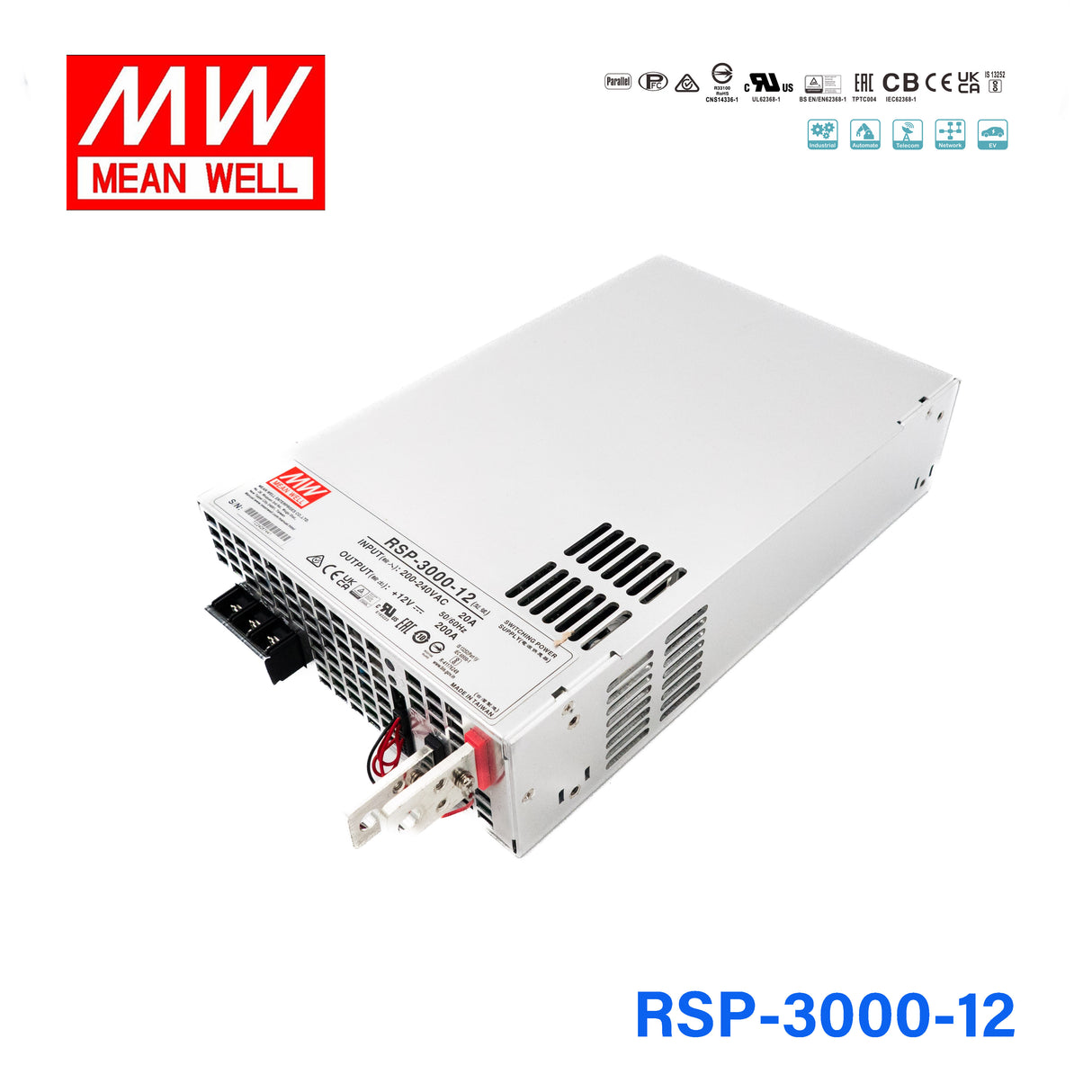

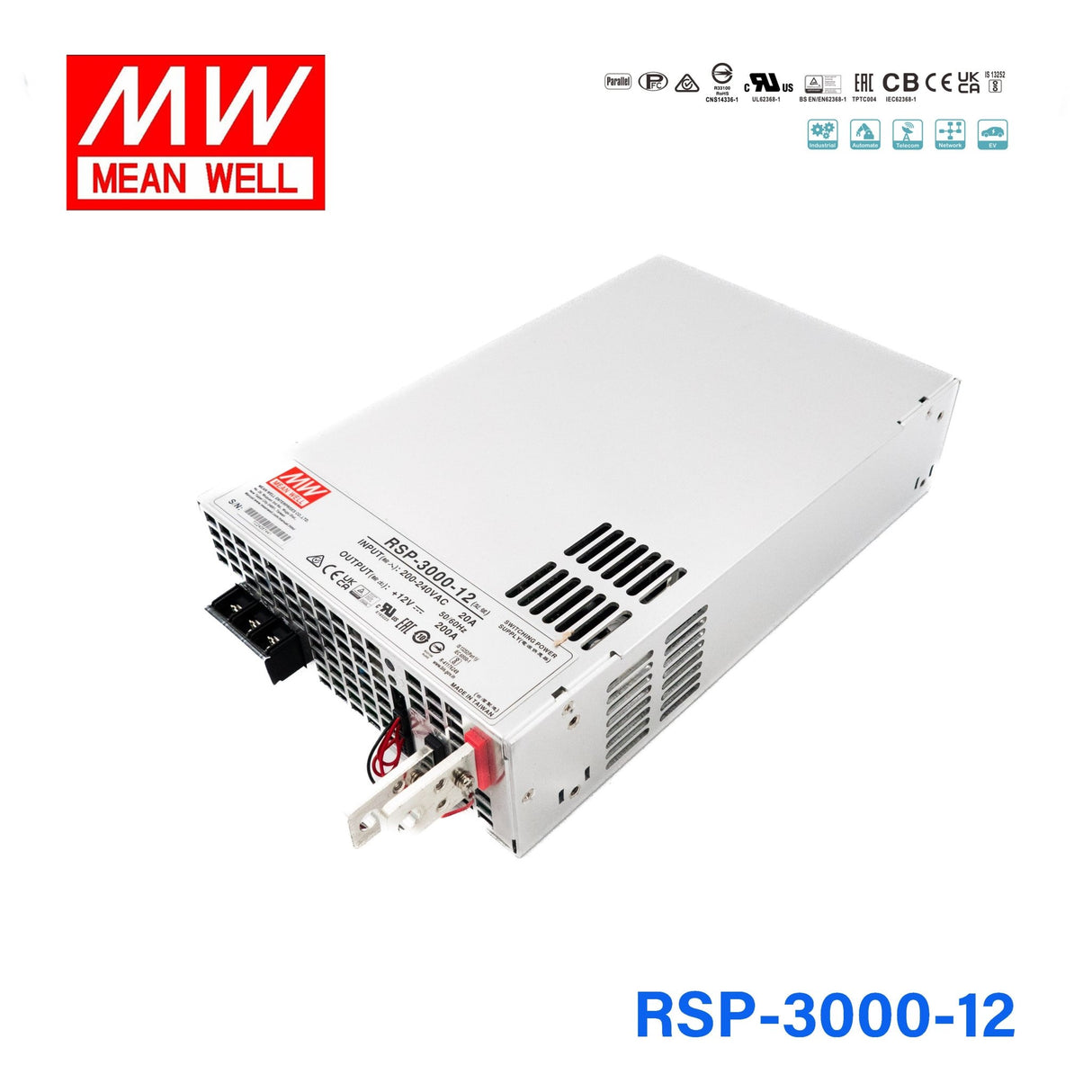

Mean Well RSP-3000-12 Power Supply 2400W 12V
$548.68 USD
Unit price /
Unavailable
Description
Description
Features
| AC input 180~264VAC only |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm |
| Forced air cooling by built-in DC fan |
| Vo can be trimmed by external resistor or external control signal |
| Built-in current sharing |
| Built-in remote sense and ON/OFF control |
| Built-in auxiliary power |
| Alarm signal output |
| 5 years warranty |
General Specification
| AC input voltage range | 180~264VAC; 254~370VDC |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 100%~112% |
| Overload protection Type | Constant current limiting, shut off after 5 sec., re-power on to recover (can adjust to continuous constant current limiting) |
| Over voltage protection Range | 115%~140% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+70°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | 3P/13mm pitch terminal block with cover |
| Connection Output | Copper pillars |
| Dimension (LxWxH) | 278x177.8x63.5 |
| Case No. | 982B |
| Packing | 4kg; 4pcs / 16kg / 1.89CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating2400 Watt
-
Output Voltage12 Volt
-
Rated Current200 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width7 in
-
Height2.5 in
-
Weight8.82 lb
