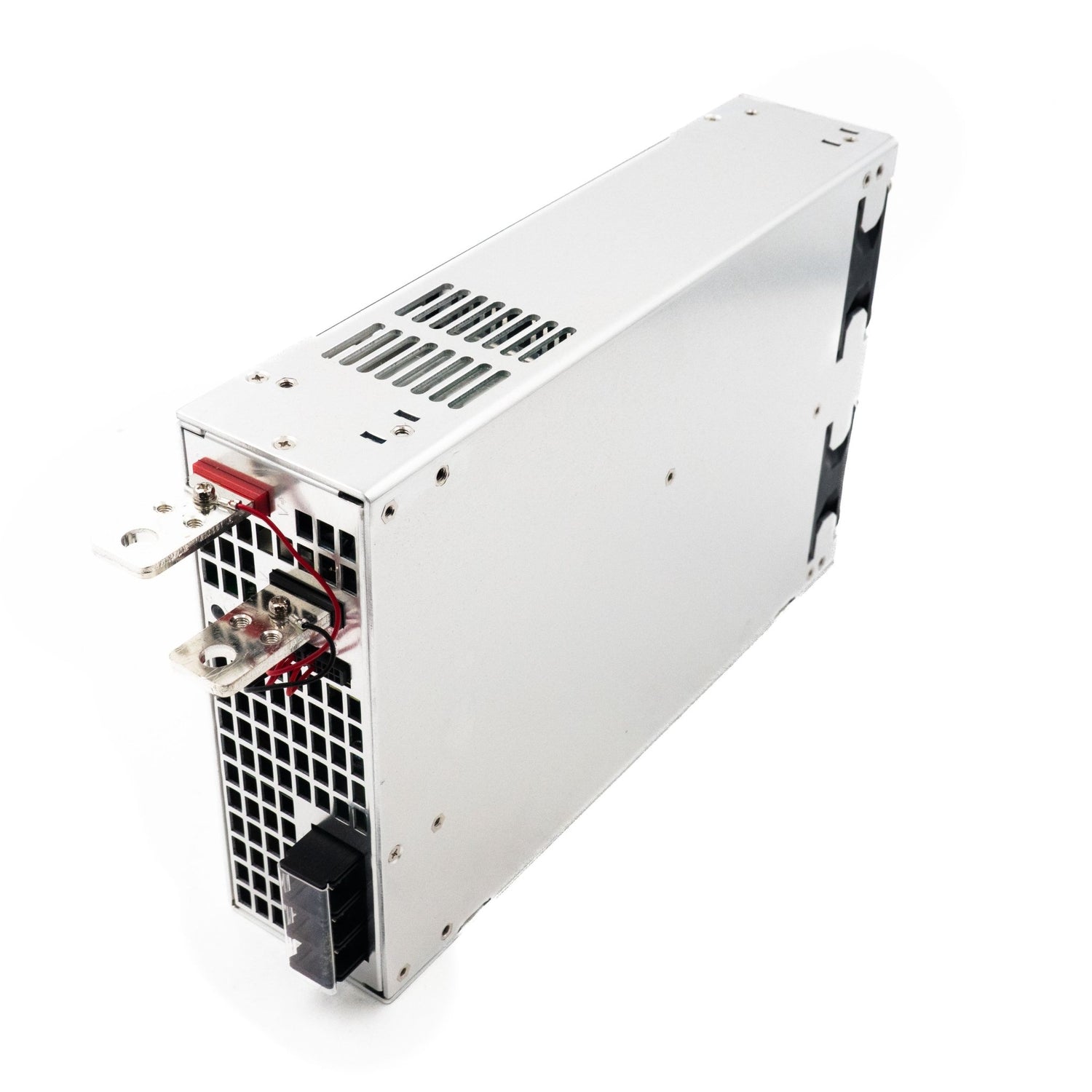

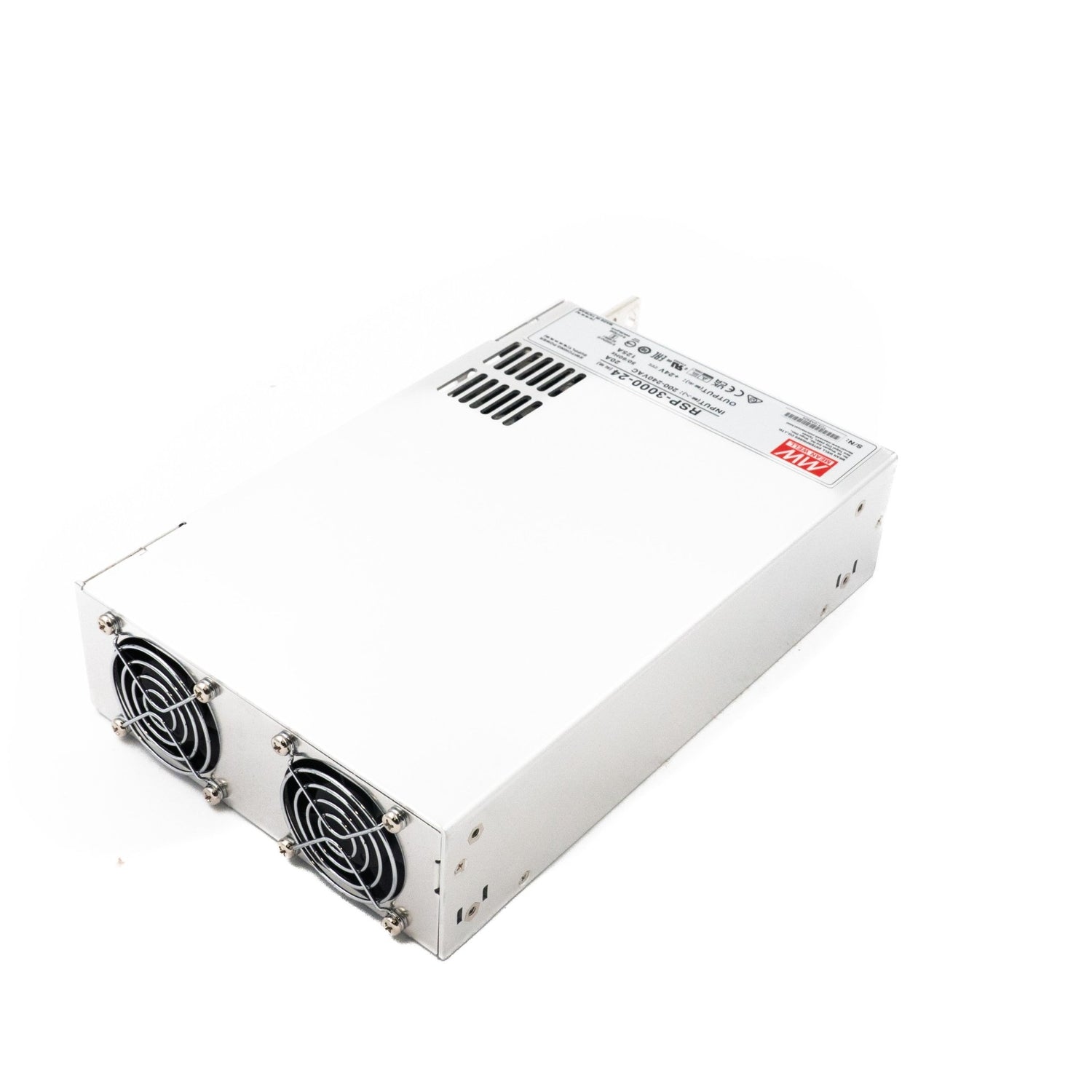

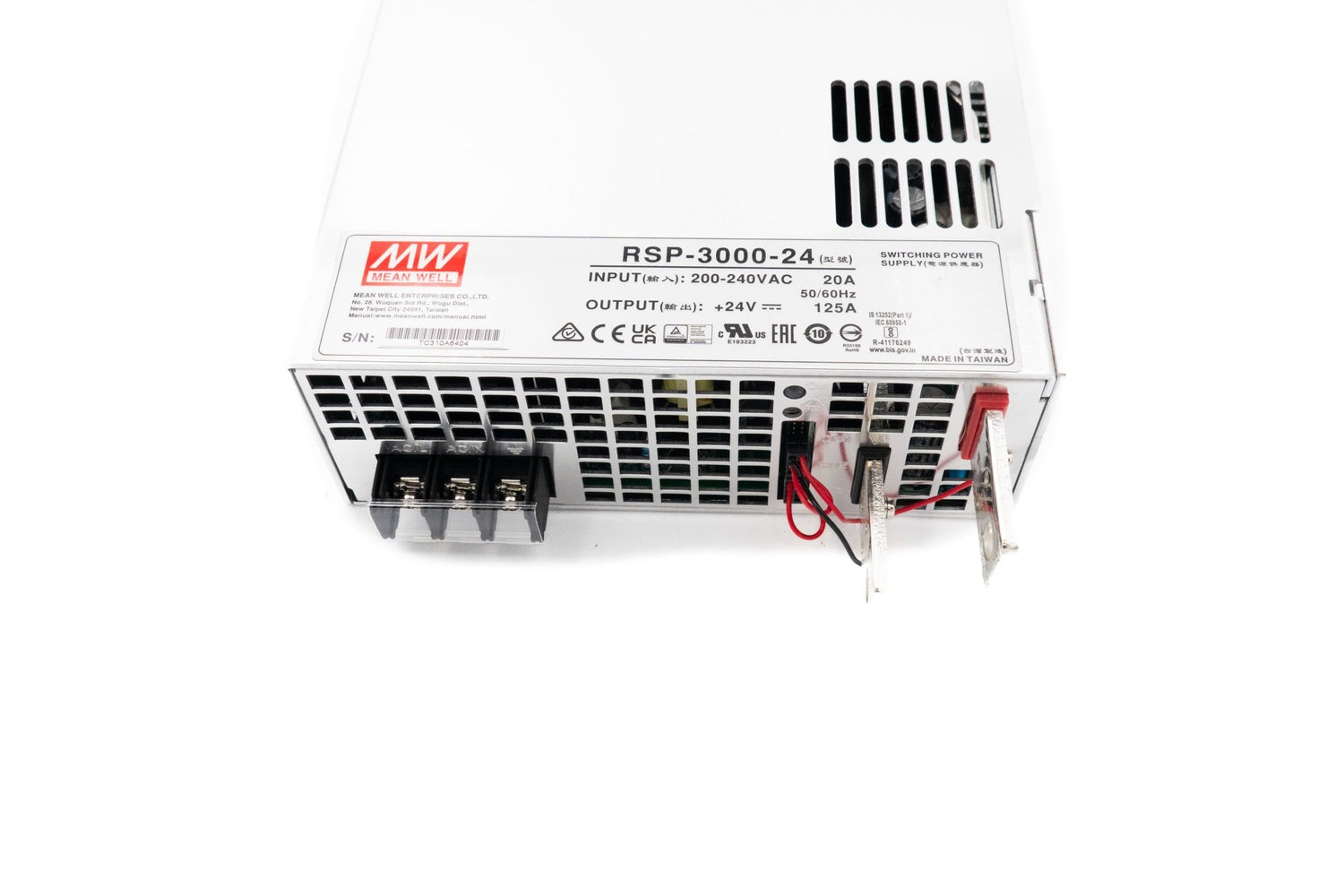

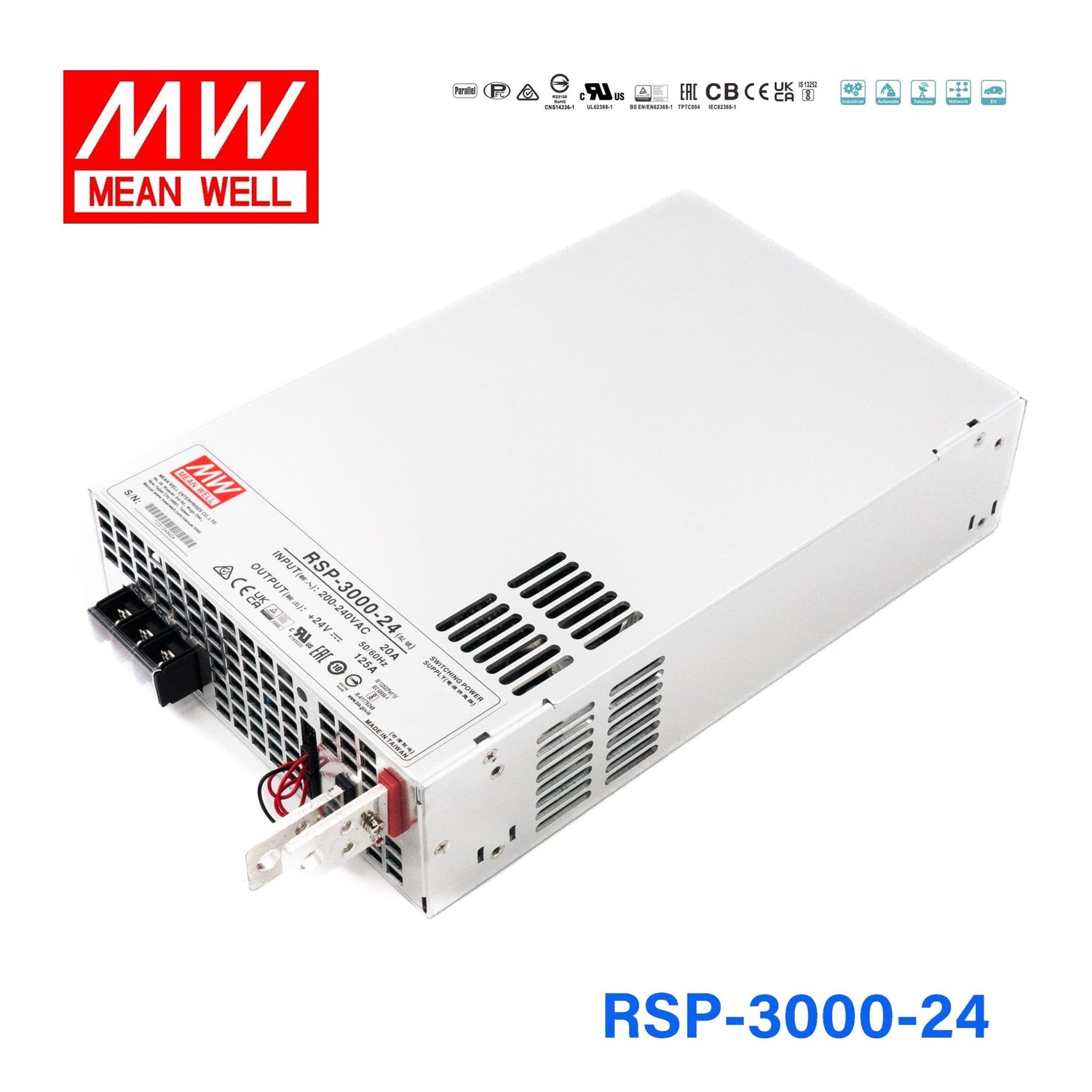

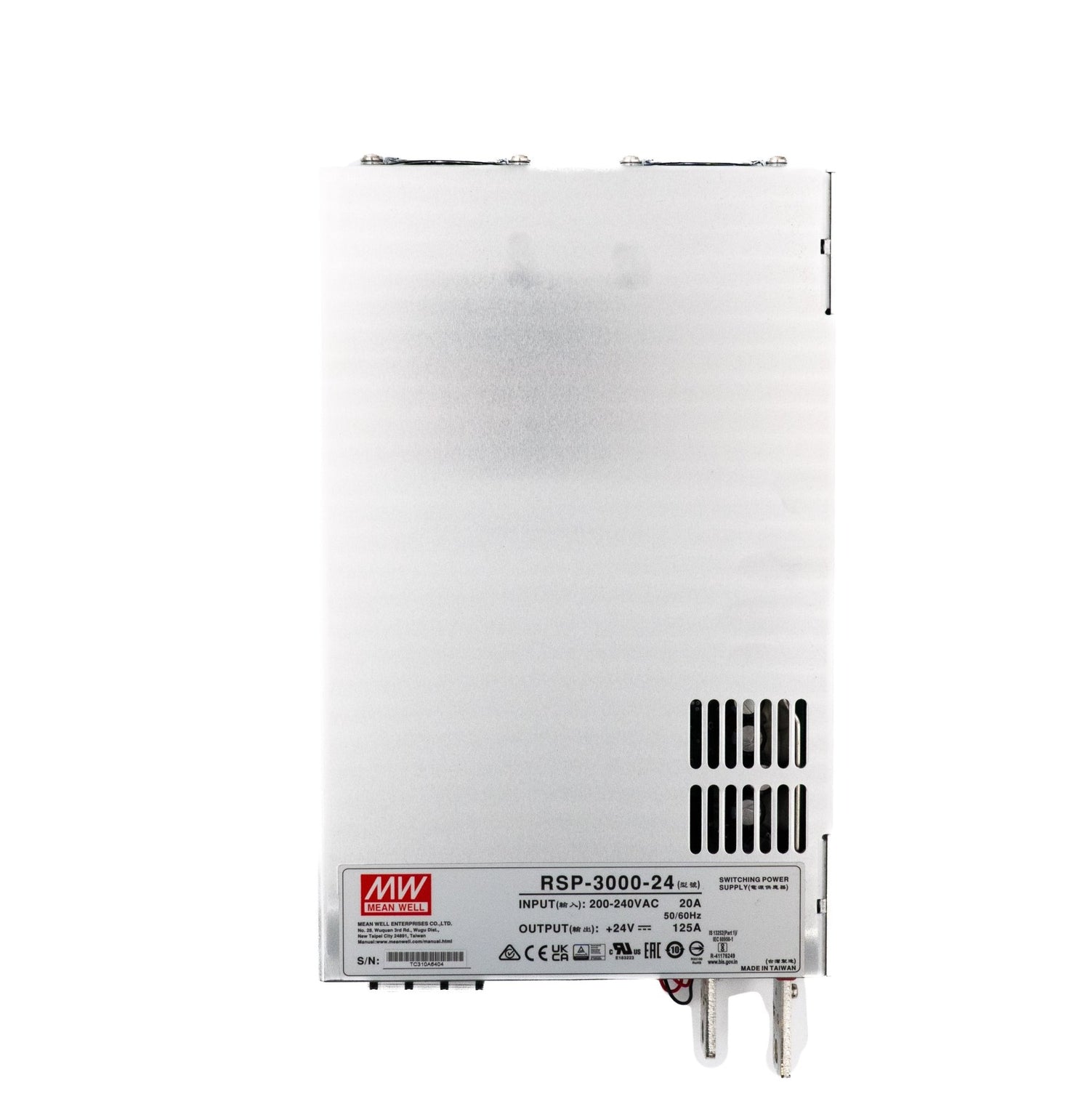

Mean Well RSP-3000-24 Power Supply 3000W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-3000-24 Power Supply 3000W 24V
Description
Description
The RSP-3000 is a 3000W Mean Well power converter (input range: 180~264VAC).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating3000 Watt
-
Output Voltage24 Volt
-
Rated Current125 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width7 in
-
Height2.5 in
-
Weight8.82 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What industrial systems is the RSP-3000-24 designed to power?
With 3000W at 24V and 125A output, the RSP-3000-24 is suited for large-scale industrial motor drives, high-power automation panels, and multi-axis CNC systems running on a 24V DC bus. Its 5-year warranty and UL/CE/TÜV certifications make it appropriate for regulated industrial deployments.
What are the environmental limits of the RSP-3000-24?
The RSP-3000-24 operates from -20°C to +70°C ambient. It is designed exclusively for indoor enclosed installations; no IP rating is assigned for wet or outdoor use.
How does the RSP-3000-24 compare to the RSP-2400-24?
The RSP-2400-24 and RSP-3000-24 share the same 278.0 × 177.8 × 63.5 mm form factor and both require 180-264VAC input. The RSP-2400-24 delivers 2400W at 100A; the RSP-3000-24 increases output to 3000W at 125A. Both offer 2+1 active current sharing and up to 91.5% efficiency. The RSP-3000-24 weighs 4.0 kg vs. 3.3 kg for the RSP-2400-24.
Can multiple RSP-3000-24 units be paralleled?
Yes. The RSP-3000-24 supports 2+1 active current sharing, allowing up to two units in parallel with a third for redundancy, reaching a combined output of 250A at 24V.
Other RSP-3000 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-3000-48 Power Supply 3000W 48V | 3000W | 48V | 62.5A | Indoor | $450.02 | View |
| Mean Well RSP-3000-12 Power Supply 2400W 12V | 2400W | 12V | 200A | Indoor | $377.00 | View |
