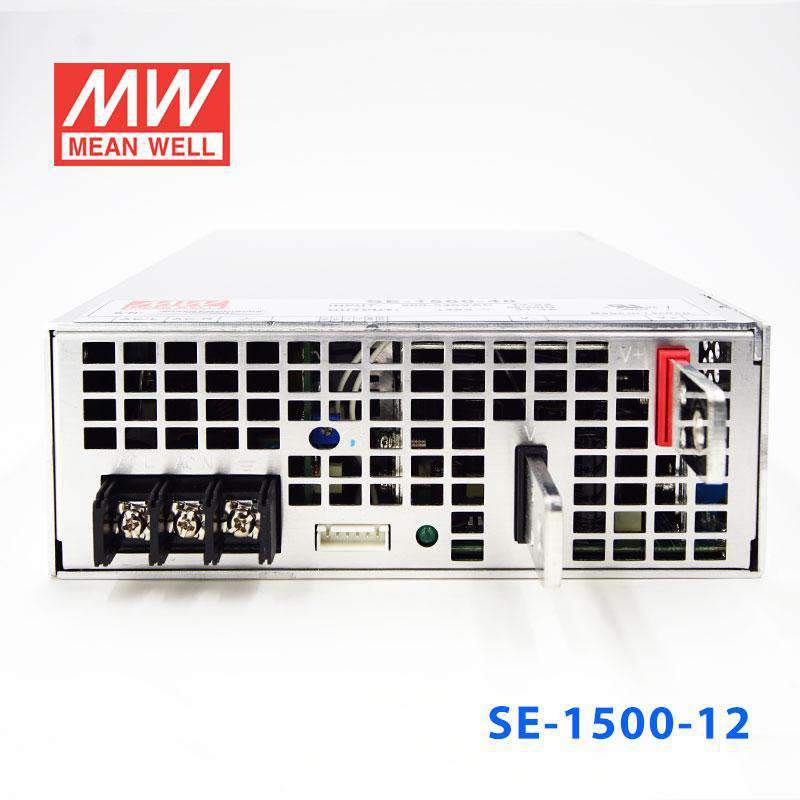

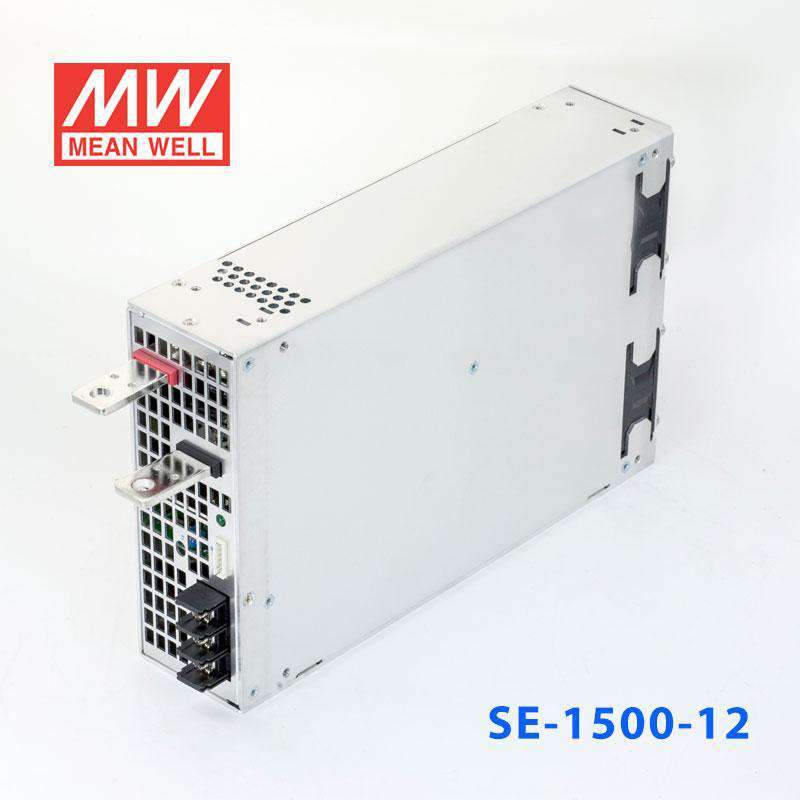

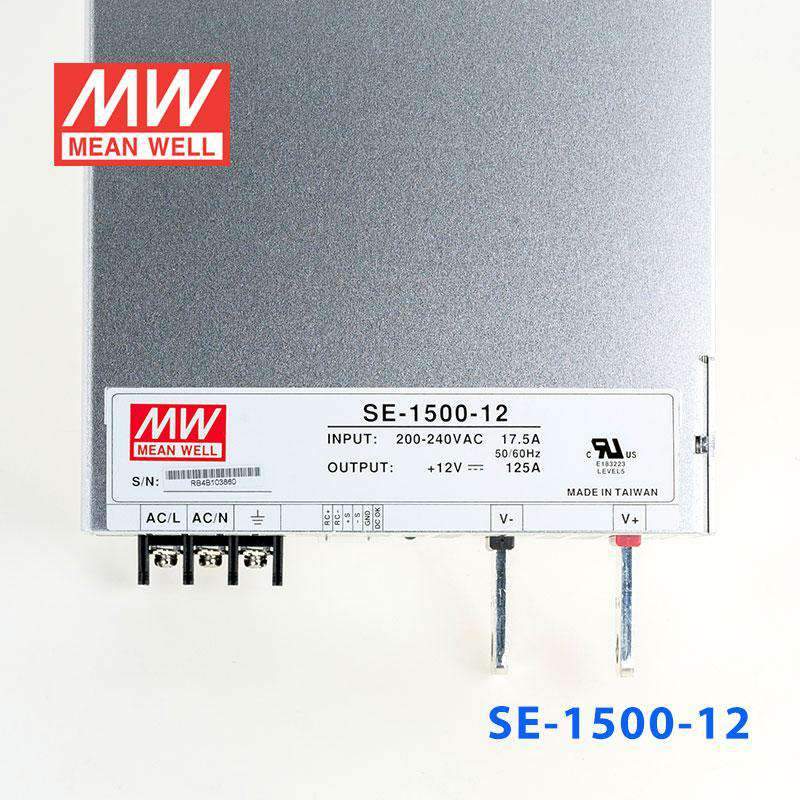

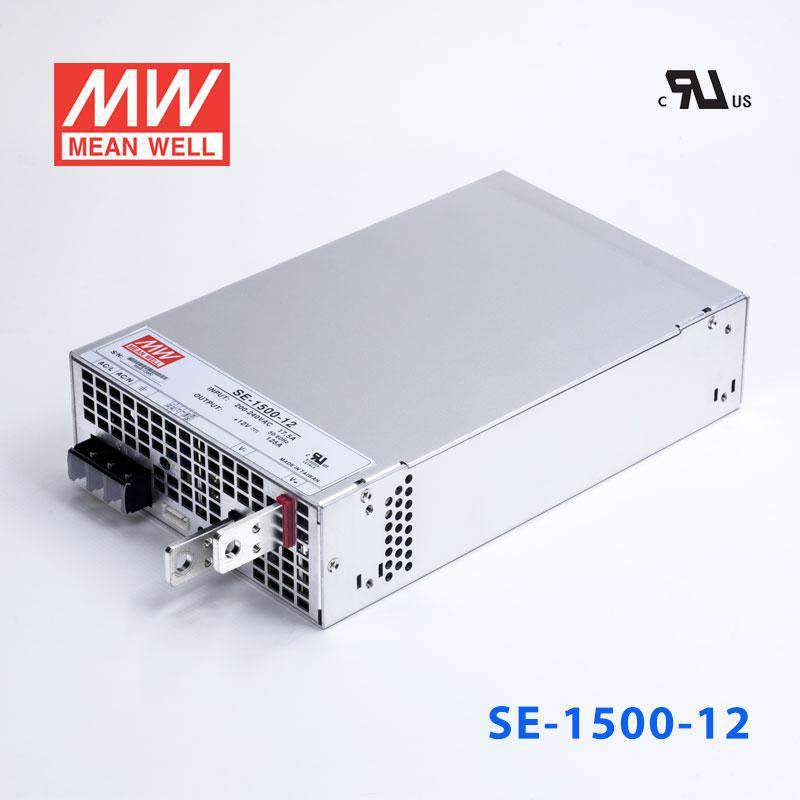

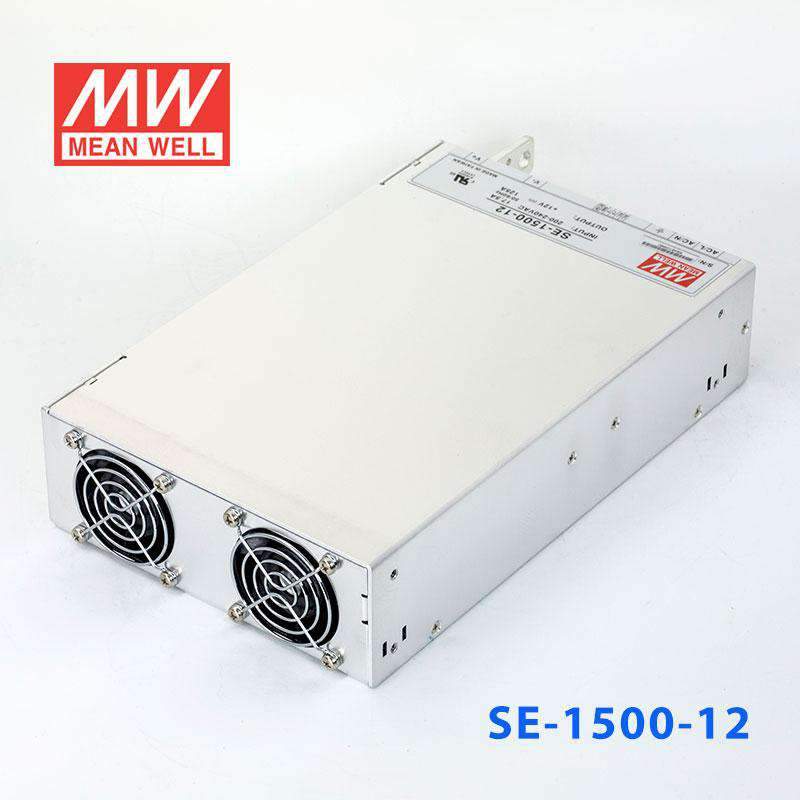

Mean Well SE-1500-12 Power Supply 1500W 12V 125A
The SE-1500 is a 1500W Mean Well power converter (input range: 180~264VAC).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL62368-1 BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSE Series
-
Power Rating1500 Watt
-
Output Voltage12 Volt
-
Rated Current125 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length10.94 in
-
Width7 in
-
Height2.5 in
-
Weight7.28 lb
::specification::
Frequently Asked Questions
Can I use the SE-1500-12 for large 12V industrial control or automation loads?
Yes, this is a constant-voltage 12V power supply with up to 125A output current. It can fit larger 12V automation or control loads when the combined demand stays within 1500W.
Is the SE-1500-12 suitable for centralized 12V DC power distribution in a machine or panel?
It can support centralized 12V DC loads because it provides a single constant-voltage 12V output. The available capacity is 125A and 1500W, which is higher than the SE-1000-12 model listed in the same family.
Can this power 12V embedded systems or high-current 12V electronics in one enclosure?
Yes, for 12V DC electronics that need a constant-voltage source, this model provides substantial current headroom. The total connected load must stay within 125A and 1500W.
How does the SE-1500-12 compare with the other SE-1500 versions?
The listed SE-1500 models are SE-1500-5 at 5V, 300A, 1500W; SE-1500-12 at 12V, 125A, 1500W; SE-1500-15 at 15V, 100A, 1500W; SE-1500-24 at 24V, 62.5A, 1500W; SE-1500-27 at 27V, 55.6A, 1501.2W; and SE-1500-48 at 48V, 31.3A, 1502.4W. Compared with the other versions, this model keeps the same series power class while changing voltage and maximum current.
Can the SE-1500-12 be used outdoors or in hotter operating conditions?
The provided specs list an operating temperature range of -20°C to +70°C, which is wider on the high end than the SE-1000 models shown here. No IP rating is provided, so outdoor exposure cannot be confirmed from these specs alone.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SE-1500 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SE-1500-5 Power Supply 1500W 5V 300A | 1500W | 5V | 300A | Indoor | $302.77 | View |
| Mean Well SE-1500-48 Power Supply 1500W 48V 31.3A | 1502.4W | 48V | 31.3A | Indoor | $302.77 | View |
| Mean Well SE-1500-27 Switching Power Supplies 1501.2W 27V 55.6A Enclosed | 1501.2W | 27V | 55.6A | Indoor | $308.79 | View |
| Mean Well SE-1500-24 Power Supply 1500W 24V 62.5A | 1500W | 24V | 62.5A | Indoor | $302.25 | View |
| Mean Well SE-1500-15 Power Supply 1500W 15V 100A | 1500W | 15V | 100A | Indoor | $289.73 | View |
