Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

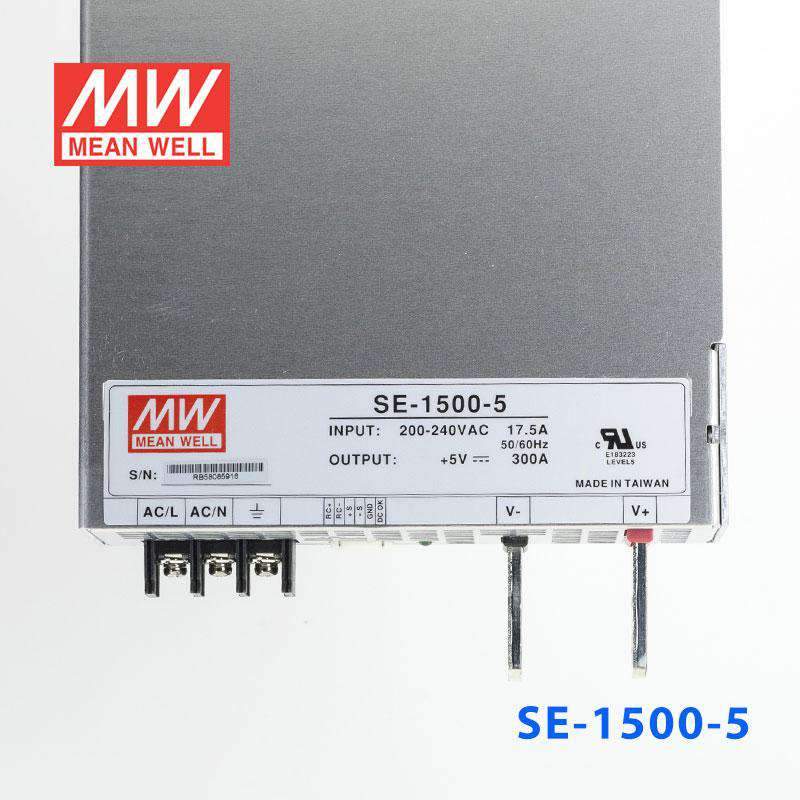

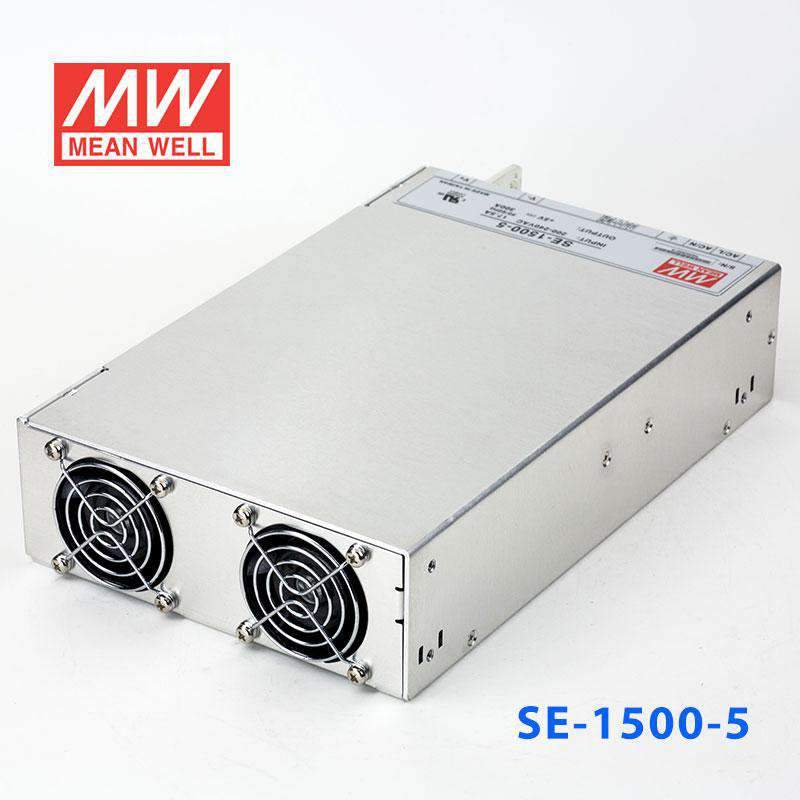

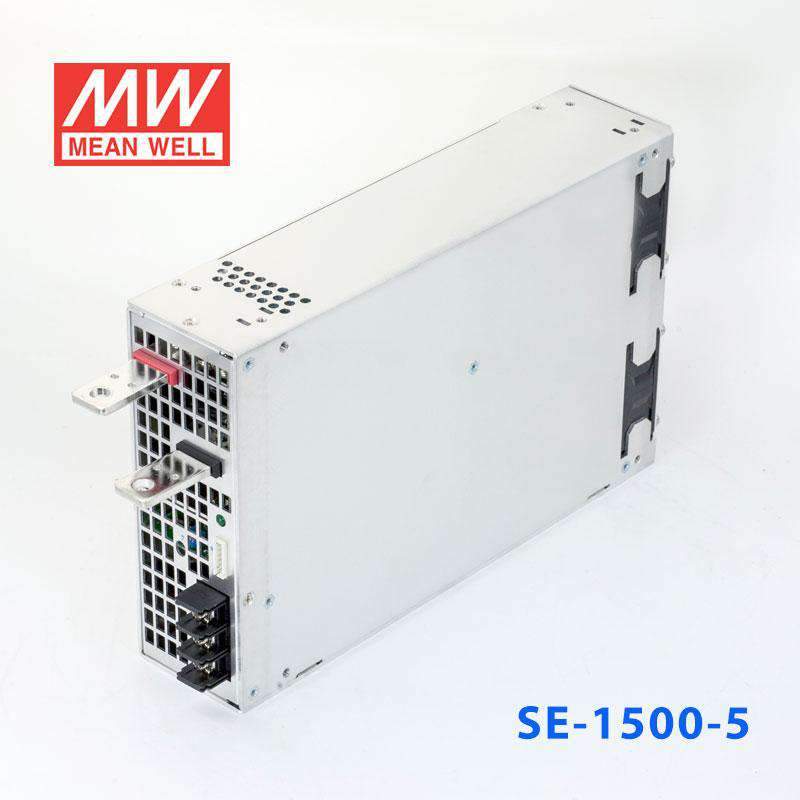

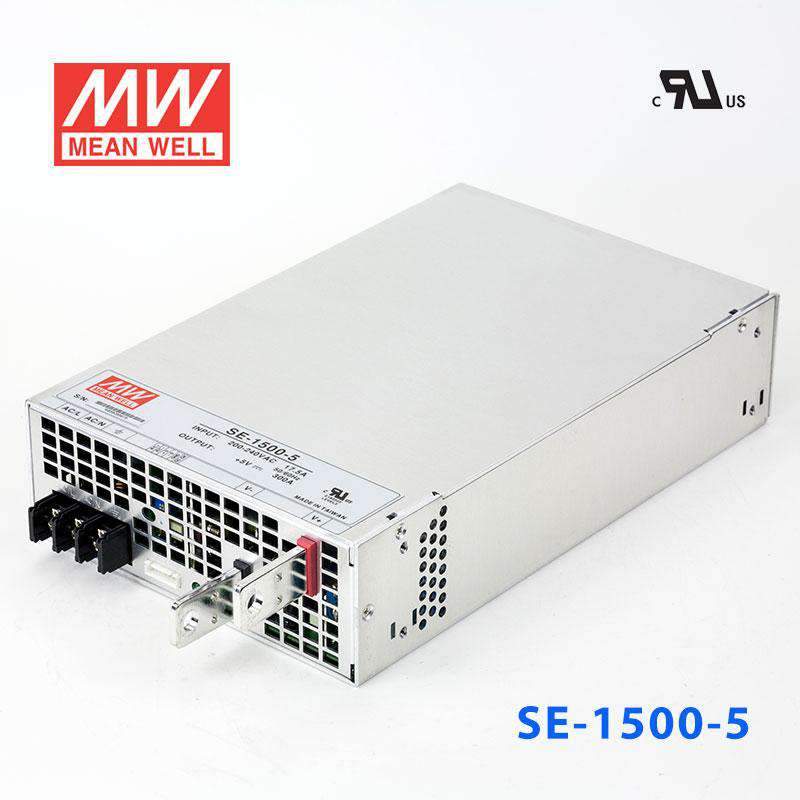

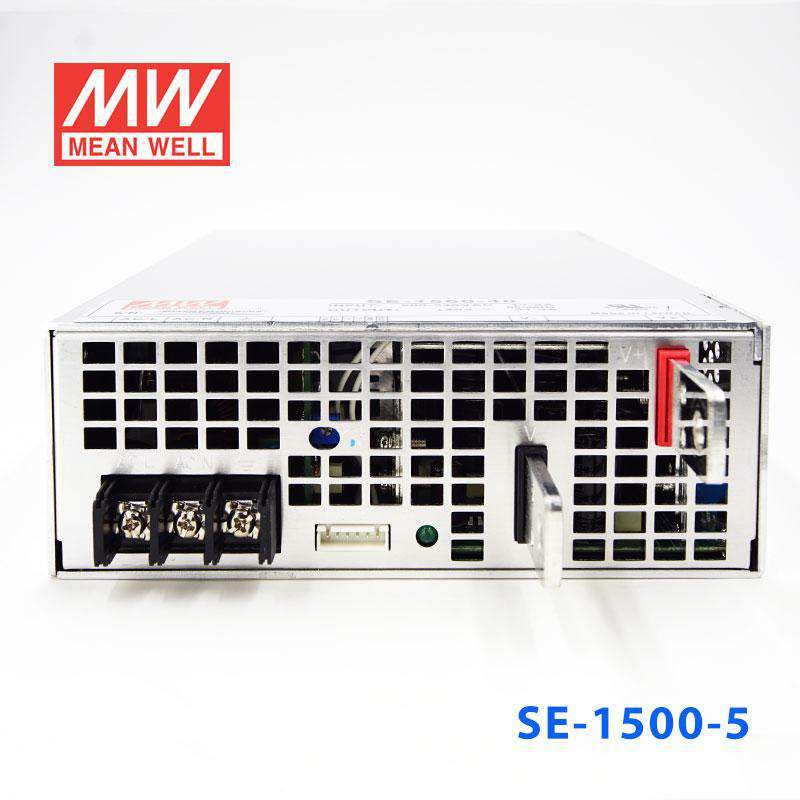

Mean Well SE-1500-5 Power Supply 1500W 5V
Description
Description
The SE-1500 is a 1500W Mean Well power converter (input range: 180~264VAC).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL62368-1 BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSE Series
-
Power Rating1500 Watt
-
Output Voltage5 Volt
-
Rated Current300 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length10.94 in
-
Width7 in
-
Height2.5 in
-
Weight7.28 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SE-1500-5 for a high-current 5V logic or processing backplane?
Yes, this model is intended for constant-voltage 5V output and is rated for very high current. Its maximum output is 300A with a total power rating of 1500W.
Is the SE-1500-5 suitable for a 5V embedded computing rack or FPGA system?
It can be a fit for embedded or computing systems that require a regulated 5V bus and unusually high current capacity. The supply provides up to 300A at 5V, with 1500W total output available.
Can this model power multiple 5V industrial electronics loads from one source?
Yes, as long as the connected equipment is designed for constant-voltage 5V operation and the combined demand stays within 300A and 1500W. This makes it more suitable for centralized high-current 5V distribution than a low-power 5V supply.
Is the SE-1500-5 rated for outdoor use or harsh washdown areas?
No IP rating is listed in the provided specs, so outdoor or washdown suitability is not confirmed by the product data. The stated operating temperature range is -20°C to +70°C, which covers temperature only and not ingress protection.
How does the SE-1500-5 compare with other SE-1500 outputs?
The listed SE-1500 range includes 5V 300A 1500W, 12V 125A 1500W, 15V 100A 1500W, 24V 62.5A 1500W, 27V 55.6A 1501.2W, and 48V 31.3A 1502.4W. The SE-1500-5 is the lowest-voltage option and has the highest listed output current at 300A.
Other SE-1500 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SE-1500-12 Power Supply 1500W 12V | 1500W | 12V | 125A | Indoor | $291.86 | View |
| Mean Well SE-1500-48 Power Supply 1500W 48V | 1502.4W | 48V | 31.3A | Indoor | $302.77 | View |
| Mean Well SE-1500-27 Switching Power Supplies 1501.2W 27V 55.6A Enclosed | 1501.2W | 27V | 55.6A | Indoor | $309.36 | View |
| Mean Well SE-1500-24 Power Supply 1500W 24V | 1500W | 24V | 62.5A | Indoor | $302.25 | View |
| Mean Well SE-1500-15 Power Supply 1500W 15V | 1500W | 15V | 100A | Indoor | $299.04 | View |
