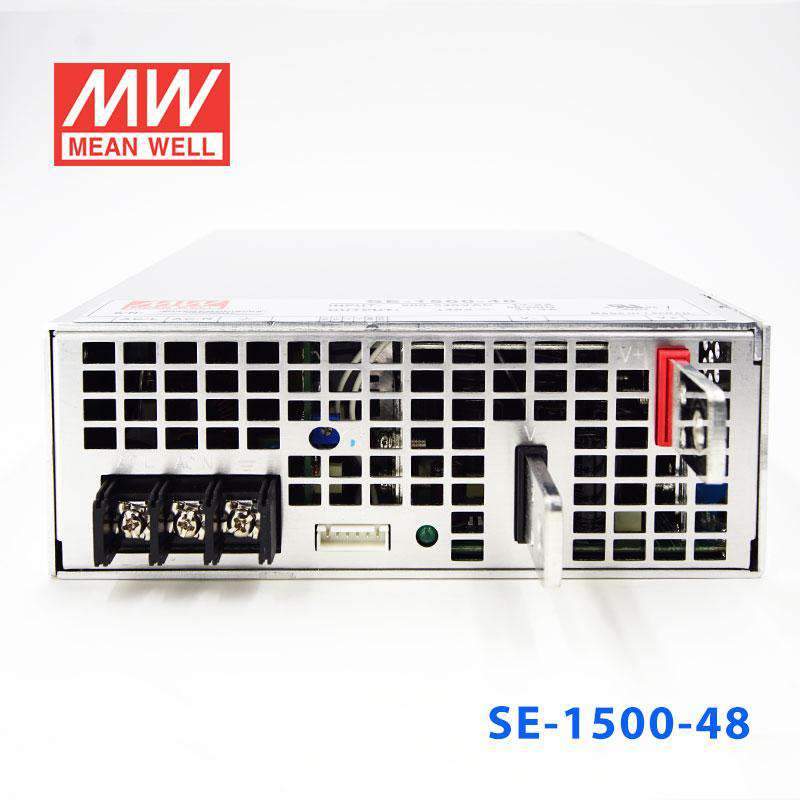

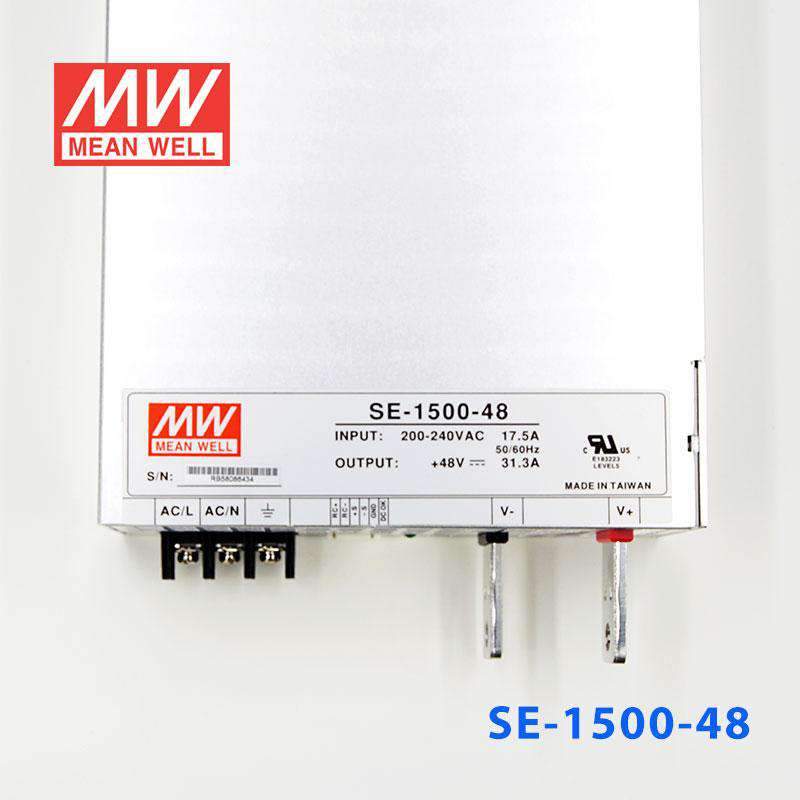

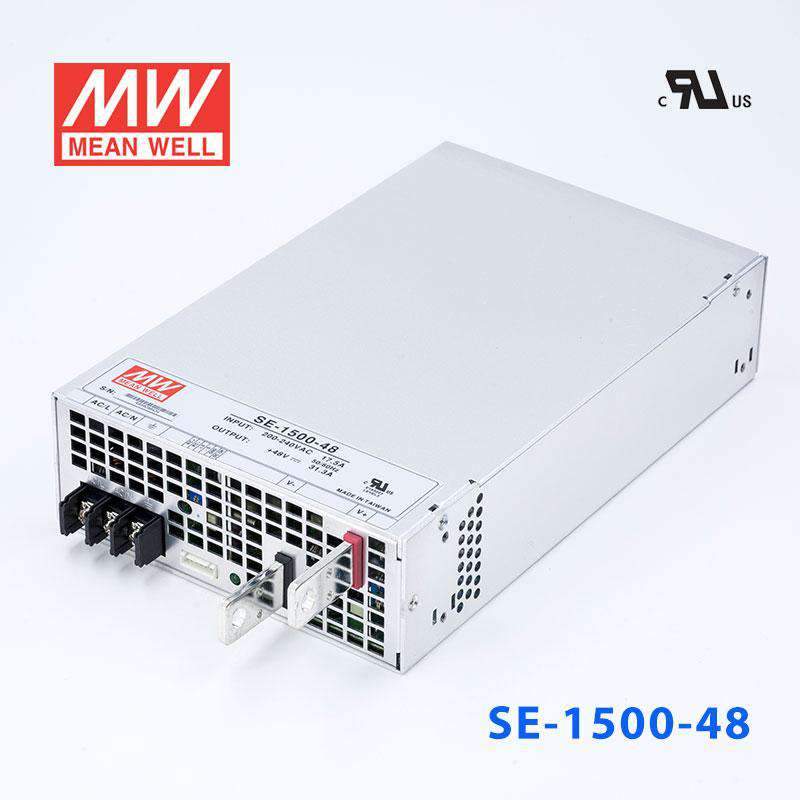

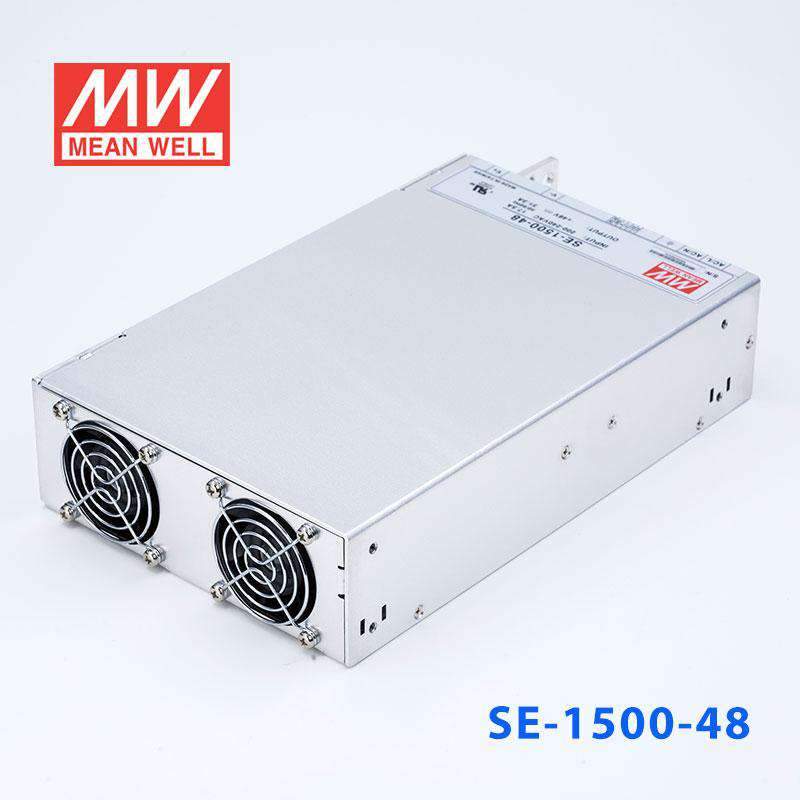

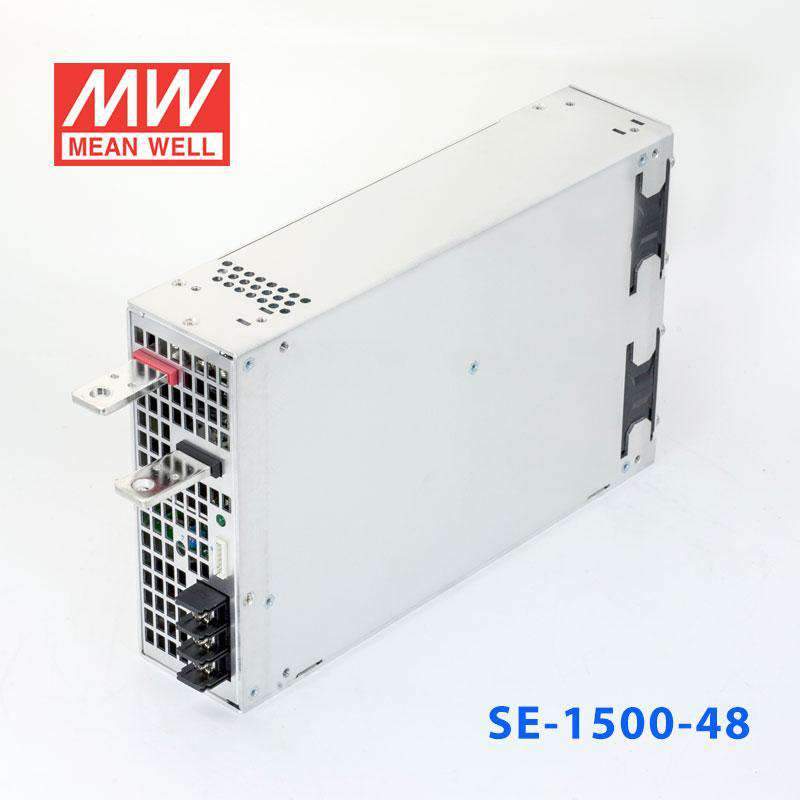

Mean Well SE-1500-48 Power Supply 1500W 48V 31.3A
The SE-1500 is a 1500W Mean Well power converter (input range: 180~264VAC).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL62368-1 BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSE Series
-
Power Rating1502.4 Watt
-
Output Voltage48 Volt
-
Rated Current31.3 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty2 Year
-
Length10.94 in
-
Width7 in
-
Height2.5 in
-
Weight7.28 lb
::specification::
Frequently Asked Questions
Can I use the SE-1500-48 for 48V industrial networking or telecom equipment?
Yes, if the equipment is designed for a constant-voltage 48V DC input, this supply is in the right class. It provides 48V output at up to 31.3A with a total rating of 1502.4W.
Is the SE-1500-48 suitable for a 48V automation or control power bus?
It can be used where a system is built around a regulated 48V DC bus and needs higher centralized power. The rated output is 31.3A at 48V, with 1502.4W available.
Can this power supply support a 48V embedded or communications rack?
It is appropriate for embedded, communications, or industrial rack systems that require constant-voltage 48V input. The supply's published capacity is 31.3A and 1502.4W, so the total rack load has to stay within that limit.
Is the SE-1500-48 suitable for outdoor cabinets?
The listed specifications do not include an IP rating, so the product data does not establish outdoor or weather-exposed use. It is rated to operate from -20°C to +70°C, but that temperature range does not define ingress protection.
What is different about the SE-1500-48 versus the other SE-1500 versions?
The SE-1500 family shown here includes 5V 300A 1500W, 12V 125A 1500W, 15V 100A 1500W, 24V 62.5A 1500W, 27V 55.6A 1501.2W, and 48V 31.3A 1502.4W models. The SE-1500-48 is the highest-voltage version in that group and has the lowest listed output current at 31.3A.
