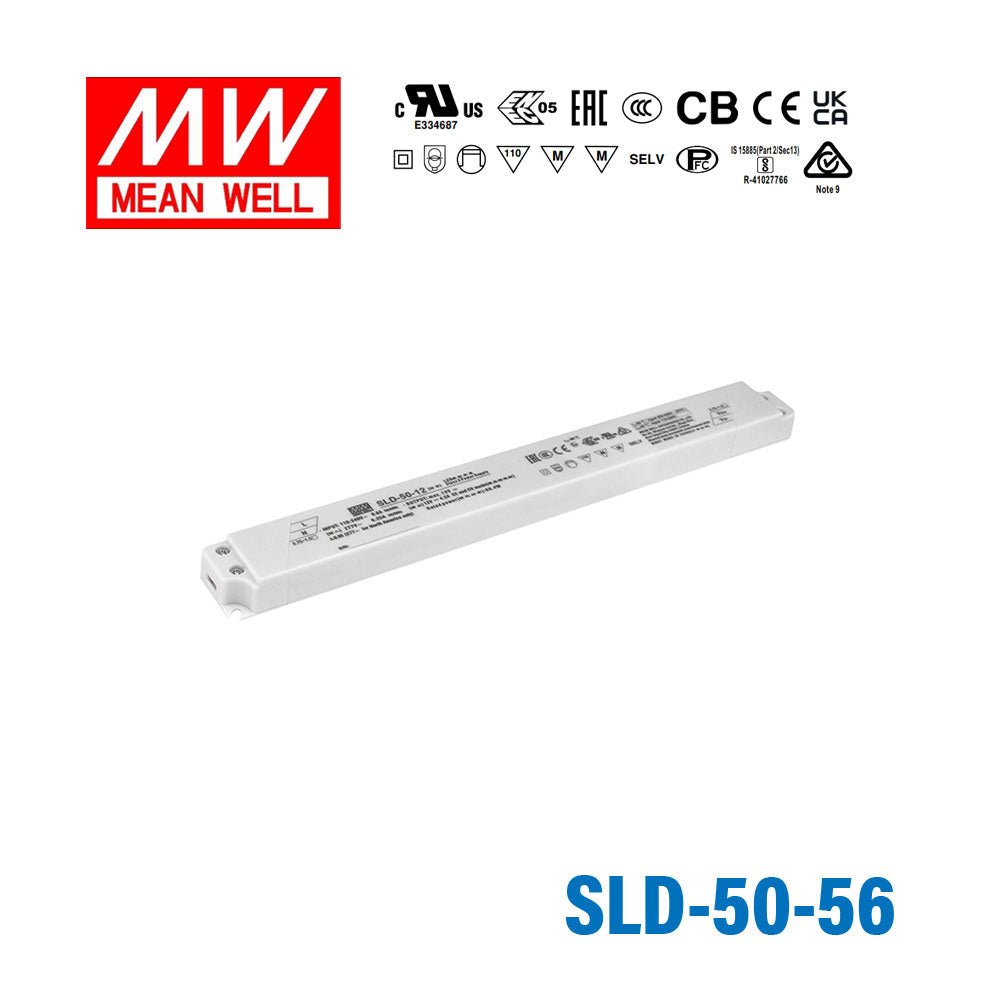

Mean Well SLD-50-56 Linear LED Driver 50.4W 60V 1050mA - Slim
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SLD-50-56 Linear LED Driver 50.4W 60V 1050mA - Slim
The SLD-50 is a 50W Mean Well power converter (input range: 110~305VAC, operating temperature: -20~+90℃).
Key Features
- ✓ Input voltage range: 110~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -20~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN60335-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSLD Series
-
Power Rating50.4 Watt
-
Output Voltage60 Volt
-
Rated Current1.05 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~90°C
-
Warranty3 Year
-
Length11.02 in
-
Width1.18 in
-
Height0.66 in
-
Weight0.39 lb
::specification::
Frequently Asked Questions
What type of LED driver is the Mean Well SLD-50-56?
The SLD-50-56 is a slim linear LED driver rated at 50.4W. It is described as a constant voltage plus constant current mode output model, with a 60V output and 1050mA rated current.
What applications is the SLD-50-56 best suited for?
This model is suited to LED lighting applications that need a slim driver form factor and a regulated 60V, 1050mA output. It is generally a fit for commercial or industrial LED projects where compact size, PFC support, and dependable output are important.
Does the Mean Well SLD-50-56 support dimming?
No. The listed dimming control for the SLD-50-56 is none, so it should be treated as a non-dimming LED driver. Buyers needing dimming should compare it against a dimmable alternative rather than assume dimming is built in.
What input range does the SLD-50-56 support?
The product description lists a wide AC input range of 110-305VAC, with PFC function. It also references a 155-431VDC input range in the general specification section.
Is the SLD-50-56 appropriate for demanding operating environments?
The listed temperature range is -20°C to 90°C, which indicates it is designed for a broad operating envelope. Buyers should still confirm that the actual enclosure and site conditions stay within the product's rated limits.
How does the SLD-50-56 compare when space is limited?
One of the main differentiators of this model is its slim linear housing design. That makes it a stronger option for projects where the driver needs to fit into tighter spaces than a bulkier power supply would allow.
What warranty is offered for the Mean Well SLD-50-56?
The SLD-50-56 includes a 3-year warranty. That gives buyers a clear manufacturer-backed coverage period for this specific model.
