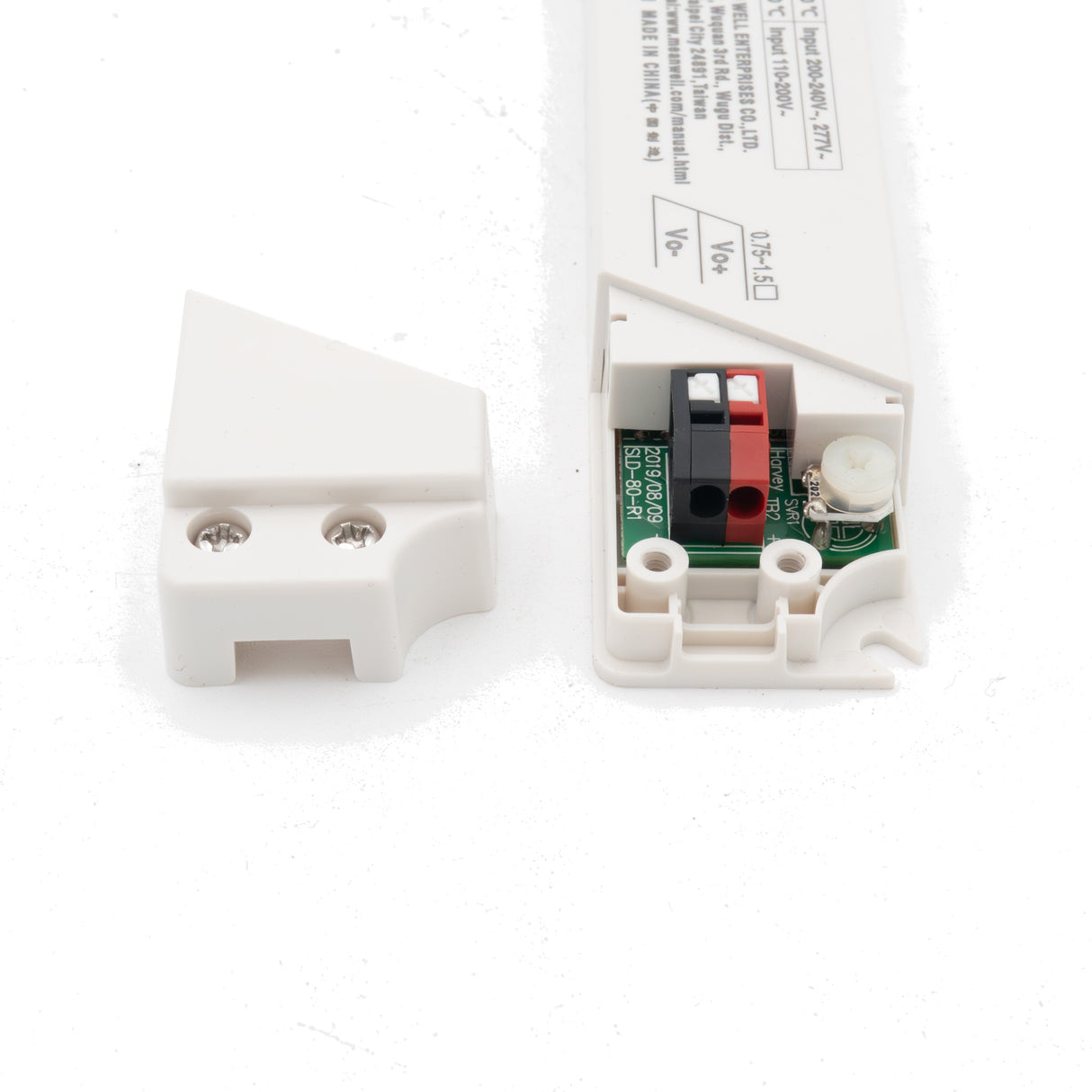

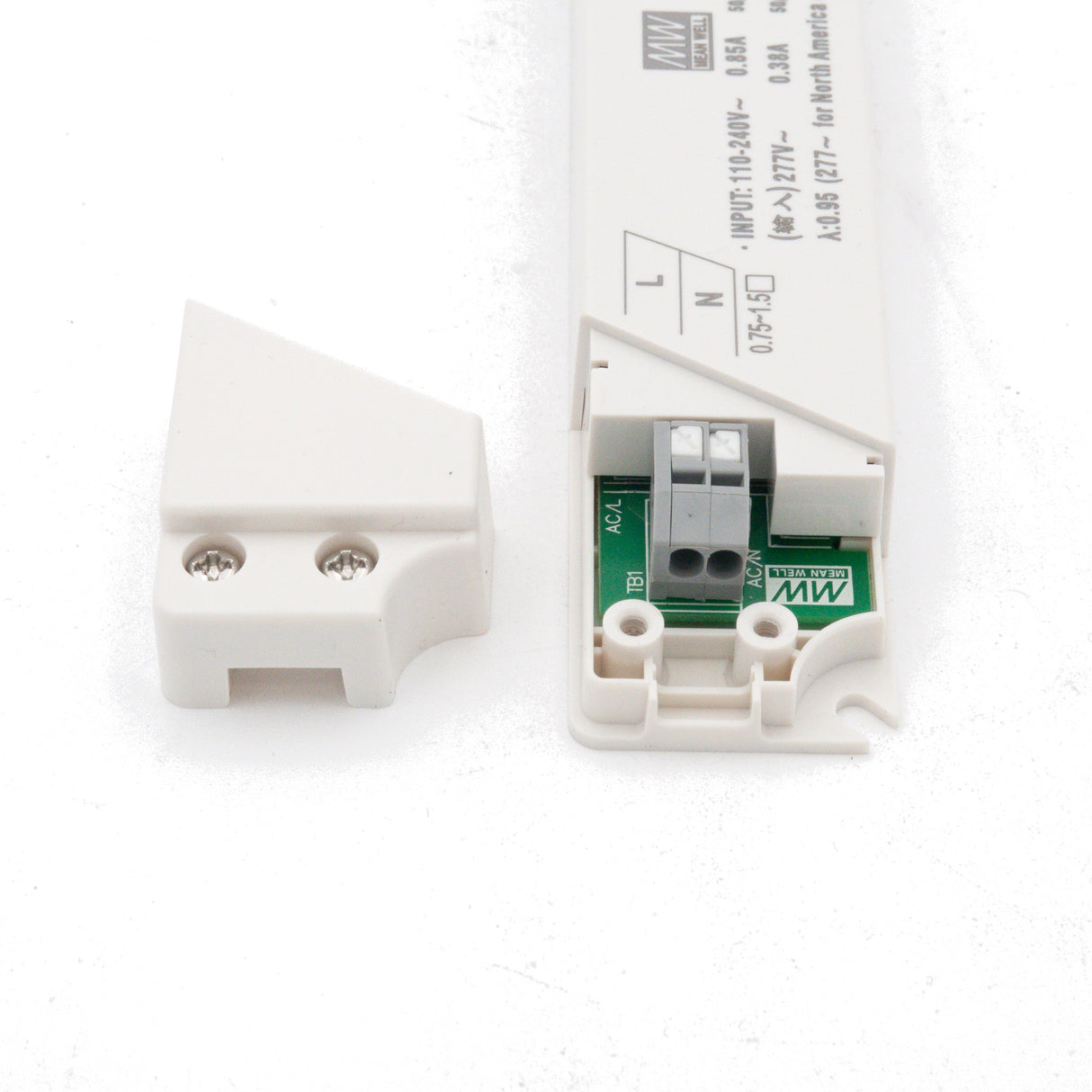

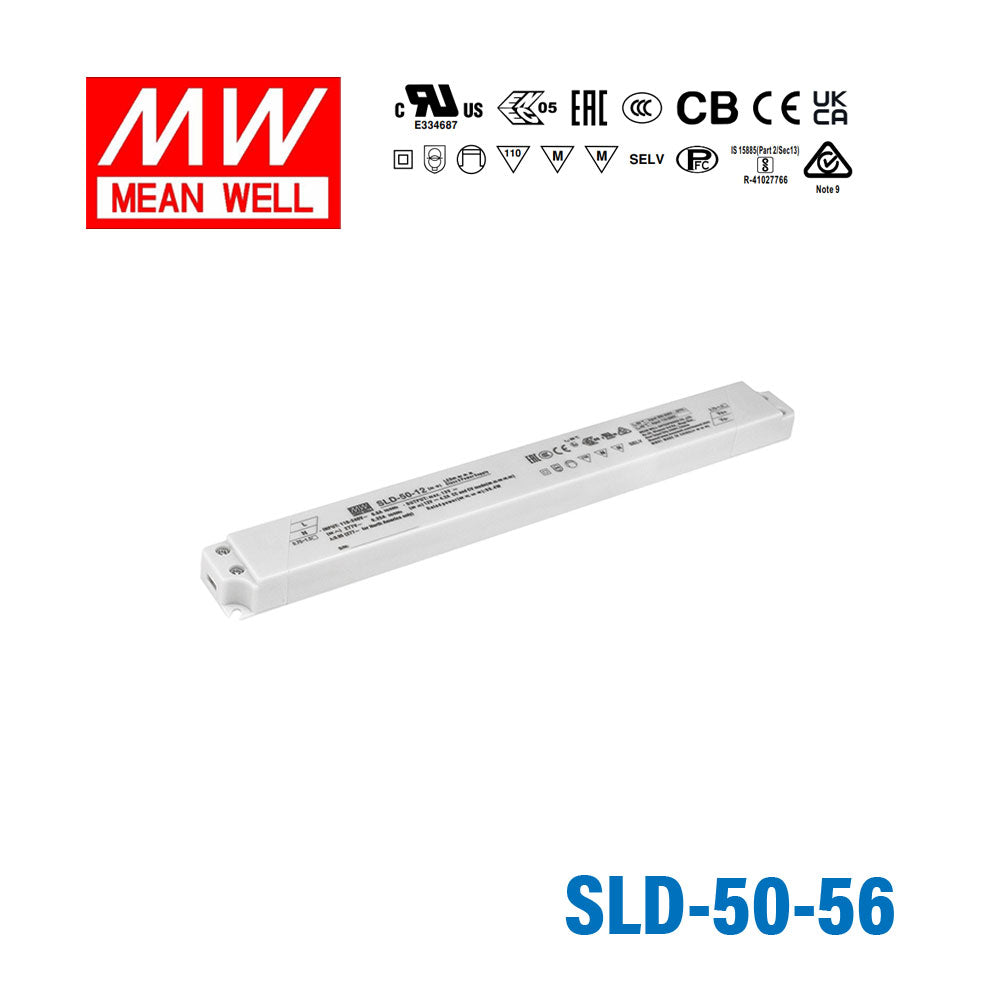

Mean Well SLD-50-56 Linear LED Driver 50.4W 60V 1050mA - Slim

ultra slim design, 30mm width, efficiency up to 90%, Class II and SELV
$22.53 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Constant Voltage + Constant Current mode output
Wide input range 110-305VAC with PFC function
Compliance with EN6 1347 regulation
Class 2/ Ⅱ power unit
Slim and Liner housing Design
No load power consumption < 0.5W
3 years warranty

General Specification

AC input voltage range 110~305VAC 155~431VDC(Please refer to "STATIC CHARACTERISTIC" section)
AC inrush current COLD START 50A (width=270μs measured at 50% peak) at 230VAC  ; Per NEMA 410
DC Voltage 12V
Over current protection 95 ~ 108% Constant current limiting or Hiccup mode, recovers automatically after fault condition is removed
Over voltage protection 14 ~ 17V Shut down and latch off o/p voltage, re-power on to recover
Short circuit protection Hiccup mode, recovers automatically after fault condition is removed
Over temperature protection Shut down output voltage, re-power on to recover
Setup, rise, hold up time 500ms, 80ms 115VAC / 230VAC
Withstand voltage I/P-O/P:3.75KVAC
Working temperature case=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards UL8750(type ”HL”),CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384,
EAC TP TC 004 , GB19510.1,GB19510.14
EMC standards EN55015(CISPR15) ,GB/T17743, EN61000-3-2 ,GB/T17625.1,EN61000-3-3;EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH) 280x30x16.8mm
Packing 64pcs / 12.4kg

Specifications

  • Brand
    Mean Well
  • Series
    SLD Series
  • Power Rating
    50.4 Watt
  • Output Voltage
    60 Volt
  • Rated Current
    1.05 Ampere
  • Input Voltage
    110V~305V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CCC,CE,EAC,ENEC,RCM,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -20°C~90°C
  • Warranty
    3 Year
  • Length
    11.02 in
  • Width
    1.18 in
  • Height
    0.66 in
  • Weight
    0.39 lb
