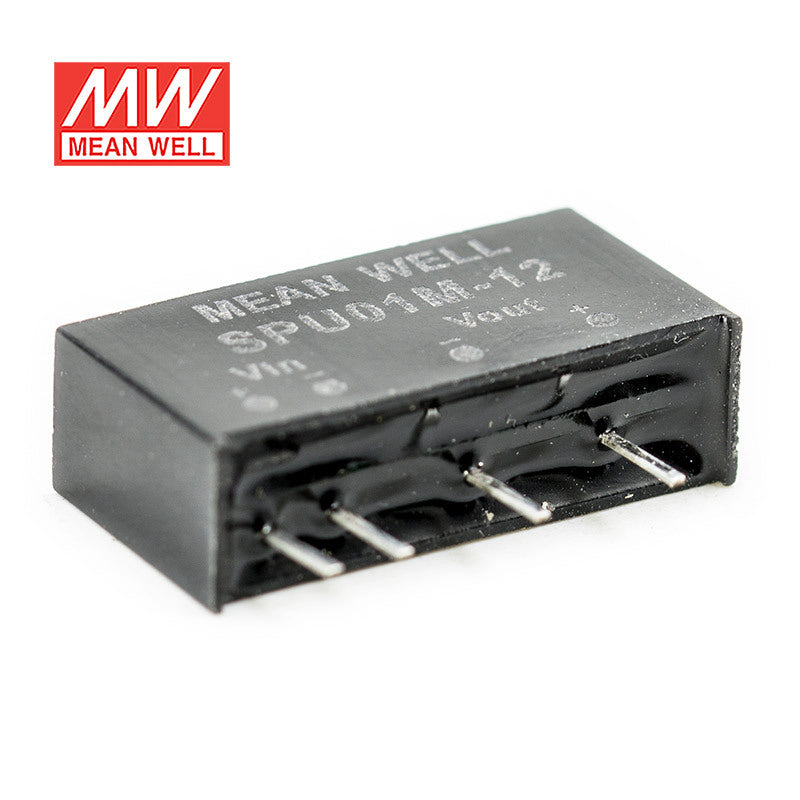

Mean Well SPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out
The SPU01M is a 1W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSPU Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~125°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.4 in
-
Height0.28 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SPU01M-12 to supply 12V control electronics from a 10.8~13.2V source?
Yes, this model provides a 12V constant-voltage output when the input is within 10.8~13.2V. With a 1W rating and 0.08A output current, it is suited to low-power control and embedded loads.
Is the SPU01M-12 a good fit for low-power automation modules that require regulated 12V?
It can be used where the load needs a stable 12V output and stays within 1W. The 0.08A output rating points to lighter-duty automation electronics rather than larger 12V devices.
Can this converter support compact industrial or embedded designs with tight space constraints?
Yes, its 19.6 × 10.2 × 7.1 mm size and 0.0027 kg weight make it suitable for compact assemblies. It is intended for low-power 12V sections inside embedded, IT, or automation hardware.
Would the SPU01M-12 work in equipment exposed to very high or very low operating temperatures?
Its operating temperature range is -55°C to +125°C, which is unusually broad. That makes it appropriate for low-power 12V electronics used in equipment with severe temperature conditions.
What is the difference between the SPU01M-12 and the other SPU01M variants?
The SPU01M-12 is the 12V version in the 1W SPU01M family. The sibling models are SPU01M-05 at 5V and SPU01M-15 at 15V with 0.07A, and all share the same 19.6 × 10.2 × 7.1 mm dimensions.
Can the SPU01M-12 be used outdoors or in unprotected conditions?
The temperature range is specified as -55°C to +125°C, but no IP rating is listed in the provided specs. That means temperature capability is defined, while direct outdoor exposure is not explicitly covered.
