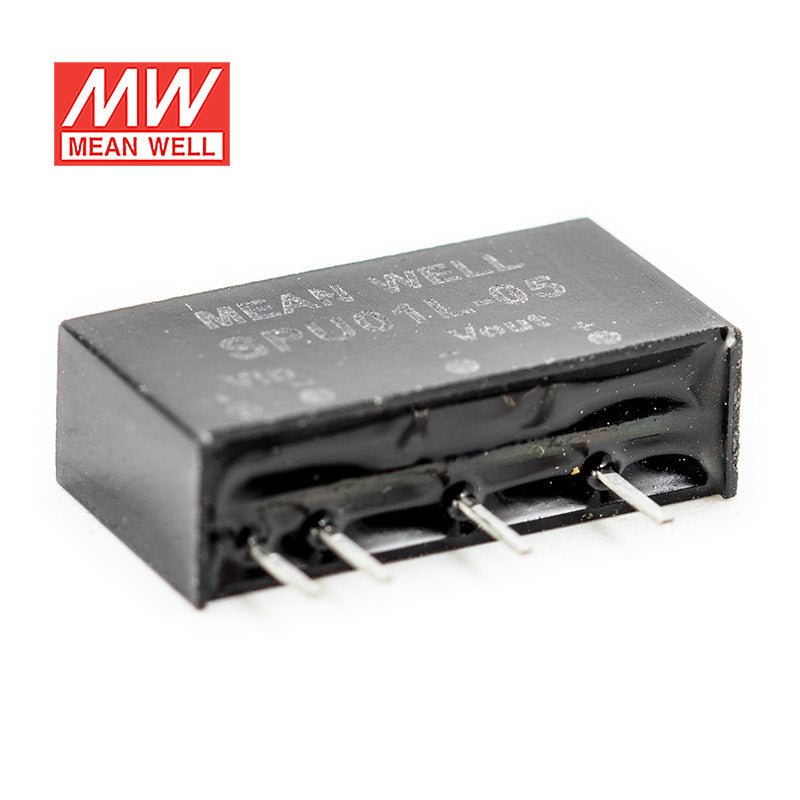

Mean Well SPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in 5V out
The SPU01L is a 1W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSPU Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage4.4V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-55°C~125°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.4 in
-
Height0.28 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the SPU01L-05 for low-power 5V embedded electronics or controller logic?
This model is intended for constant-voltage 5V applications where the total load stays within its 1W rating. It is a better match for low-power embedded, IT, or control electronics than for larger 5V loads.
Is the SPU01L-05 suitable for a compact monitoring or communications board that needs 5V?
It can fit small monitoring or interface circuits that need a 5V constant-voltage rail from the listed 4-5VAC input range. The output is rated at 1W, so the application should be limited to low-power electronics.
Can this converter be used in low-power automation or industrial sensing electronics?
Yes, for low-power automation support circuits that operate from 5V constant voltage and remain within the unit's 1W output rating. Its compact dimensions of 19.6 × 10.2 × 7.1 mm also suit space-constrained electronics.
Is the SPU01L-05 appropriate for very hot or very cold operating environments?
The listed operating temperature range is -55°C to +125°C, which is broader than many standard electronics environments. No IP rating is shown, so the specs support temperature range evaluation but do not establish outdoor or water-exposed suitability.
How does the SPU01L-05 compare with the other SPU01L models?
The SPU01L-05 is rated 1W with 5V output and 200A, the SPU01L-12 is rated 1W with 12V output and 0.08A, and the SPU01L-15 is rated 1W with 15V output and 0.07A. All three share the SPU01L series format and 1W power class.
