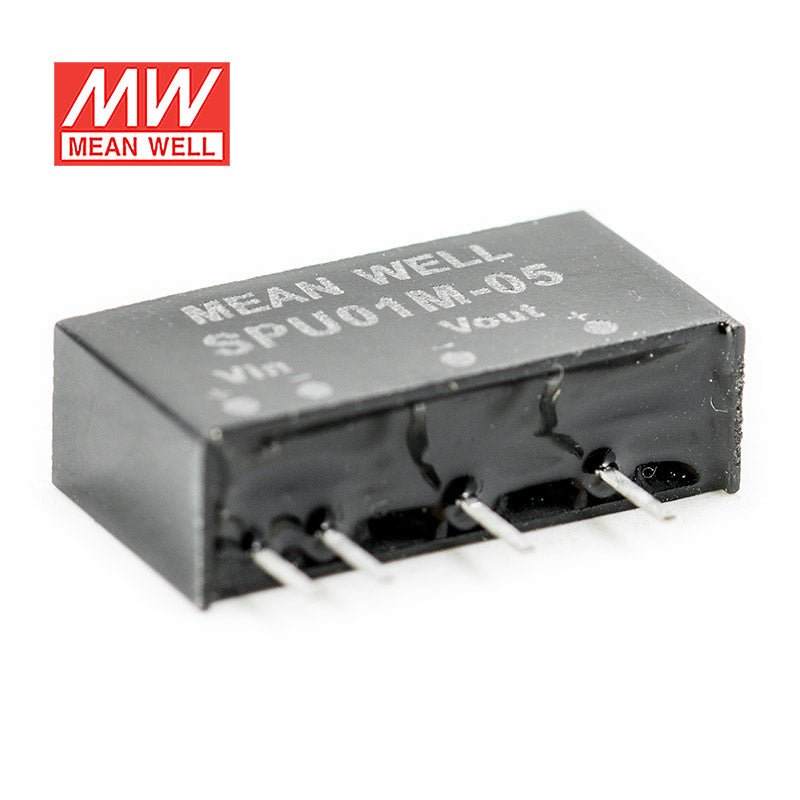

Mean Well SPU01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out

SKU:
SPU01M-05

$3.17 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

SIP6 package with industry-standard pinout
Wide operating temperature range -40~+90°C
High efficiency up to 84%
Comply to BS EN/EN55032 radiated Class A without additional components
Low cost
Protection: Short circuit
1.5KVDC I/O isolation
Low cost
3 years warranty

General Specification

Voltage accuracy ±3.0%
Vibration 10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling Free-air convection
Short circuit protection 1-second max
Working temperature -40°C to +90°C
EMC Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient 0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm) 5/12Vin models:19.5*6.1*10.2mm (0.77*0.24*0.40 inch); 24Vin models:19.5*7.2*10.2mm (0.77*0.28*0.40 inch)
Potting material UL 94V-0 rated

Specifications

  • Brand
    Mean Well
  • Series
    SPU Series
  • Power Rating
    1 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    0.2 Ampere
  • Input Voltage
    10.8V~13.2V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -55°C~125°C
  • Warranty
    3 Year
  • Length
    0.77 in
  • Width
    0.4 in
  • Height
    0.28 in
  • Weight
    0.01 lb

File Downloads

::specification::
