Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

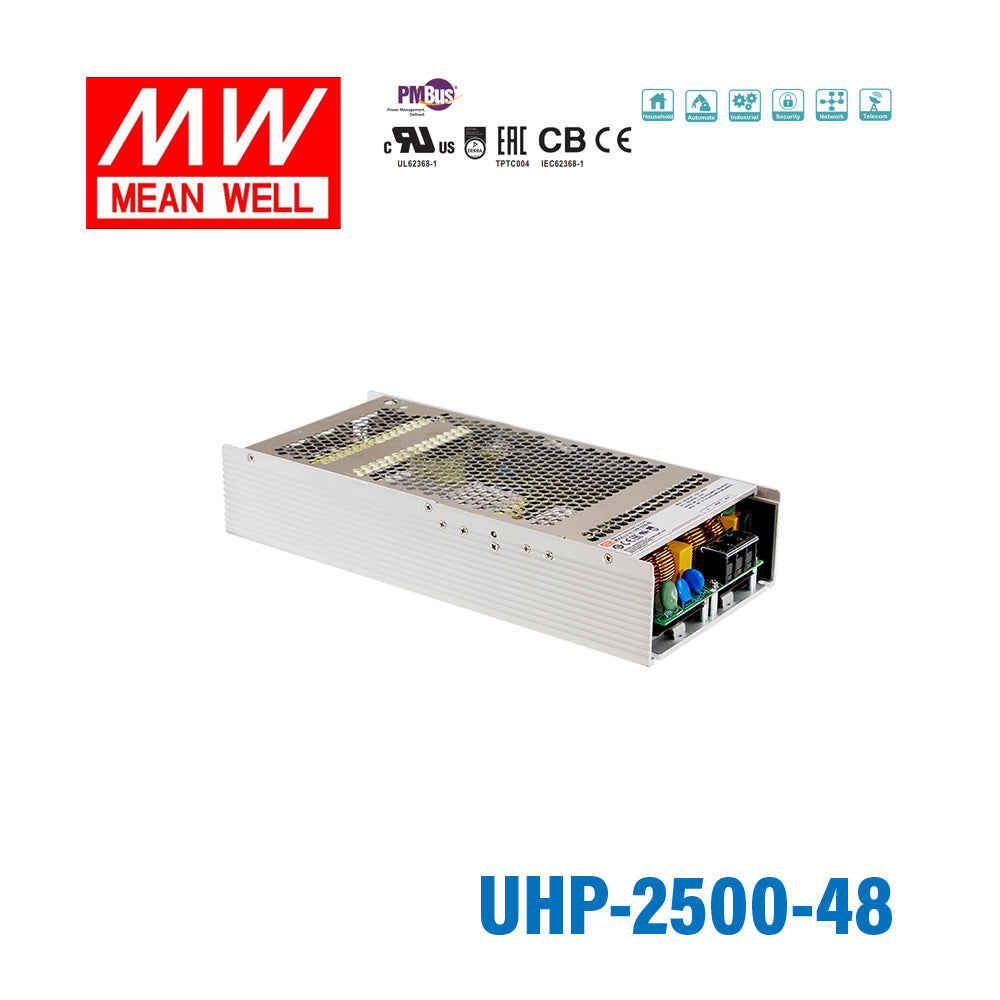

Mean Well UHP-2500-48 Power Supply 2500.8W 48V
The UHP-2500 is a 2500W Mean Well power converter (input range: 24~28.8V).
Key Features
- ✓ Input voltage range: 24~28.8V
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1,TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating2500.8 Watt
-
Output Voltage48 Volt
-
Rated Current52.1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.2 in
-
Width5.51 in
-
Height2.36 in
-
Weight7.72 lb
::specification::
Frequently Asked Questions
Can I use the UHP-2500-48 for a 48V telecom or industrial communications power system?
Yes, this is a constant-voltage 48V model rated for 2500.8W and 52.1A. That makes it relevant for 48V DC systems used in telecom, communications, and industrial control environments that require a high-power 48V source.
Is the UHP-2500-48 a fit for 48V automation equipment or large control panels?
It can be a fit where the equipment is designed for 48V constant-voltage input and the total load stays within 2500.8W and 52.1A. The 310.0 × 140.0 × 60.0 mm slim profile also suits larger control-panel layouts where space planning matters.
Can this model support a 48V embedded platform or DC bus in industrial equipment?
Yes, the unit is built around a 48V constant-voltage output with up to 52.1A available. That output class is commonly considered for embedded industrial platforms and centralized 48V DC buses that need more power than smaller 48V supplies provide.
Can the UHP-2500-48 be used in cold or hot operating conditions?
The specified operating temperature range is -30°C to +70°C, which supports use across a broad temperature span. No IP rating is listed, so environmental sealing for outdoor or exposed locations is not established by the provided specs.
What are the differences between the UHP-2500-24, UHP-2500-36, and UHP-2500-48?
The UHP-2500-24 is rated for 2500.8W at 24V and 104.2A, the UHP-2500-36 is rated for 2498.4W at 36V and 69.4A, and the UHP-2500-48 is rated for 2500.8W at 48V and 52.1A. They are all in the same slim, fanless UHP-2500 class, with the key difference being output voltage and resulting current.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other UHP-2500 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well UHP-2500-36 Power Supply 2498.4W 36V | 2498.4W | 36V | 69.4A | Indoor | $649.48 | View |
| Mean Well UHP-2500-24 Power Supply 2500.8W 24V | 2500.8W | 24V | 104.2A | Indoor | $649.48 | View |
