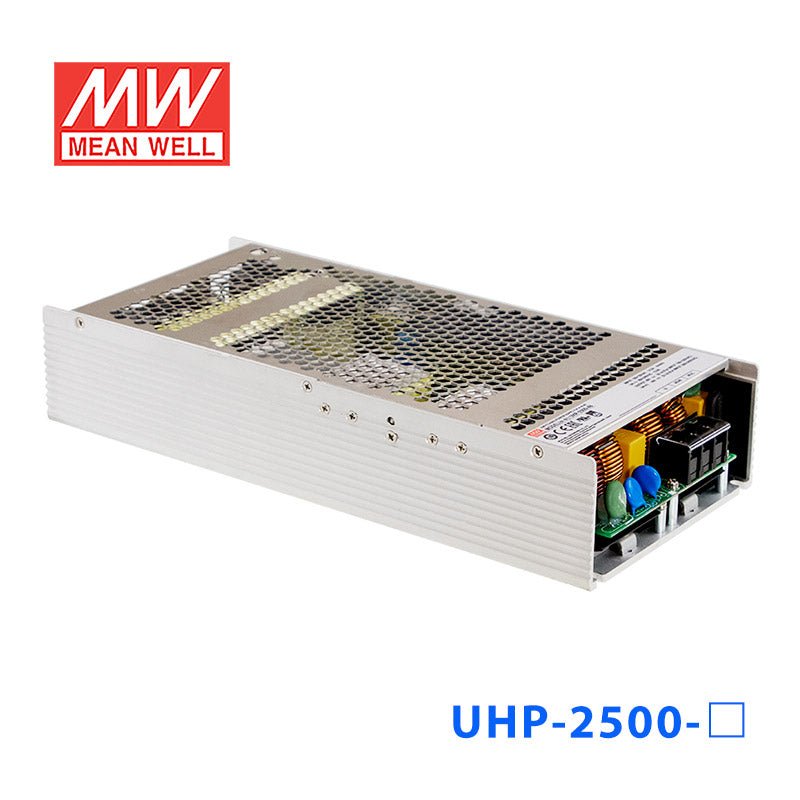

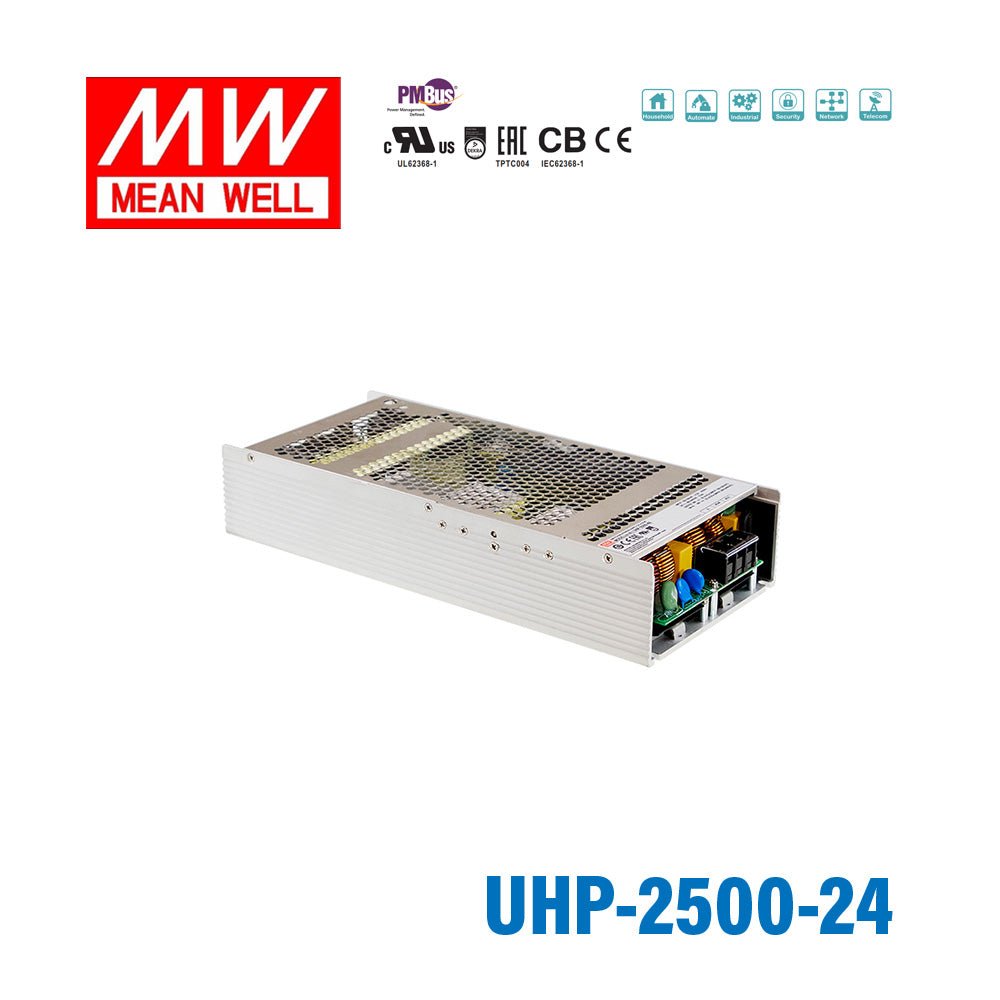

Mean Well UHP-2500-24 Power Supply 2500.8W 24V
Description
Description
Features
| Slim and Low profile (60mm) |
| Fanless and conduction-cooled design |
| Optional PMBus or CANBus protocol |
| Built-in active PFC function |
| -30~+70℃ working temperature |
| Output voltage and constant current level programmable |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in remote ON-OFF control |
| DC OK active signal |
| Operating altitude up to 5000 meter |
| LED indicator for power on |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC 250~370VDC |
| AC inrush current | Cold start :30A/115VAC 60A/230VAC |
| Overload protection | 105~125% rated output power Protection type : Constant current limiting with delay shutdown after 3 seconds,re-power on to recover |
| Short circuit protection | Protection type :Constant current limiting with delay shutdown after 3 seconds,re-power on to recover |
| Over voltage protection | 24V:29~33V, 48V:59~66V Protection type :Shut down O/P voltage,re-power on to recover |
| Over temperature protection | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down |
| Setup, rise, hold up time | 1000ms,50ms/230VAC/115VAC at full load; 12ms/115VAC，230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC |
| Working temperature | -30~+70℃(Refer to “Derating Curve) |
| Safety standards | UL62368-1,TUV EN62368-1,EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1 |
| EMC standards | EN55032 (CISPR32) Class B ;EN61000-3-2,3;EN61000-4-2,3,4,6,8,11 |
| Dimension (LxWxH) | 310×140×60mm |
| Packing | 3.5Kg; 4pcs/15Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating2500.8 Watt
-
Output Voltage24 Volt
-
Rated Current104.2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.2 in
-
Width5.51 in
-
Height2.36 in
-
Weight7.72 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-2500-24 for a large 24V industrial automation cabinet?
Yes, this model is a 24V constant voltage supply rated for 2500.8W and 104.2A, so it is suited to high-demand 24V DC systems. That output level is substantially higher than smaller cabinet supplies and fits centralized 24V power distribution.
Is the UHP-2500-24 suitable for powering multiple 24V loads from one main DC supply?
It can be a strong fit for multi-load 24V systems because it provides up to 104.2A at 24V, with a total output of 2500.8W. It is intended for applications that need one high-capacity constant voltage source rather than several lower-power units.
Can this 24V model support heavy-duty machine control or industrial equipment?
Yes, its 24V output and 2500.8W power class make it appropriate for large industrial equipment built around a 24V DC bus. With 104.2A available, it is designed for much heavier 24V demand than 200W, 350W, 500W, 750W, 1008W, or 1500W siblings.
Is the UHP-2500-24 a good fit for a centralized 24V DC bus in an automation or control system?
Yes, it is well suited to a centralized 24V DC architecture because it is a constant voltage 24V supply with 104.2A available. The fanless design can also be useful in control environments where reduced moving parts are preferred.
Will the UHP-2500-24 work in demanding temperature conditions or outdoor locations?
The specified operating range is -30°C to +70°C, so it covers a wide temperature span for industrial use. No IP rating is provided in the listed specs, so it is better matched to protected installations rather than exposed outdoor environments.
How does the UHP-2500-24 compare with other 24V UHP models?
Among the listed 24V versions, UHP-200-24 and UHP-200R-24 are 201.6W and 8.4A, UHP-350-24 and UHP-350R-24 are 350.4W and 14.6A, UHP-500-24 and UHP-500R-24 are 501.6W and 20.9A, UHP-750-24 is 751.2W and 31.3A, UHP-1000-24 is 1008W and 42A, UHP-1500-24 is 1500W and 62.5A, and UHP-2500-24 is 2500.8W and 104.2A. This model is the highest-power 24V option listed in the series.
