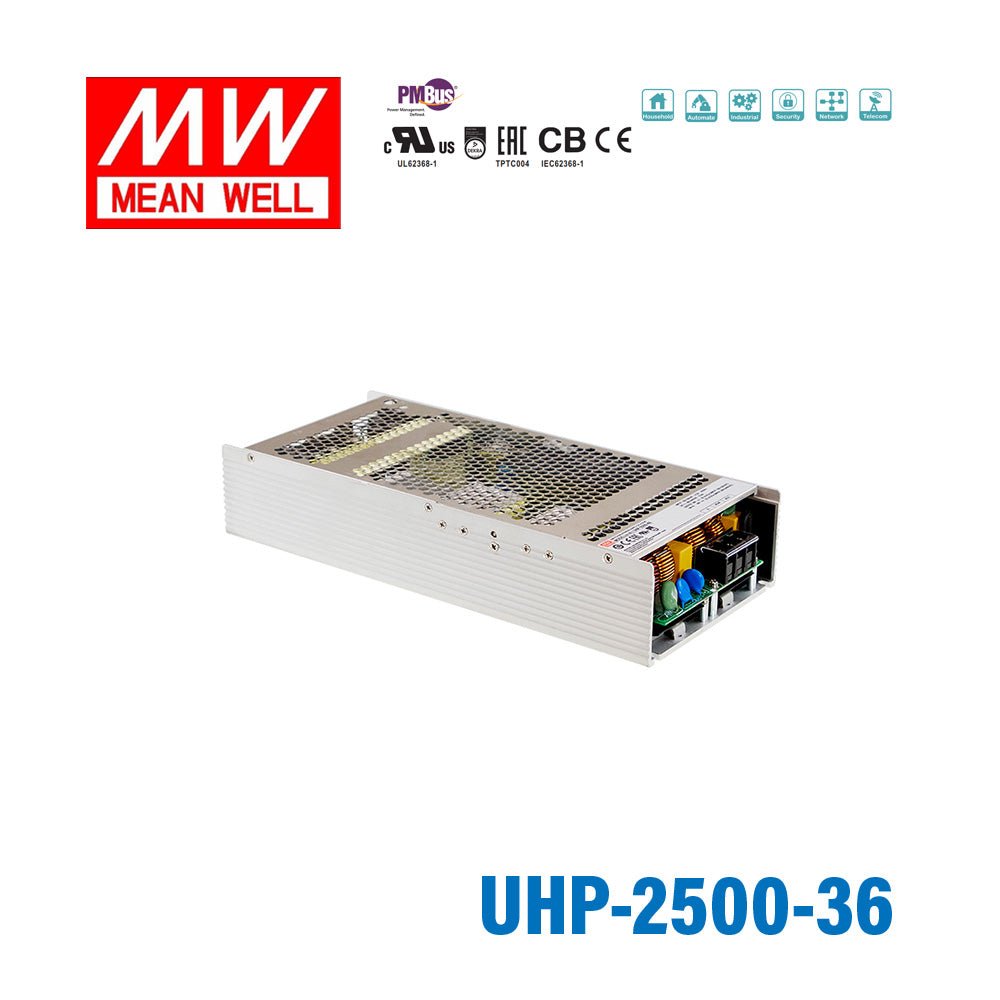

Mean Well UHP-2500-36 Power Supply 2498.4W 36V
Description
Description
Features
| Slim and Low profile (60mm) |
| Fanless and conduction-cooled design |
| Optional PMBus or CANBus protocol |
| Built-in active PFC function |
| -30~+70℃ working temperature |
| Output voltage and constant current level programmable |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in remote ON-OFF control |
| DC OK active signal |
| Operating altitude up to 5000 meter |
| LED indicator for power on |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC 250~370VDC |
| AC inrush current | Cold start :30A/115VAC 60A/230VAC |
| Overload protection | 105~125% rated output power Protection type : Constant current limiting with delay shutdown after 3 seconds,re-power on to recover |
| Short circuit protection | Protection type :Constant current limiting with delay shutdown after 3 seconds,re-power on to recover |
| Over voltage protection | 24V:29~33V, 48V:59~66V Protection type :Shut down O/P voltage,re-power on to recover |
| Over temperature protection | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down |
| Setup, rise, hold up time | 1000ms,50ms/230VAC/115VAC at full load; 12ms/115VAC，230VAC |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC |
| Working temperature | -30~+70℃(Refer to “Derating Curve) |
| Safety standards | UL62368-1,TUV EN62368-1,EAC TP TC 004 approved; design refer to EN61558-1, EN60335-1 |
| EMC standards | EN55032 (CISPR32) Class B ;EN61000-3-2,3;EN61000-4-2,3,4,6,8,11 |
| Dimension (LxWxH) | 310×140×60mm |
| Packing | 3.5Kg; 4pcs/15Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating2498.4 Watt
-
Output Voltage36 Volt
-
Rated Current69.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.2 in
-
Width5.51 in
-
Height2.36 in
-
Weight7.72 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the UHP-2500-36 for a 36V industrial automation or motion-control system?
Yes, this model is a constant-voltage 36V power supply rated for 2498.4W and 69.4A. That output fits 36V equipment used in industrial automation, embedded power cabinets, and higher-load DC systems when the load is designed for 36V input.
Is the UHP-2500-36 suitable for a 36V DC motor, actuator, or conveyor control setup?
It can suit 36V DC loads that need a constant-voltage source and up to 69.4A, with 2498.4W total output available. Buyers typically consider this class for high-demand 36V industrial equipment where a slim, fanless supply is preferred.
Can this power supply be used in a 36V embedded system or large control cabinet?
Yes, the 36V constant-voltage output and 310.0 × 140.0 × 60.0 mm low-profile form factor make it relevant for embedded systems and space-managed control cabinets. Its fanless design also helps where forced-air hardware is not preferred.
Is the UHP-2500-36 intended for outdoor use or harsh exposed environments?
The published specs show an operating temperature range of -30°C to +70°C, but no IP rating is listed for this model. That means the temperature range is broad, but outdoor or washdown use should not be assumed from these specs alone.
How does the UHP-2500-36 compare with the other UHP-2500 models?
Within the UHP-2500 group, the UHP-2500-24 is rated for 2500.8W at 24V and 104.2A, the UHP-2500-36 is rated for 2498.4W at 36V and 69.4A, and the UHP-2500-48 is rated for 2500.8W at 48V and 52.1A. The main selection difference is the output voltage and corresponding current at roughly the same power class.
