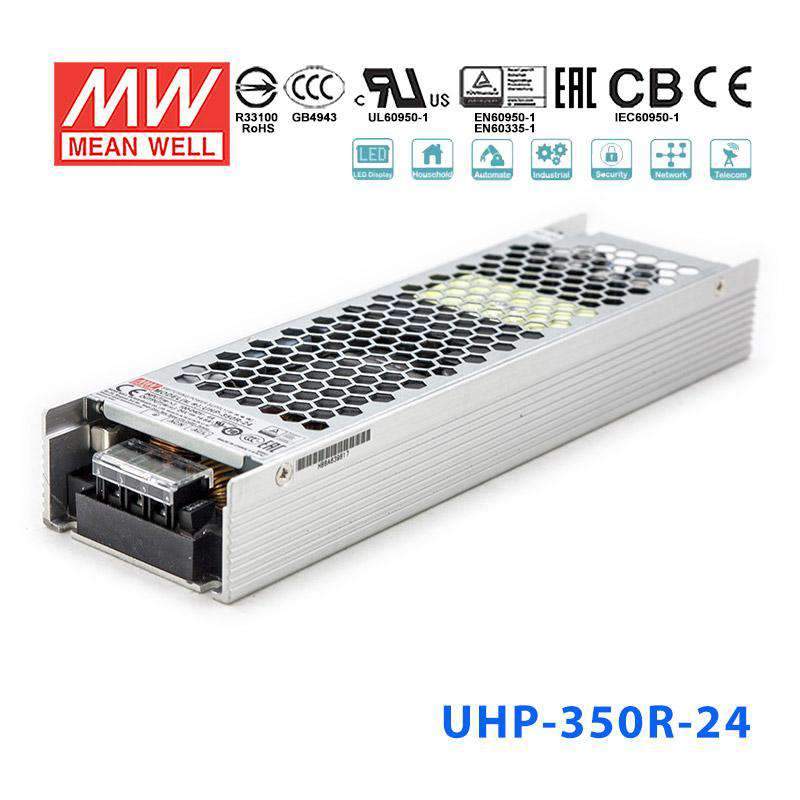

Mean Well UHP-350R-24 Power Supply 350.4W 24V - Redundant
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well UHP-350R-24 Power Supply 350.4W 24V - Redundant
The UHP-350R is a 350W Mean Well DIN rail power converter with a 220mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 220mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1,CCC GB4943,BSMI CNS14336-1,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating350.4 Watt
-
Output Voltage24 Volt
-
Rated Current14.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width2.44 in
-
Height1.22 in
-
Weight1.5 lb
::specification::
Frequently Asked Questions
Can I use the UHP-350R-24 for a 24V PLC or industrial automation cabinet?
Yes, if the control cabinet uses a 24V constant-voltage bus and the connected load stays within 350.4W and 14.6A. That aligns well with many PLC, sensor, relay, and automation support applications built around 24V DC.
Is the UHP-350R-24 suitable for 24V industrial networking or control electronics?
It can fit 24V control electronics, industrial networking hardware, or embedded systems that require a regulated 24V output. The model is rated for 14.6A and accepts 90-264VAC input, which helps in mixed-facility deployments.
Can this 24V model power machine-control accessories that need redundancy features?
It is intended for constant-voltage 24V loads up to 350.4W, and it includes built-in DC OK and redundant function. That makes it relevant where the equipment design needs 24V operation plus power-state signaling and redundant-supply capability.
How does the UHP-350R-24 compare to the other UHP-350R versions?
In the UHP-350R redundant family, available outputs are 3.3V 198W 60A, 4.2V 252W 60A, 5V 300W 60A, 12V 350.4W 29.2A, 15V 351W 23.4A, 24V 350.4W 14.6A, 36V 351W 9.75A, and 48V 350.4W 7.3A. The UHP-350R-24 is the 24V option with 350.4W total output and 14.6A rated current.
Is the UHP-350R-24 rated for outdoor use?
The operating temperature range is -30°C to +70°C, so the temperature spec is broad enough for many industrial indoor environments. However, the provided data does not list an IP rating, so outdoor exposure suitability is not confirmed by these specs.
