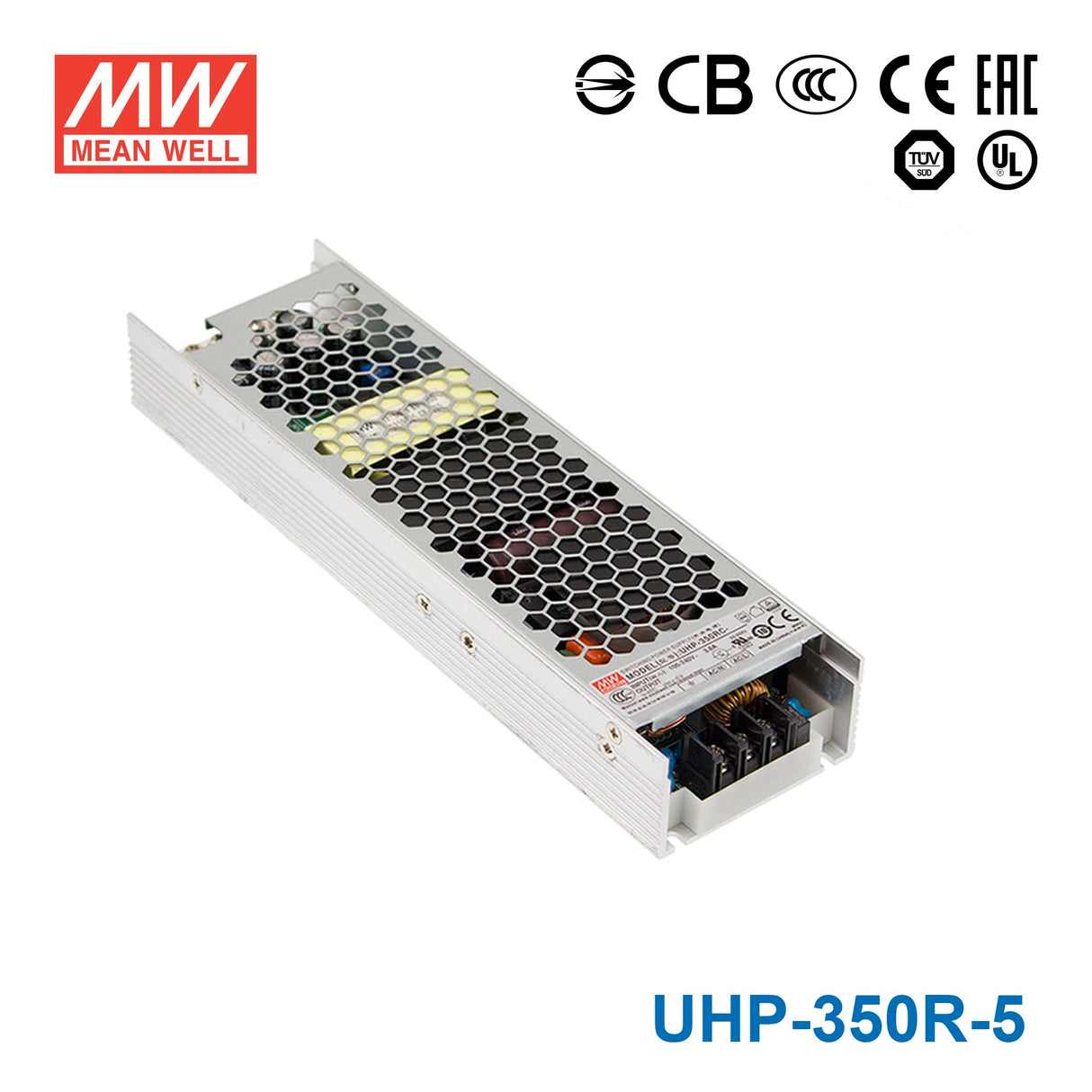

Mean Well UHP-350R-5 Power Supply 300W 5V - Redundant
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well UHP-350R-5 Power Supply 300W 5V - Redundant
The UHP-350R is a 350W Mean Well DIN rail power converter with a 220mm profile (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ 220mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes UL 62368-1,TUV EN62368-1,EN60335-1,CCC GB4943,BSMI CNS14336-1,EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating300 Watt
-
Output Voltage5 Volt
-
Rated Current60 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width2.44 in
-
Height1.22 in
-
Weight1.5 lb
::specification::
Frequently Asked Questions
Can I use the UHP-350R-5 for a high-current 5V industrial or embedded system?
Yes, this model provides constant voltage 5V output up to 60A and 300W. That makes it relevant for low-voltage industrial electronics, embedded hardware, or control subsystems that are built around a 5V bus.
Is the UHP-350R-5 appropriate for 5V logic, processor, or communication hardware in a redundant power design?
It can fit 5V electronics that need up to 60A and 300W, especially where a redundant-capable supply is preferred. The built-in redundant function and DC OK feature are useful for monitored low-voltage systems.
Can this power supply be used in automation cabinets with global AC input?
Yes, the input range is 90-264VAC, so it can be used where the available AC input varies. The application still needs to match a constant voltage 5V load within the 300W and 60A rating.
What are the key differences between the UHP-350R-5 and the other UHP-350R versions?
The listed UHP-350R variants are 3.3V 198W 60A, 4.2V 252W 60A, 5V 300W 60A, 12V 350.4W 29.2A, 15V 351W 23.4A, 24V 350.4W 14.6A, 36V 351W 9.75A, and 48V 350.4W 7.3A. This model is the 5V version, so it sits above the 3.3V and 4.2V models in wattage while keeping the same 60A output current.
Is the UHP-350R-5 suited for outdoor or temperature-variable environments?
The operating temperature range is -30C to +70C, so the unit is specified for a broad temperature window. No IP rating is listed in the provided specs, so outdoor exposure is not confirmed by the published data.
