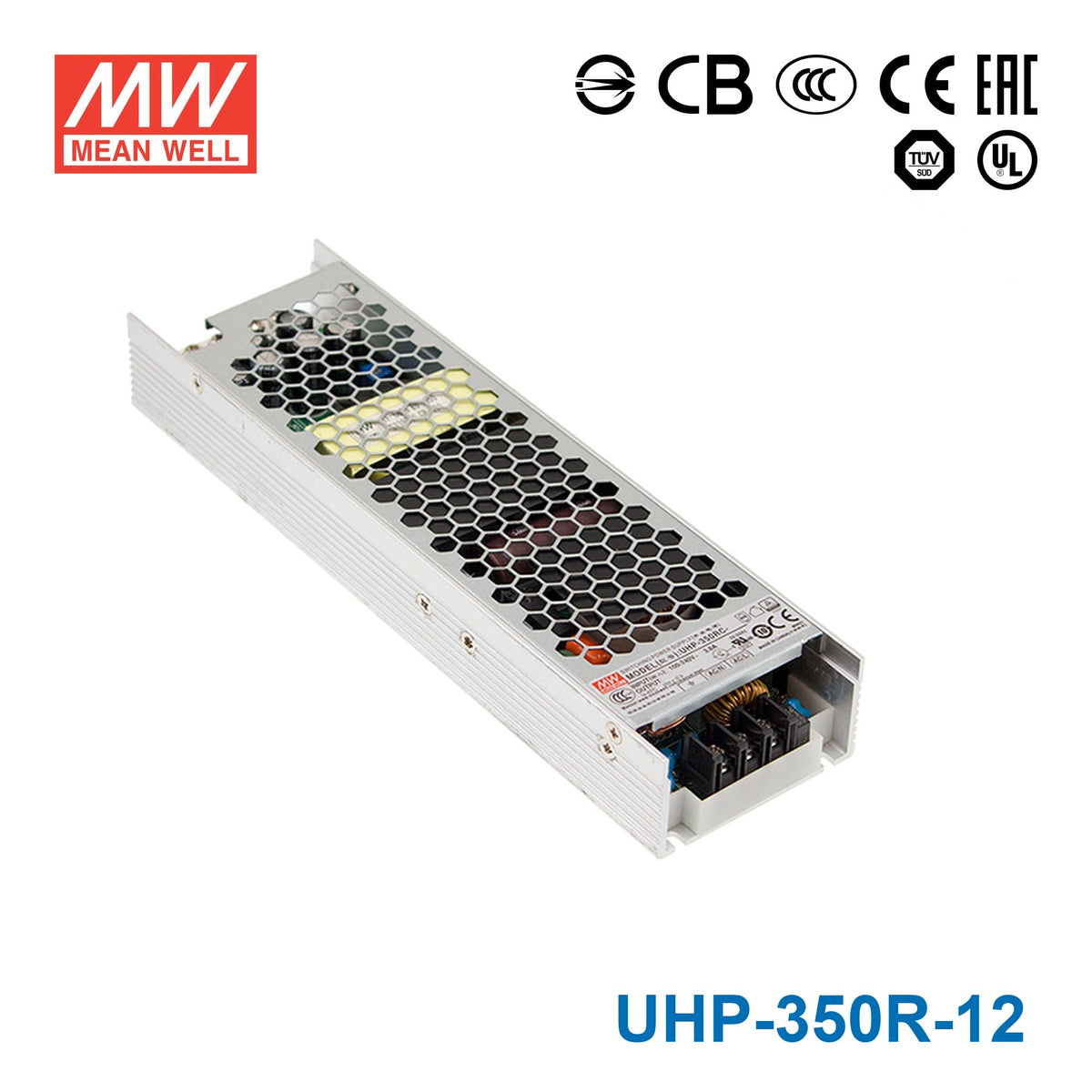

Mean Well UHP-350R-12 Power Supply 350.4W 12V - Redundant

slim and low profile, fanless design, built-in DC OK and redundant function
SKU:
UHP-350R-12

$78.30 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Slim and Low profile (31mm)
Fanless design, 350W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150% peak load capability(100ms)
-30~+70℃ working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK active signal and redundant function(option)
Operating altitude up to 5000 meter
Over voltage category Ⅲ
LED indicator for power on
3 years warranty

General Specification

AC input voltage range 90~264VAC 127~370VDC
AC inrush current Cold start :30A/115VAC 60A/230VAC
Overload protection 110~140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
Over voltage protection 12V:13.2~15.6V, 15V:16.5~19.5V, 24V:26.4~31.2V, 36V:39.6~46.8V, 48V:52.8~62.4V Protection type :Shut down O/P voltage, re-power on to recover
Setup, rise, hold up time 2000ms, 80ms/230VAC/115VAC at full load; 10ms/115VAC, 230VAC
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.25KVAC
Working temperature -30~+70℃ (Refer to Derating Curve)
Safety standards UL60950-1, TUV EN60950-1, EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1 approved, Design refer to EN61558-1,-2-16
EMC standards Compliance to EN55032, GB9254, Class B, EN55014, EN61000-3-2, -3, EAC TP TC 020, BSMI CNS13438; Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11 ;EN61000-6-2 (EN50082-2), heavy industry level, criterial A, EAC TP TC 020
Dimension (LxWxH) 220×62×31mm
Packing 0.68Kg;16pcs/11.88Kg

Specifications

  • Brand
    Mean Well
  • Series
    UHP Series
  • Power Rating
    350.4 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    29.2 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    BSMI,CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    8.66 in
  • Width
    2.44 in
  • Height
    1.22 in
  • Weight
    1.5 lb

File Downloads

::specification::
