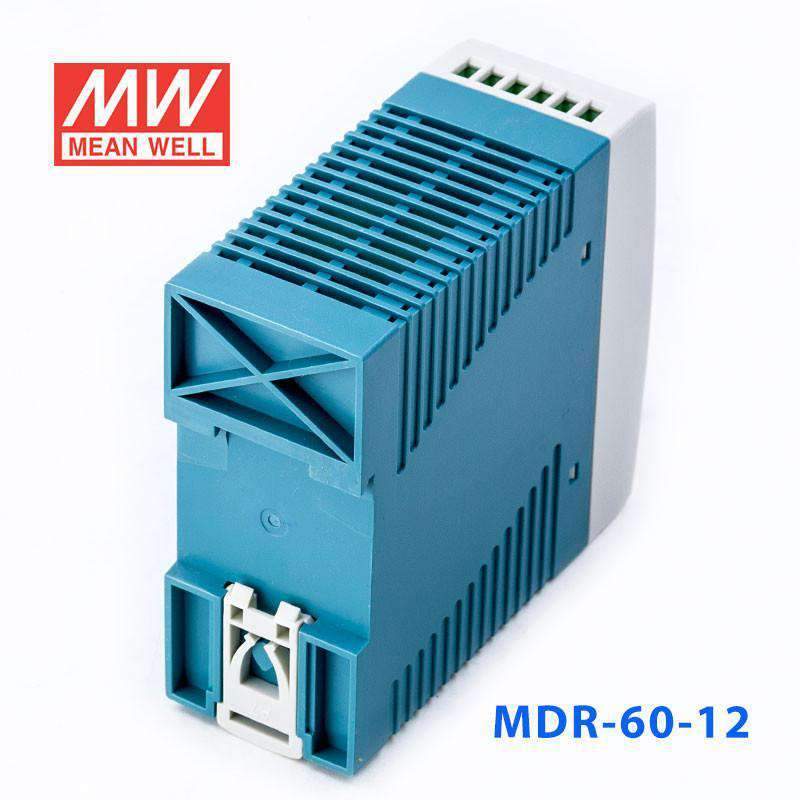

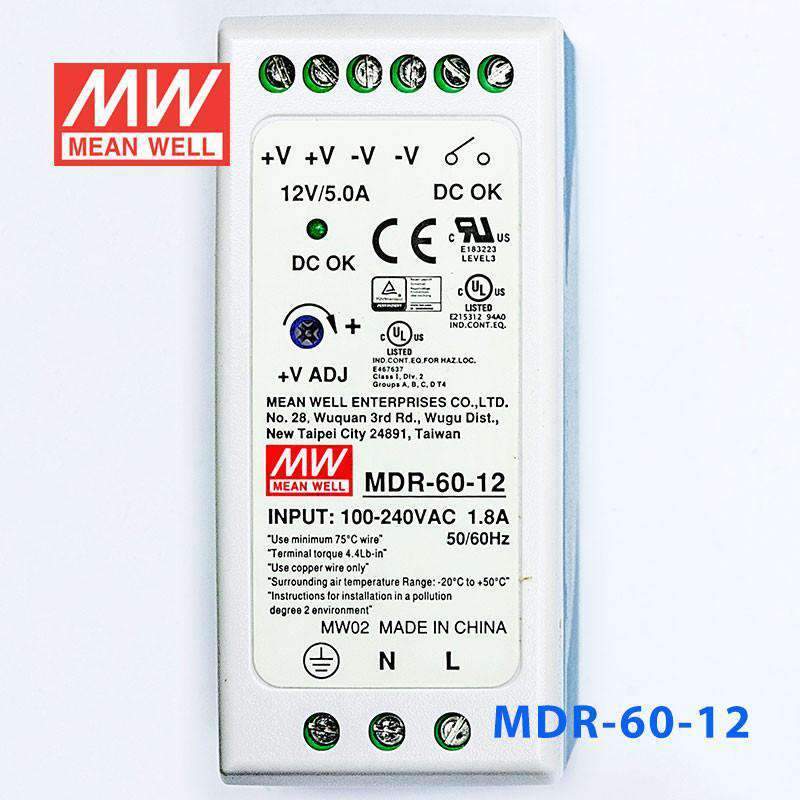

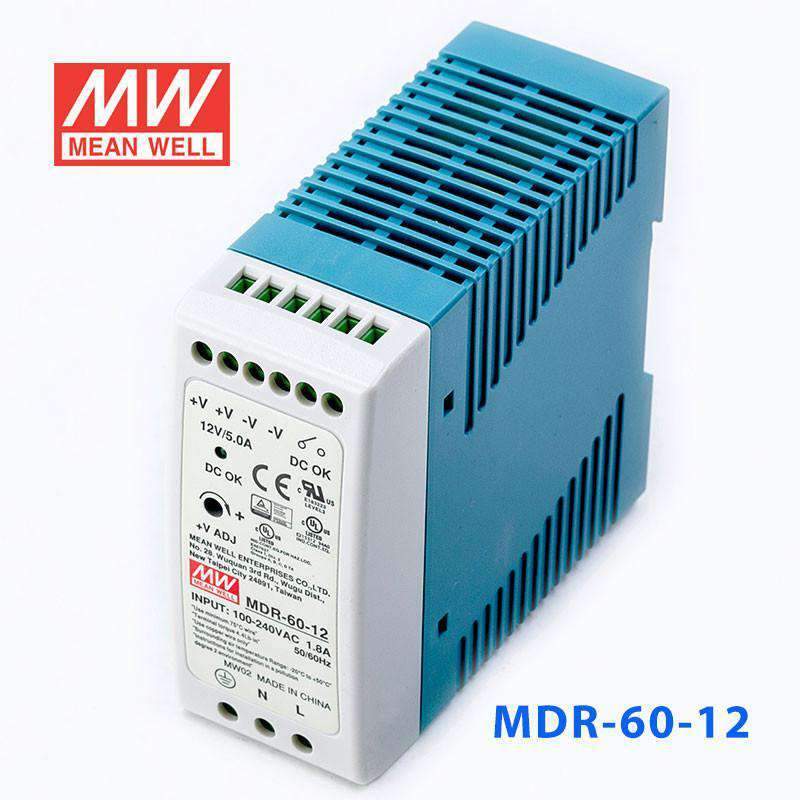

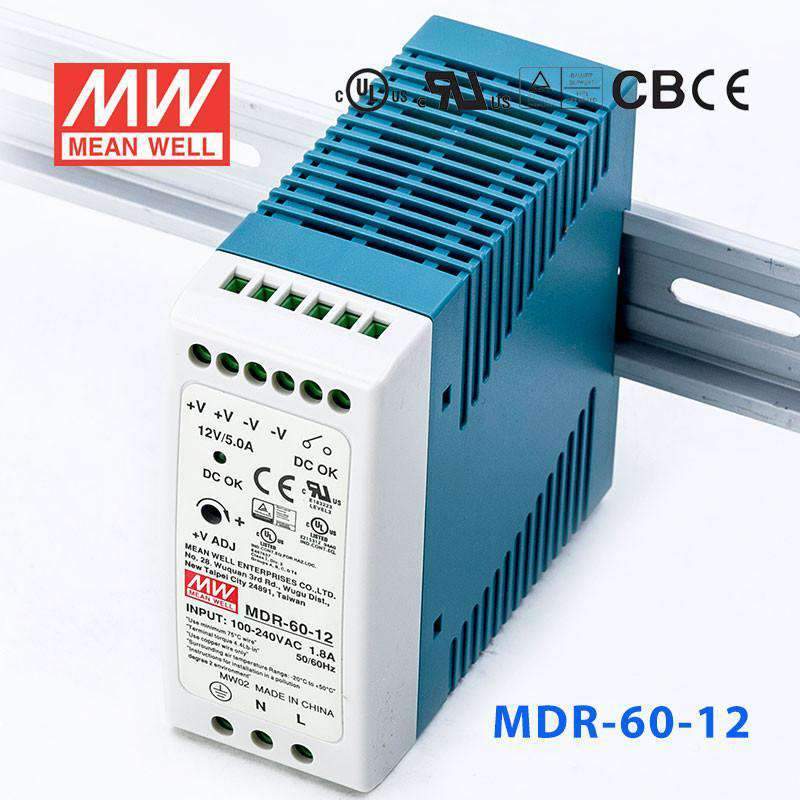

Mean Well MDR-60-12 Single Output Industrial Power Supply 60W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDR-60-12 Single Output Industrial Power Supply 60W 12V -...
Description
Description
Features
| Universal AC input / Full range |

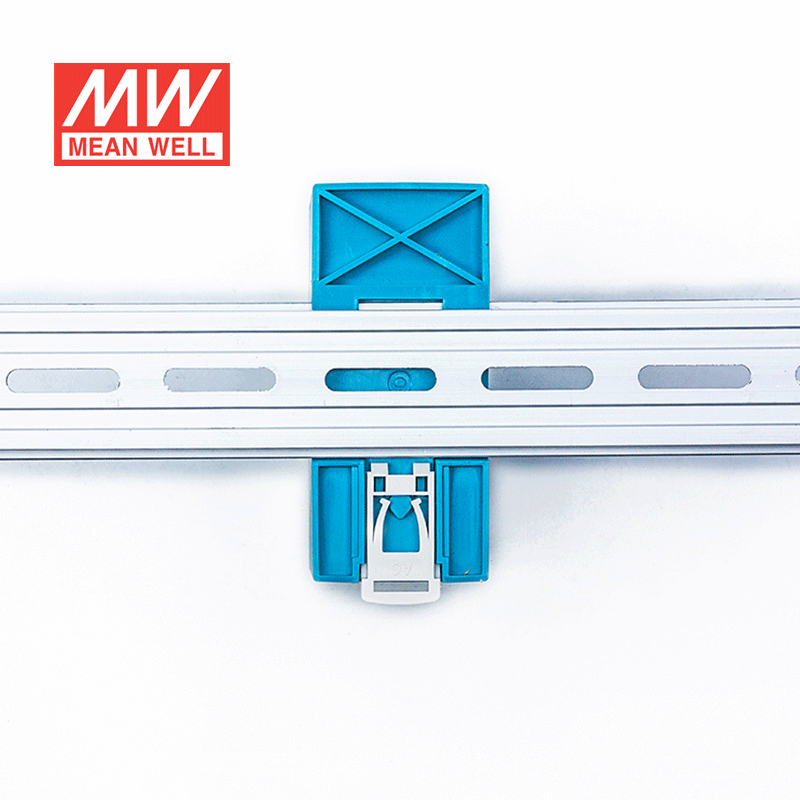

| Installed on DIN rail TS35 / 7.5 or 15 |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.75W |
| LED indicator for power on |
| DC OK relay contact |
| Cooling by free air convection |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start, 30A at 115VAC, 60A at 230VAC |
| DC adjustment range | 0~+20% rated output voltage |
| Overload protection | 105%~150% constant current limiting, auto-recovery |
| Over voltage protection | 125%~150% rated output voltage |
| Setup, rise, hold up time | 500ms, 30ms, 50ms |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute |
| Working temperature | -20~+70°C (refer to output derating curve) |
| DC OK signal | Relay contact |
| Safety standards | UL508, TUV EN60950-1, UL60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 heavy industry level |
| Connection | IP: 3 poles, O/P: 6 poles screw DIN terminal |
| Dimension (LxWxH) | 40x90x100 |
| Packing | 42pcs / 14.8kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDR Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height1.57 in
-
Weight0.73 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDR-60-12 for a 12V control panel with a higher DC load than the 40W version?
Yes, this model provides 12V DC up to 5A with a 60W rating, so it supports more 12V load than the 40W MDR-40-12. It is suited to DIN rail control panels that need additional current capacity without changing to a different output voltage.
Is the MDR-60-12 suitable for 12V building automation or industrial control devices in one enclosure?
It can be used for 12V building management and automation loads when the combined demand stays within 60W and 5A. That makes it a practical option for cabinets feeding several 12V devices from one DIN rail supply.
Would the MDR-60-12 work for 12V relays, sensors, and controller accessories in a DIN rail cabinet?
Yes, provided the total 12V DC load does not exceed 5A or 60W. The DIN rail design and ultra slim profile make it suitable for control cabinets where multiple 12V accessories share one power source.
Is this model appropriate for compact panels even though it has a higher 12V output?
Yes, it still uses a 100.0 x 90.0 x 40.0 mm housing with an ultra slim design. That allows a 60W, 12V supply to fit into the same compact DIN rail footprint used across this part of the MDR series.
Can the MDR-60-12 be used in a control cabinet across a wide temperature range?
Yes, the specified operating range is -20C to +70C, which supports industrial cabinet use across a broad temperature span. The provided specs do not list a separate exposed-environment protection rating, so enclosure installation is the safer fit.
How does the MDR-60-12 compare with other MDR DIN rail siblings?
For the listed 12V units, MDR-10-12 is 10W and 0.84A, MDR-20-12 is 20W and 1.67A, MDR-40-12 is 40W and 3.33A, MDR-60-12 is 60W and 5A, and MDR-100-12 is 90W and 7.5A. Other siblings are MDR-10-5 at 10W and 2A, MDR-20-5 at 15W and 3A, MDR-40-5 at 30W and 6A, MDR-60-5 at 50W and 10A, MDR-10-15 at 10W and 0.67A, MDR-20-15 at 20W and 1.34A, MDR-10-24 at 10W and 0.42A, MDR-20-24 at 24W and 1A, MDR-40-24 at 40.8W and 1.7A, MDR-60-24 at 60W and 2.5A, MDR-100-24 at 96W and 4A, MDR-40-48 at 39.8W and 0.83A, MDR-60-48 at 60W and 1.25A, and MDR-100-48 at 96W and 2A.
