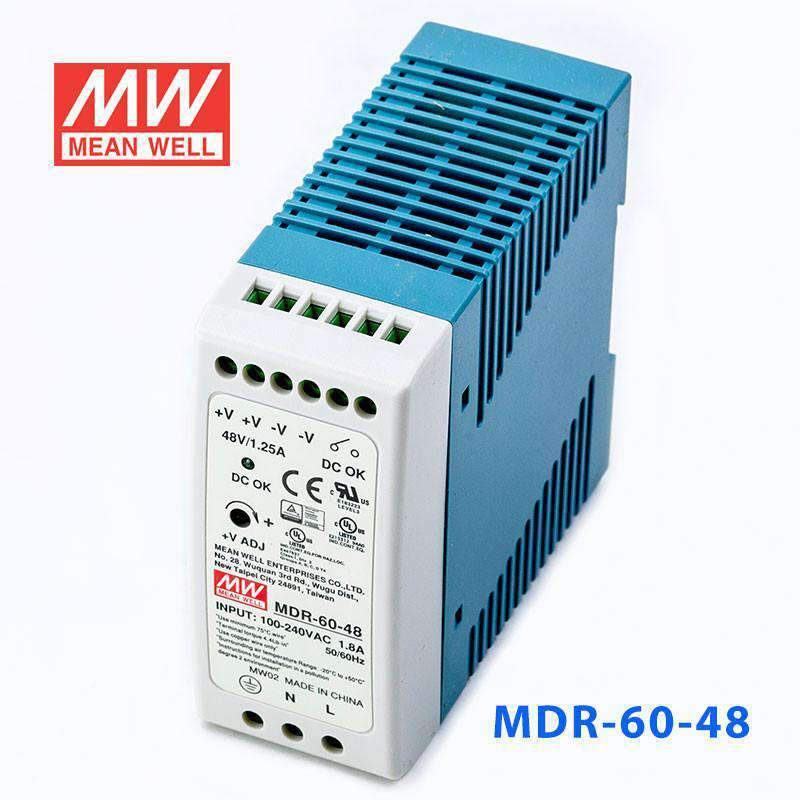

Mean Well MDR-60-48 Single Output Industrial Power Supply 60W 48V -...
Description
Description
Features
| Universal AC input / Full range |

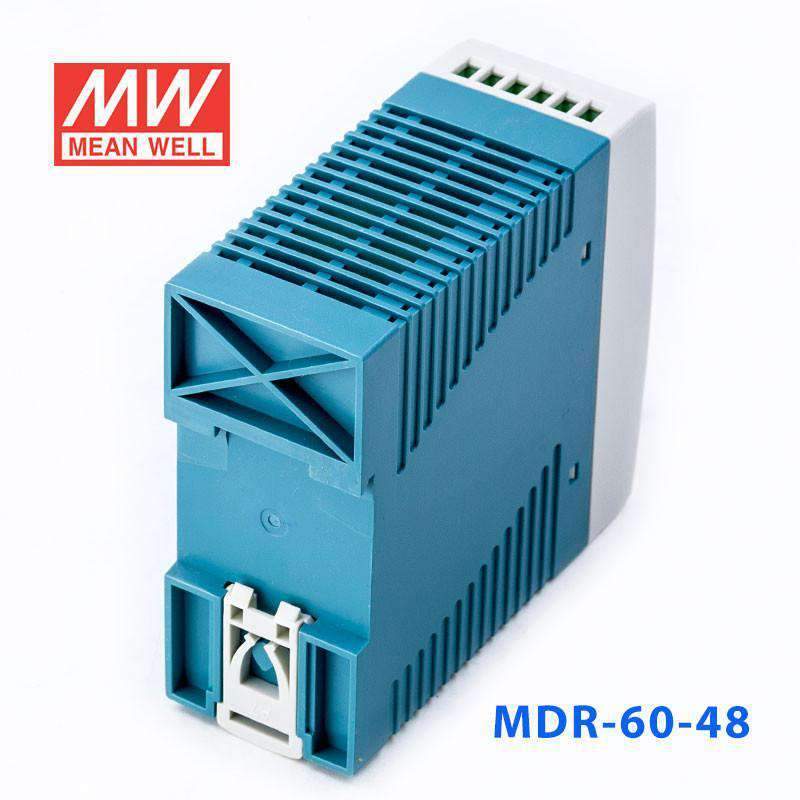

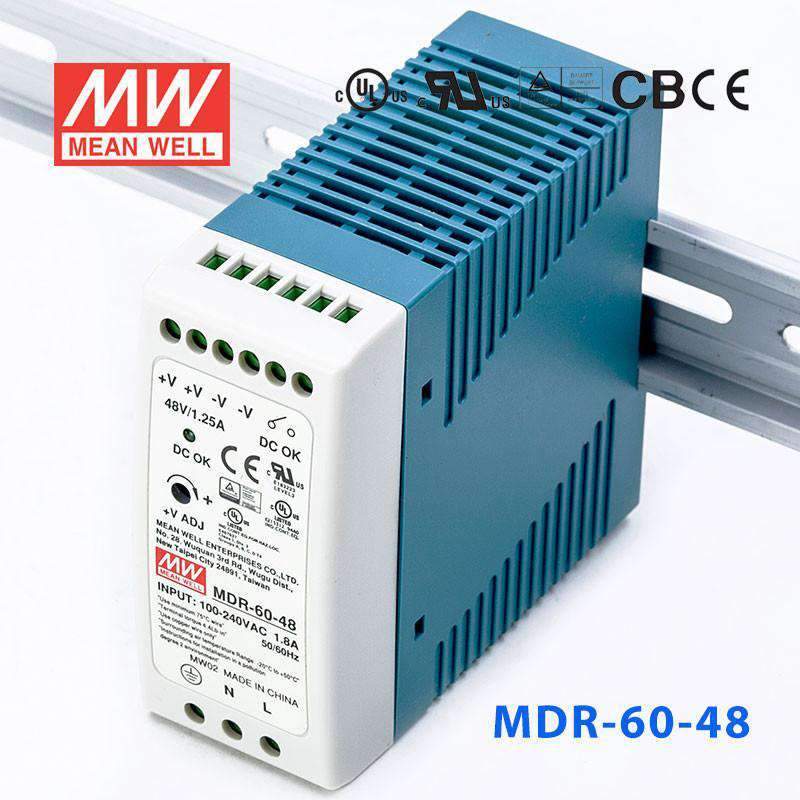

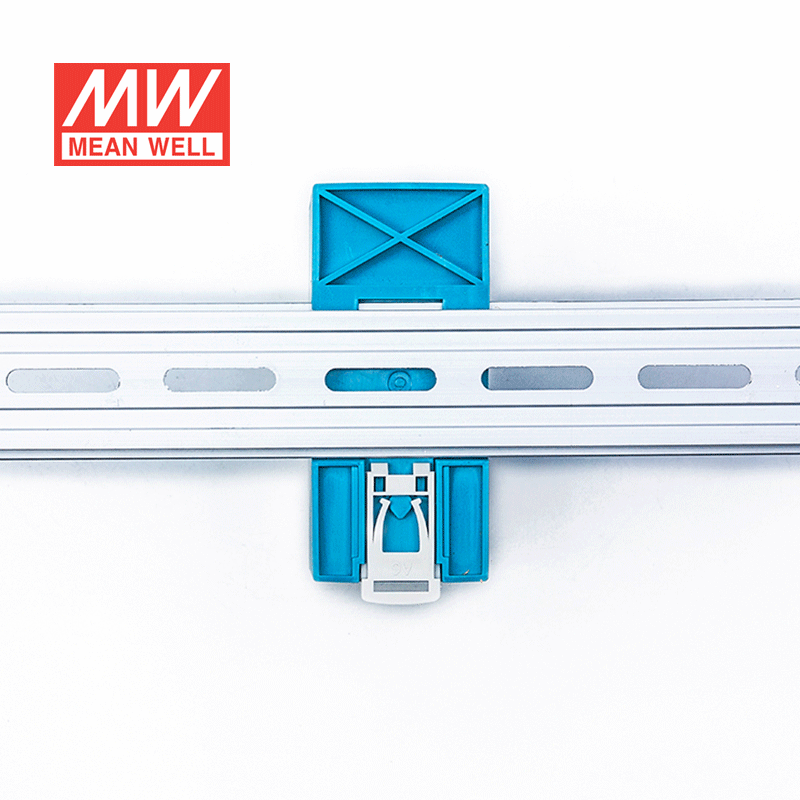

| Installed on DIN rail TS35 / 7.5 or 15 |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.75W |
| LED indicator for power on |
| DC OK relay contact |
| Cooling by free air convection |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start, 30A at 115VAC, 60A at 230VAC |
| DC adjustment range | 0~+20% rated output voltage |
| Overload protection | 105%~150% constant current limiting, auto-recovery |
| Over voltage protection | 125%~150% rated output voltage |
| Setup, rise, hold up time | 500ms, 30ms, 50ms |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, 1minute |
| Working temperature | -20~+70°C (refer to output derating curve) |
| DC OK signal | Relay contact |
| Safety standards | UL508, TUV EN60950-1, UL60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 heavy industry level |

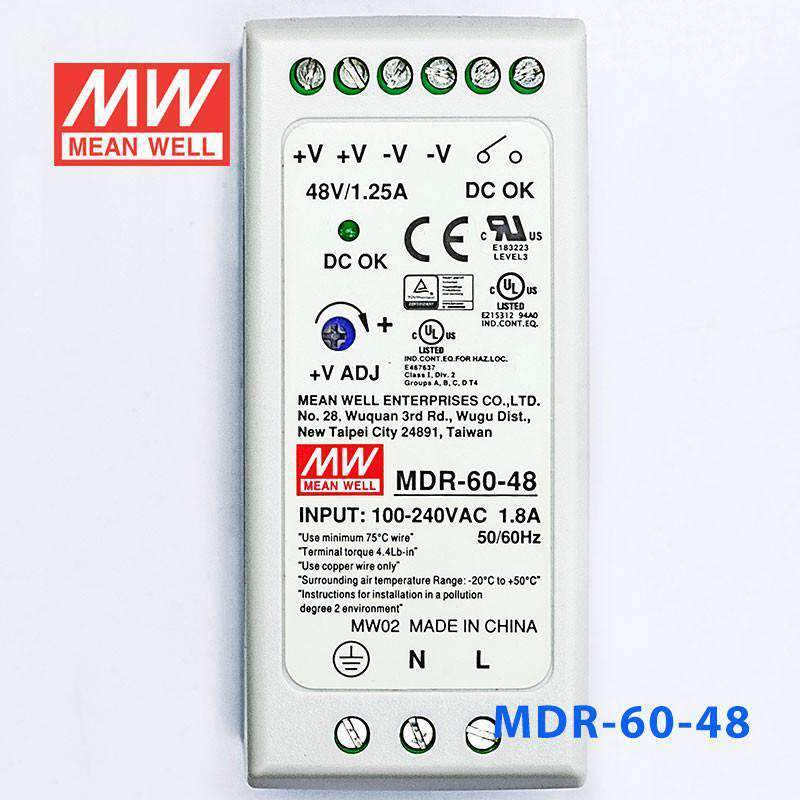

| Connection | IP: 3 poles, O/P: 6 poles screw DIN terminal |
| Dimension (LxWxH) | 40x90x100 |
| Packing | 42pcs / 14.8kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMDR Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height1.57 in
-
Weight0.73 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDR-60-48 for a 48V PLC cabinet or industrial control system?
Yes, it is intended for 48VDC applications and can supply up to 1.25A with a 60W rating. That makes it a fit for 48V industrial control, PLC cabinet, and automation equipment that stays within those limits. The DIN rail format also suits panel-based installations.
Is the MDR-60-48 suitable for building automation panels that use 48VDC devices?
It can be used in building automation and control cabinets where the system requires 48VDC and the load is no more than 1.25A or 60W. The 85-264VAC input supports a broad AC input range for panel power conversion. Its ultra slim housing helps when enclosure space is constrained.
Can this power supply be used for 48V industrial communication or control equipment on DIN rail?
Yes, it is appropriate for 48V industrial communication or control equipment when the total demand remains within 60W and 1.25A. The single-output DIN rail design is intended for orderly mounting inside automation cabinets. The compact 100.0 × 90.0 × 40.0 mm size is useful in dense control layouts.
Is the MDR-60-48 a good choice when I need a slim 48V power supply in a crowded enclosure?
Yes, this unit combines a 48V output with an ultra slim DIN rail housing that measures 100.0 × 90.0 × 40.0 mm. That makes it practical for tight control cabinets where space planning matters. It still provides up to 1.25A and 60W in that compact form.
Should the MDR-60-48 be used inside a control cabinet or in exposed environments?
This model is best suited to installation inside a control cabinet or protective enclosure because no exposed-use IP rating is listed in the provided specs. Its operating temperature range is -20°C to +70°C, which supports enclosed industrial conditions. For direct outdoor exposure, buyers usually need a supply with a stated environmental protection rating.
What are the main differences between the MDR-60-48 and other MDR series options?
The sibling MDR models are MDR-10-12 at 10W, 12V, 0.84A; MDR-10-15 at 10W, 15V, 0.67A; MDR-10-24 at 10W, 24V, 0.42A; MDR-10-5 at 10W, 5V, 2A; MDR-100-12 at 90W, 12V, 7.5A; MDR-100-24 at 96W, 24V, 4A; MDR-100-48 at 96W, 48V, 2A; MDR-20-12 at 20W, 12V, 1.67A; and MDR-20-15 at 20W, 15V, 1.34A. The rest are MDR-20-24 at 24W, 24V, 1A; MDR-20-5 at 15W, 5V, 3A; MDR-40-12 at 40W, 12V, 3.33A; MDR-40-24 at 40.8W, 24V, 1.7A; MDR-40-48 at 39.8W, 48V, 0.83A; MDR-40-5 at 30W, 5V, 6A; MDR-60-12 at 60W, 12V, 5A; MDR-60-24 at 60W, 24V, 2.5A; and MDR-60-5 at 50W, 5V, 10A.
