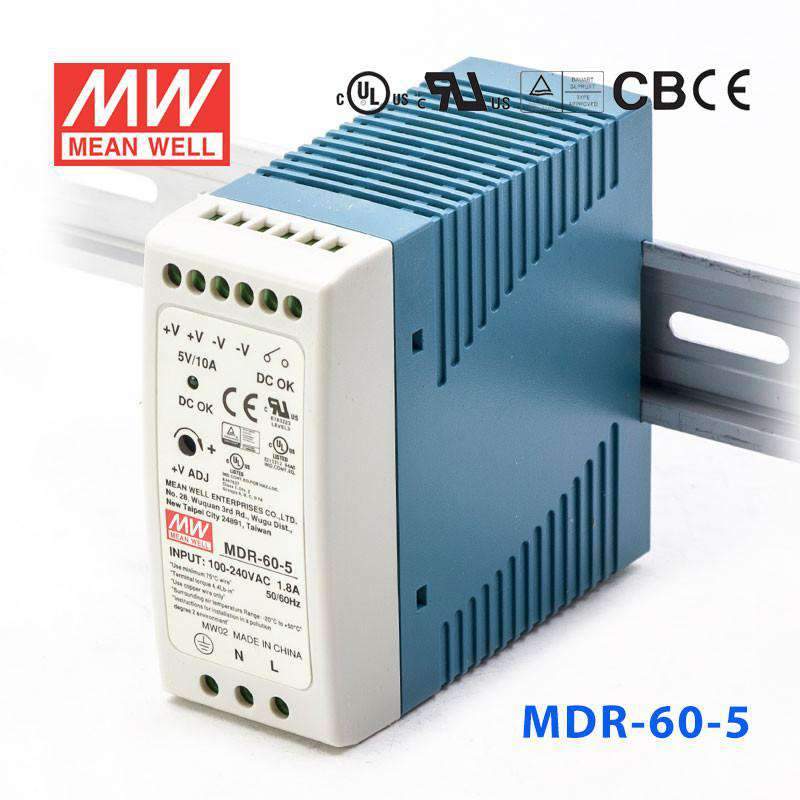

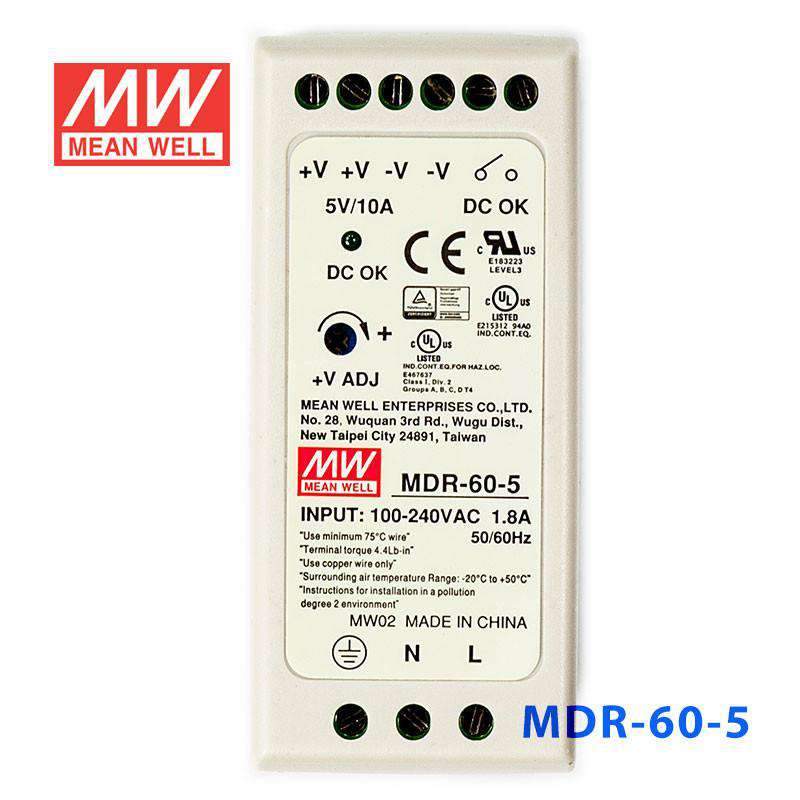

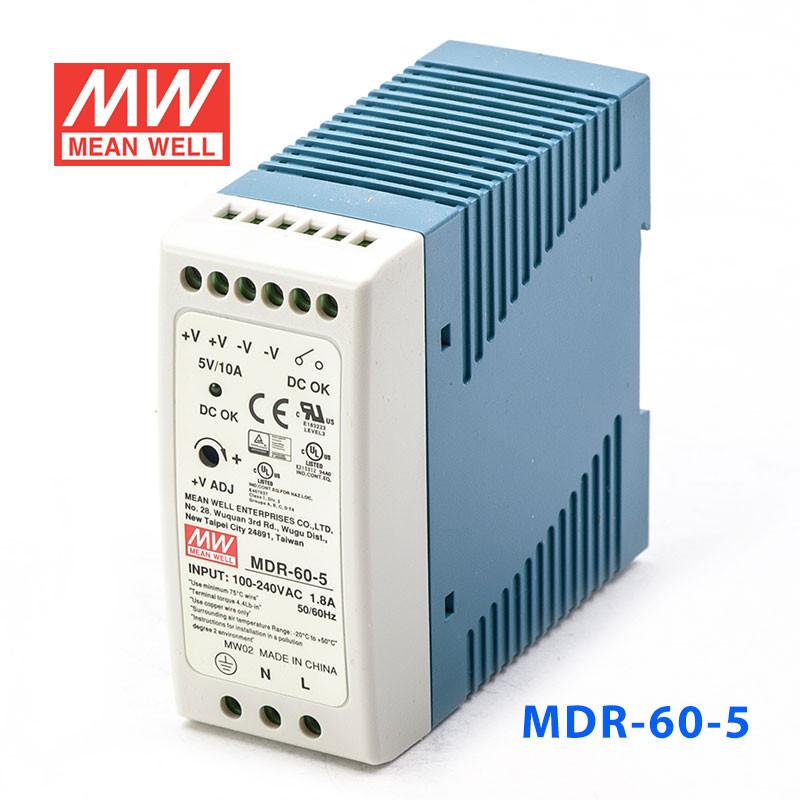

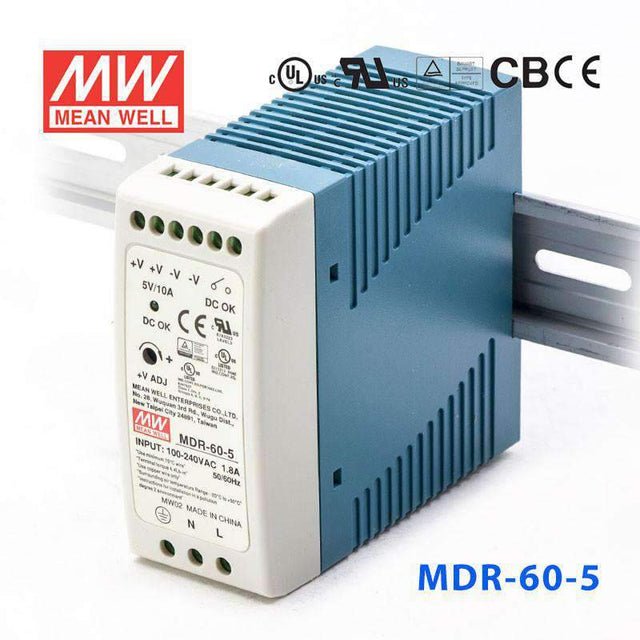

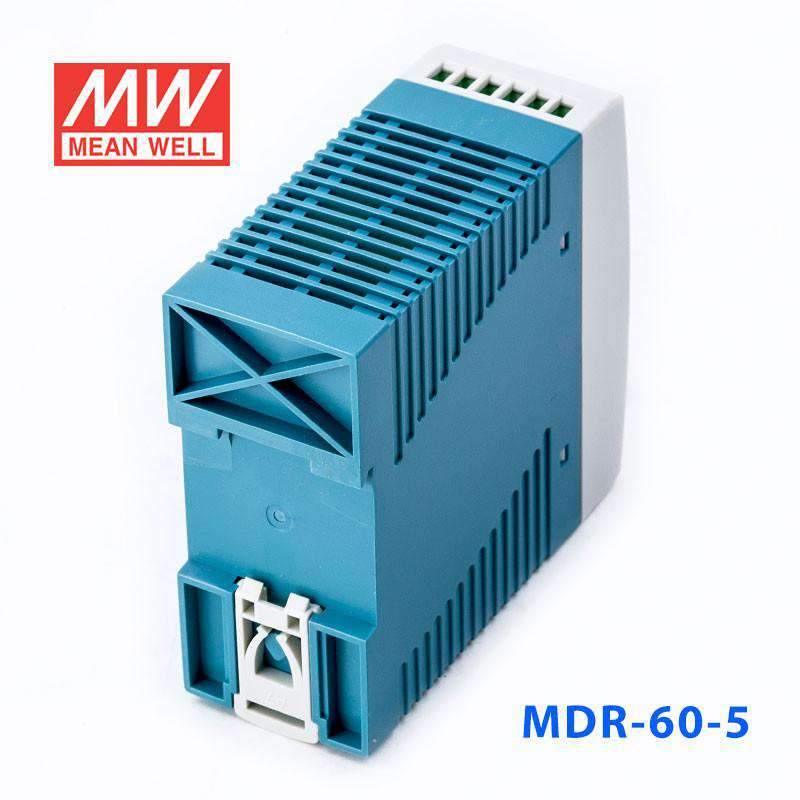

Mean Well MDR-60-5 Single Output Industrial Power Supply 60W 5V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDR-60-5 Single Output Industrial Power Supply 60W 5V - D...
Description
Description
The MDR-60 is a 60W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ DC OK relay contact output
- ✓ Safety approvals: IEC60068-2-6 UL508, UL60950-1, TUV EN60950-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDR Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV,UL
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.94 in
-
Width3.54 in
-
Height1.57 in
-
Weight0.73 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDR-60-5 for 5V industrial controllers or logic devices in a control panel?
Yes, this model is intended for 5VDC loads and can supply up to 10A with a 50W rating. That makes it suitable for 5V industrial controllers, logic devices, and related panel-mounted electronics that stay within those limits. Its DIN rail format supports organized installation inside control cabinets.
Is the MDR-60-5 suitable for powering multiple 5V modules in an automation enclosure?
It can be used for grouped 5V modules in an automation enclosure as long as the combined demand does not exceed 50W or 10A. The single-output design works for centralized 5V distribution in cabinet-based systems. Its ultra slim form also helps when DIN rail space is limited.
Can this 5V DIN rail power supply be used in building management or industrial monitoring panels?
Yes, it can fit building management or industrial monitoring panels that use 5VDC electronics and require no more than 10A from a single 5V output. The 85-264VAC input allows it to accept a broad AC input range for panel conversion. The compact 100.0 × 90.0 × 40.0 mm size is useful in tight enclosures.
Is the MDR-60-5 a good fit when I need high current at 5V on DIN rail?
Yes, this version is the 5V member of the 60-size MDR family and provides up to 10A at 5V with a 50W rating. That higher 5V current is useful for control cabinet applications that need more current at low voltage from a single DIN rail supply. The ultra slim housing keeps the footprint compact at 100.0 × 90.0 × 40.0 mm.
Is the MDR-60-5 meant for inside-cabinet use or exposed environmental conditions?
This unit is better matched to control cabinet or enclosure installation because the provided specifications do not include an external IP rating for exposed use. Its operating temperature range is -20°C to +70°C, which supports industrial enclosure conditions. For direct exposure to weather or washdown, a model with a stated protection rating is typically preferred.
How does the MDR-60-5 compare to the other MDR series power supplies?
The sibling models are MDR-10-12 at 10W, 12V, 0.84A; MDR-10-15 at 10W, 15V, 0.67A; MDR-10-24 at 10W, 24V, 0.42A; MDR-10-5 at 10W, 5V, 2A; MDR-100-12 at 90W, 12V, 7.5A; MDR-100-24 at 96W, 24V, 4A; MDR-100-48 at 96W, 48V, 2A; MDR-20-12 at 20W, 12V, 1.67A; and MDR-20-15 at 20W, 15V, 1.34A. The remaining siblings are MDR-20-24 at 24W, 24V, 1A; MDR-20-5 at 15W, 5V, 3A; MDR-40-12 at 40W, 12V, 3.33A; MDR-40-24 at 40.8W, 24V, 1.7A; MDR-40-48 at 39.8W, 48V, 0.83A; MDR-40-5 at 30W, 5V, 6A; MDR-60-12 at 60W, 12V, 5A; MDR-60-24 at 60W, 24V, 2.5A; and MDR-60-48 at 60W, 48V, 1.25A.
Other MDR-60 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MDR-60-24 Single Output Industrial Power Supply 60W 24V - DIN Rail | 60W | 24V | 2.5A | Indoor | $18.99 | View |
| Mean Well MDR-60-12 Single Output Industrial Power Supply 60W 12V - DIN Rail | 60W | 12V | 5A | Indoor | $21.85 | View |
| Mean Well MDR-60-48 Single Output Industrial Power Supply 60W 48V - DIN Rail | 60W | 48V | 1.25A | Indoor | $25.14 | View |
