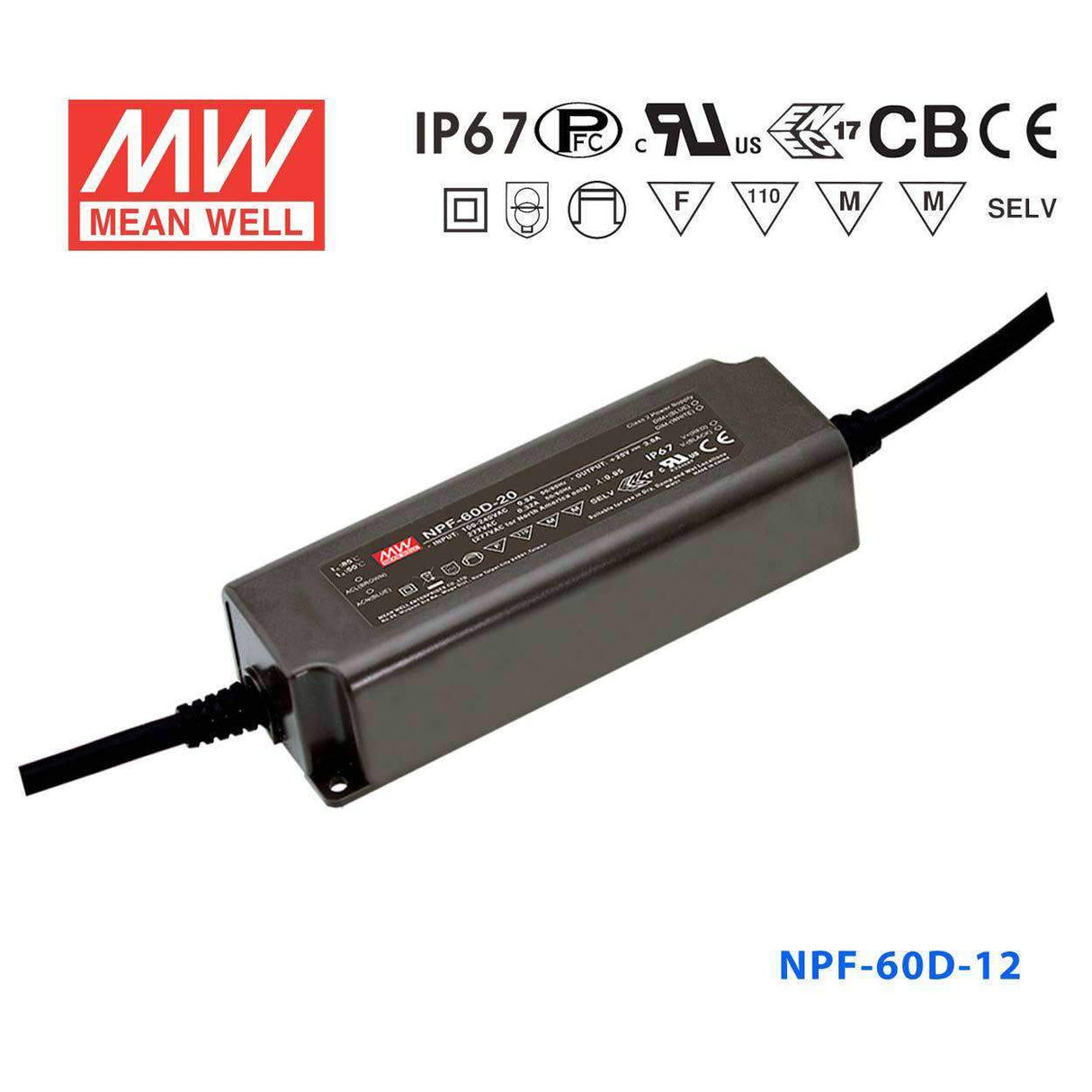

Mean Well NPF-60D-12 Power Supply 60W 12V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well NPF-60D-12 Power Supply 60W 12V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 90% |
| No load power consumption <0.5W |
| Fully isolated plastic case with IP67 level |
| Class 2 power unit |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -40~+85ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13 , EN62384 independent approved; Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, UL2464 18AWGx2C (30cm) + 22AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesNPF Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What dimming methods does the NPF-60D-12 support?
The NPF-60D-12 features built-in 3-in-1 dimming, accepting PWM signal, 0–10V analog control, and resistance (potentiometer) dimming. This flexibility allows integration with a wide range of lighting control systems without an external dimming module.
Can the NPF-60D-12 drive dimmable 12V LED strips in a retail display case exposed to cleaning sprays?
Yes. The NPF-60D-12 is rated IP67, meaning it is protected against dust and temporary water immersion, making it suitable for display cases where cleaning agents may cause incidental moisture exposure. It delivers 60W at 12V with a maximum output current of 5A.
How does the NPF-60D-12 differ from the NPF-60-12?
The NPF-60D-12 and NPF-60-12 are electrically identical (60W, 12V, 5A, IP67, -40°C to +85°C). The only difference is that the NPF-60D-12 includes built-in 3-in-1 dimming, while the NPF-60-12 has a fixed output.
Is the NPF-60D-12 suitable for use in outdoor architectural lighting that must operate through winter temperatures?
Yes. The NPF-60D-12 operates from -40°C to +85°C and carries IP67 waterproof protection, so it handles outdoor winter conditions including sub-zero temperatures and direct precipitation without requiring a separate enclosure.
Does the NPF-60D-12 require an earth ground connection?
No. It uses a Class II fully isolated plastic case design with no functional ground (FG) terminal, so protective earth grounding is not required.
