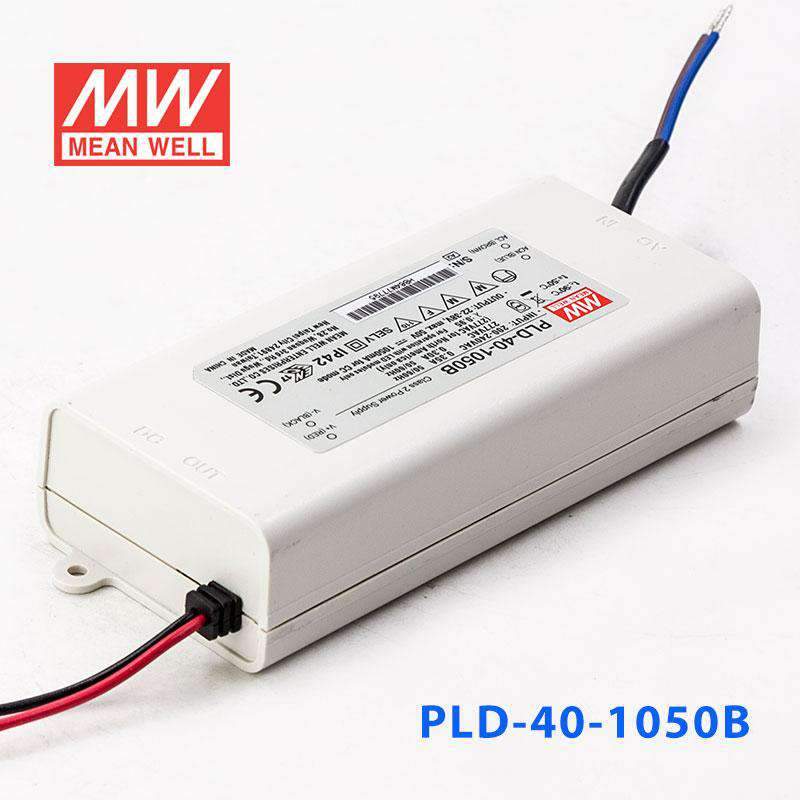

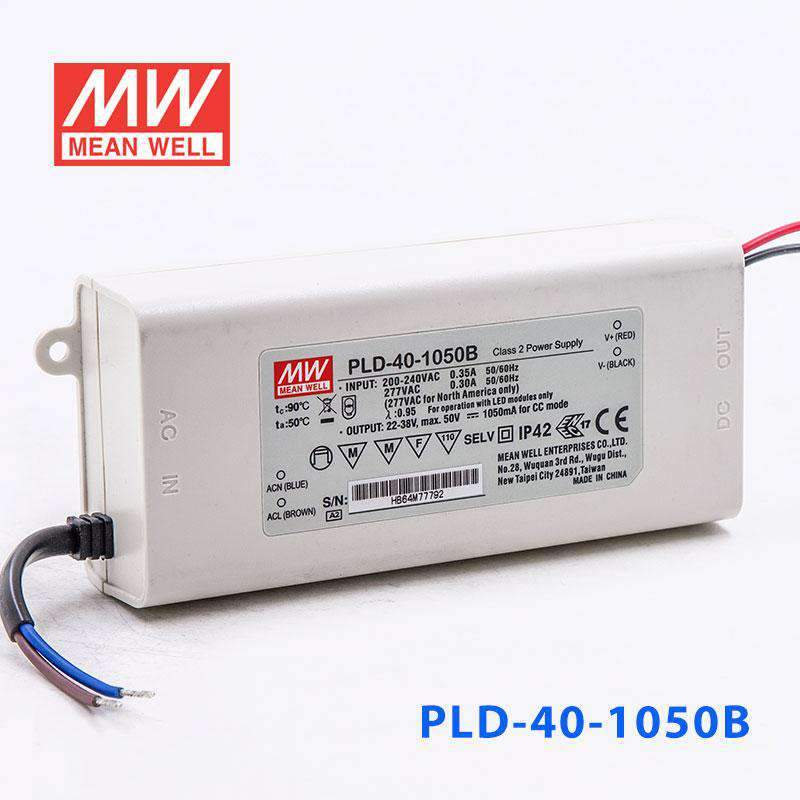

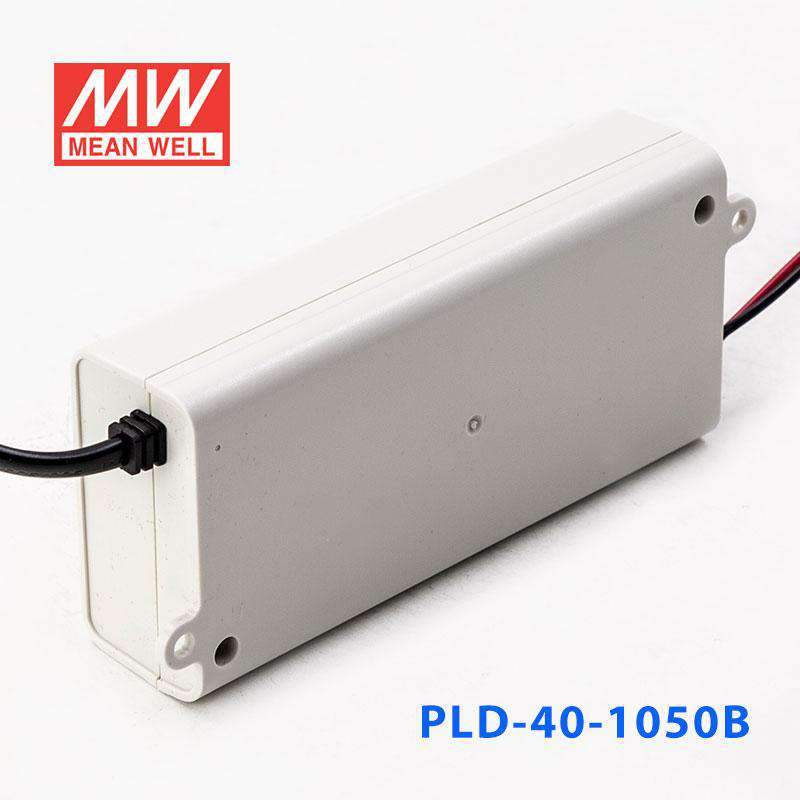

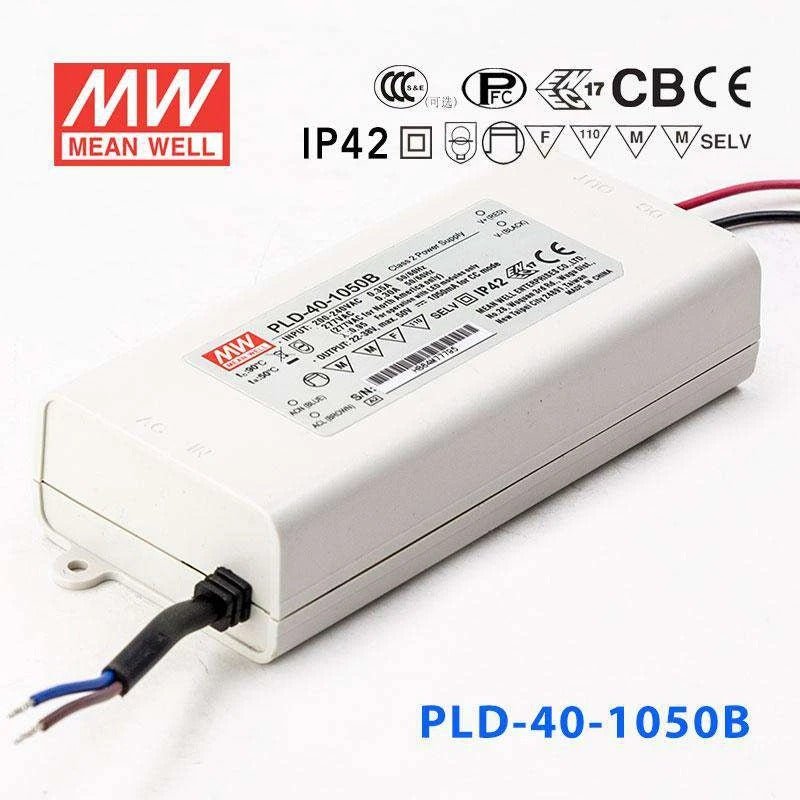

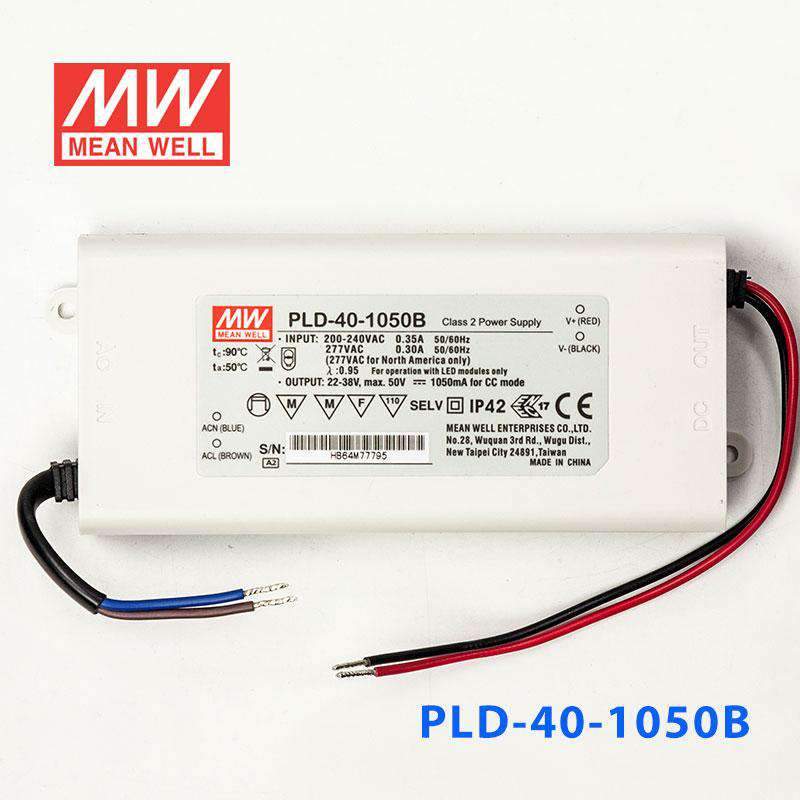

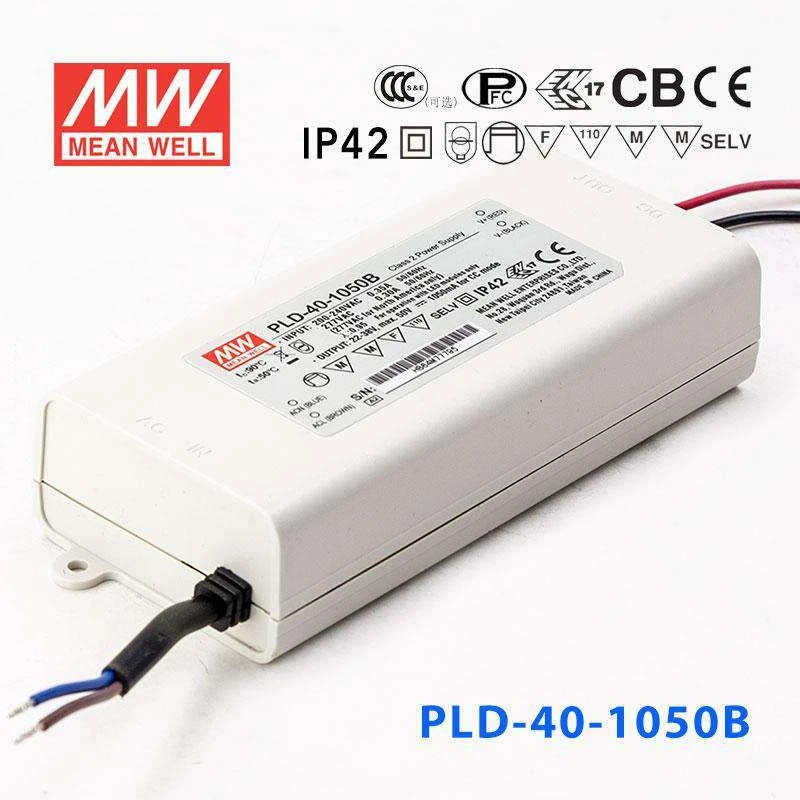

Mean Well PLD-40-1050B Power Supply 40W 1050mA

plastic case, IP42, Class II design without FG

SKU:

PLD-40-1050B

$20.54 USD ~~$73.50~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

115VAC or 230VAC input

Built-in active PFC function

Fully isolated plastic case

Constant current design

IP42 design

Class II power unit, no FG

Low cost

Protections: Short circuit / Over temperature

Suitable for indoor LED lighting applications

Cooling by free air convection

3 years warranty

General Specification

AC input voltage range	230VAC (180 ~ 295VAC)
AC inrush current (max.)	Cold start, 25A at 230VAC
Withstand voltage	I / P - O / P: 3.75 k VAC
Short circuit protection	Hiccup mode, auto-recovery
Over Temp. Protection	95ºC ± 10ºC (RTH1) shut down o / p voltage, re-power on to recover
Working temperature	-30 ~ + 50ºC
Safety standards	ENEC EN61347-1, EN61347-2-13 independent, EN62384, IP42 approved
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4,2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	H03VVH2-F 0.75mm² x2C (7.5cm)
Connection Output	UL1430 18AWGx2C (15cm)
Dimension (LxWxH) (mm)	128x 60x 31.5

Specifications

Brand

Mean Well
Series

PLD Series
Power Rating

39.9 Watt
Output Voltage

38 Volt
Rated Current

1.05 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,cUL,EAC,ENEC,FCC
Operation Mode

Constant Current
Operating Temperature

-30°C~50°C
Warranty

3 Year
Length

5 in
Width

2.36 in
Height

1.24 in
Weight

0.49 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the PLD-40-1050B be used for a 1050mA LED downlight?

Yes, this driver is built for constant current LED loads at 1050mA. It fits downlights whose total forward voltage is within the 22-38V CC range and whose load remains within the 39.9W rating.

Is the PLD-40-1050B suitable for higher-power small LED arrays?

It can be a fit for small LED arrays that need 1050mA constant current rather than constant voltage input. The array's combined forward voltage must stay between 22V and 38V, with total power up to 39.9W.

Can this driver be used in signage with constant current LED modules?

Yes, if the signage modules are designed for constant current operation at 1050mA. It should not be used in place of a constant voltage supply, and the load must stay within the 22-38V CC window.

Is the PLD-40-1050B appropriate for protected indoor environments?

Its IP42 enclosure and plastic case make it better suited for protected indoor locations than exposed outdoor use. The rated operating temperature is -30°C to +50°C, which supports a broad range of indoor commercial and industrial fixture conditions.

How do I check compatibility with the PLD-40-1050B?

This model provides 1050mA constant current with a CC output range of 22-38V. The number of LEDs depends on each LED's forward voltage, so compatibility depends on the total forward voltage of the LED load, not a fixed LED count.

How does the PLD-40-1050B compare with other 40W PLD drivers?

The PLD-40-1050B delivers 1050mA with a 22-38V CC range and 39.9W output. Other 40W siblings include PLD-40-1400B at 1400mA, 17-29V, 40.6W; PLD-40-1750B at 1750mA, 13-23V, 40.25W; PLD-40-700B at 700mA, 34-57V, 39.9W; PLD-40-500B at 500mA, 45-80V, 40W; and PLD-40-350B at 350mA, 70-108V, 37.8W.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PLD-40-700B Power Supply 40W 700mA	39.9W	57V	0.7A	Indoor	$21.56	View
Mean Well PLD-40-500B Power Supply 40W 500mA	40W	80V	0.5A	Indoor	$20.54	View
Mean Well PLD-40-350B Power Supply 40W 350mA	37.8W	108V	0.35A	Indoor	$20.54	View
Mean Well PLD-40-1750B Power Supply 40W 1750mA	40.25W	23V	1.75A	Indoor	$20.54	View
Mean Well PLD-40-1400B Power Supply 40W 1400mA	40.6W	29V	1.4A	Indoor	$20.54	View
