Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

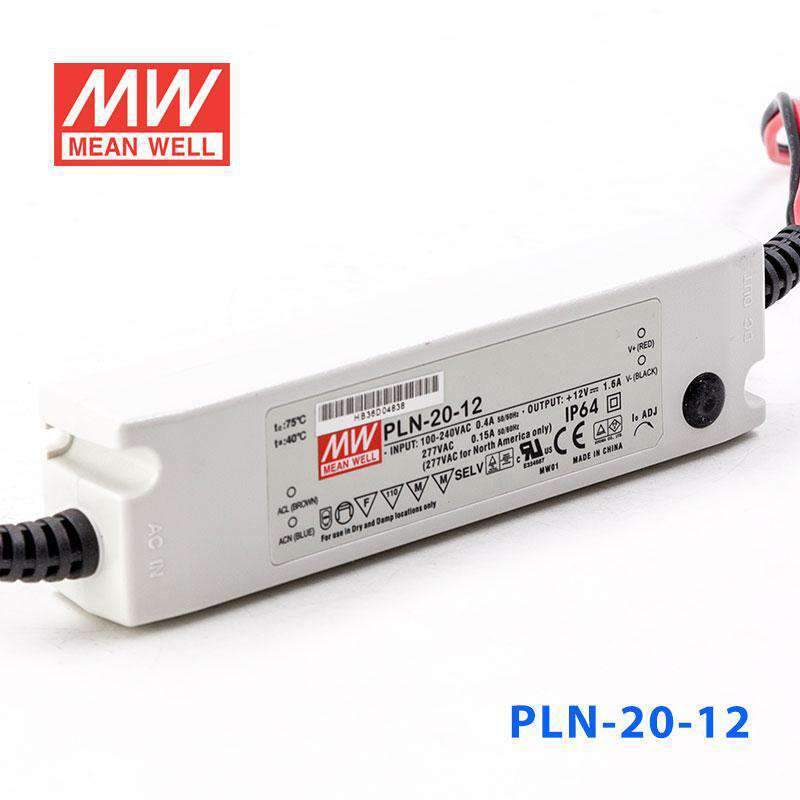

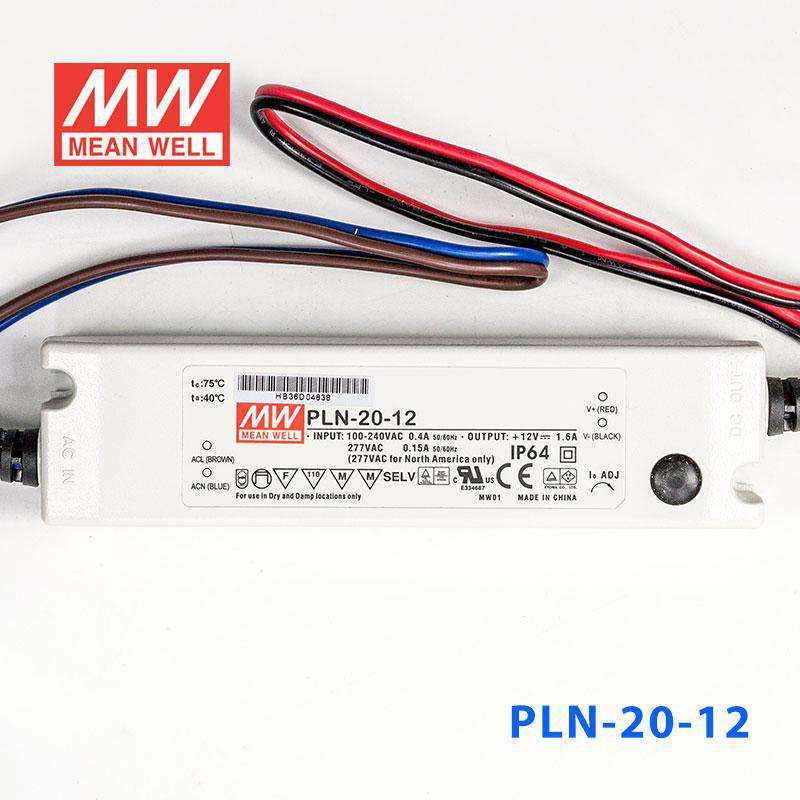

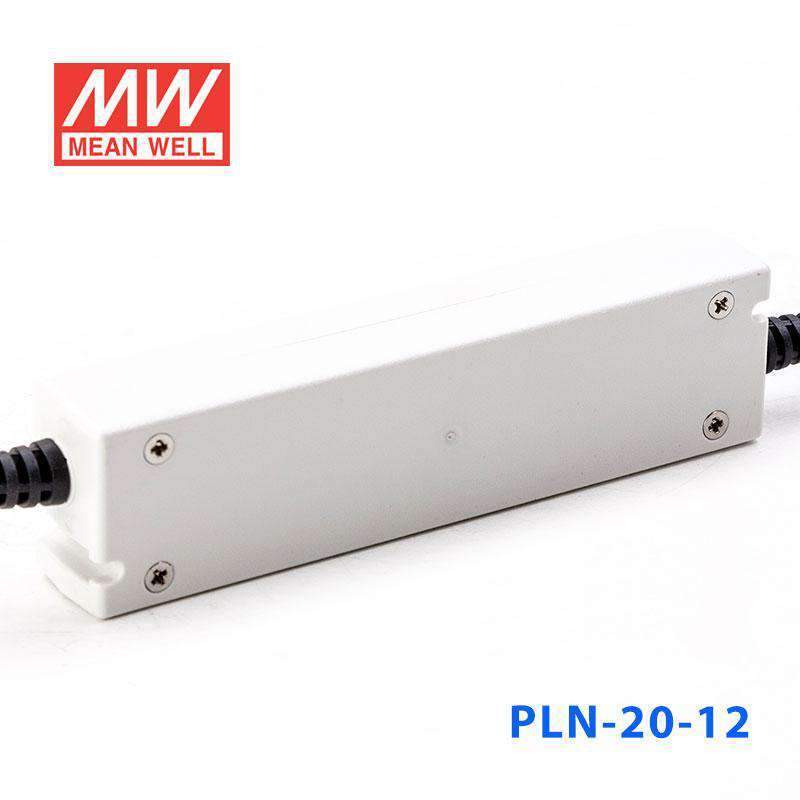

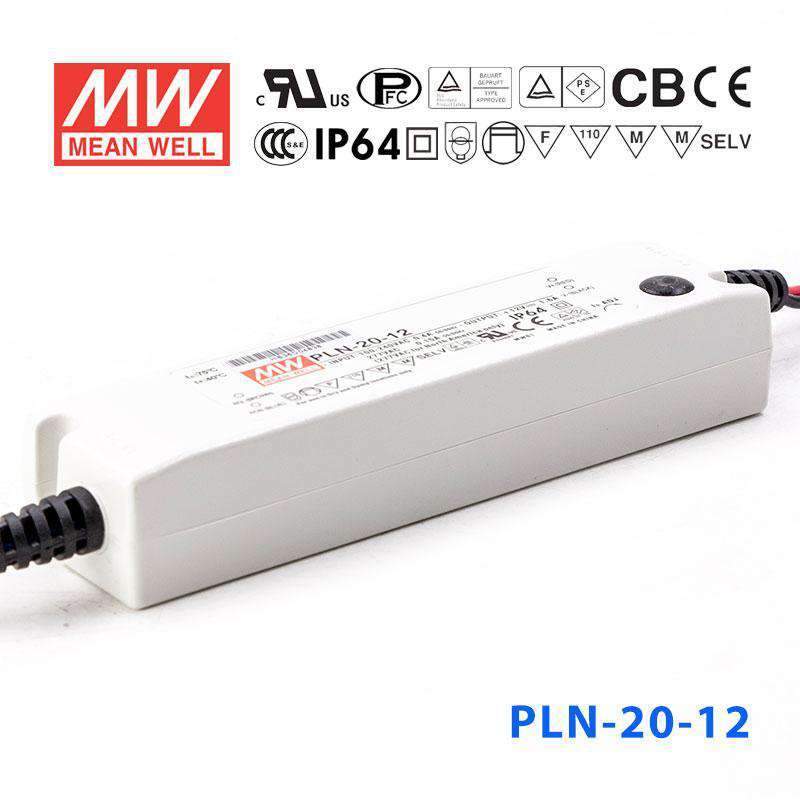

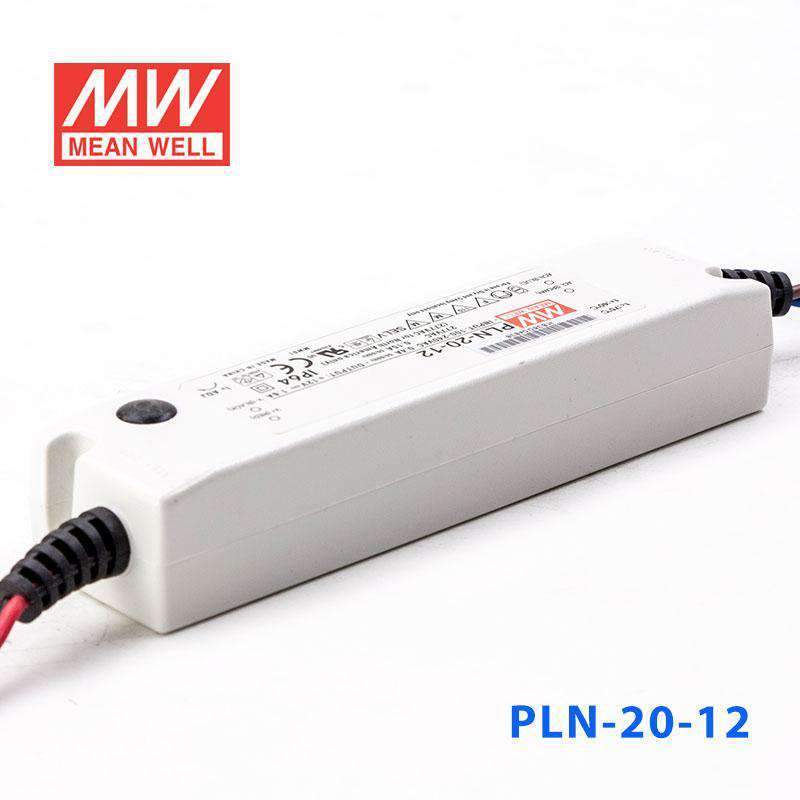

Mean Well PLN-20-12 Power Supply 20W 12V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-20-12

$21.28 USD ~~$22.53~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~277VAC; 127~392VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	None
Current adjustment range	75%~100%
Over current protection	95%~110% constant current limiting, auto-recovery
Over voltage protection	105%~142% rated output voltage
Setup, rise, hold up time	2300ms(setup time) at full load and 230VAC, no hold up time
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-30~+60ºC
Safety standards	UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN55022 class B (PLN-60/100 only), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, UL1015 18AWGx2C (32cm)
Connection Output	UL rated, UL1015 18AWGx2C (32cm)
Dimension (LxWxH) (mm)	148.5x 38.5x 28

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

19.2 Watt
Output Voltage

12 Volt
Rated Current

1.6 Ampere
Input Voltage

90V~277V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~60°C
Warranty

2 Year
Length

5.85 in
Width

1.52 in
Height

1.1 in
Weight

0.4 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLN-20-12 for a short 12V LED strip run in a sign or display?

It is intended for 12V lighting loads up to 19.2W and 1.6A, with a 9-12V constant-current range. For a short sign or display run, check that the 12V LED product is compatible with constant-current operation and does not exceed the driver's output limits.

Is the PLN-20-12 a fit for small illuminated channel letters or compact signage?

Yes, the product features specifically state it is suitable for signage applications. Its 12V output and 19.2W capacity make it better suited to smaller compatible sign lighting loads than larger multi-section jobs.

Can this power supply be used for low-power 12V accent lighting?

It can be used for low-power 12V lighting loads as long as the load stays within 19.2W and 1.6A. The IP64 housing also makes it more appropriate for locations where dust or splashing water may be present than an open indoor-only unit.

How many meters of 12V LED strip can the PLN-20-12 run?

Maximum strip length is calculated as 19.2W divided by the strip's rated watts per meter. Check your strip rated power per meter, and make sure the strip is a 12V load that is compatible with this driver's operating mode.

Is the PLN-20-12 suitable for wet or outdoor conditions?

The IP64 rating indicates protection against dust and splashing water, so it is suited to harsher environments than a non-enclosed driver. It should still be used within its -30°C to +60°C operating temperature range and not in submerged conditions.
