Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

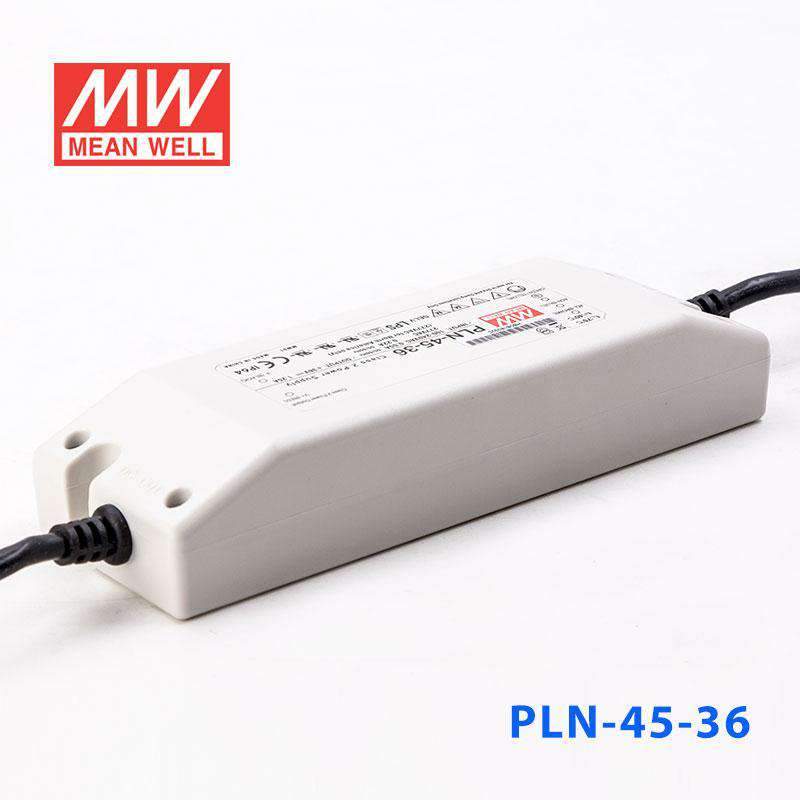

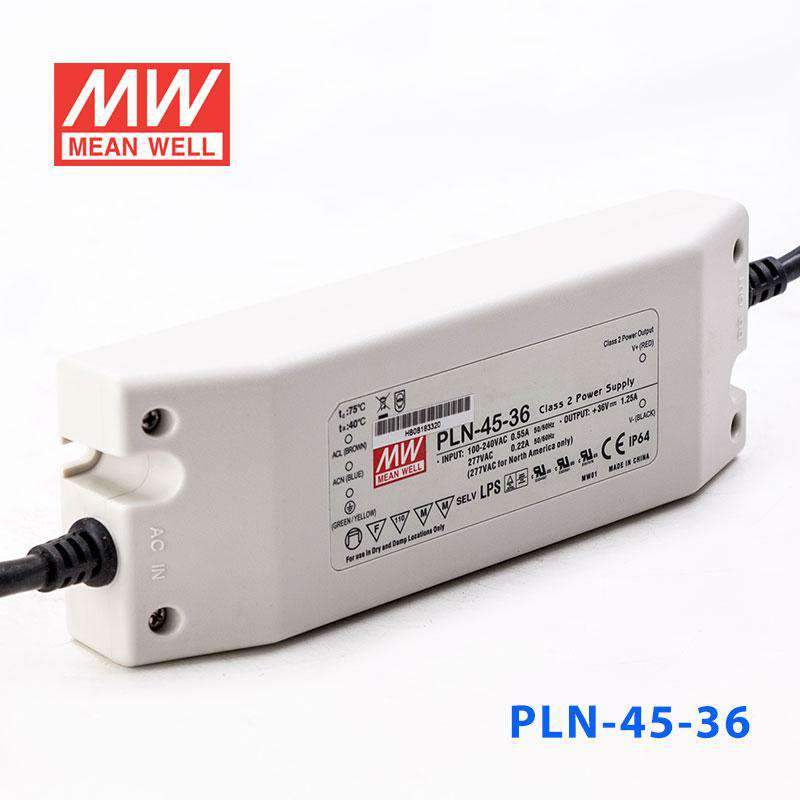

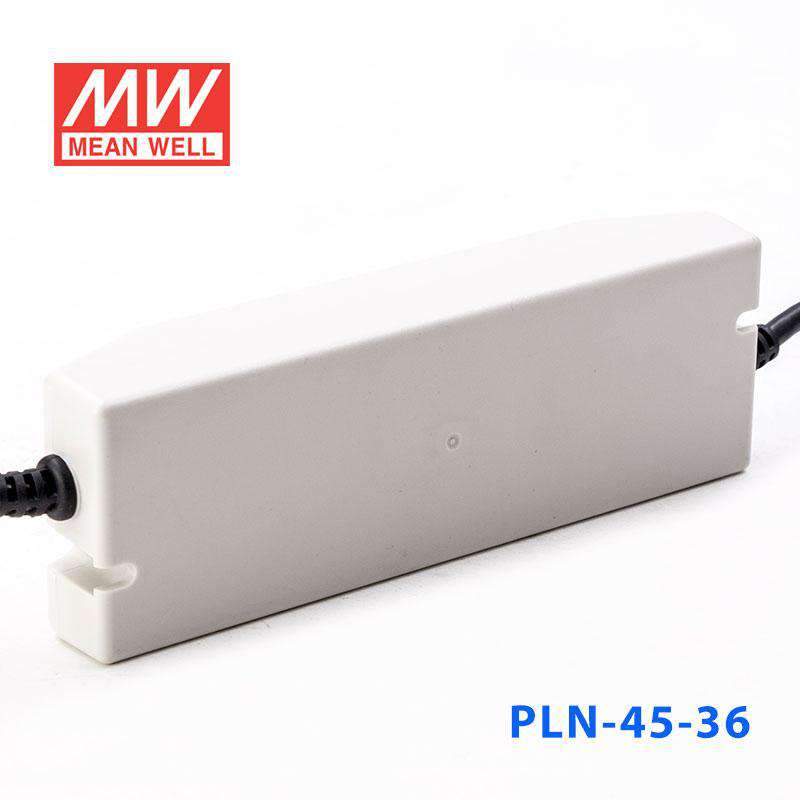

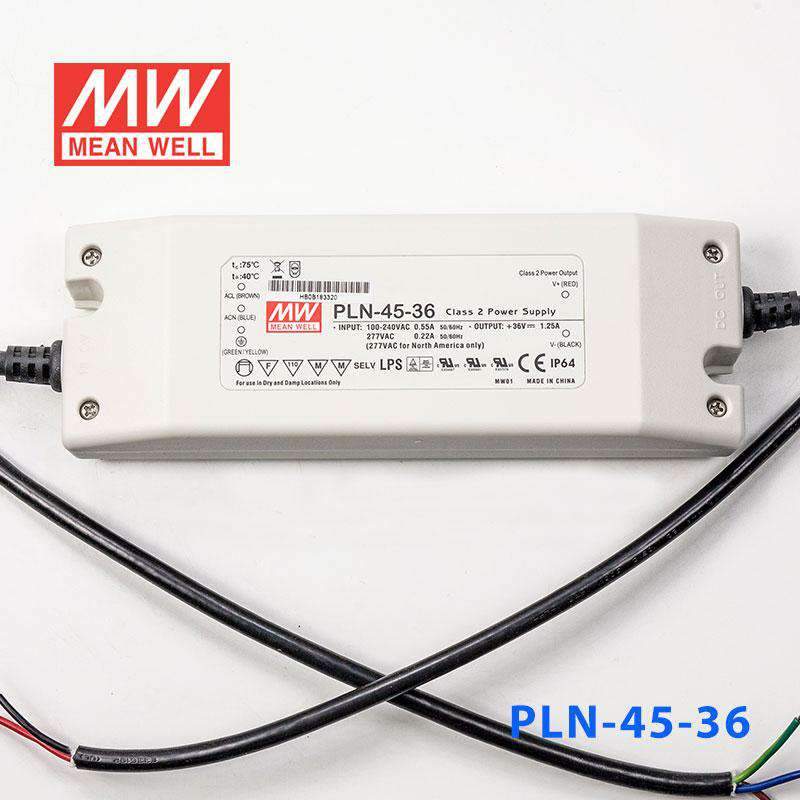

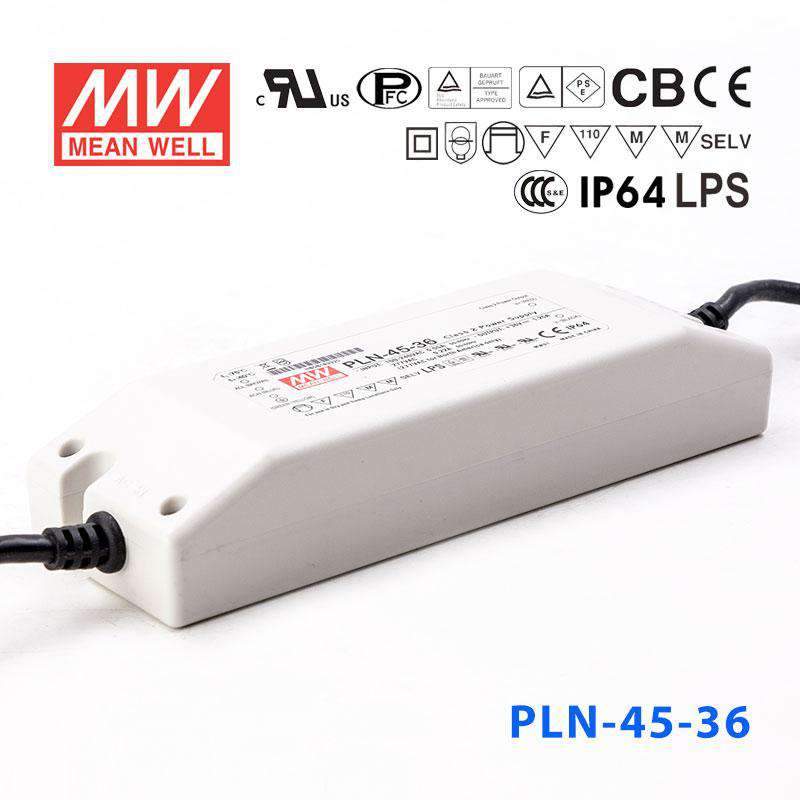

Mean Well PLN-45-36 Power Supply 45W 36V - IP64

fully isolated plastic case, IP64, suitable for signage applications

SKU:

PLN-45-36

$34.39 USD ~~$125.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 295VAC) / Full range

Fully isolated plastic case with IP64 level

Built-in active PFC function, PF>0.9 for 75% of load or higher

Protections: Short circuit / Over current / Over voltage / Over temperature

Built-in constant current limiting circuit (C.V.+C.C. mode)

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

User adjustable output voltage and current protection level

Cooling by free air convection

Suitable for LED lighting and moving sign applications

2 years warranty

General Specification

AC input voltage range	90~295VAC ; 127~417VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	95%~108% rated output voltage
Current adjustment range	75%~103%
Over current protection	95%~110% constant current limiting, auto-recovery
Over voltage protection	115%~140% rated output voltage
Setup, rise, hold up time	1500ms(setup time) at full load and 230VAC, no hold up time
Withstand voltage	I/P-O/P: 3.75kVAC I/P-FG: 2kVAC O/P-FG: 0.5kVAC
Working temperature	-30~+50ºC (refer to output derating curve)
Safety standards	UL879, UL1310, UL8750(PLN-45/60), TUV EN61347-1, EN61347-2-13,PSE J61347-1, J61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input	UL rated, SVT 18AWGx3C (30cm)
Connection Output	UL rated, SVT 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	181x 61.5x 35

Specifications

Brand

Mean Well
Series

PLN Series
Power Rating

45 Watt
Output Voltage

36 Volt
Rated Current

1.25 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-30°C~50°C
Warranty

2 Year
Length

7.13 in
Width

2.42 in
Height

1.38 in
Weight

1.1 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the PLN-45-36 for a 36V LED strip or lighting system?

Yes, if the 36V lighting load stays within 45W maximum power and 1.25A maximum output current. The unit operates in constant current mode with a 27-36V range, so the lighting product should be checked for electrical compatibility.

Is the PLN-45-36 suitable for 36V signage lighting?

It can be used for 36V signage applications that require no more than 45W total output. The product is identified as suitable for signage applications, and the IP64 enclosure helps in dusty or splash-prone locations.

Can this 36V driver be used for commercial or industrial lighting runs?

Yes, for 36V lighting loads within the 45W and 1.25A limits. The wide 90-295VAC input range and -30°C to +50°C operating temperature range are useful where site power and ambient conditions vary.

How much 36V LED strip can the PLN-45-36 run?

The maximum available output is 45W. To estimate maximum strip length, divide 45W by your strip's rated watts per meter, then confirm the strip is a 36V product and that total current stays at or below 1.25A; check your strip rated power per meter.

Is the PLN-45-36 appropriate for outdoor environments?

It is IP64 rated, so it is intended for dust exposure and splashing water rather than immersion. The specified operating temperature range is -30°C to +50°C, which supports use in cold and hot outdoor conditions within that range.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well PLN-45-48 Power Supply 45W 48V - IP64	45.6W	48V	0.95A	IP64	$36.95	View
Mean Well PLN-45-27 Power Supply 45W 27V - IP64	45.9W	27V	1.7A	IP64	$36.95	View
Mean Well PLN-45-24 Power Supply 45W 24V - IP64	45.6W	24V	1.9A	IP64	$36.95	View
Mean Well PLN-45-20 Power Supply 45W 20V - IP64	46W	20V	2.3A	IP64	$36.95	View
Mean Well PLN-45-15 Power Supply 45W 15V - IP64	45W	15V	3A	IP64	$36.95	View
Mean Well PLN-45-12 Power Supply 45W 12V - IP64	45.6W	12V	3.8A	IP64	$36.95	View
