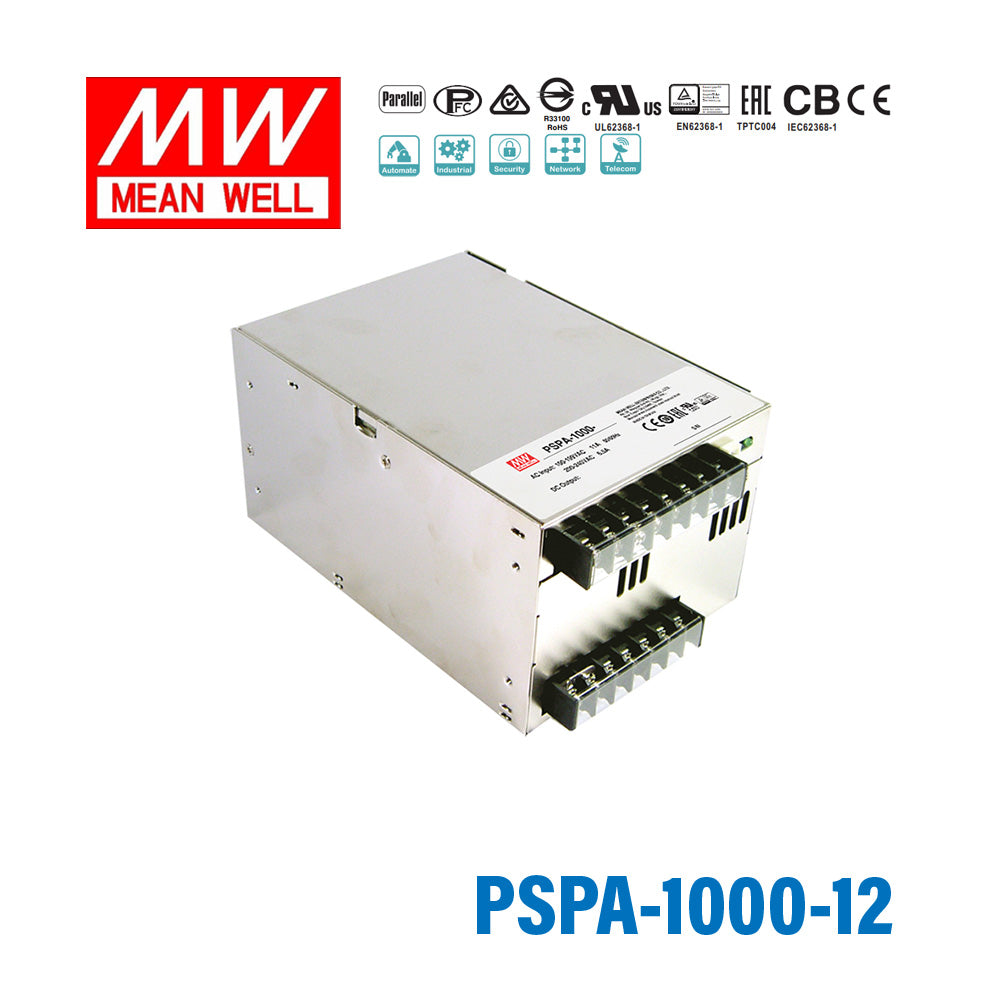

Mean Well PSPA-1000-12 Power Supply 1000W 12V
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| Built-in remote sense function and ON/OFF control |
| Current sharing up to 2400W (3+1) |
| With DC OK signal output |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection | 115%~140% |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC(short for SP-480), 1 minute |
| Working temperature | -20~+60°C |
| Safety standards | UL60950-1, TUV EN60950-1 approved; GB4943 approved also for SP-320 (expect for 3.3V/ 5PNC/ 36V) |
| EMC standards | EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3 |
| Connection | 7+8P / 9.5mm pitch terminal block with cover |
| Dimension (LxWxH) | 170x120x93 |
| Case No. | 910A |
| Packing | 8pcs / 16.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPSP Series
-
Power Rating960 Watt
-
Output Voltage12 Volt
-
Rated Current80 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length6.69 in
-
Width4.72 in
-
Height3.66 in
-
Weight4.25 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the PSPA-1000-12 for a 12V industrial automation panel with multiple DC loads?
Yes, this unit provides constant voltage 12V output with up to 80A and a 960W power rating. That makes it suitable for centralized 12V automation panels where multiple devices share one high-capacity DC source.
Is the PSPA-1000-12 appropriate for 12V communication or IT equipment racks?
It can be used where the rack equipment is designed for 12V DC constant voltage input. The 960W output capacity and 90-264VAC input range make it suitable for high-power 12V rack or cabinet systems.
Can this model power 12V embedded or edge systems with high current demand?
Yes, if the equipment requires 12V DC and substantial current from a single supply. With 80A available at 12V, it fits dense 12V embedded platforms, compute assemblies, and industrial electronics better than lower-current versions.
Is the PSPA-1000-12 suitable for battery-backed 12V control systems that need a strong DC source?
It is appropriate for 12V control systems that need a regulated constant voltage supply with high current capacity. The 12V output, 80A rating, and active PFC make it a strong match for larger 12V system loads.
Can the PSPA-1000-12 be used in hot industrial environments?
The specified operating temperature range is -20°C to +70°C, which gives it a wider stated temperature range than many enclosed power supplies. No IP rating is listed here, so the temperature rating supports use in protected industrial environments rather than exposed outdoor locations.
How does the PSPA-1000-12 differ from the other PSPA-1000 models?
The PSPA-1000-12 is rated at 960W, 12V, and 80A. Its listed siblings are PSPA-1000-15 at 960W, 15V, 64A; PSPA-1000-24 at 1008W, 24V, 42A; and PSPA-1000-48 at 1008W, 48V, 21A.
Other PSPA-1000 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PSPA-1000-48 Power Supply 1000W 48V | 1008W | 48V | 21A | Indoor | $219.47 | View |
| Mean Well PSPA-1000-24 Power Supply 1000W 24V | 1008W | 24V | 42A | Indoor | $220.65 | View |
| Mean Well PSPA-1000-15 Power Supply 1000W 15V | 960W | 15V | 64A | Indoor | $230.36 | View |
