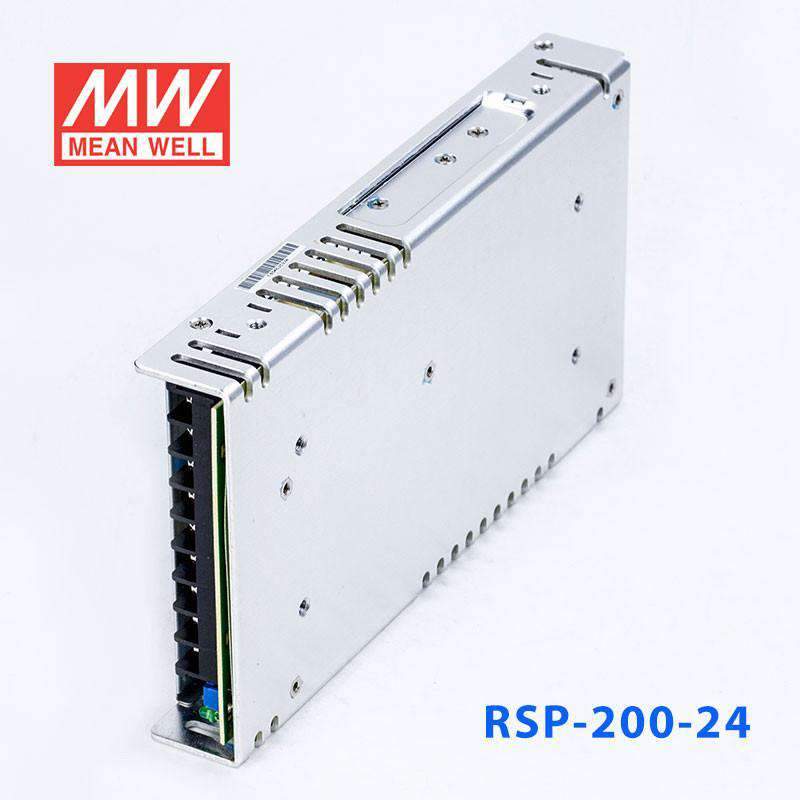

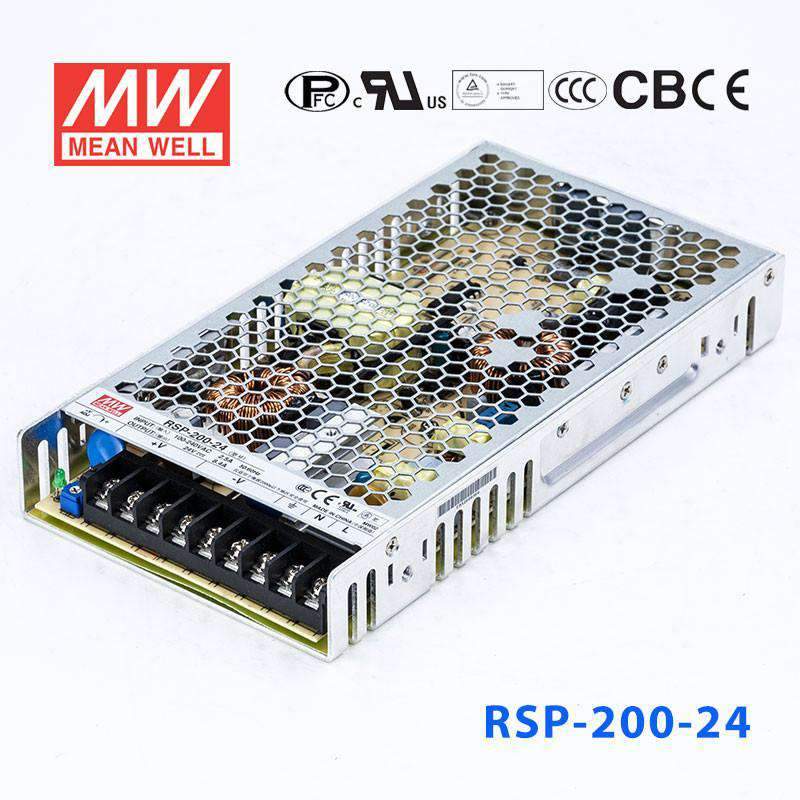

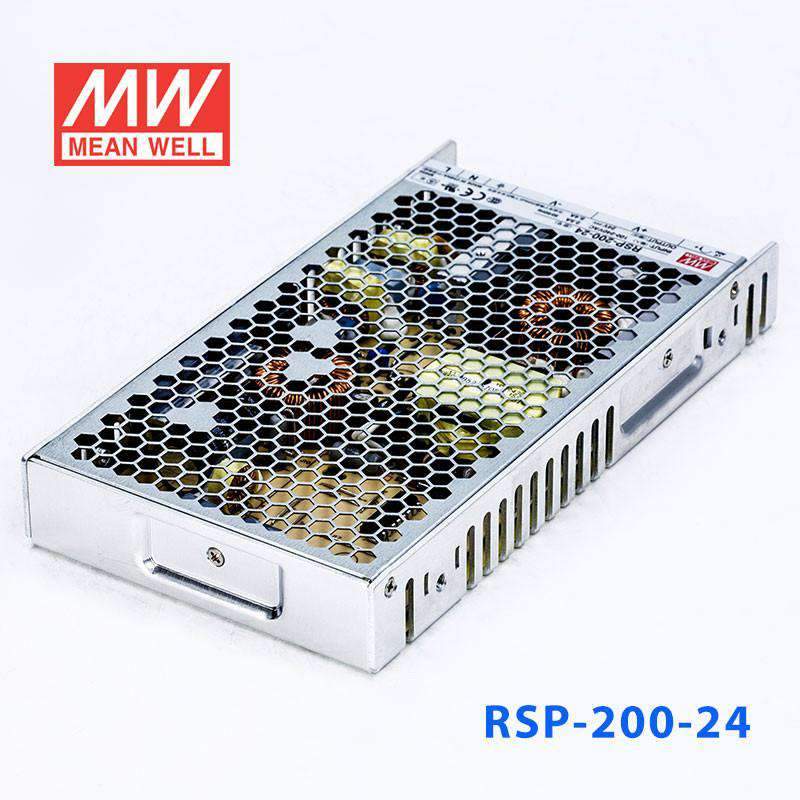

Mean Well RSP-200-24 Power Supply 200W 24V
Description
Description
Features
| Ultra low profile: 30mm |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in active PFC function |
| Cooling by free air convection |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~150% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |

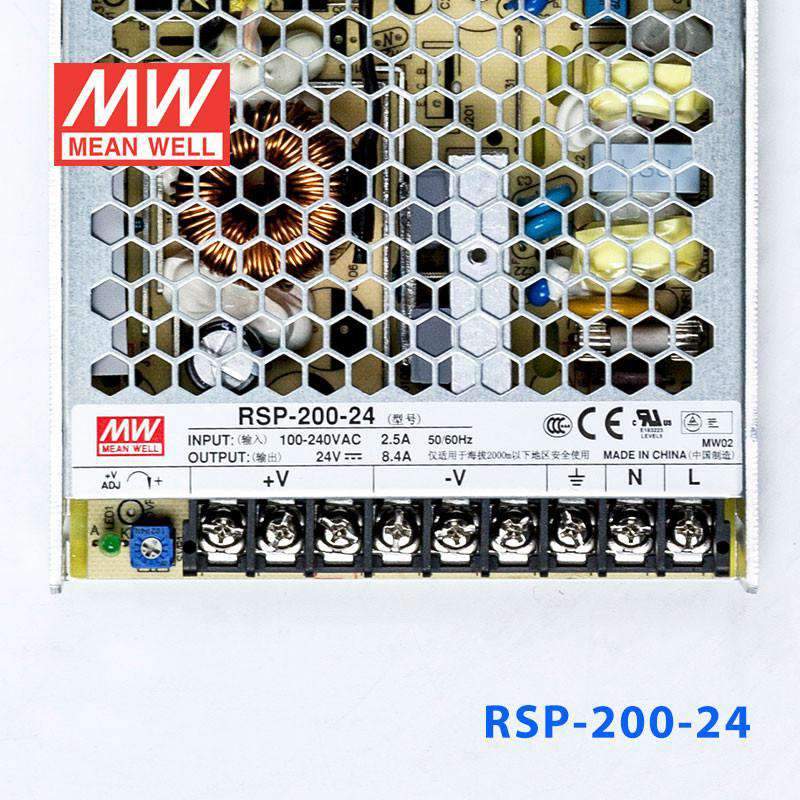

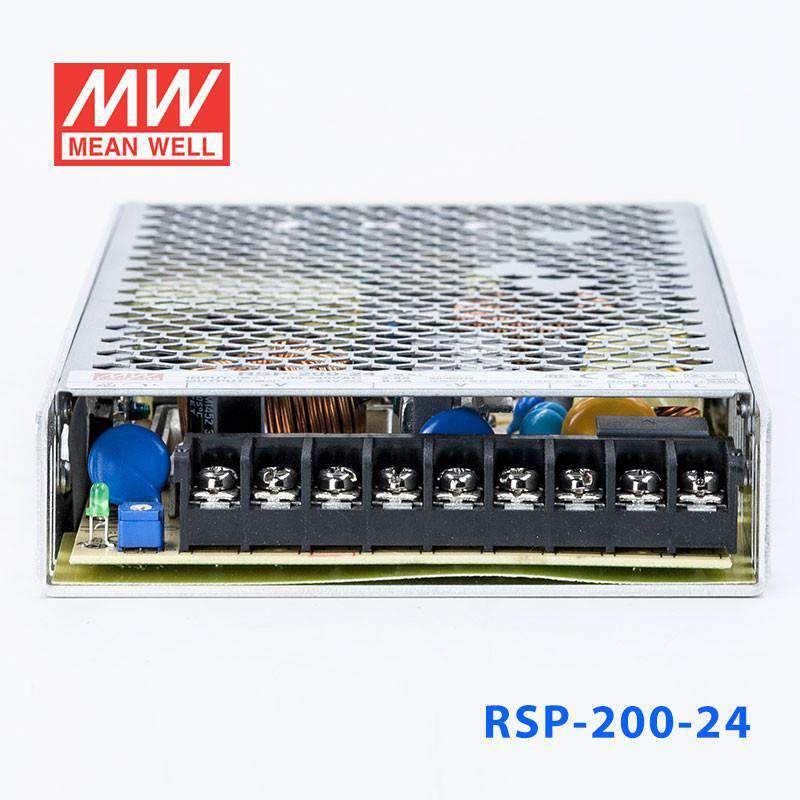

| Connection | 9P / 9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x115x30 |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.59 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What 24V systems can the RSP-200-24 serve at 200W?
The RSP-200-24 delivers 24V at 8.4A (200W) and is suited for 24V DC control panels, industrial Ethernet devices, PLC racks, and field instrumentation requiring a regulated 24V supply up to 200W. The 88–264VAC input handles both 110V and 230V mains.
How does the RSP-200-24 compare to the RSP-150-24 and RSP-100-24?
The RSP-100-24 outputs 24V at 4.2A (100.8W, 179mm chassis). The RSP-150-24 outputs 24V at 6.3A (151.2W, 199mm chassis). The RSP-200-24 outputs 24V at 8.4A (200W, 215mm chassis). All are 1U low-profile. Select based on your 24V load's peak current demand.
Is the RSP-200-24 suitable for deployment in a cold-storage facility control cabinet?
Yes. The RSP-200-24 is rated from -30°C to +70°C, covering typical cold-storage temperatures. It requires an enclosed cabinet for protection from condensation since no IP rating is provided. Once enclosed, its temperature range fully covers cold-storage environments.
What certifications does the RSP-200-24 hold?
The RSP-200-24 carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications, covering China, Australia/NZ, North America, Europe, and Eurasian markets.
What is the footprint of the RSP-200-24 and how does it compare to RSP-200 siblings?
All RSP-200 series models share the 215.0 × 115.0 × 30.0 mm 1U chassis at 0.72 kg. The RSP-200-24 is dimensionally identical to all other RSP-200 variants: RSP-200-2.5 (100W/2.5V/40A), RSP-200-3.3 (132W/3.3V/40A), RSP-200-4 (160W/4V/40A), RSP-200-5 (200W/5V/40A), RSP-200-7.5 (200.25W/7.5V/26.7A), RSP-200-12 (200.4W/12V/16.7A), RSP-200-13.5 (201.15W/13.5V/14.9A), RSP-200-15 (201W/15V/13.4A), RSP-200-24 (200W/24V/8.4A), RSP-200-27 (200W/27V/7.5A), RSP-200-36 (200.16W/36V/5.56A), RSP-200-48 (200W/48V/4.2A).
