ENVO EV-SL-60-12US Linear LED Power Supply 60W 12V 5A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours

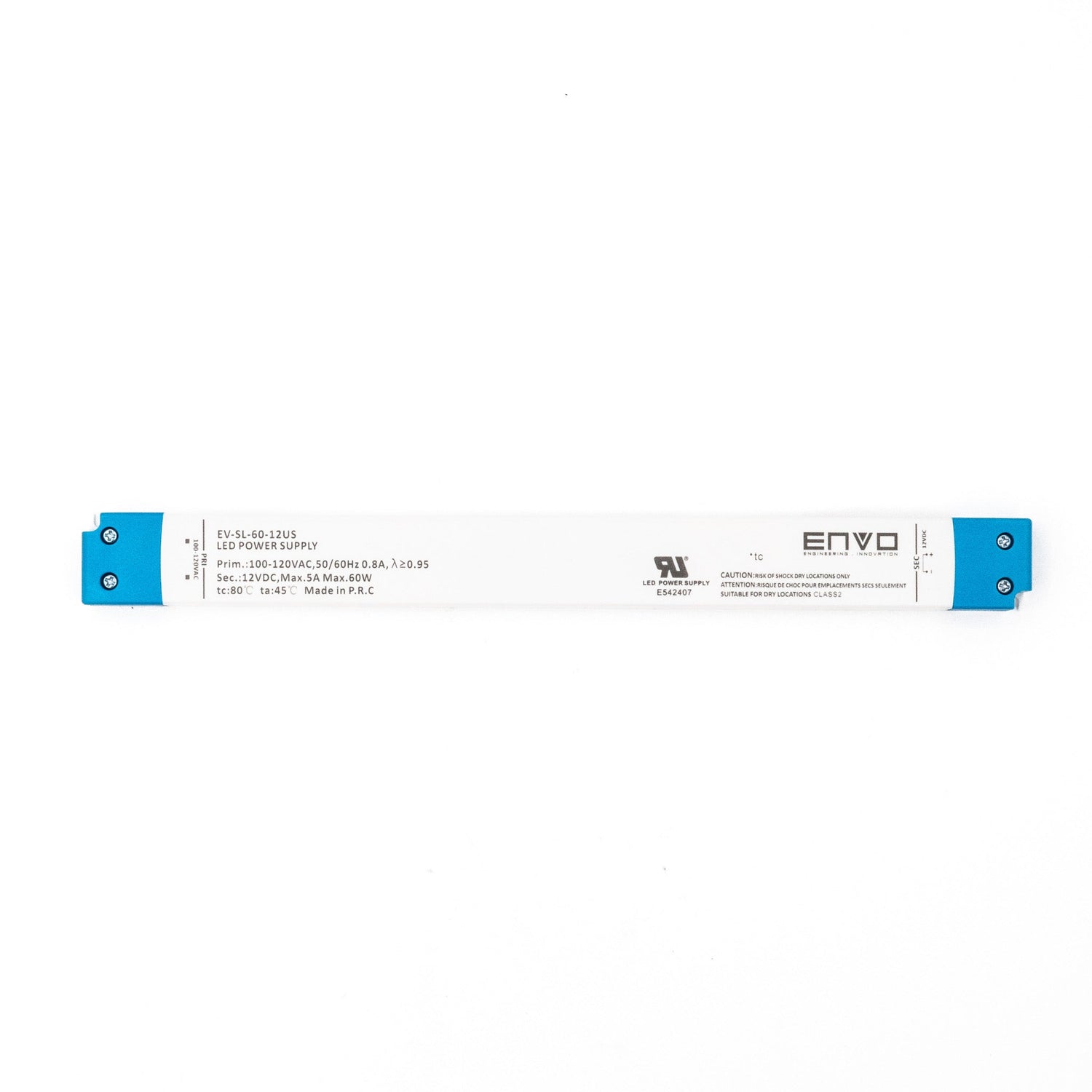

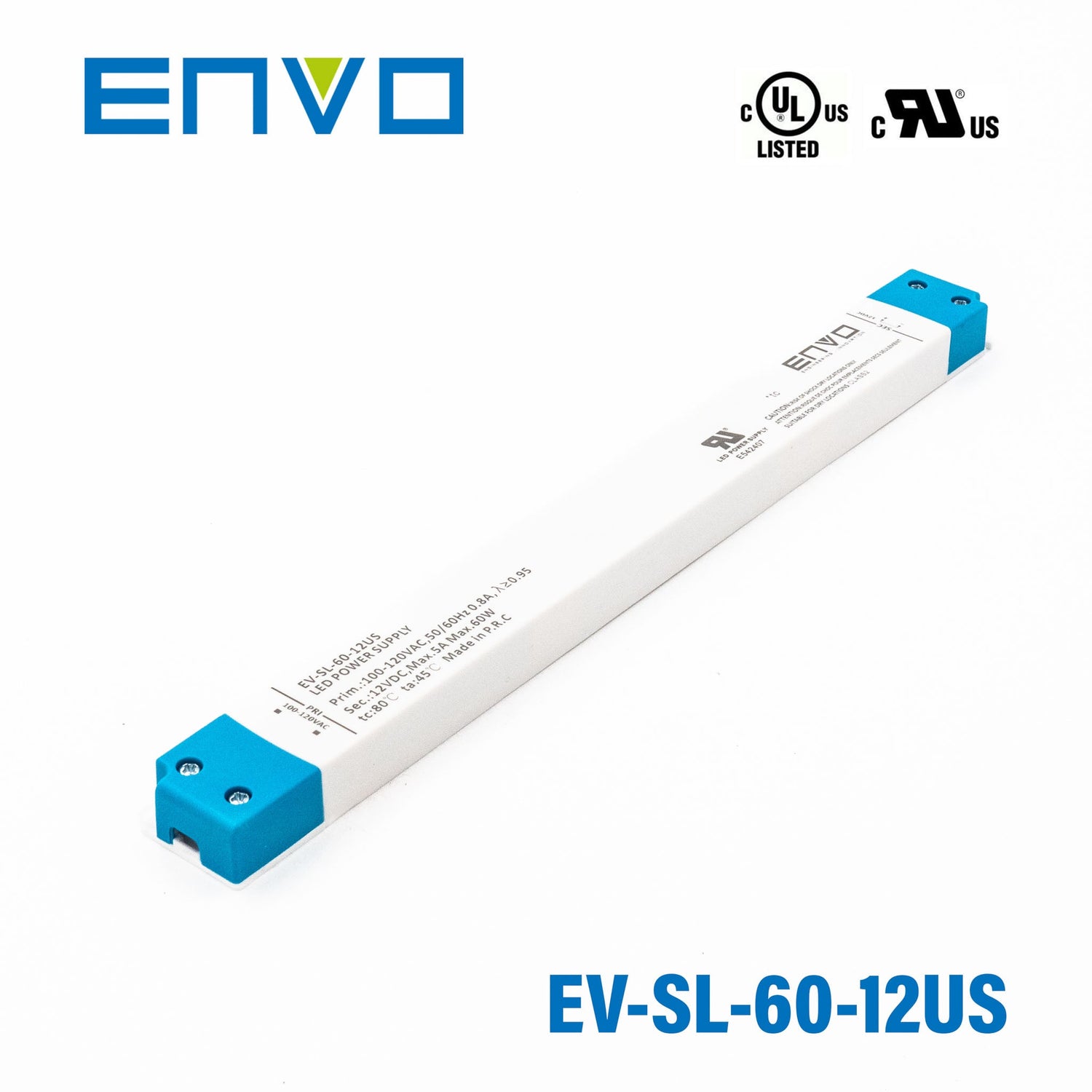

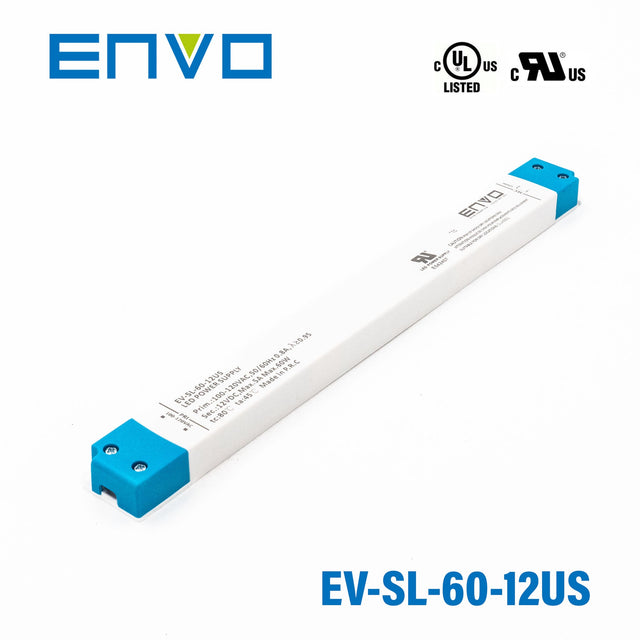

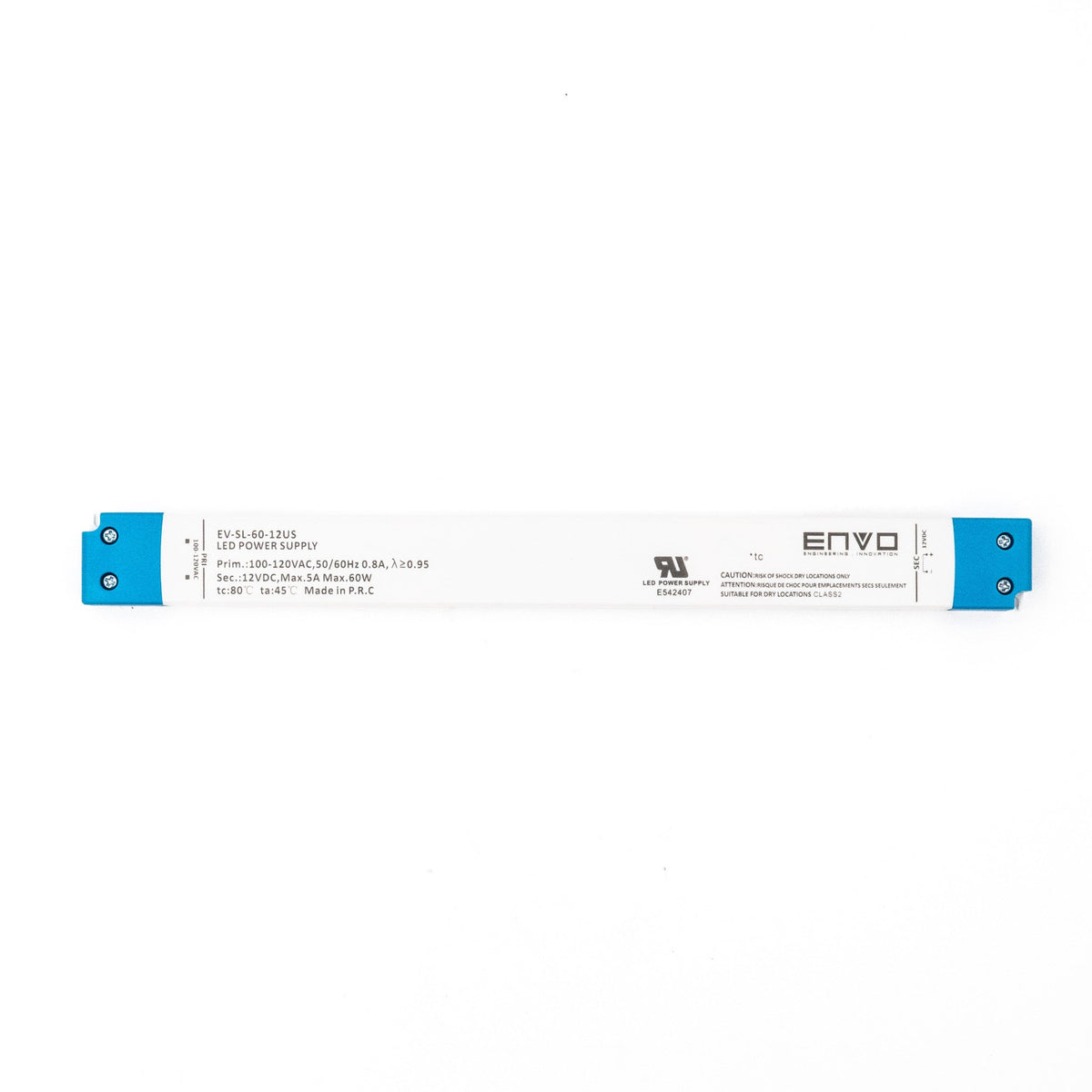

ENVO EV-SL-60-12US Linear LED Power Supply 60W 12V 5A
Overview
This product is not only cost-effective but also meets the Class II standard for electric shock protection. To enhance product safety, open circuit, short circuit, and overload protection functions are integrated into the circuit. Warranty is 5 years.
Specifications
Input
- Input voltage
- 90-132Vac
- Input frequency
- 50Hz/60Hz
- Input current
- 0.8A
- Input power
- <70W
- Efficiency
- ≥ 86%
- StandbyAverage
- <0.5W
- Inrush currentPeak
- <50A
- PF
- ≥0.95
Output
- Startup time
- 1S
- Output voltage and precision
- 12V±5%
- Output current range60W
- 0-5A
- Output voltage waveVp-p
- <300mV
- Output overload
- Yes
Environment
- Relative humidity
- 45%-85%
- IP grade
- IP20
Others
- Lifetime
- 30,000hr
- Case material and size
- Plastic Case 304.6x30x16.7mm
- EMI
- FCC PART15 CLASSB
Certifications & ratings
- Certification marks
- UL8750
Technical drawings
Downloads
Datasheet1
FAQ
What is this power supply used for?
It is a 60W linear type LED driver designed for indoor lighting applications, providing a stable 12V DC output.
What is the input voltage range?
The input voltage range is 90-132Vac at 50Hz/60Hz. It is not a universal input unit.
What are the output specifications?
It provides 12V DC with a tolerance of ±5% and a maximum output current of 5A (60W).
What safety protections are included?
It includes open circuit, short circuit, overload, over temperature, and over voltage protection. Overload, short circuit, and over heat faults auto-recover.
How is it mounted and what is the IP rating?
It has an IP20 rating, making it suitable for indoor use only. It features an independent mounting style with a plastic case measuring 304.6x30x16.7mm.
Which certifications does it hold?
It is certified with cULus and cRUus marks and meets the UL8750 safety standard.
What is the warranty period?
The product comes with a 5-year warranty.
