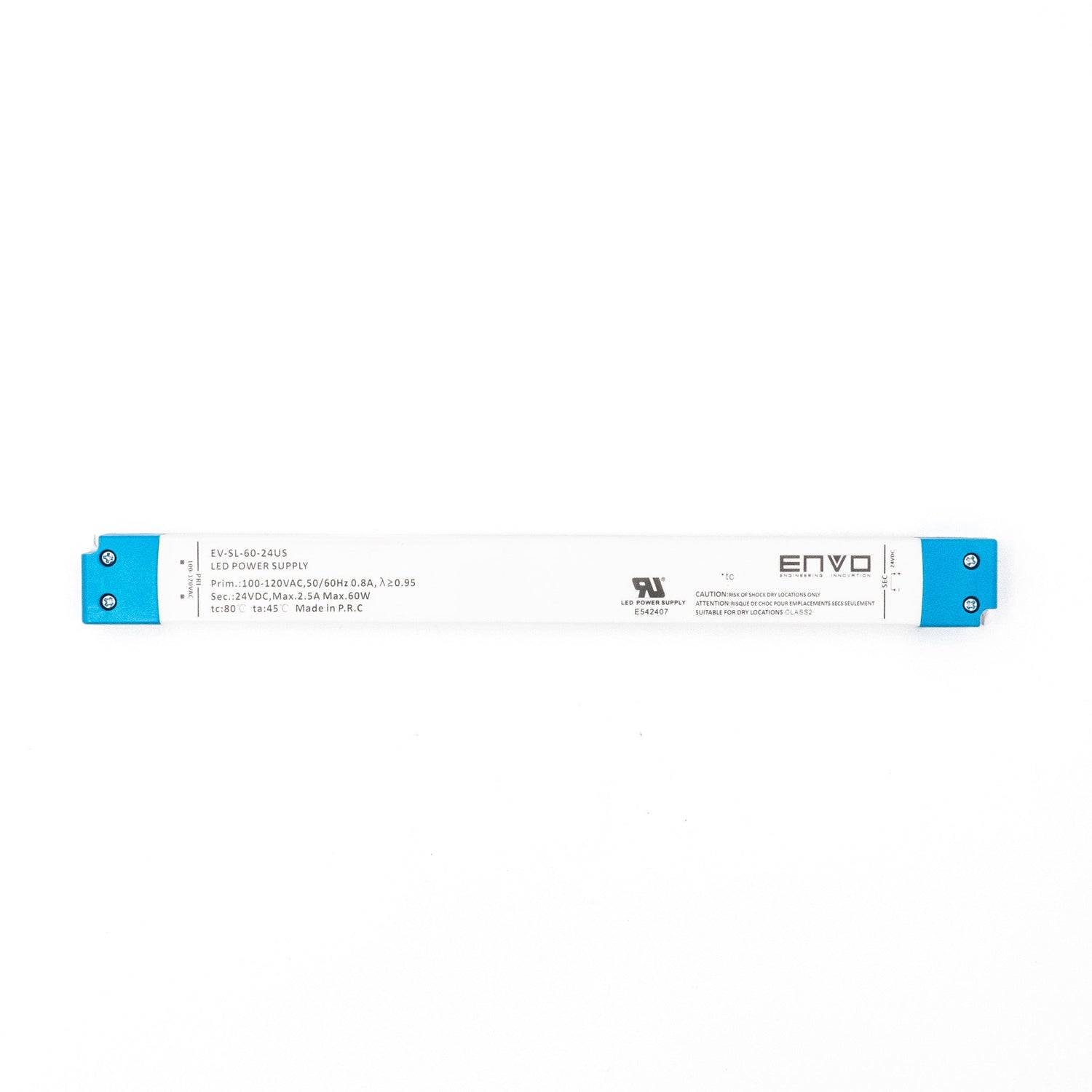

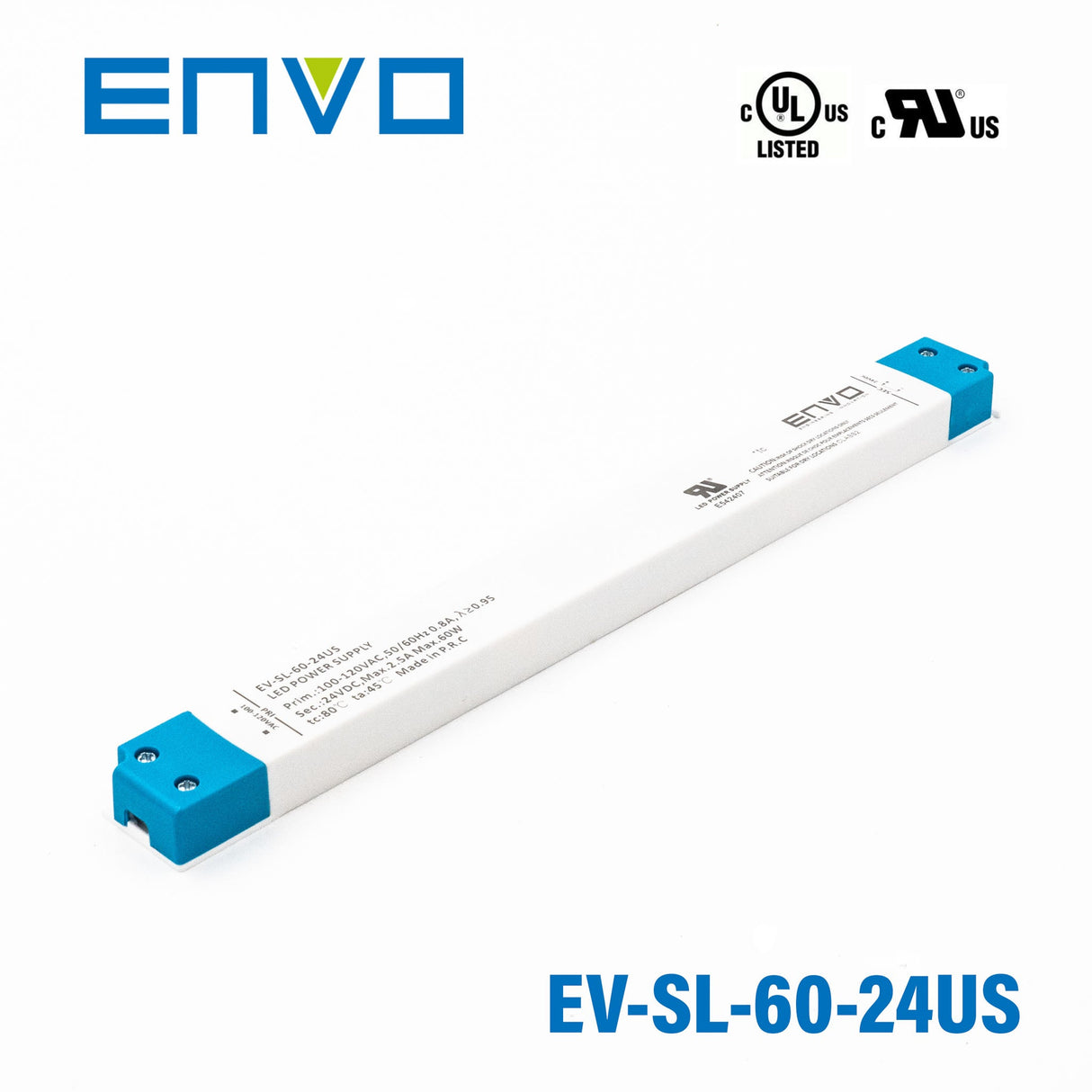

ENVO EV-SL-60-24US Linear LED Power Supply 60W 24V 2.5A
10% off 10+ units
Mix & match any ENVO LED drivers. US orders, applied automatically at checkout.
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO EV-SL-60-24US Linear LED Power Supply 60W 24V 2.5A
Overview
This product is not only cost-effective but also meets the Class II standard for electric shock protection. To improve product safety, open circuit, short circuit, and overload protection functions are added to the circuit. Warranty is 5 years.
Specifications
Input
- Input voltage
- 90-132Vac
- Input frequency
- 50Hz/60Hz
- Input current
- 0.8A
- Input power
- <70W
- Efficiency
- ≥ 88%
- StandbyAverage
- <0.5W
- Inrush currentPeak
- <50A
- PF
- ≥0.95
Output
- Startup time
- 1S
- Output voltage and precision
- 24V±5%
- Output current range60W
- 0-2.5A
- Output voltage waveVp-p
- 500mV
- Output overload
- Yes
Environment
- Relative humidity
- 45%-85%
- IP grade
- IP20
Others
- Lifetime
- 30,000hr
- Case material and size
- Plastic Case 304.6x30x16.7mm
- EMI
- FCC PART15 CLASSB
Certifications & ratings
- Certification marks
- UL8750
Technical drawings
Downloads
Datasheet1
FAQ
What is this power supply used for?
It is a 60W, 24V linear LED driver designed for indoor lighting applications.
What is the input voltage range?
The input voltage range is 90-132Vac at 50Hz/60Hz.
What are the output specifications?
It provides a 24V output with a current range of 0-2.5A and an efficiency of at least 88%.
Does it have safety protections?
Yes, it includes open circuit, short circuit, overload, over temperature, and over voltage protection with auto recovery for most faults.
How is it mounted and what is the IP rating?
It has an IP20 rating for indoor use only and features an independent mounting style with a plastic case.
What certifications does it have?
It is UL and cULus certified and meets the Class II standard for electric shock protection.
What is the warranty period?
The product comes with a 5-year warranty.
